Chemical Electric Digital Stainless steel ceramic coated Heating Magnetic Stirrer Hot Plate

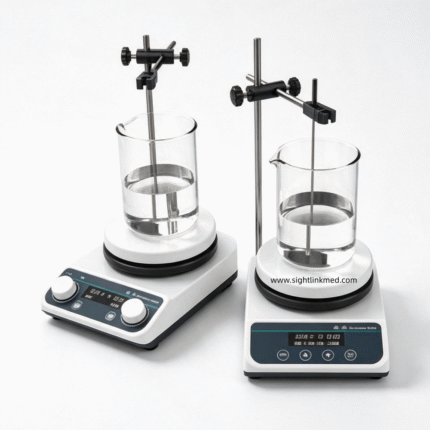

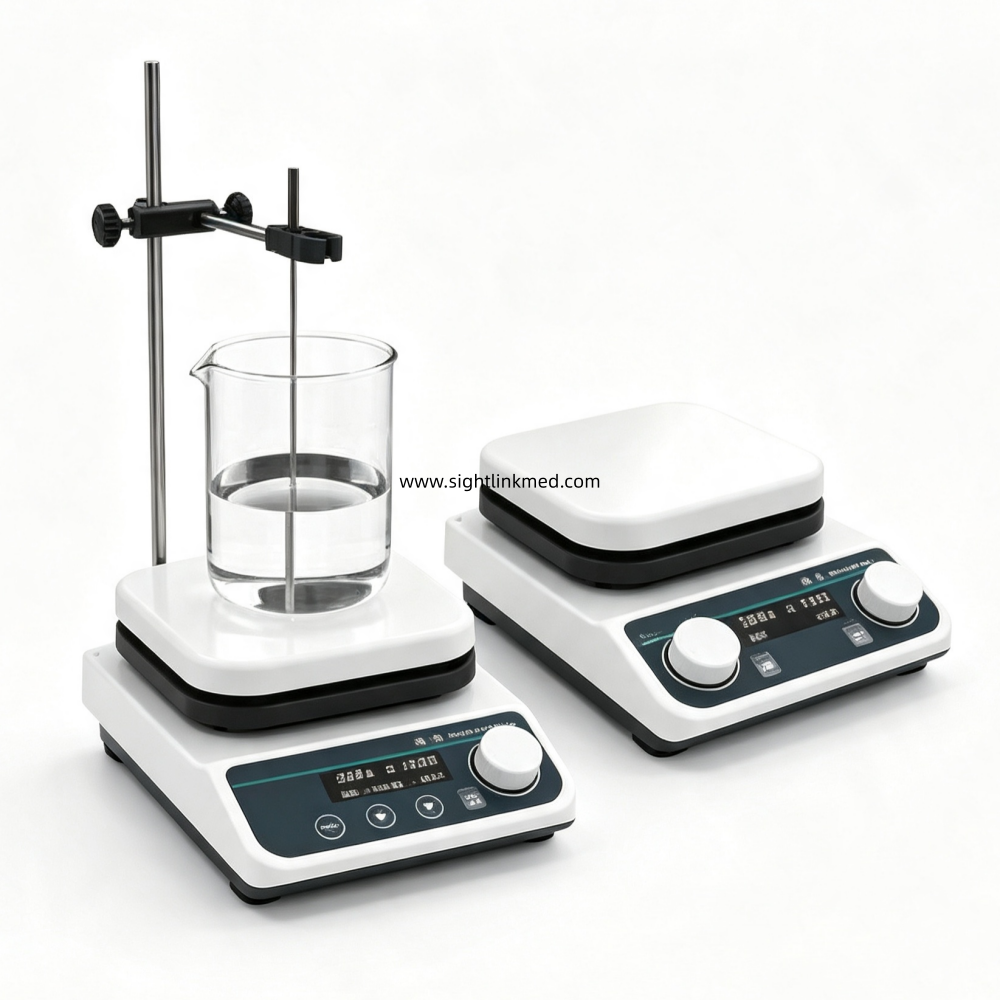

HS-6, HS-6C and HS-6Pro are square-plate heating magnetic stirrers developed for laboratory use. All three models adopt brushless motors and rotate counterclockwise. They feature a 135mm×135mm working panel covered with stainless steel ceramic coating, a maximum stirring capacity of 2 liters, universal AC110/220V input voltage and unified overall dimensions of 22515590mm. The ceramic coating brings excellent resistance against acids, alkalis and organic solvents while delivering uniform heat transfer. Powerful built-in magnets keep stirring bars stable and avoid bouncing during operation. The three versions differ in control modes, heating temperature limits, power ratings and timing functions to match diversified experimental needs.

Differences Among Three Models：

HS-6 is the entry-level model operated purely by knobs. It runs at adjustable speeds between 200rpm and 1500rpm, with a heating range from room temperature up to 260℃ and rated power of 200W. There is no timing function available. This cost-effective option fits basic daily stirring and heating experiments with no need for digital parameter reading.

HS-6C uses knob adjustment matched with digital display screens. Users can adjust speed and temperature conveniently via knobs while reading real-time data clearly on the display. Its heating upper limit rises to 280℃ with power upgraded to 300W, and it still does not support timing settings. It works well for regular experiments requiring precise visible parameters and medium heating demands.

HS-6Pro is the high-end configuration controlled by digital buttons. It offers a wider adjustable speed range from 50rpm to 1500rpm to support both gentle low-speed blending and fast stirring. It adds a complete timing function covering 1 minute to 12 hours for long-duration experiments. The maximum heating temperature reaches 310℃ with peak power of 400W, capable of meeting high-temperature reactions and prolonged constant-temperature stirring requirements.

Advantages：

Brushless motors ensure quiet running, stable rotation and long service lifespan. The ceramic-coated square panel boasts great chemical resistance and even heating performance. All units support installation of support rods and fixtures to hold temperature probes and reaction containers firmly. The dual wide voltage design allows the equipment to be used in most countries and regions around the world. Flexible speed regulation, reliable heating performance and strong magnetic traction make the series suitable for long-term repetitive lab work.

Application：

This series is widely applied in chemical synthesis, preparation of biological culture solutions, pharmaceutical raw material extraction, environmental water sample testing, cosmetic raw material blending, and experimental teaching in schools and research institutes.

Technical Parameter:
