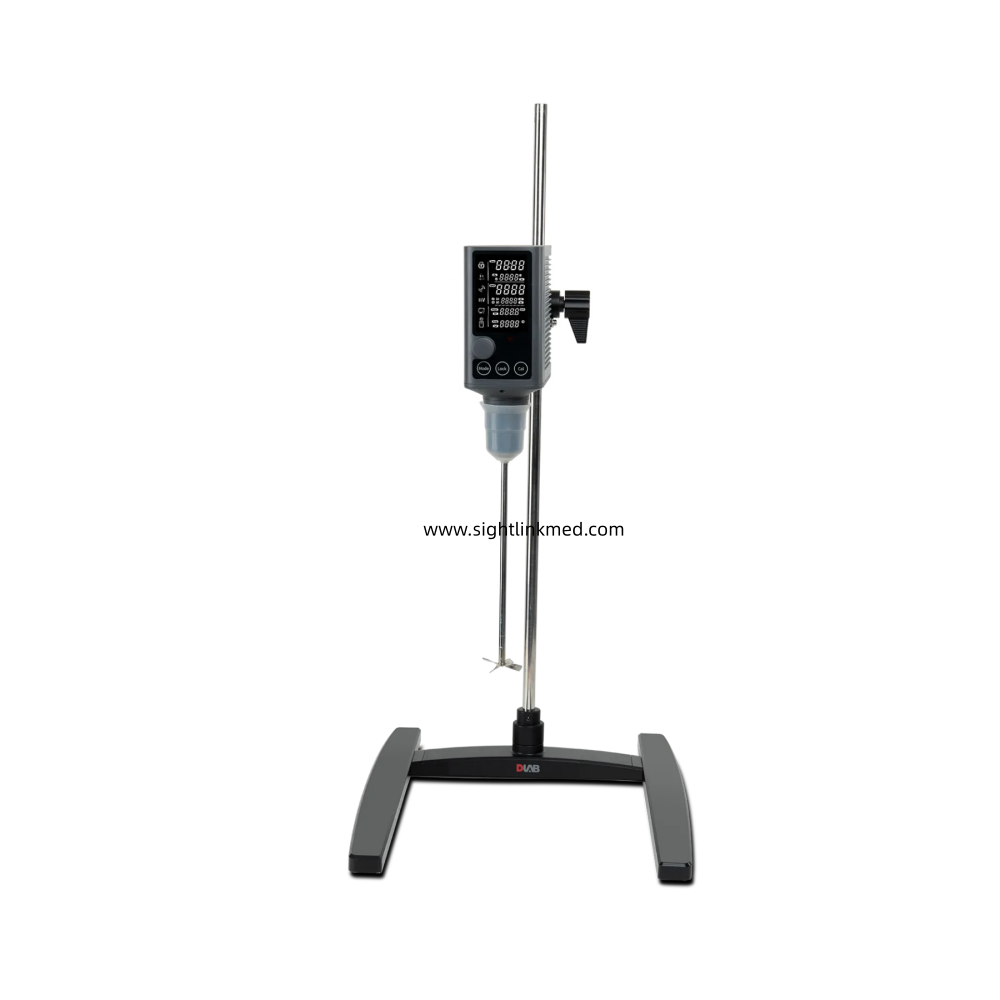

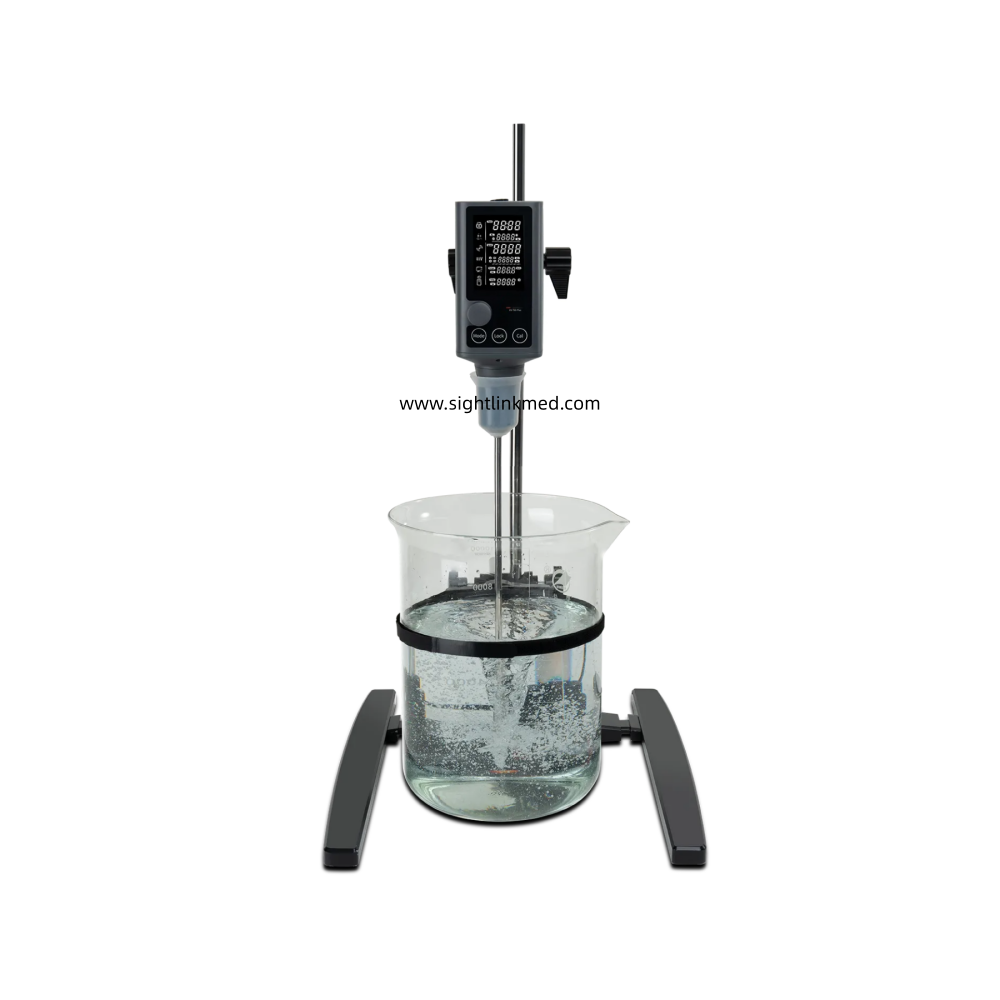

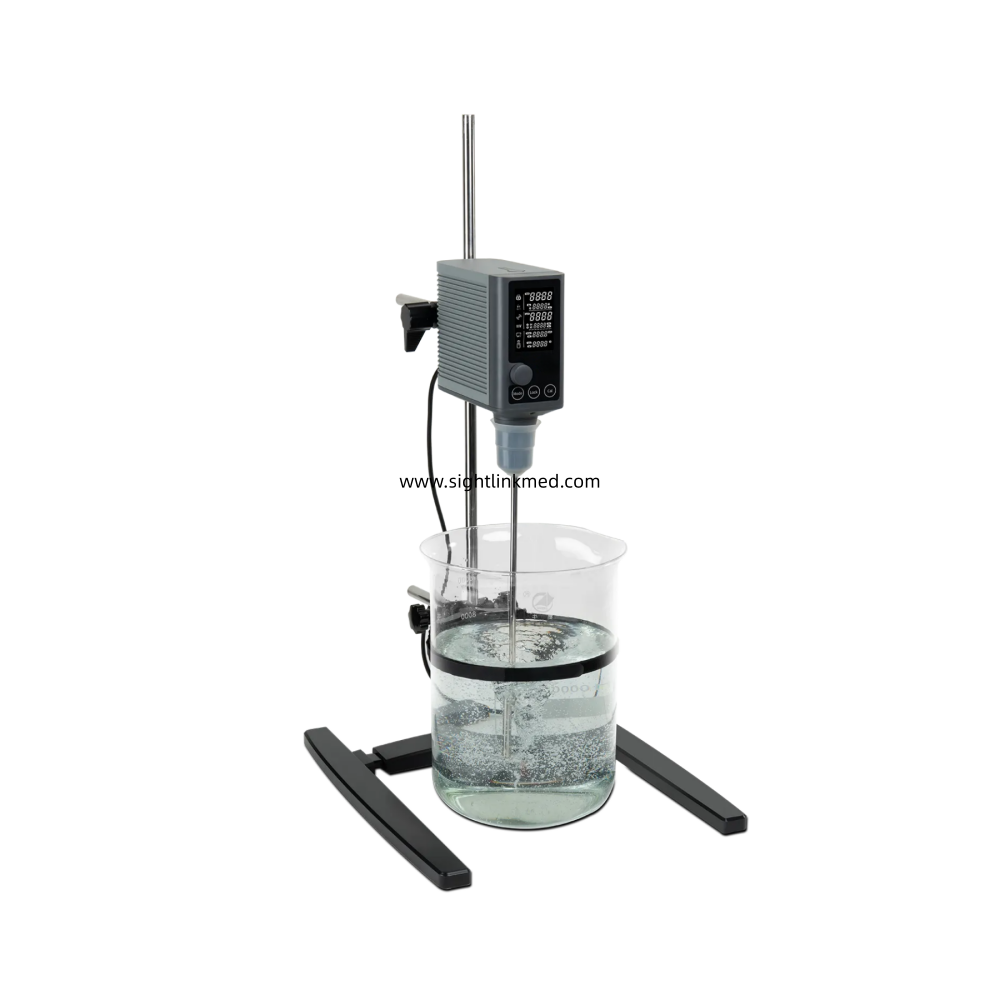

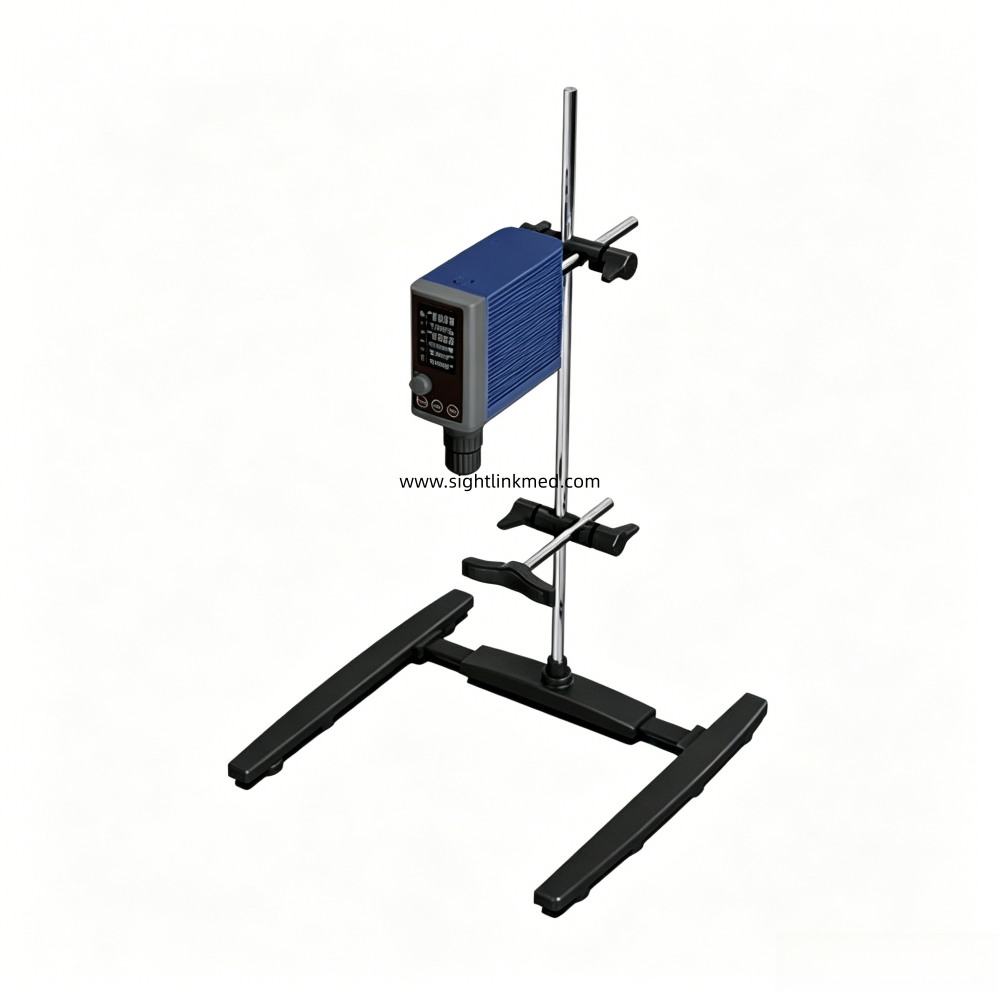

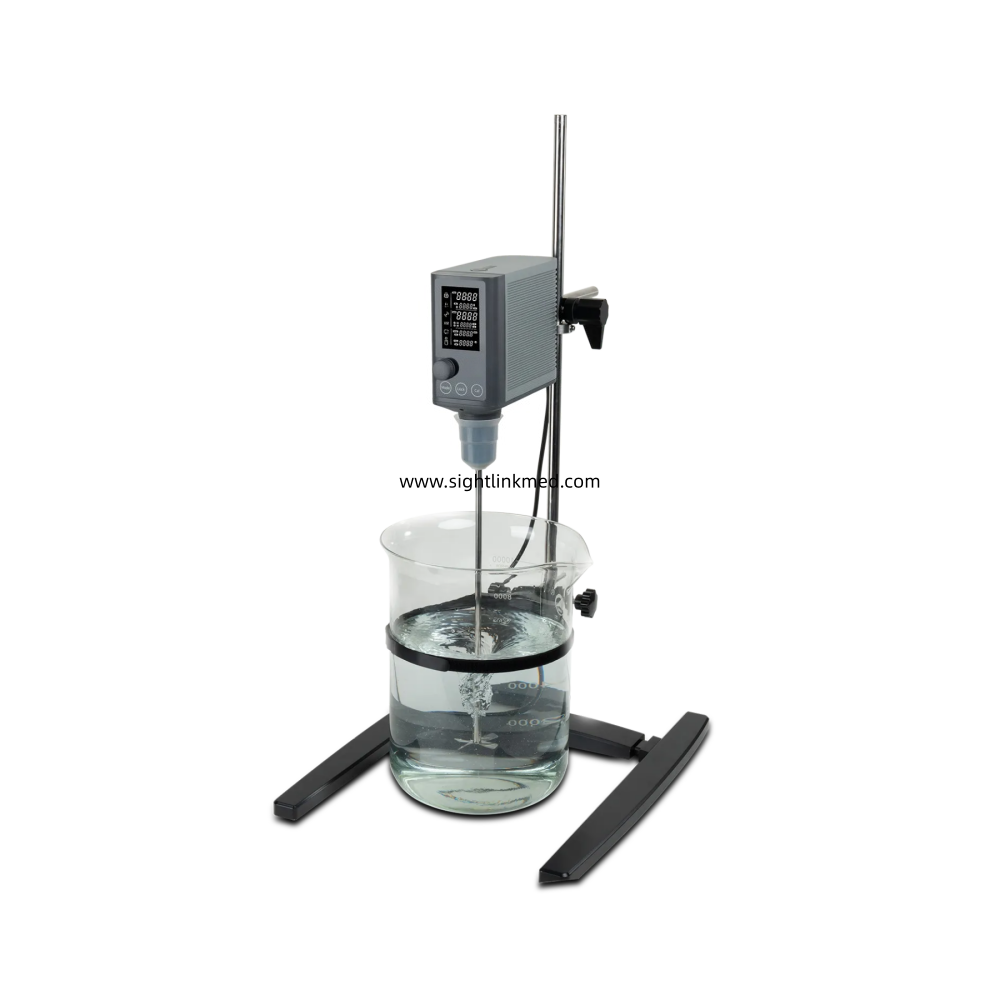

30L 50L 100L OS-T40-Plus/OS-T60-Plus LCD Display Digital Timed Laboratory Overhead Stirrer Liquid Mixer for Food Processing, Cosmetics
This overhead stirrer adopts brushless DC motor with digital LCD display for speed, torque and temperature. It supports timed stirring, forward/reverse & intermittent mixing, built-in overload protection. With RS485/Type-C/USB data ports and sturdy metal support stand, it fits lab mixing from 30L to 100L for chemical, pharmaceutical applications.
Features:
💎Timing function: Timing range 1min-99h59min.
💎Thermometer function: There is an external temperature sensor inlet that plugs into the instrument and displays the sample temperature.
💎Safety lock to prevent accidental change of operation.
💎Paddle “through-the-top” design for easy container replacement.
💎LCD display of speed, torque, timing, temperature, etc.
💎Constant speed, automatically adjusts the torque according to changes in sample viscosity and maintains the set speed.
💎The speed can be switched forward and reverse.
💎Buzzer: When the machine malfunctions, or the timer function counts down to the end of the buzzer will emit a “drip drip drip” sound.
💎Without external transformer, the machine is safer to use.
💎Calibration can be achieved for torque and temperature of the sample.
Applications:
💎Field of chemical synthesis, field of material science.
💎Food analysis field: homogenisation for sample pre-treatment.
💎Biopharmaceuticals: pills, tablets, raw material mixing, colloidal gold preparation, etc.
💎Food processing: butter, ketchup, eggs, jaggery, etc.
💎Cosmetics: creams, ointments, shampoos, conditioners, etc.
💎Building materials: earth, mortar, clay, stone dust, etc.
Technical Parameter:
| Specifications | OS-T40-Plus | OS-T60-Plus | OS-T400-Plus |
| Max.stirring quantity[H₂O] | 30L | 50L | 100L |
| Speed range | 50~2200rpm | 50~2200rpm | A gear: 10-400 rpm; B gear: 50-2000 rpm |
| Time settings range | 0min-99h59min | 0min-99h59min | 0min-99h59min |
| Max. torque | 40N·cm | 60N·cm | 400N·cm |
| Viscosity max. | 10000mPa·s | 50000mPa·s | 150000mPa·s |
| Motor type | Brushless DC motor | Brushless DC motor | Brushless DC motor |
| Speed display | LCD | LCD | LCD |
| Torque display | LCD | LCD | LCD |
| Forward and reverse rotation | Forward, reverse, intermittent mixing | Forward, reverse, intermittent mixing | – |
| Temperature display accuracy | 0.1℃ | 0.1℃ | 0.1℃ |
| External temperature sensor | 0-100℃ | 0-100℃ | 0-100℃ |
| Overload clamp protection | LCD | LCD | LCD |
| Chuck clamp range diameter | 0.5~10mm | 0.5~10mm | 0.5~10mm |
| Data interface | RS485、Type-C、USB | RS485、Type-C、USB | RS485、Type-C、USB |
| Voltage,Frequency | 100~240V, 50/60 Hz | 100~240V, 50/60 Hz | 100~240V, 50/60 Hz |
| Motor input/output power | 60W/50W | 120W/100W | 180W/170W |
| Power | 70W | 130W | 300W |
| Dimension[WxHxD] | 90x240x227mm | 90x240x227mm | 101x270x264mm |
| Weight | 3.5Kg | 3.5Kg | 5.2Kg |
| Permissible ambient temperature and humidity | 5-40℃, 80%RH | 5-40℃, 80%RH | 5-40℃, 80%RH |
