Laboratory Stirrer Magnetic Stirrer with Stainless Steel Ceramic Coating Magnetic Stirrer Heating Plate
This heating magnetic stirrer series has three variants. HS-5 adopts knob control, stainless steel plate, 200W power and maximum heating temperature of 260℃. HS-5C uses knob plus digital display, ceramic coated plate, 300W power and heating up to 280℃. HS-5Pro uses button control with 1min-12h timing function, 50-1500rpm speed range, 400W power and heating up to 310℃. All units run counterclockwise with brushless motors, 2L stirring capacity and dual AC voltage. With stable stirring, anti-corrosion surface and flexible heating performance, they serve chemistry, biology, pharmacy and cosmetic laboratories.

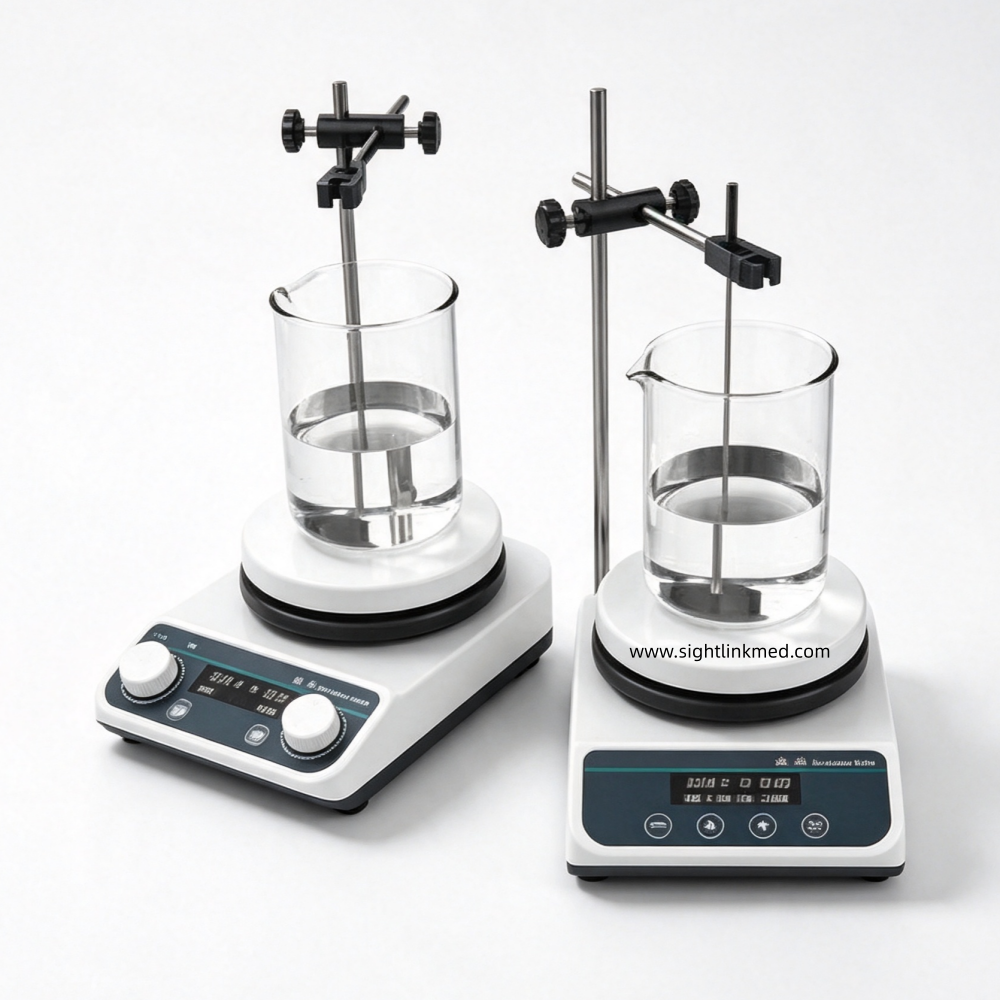

HS-5, HS-5C and HS-5Pro are lab heating magnetic stirrers integrating heating and stirring functions. All three models use brushless motors and rotate counterclockwise. They share the same 135-millimeter working plate size, AC110/220V power input and outer dimensions of 22515590mm, with a maximum stirring volume of 2 liters for all versions. These devices meet diverse experimental needs through differences in control modes, heating limits, power and extra timing functions.
Differences Among Three Models：
HS-5 is the basic economical version controlled only by knobs. Its working plate is made of ordinary stainless steel, with heating coverage from room temperature to 260℃ and total power of 200W. It suits regular simple experiments that do not need digital parameter display.
HS-5C upgrades to knob operation paired with digital real-time display. Its working plate features stainless steel with ceramic coating for stronger resistance against acids, alkalis and organic solvents. The heating range expands to room temperature to 280℃ with 300W power, ideal for common experiments requiring visible and accurate speed and temperature values.
HS-5Pro is the high-end model controlled by digital buttons. It adds a timing function ranging from 1 minute to 12 hours, and boasts the widest speed range of 50–1500rpm. It supports heating up to 310℃ with maximum 400W power. The ceramic-coated panel supports long-time constant-temperature stirring, low-speed gentle mixing and high-temperature chemical reactions.
Advantages：
The brushless motor guarantees stable rotation, low noise and long service life. Strong magnetic attraction prevents stirring bars from slipping or bouncing during operation. The ceramic-coated panel versions have excellent corrosion resistance and even heat conduction. Dual universal voltage fits most countries globally, and the equipment can install support brackets to fix temperature probes conveniently.
Application ：
These stirrers are widely used for chemical synthesis, blending biological culture medium, pharmaceutical component extraction, environmental water testing, cosmetic raw material preparation and university laboratory teaching experiments.
Technical Parameter:
| Model | HS-5 | HS-5C | HS-5Pro |
| Motor type | Brushless motor | ||
| Control mode | Knob | Digital Display & Knob | Digital Display & Button |
| Speed range | 200-1500rpm | 200-1500rpm | 50-1500rpm |
| Max mixing volume | — | 2L | 2L |
| Timing range | / | / | 1min-12h |
| Temp of working disc | RT – 260℃ | RT – 280℃ | RT – 310℃ |
| Working disc size | φ135mm | ||
| Working disc material | Stainless steel plate | Stainless steel ceramic coated | Stainless steel ceramic coated |
| Redirect | Counterclockwise | ||
| Power | 200W | 300W | 400W |
| Voltage | AC110/220V | ||
| Dimension | 225*155*90mm | ||
