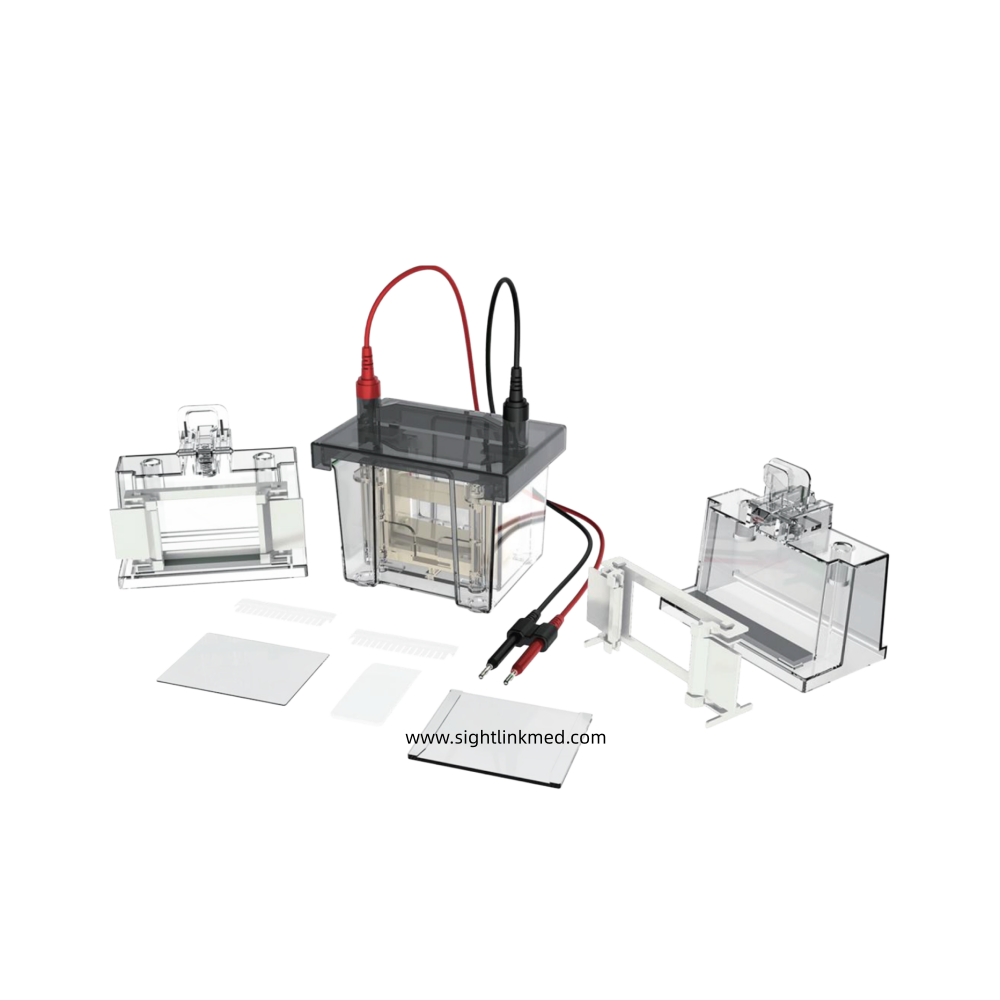

DL-Mini01 Vertical electrophoresis tank (double plate) for Lab Hospital Use
This high-quality acrylic system is designed for vertical polyacrylamide gel electrophoresis, ideal for SDS-PAGE, protein separation, and nucleic acid analysis. It supports simultaneous casting and running of two gels, with complete accessories including glass plates, combs, and gel casters. The clear tank ensures uniform buffer circulation and visibility, while safety features and reliable electrodes deliver consistent, reproducible results for routine and research applications.
Features：
💎This product is designed for vertical electrophoresis of a small amount of nucleic acid and protein samples.
💎The integrated design of the glass plate and the gasket ensures no glue leakage.
💎It can run two 8.3 × 7.3 cm gels at the same time.
💎The special glue-making device is simple and reliable in operation.
💎The silicone sealing pad is anti-aging and durable.
💎The cover can be opened and the power will be cut off automatically to ensure the safety of the experiment.
💎The limit function of the upper cover ensures that the positive and negative electrodes cannot be installed incorrectly. 99.99% high-purity platinum electrodes provide the best electrical conductivity, anti corrosion, and aging resistance.
💎Equipped with a variety of rubber plate thickness specifications and sample combs to meet different experimental requirements.
💎It can be used together with the DL-ZY02.
Technical Parameter:
💎Gel area: 8.3 × 7.3 cm
💎Gel thickness: 0.75, 1.0, 1.5 mm (optional)
💎Optional tooth number of sample comb: 10, 15
💎Glass size: Short glass plate (10.1 × 7.3 cm); long glass plate (10.1 × 8.2 cm)
Standard Configuration:
| Name | Unit | Quantity |
| Lid (power supply) | set | 1 |
| Bottom tank | pc | 1 |
| Electrode core | set | 1 |
| Gel glass thick plate | pc | 5 |
| Gel Glass thin plate | pc | 5 |
| 10-well comb | pc | 2 |
| 15-well comb | pc | 2 |
| Gel casing stand | pc | 2 |
| Casing frame | pc | 2 |
| Baffle | pc | 1 |
| Gel Releaser | pc | 1 |
