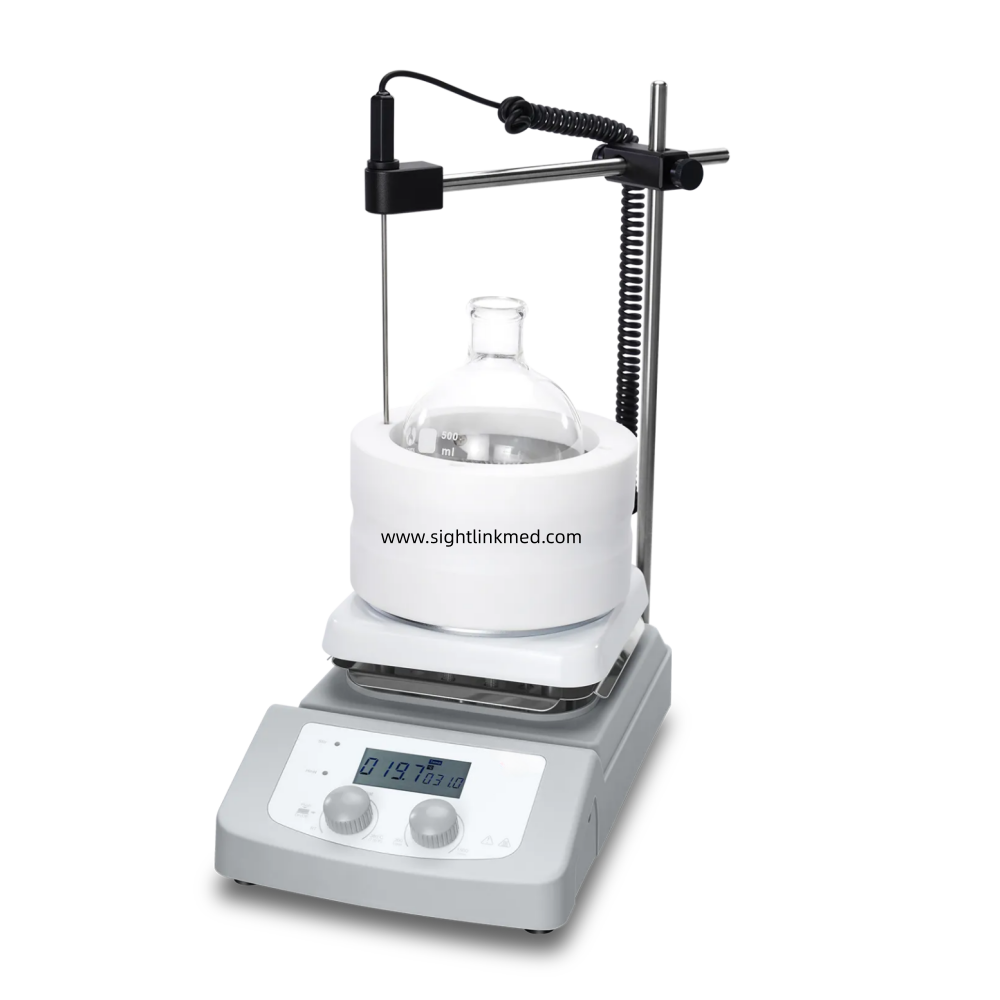

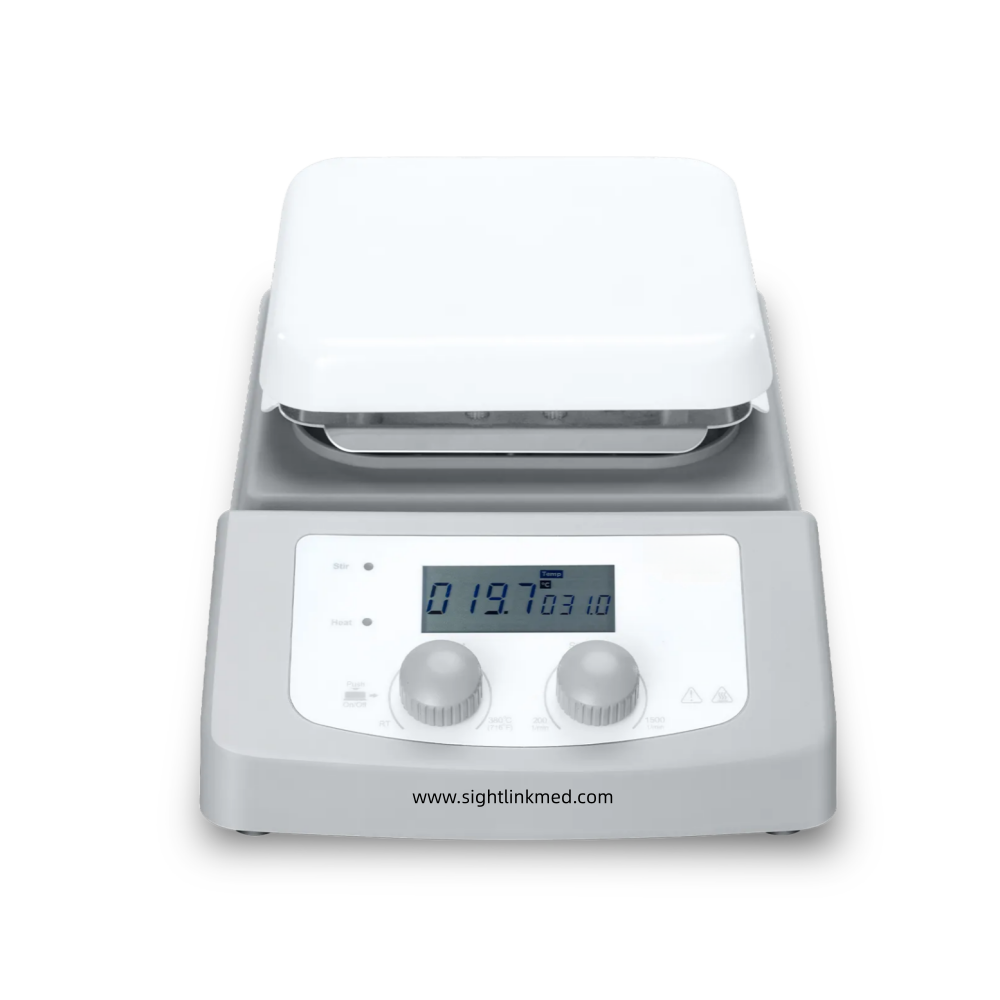

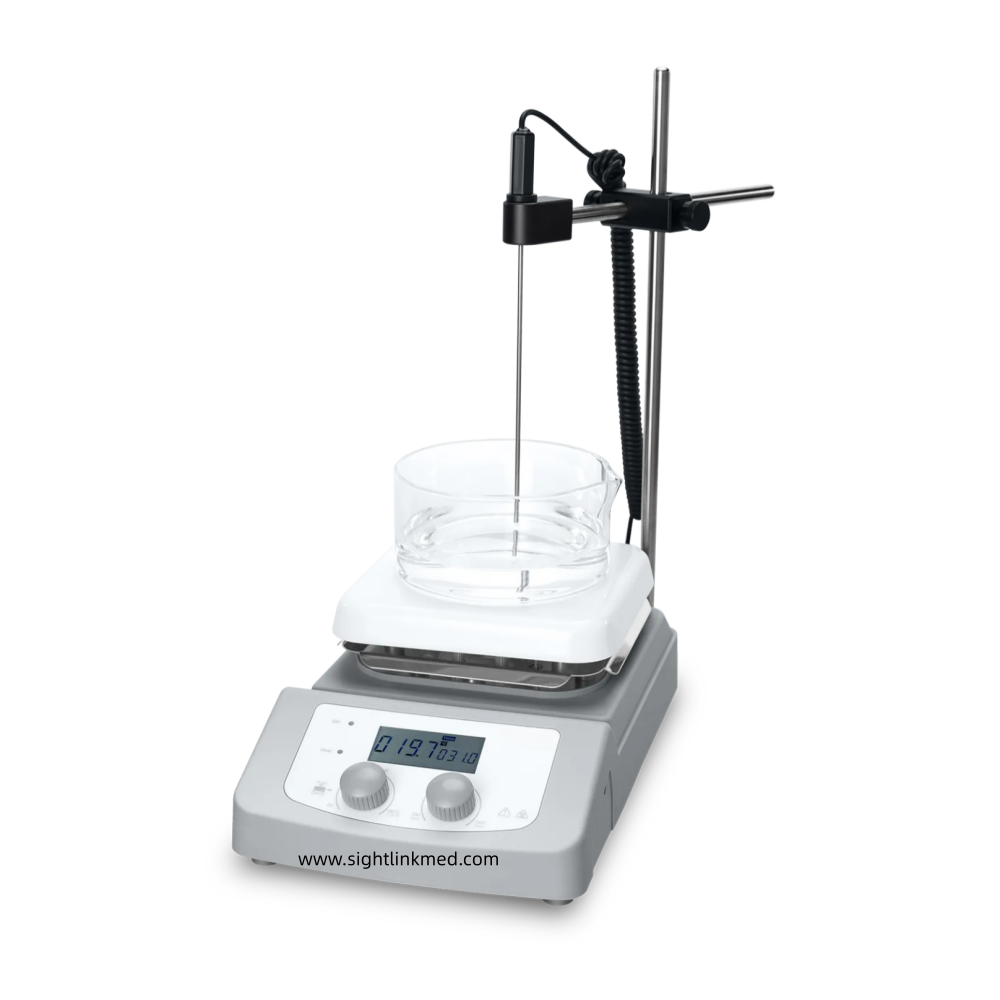

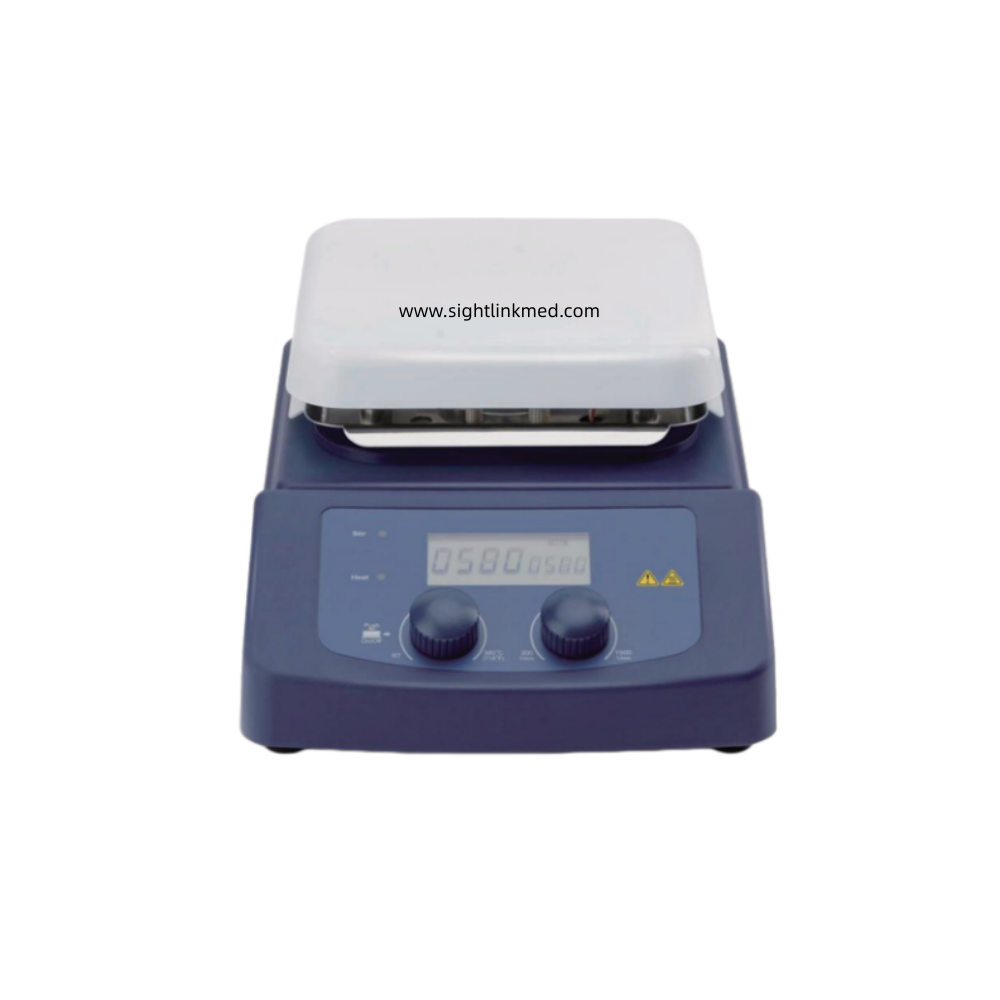

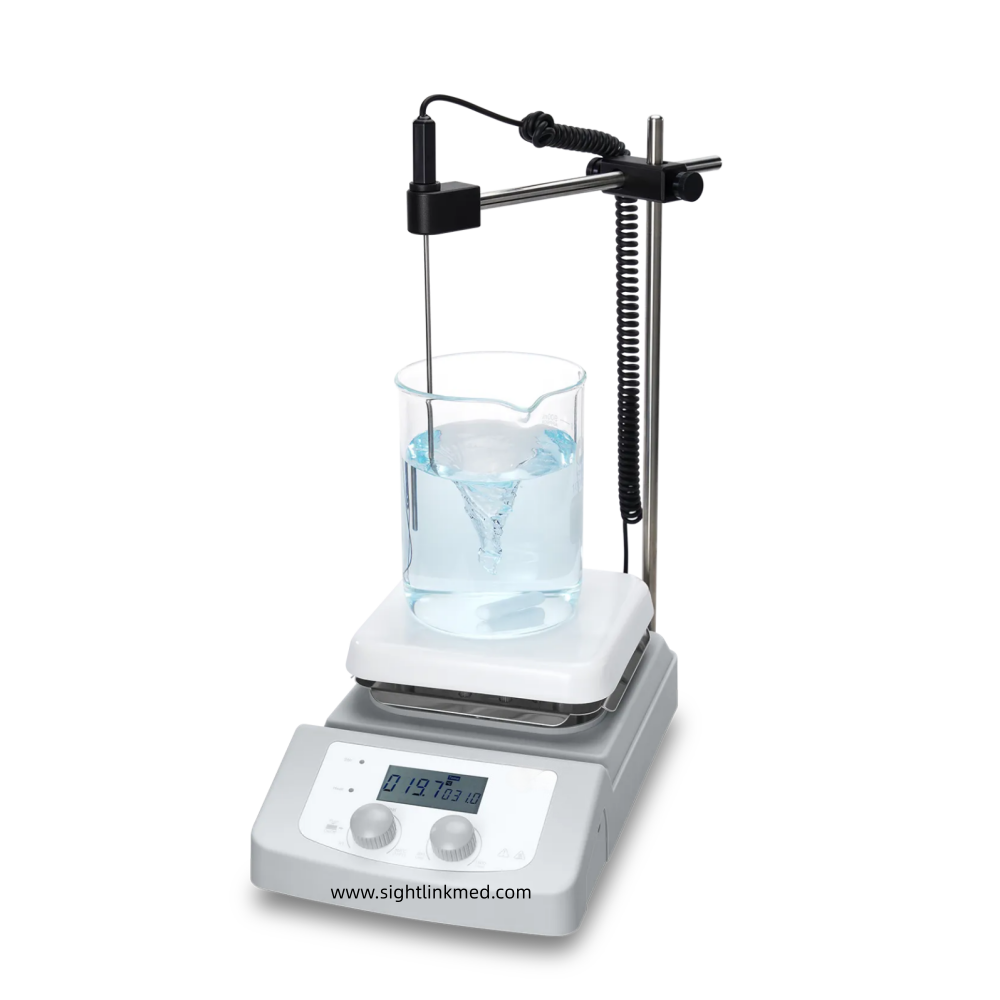

Thermostatic 340C Heating 20L Capacity 1500rpm Brushless Motor Timer PT1000 Sensor Medical Scientific Hotplate Magnetic Stirrer
This digital magnetic hotplate stirrer features a ceramic-coated aluminum heating plate for fast heat conduction, with a maximum heating temperature of 380°C and support for external PT1000 temperature sensor control. Equipped with a maintenance-free brushless DC motor, it delivers adjustable stirring speeds up to 1500 rpm and can handle up to 5 liters of water. The high-resolution LCD screen clearly displays real-time temperature and stirring speed for precise lab operation.
Features：
💎Maximum heating temperature is 380°C
💎High resolution LCD displays actual temperature and speed
💎Brushless DC motor is maintenance free
💎Aluminum ceramIc coating work plate, allowing immediate heat transfer
💎External temperature control is possible with temperature sensor PT1000
💎Digital speed control with maximum speed up to 1500rpm
💎Maximum stirring quantity of H2O at 5L
Technical Parameter:
| Specifications | MS-H380-Pro |
| Work plate Dimension [W x D] | 140x140mm |
| Work plate material | Aluminum cover with ceramic coating |
| Motor type | Brushless DC motor |
| Stirring positions | 1 |
| Max. stirring quantity, [H₂O] | 5L |
| Max. magnetic bar [length] | 50mm |
| Speed range | 200-1500rpm |
| Speed display | LCD |
| Temperature display | LCD |
| Heating temperature range | Room Temp.-380℃ |
| Heating liquid temperature control accuracy | ±1℃(<100℃) ±1%(>100℃) |
| Overheating temperature protection | 420℃ |
| Temperature display accuracy | ±0.1℃ |
| External temperature sensor | PT1000 (accuracy±0.2℃) |
| “Hot” warning | – |
| Data connector | – |
| Protection class | IP21 |
| Timer function | – |
| Motor rating output | 1.8W |
| Power | 510W |
| Heating output | 500W |
| Voltage,Frequency | 100-120/200-240V, 50/60Hz |
| Dimension [WxDxH] | 320x180x108mm |
| Weight | 2.2kg |
| Permissible ambient temperature and humidity | 5-40℃,80%RH |
