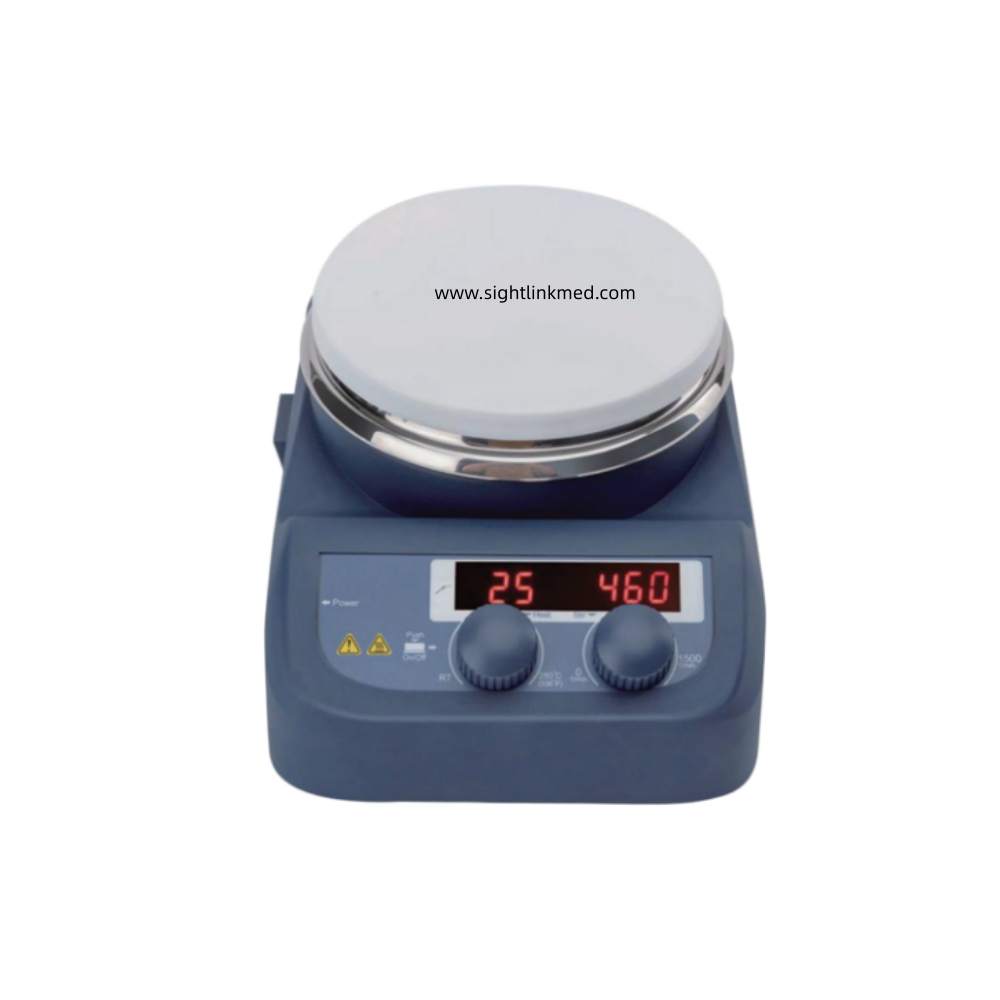

MS-H280-Pro LED Digital Magnetic Hotplate Stirrer with Maximum Temperature of 280°C
MS-H280-Pro is a perfect hotplate stirrer for handling small volume task and daily applications, with maximum temperature of 280°C
Features：
💎 Digital temperature control with maximum temperature up to 280°C
💎 Digital speed control with maximum speed up to 1500rpm
💎 Stainless steel with ceramic coating work plate provides high chemical resistant performance
💎 External temperature control is possible by connecting temperature sensor(PT1000) with an accuracy at ±0.2°C
💎 LED display shows temperature and stirring speed
💎 “HOT” warning flashes if work plate temperature is above 50°C
Technical Parameter:
| Specifications | MS-H280-Pro |
| Work plate Dimension [W x D] | Ø135mm (5 inch) |
| Work plate material | stainless steel cover with ceramic coating |
| Motor type | Brushless DC motor |
| Stirring positions | 1 |
| Max. stirring quantity, [H₂O] | 3L |
| Max. magnetic bar [length] | 50mm |
| Speed range | 200-1500rpm |
| Speed display | LED |
| Temperature display | LED |
| Heating temperature range | Room Temp.-280℃ |
| Heating liquid temperature control accuracy | ±1℃ (<100℃) ±1%(>100℃) |
| Overheating temperature protection | 320℃ |
| Temperature display accuracy | ±1℃ |
| External temperature sensor | PT1000 (accuracy±0.2℃) |
| “Hot” warning | 50℃ |
| Data connector | – |
| Protection class | IP42 |
| Timer function | – |
| Motor rating output | 3W |
| Power | 515W |
| Heating output | 500W |
| Voltage,Frequency | 100-120/200-240V, 50/60Hz |
| Dimension [WxDxH] | 150x260x100mm |
| Weight | 1.8kg |
| Permissible ambient temperature and humidity | 5-40℃,80%RH |
