Compact Teaching Experiment Biological Microscope Lab Equipment for Medical Study
Compact teaching experiment biological microscope—-Especially suitable for microscopic digital interactive classroom
In classroom teaching or daily work in laboratory, you need a microscope like NE300, not only compact, durable, but also
accurate and reliable. After all, both micro-teaching classroom and inspection scientific research require users to work long
time in space-limited operation table. Not only so, this optical microscope is also simple to operate and easy to use,
considering the using experience of beginners. With it, students’ learning will be more effective, and the work of the
laboratory staff will be also with high proficiency.

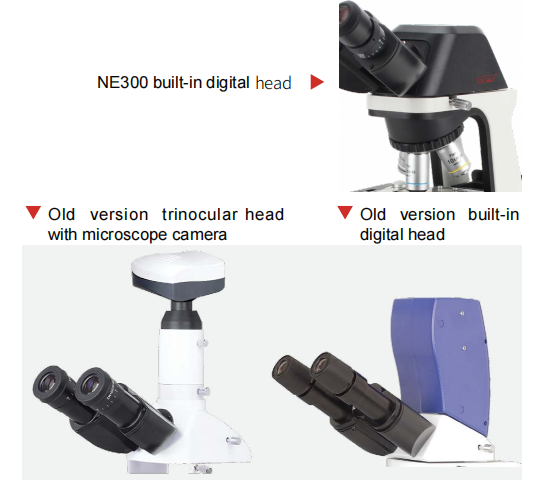

Integrated digital headOptional integrated digital head, same size as normalbinocular head,the microscope can
be connected tonetwork and build a digital interactive classroom, Micro-morphology interactive teaching by using
NOW.Lab system could help to save teaching time. Thereis no protruding camera interface,so microscope is moreconcise
and the daily maintenance is moreconvenient.

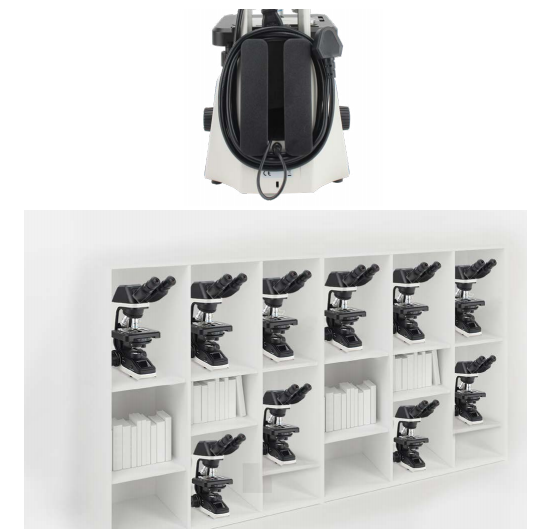

Carrying handle and hub deviceEquipped with a special carrying handle andlightweight, stable, and stable in structure.
The back of microscope is designed with a hub deviceto accommodate long power cords effectively, reducingthe power
cord trip accident during the process oftransport. Small size could minimize storage space.

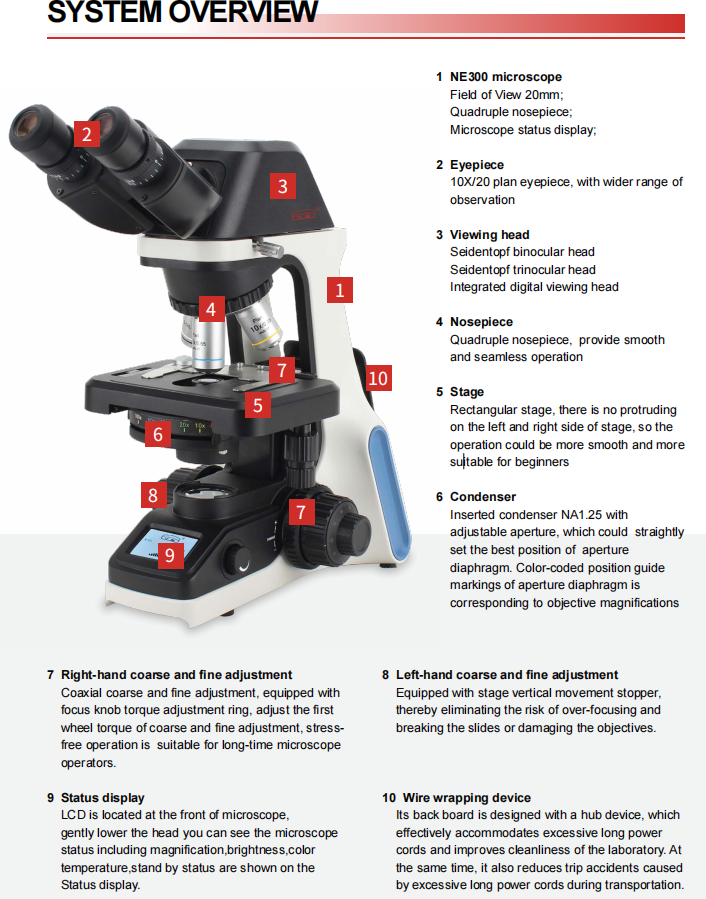

Technical Parameter:
| Main body | NE300 Binocular set | NE300 Trinocular set | NE300 Digital set |
|---|---|---|---|
| Optical system | NIS infinity optical system | NIS infinity optical system | NIS infinity optical system |
| Illumination | High luminescent white 3W LED illuminator | High luminescent white 3W LED illuminator | High luminescent white 3W LED illuminator |
| Display | (LCD display magnification, time sleeping, brightness indication and lock, etc.) | (LCD display magnification, time sleeping, brightness indication and lock, etc.) | (LCD display magnification, time sleeping, brightness indication and lock, etc.) |
| Eyepieces | EW10X/20, With diopter adjustment | EW10X/20, With diopter adjustment | EW10X/20, With diopter adjustment |
| (F.O.V., mm) | Seidentopf binocular tube | Seidentopf trinocular tube | Integrated digital viewing tube |
| Tubes | Reversed-type quadruple nosepiece(coding) | Reversed-type quadruple nosepiece(coding) | Reversed-type quadruple nosepiece(coding) |
| Stage | Rectangular mechanical stage 180mm X 130mm, with specimen holder, with vernier calibrations, moving range: 74 mm x 30 mm | Rectangular mechanical stage 180mm X 130mm, with specimen holder, with vernier calibrations, moving range: 74 mm x 30 mm | Rectangular mechanical stage 180mm X 130mm, with specimen holder, with vernier calibrations, moving range: 74 mm x 30 mm |

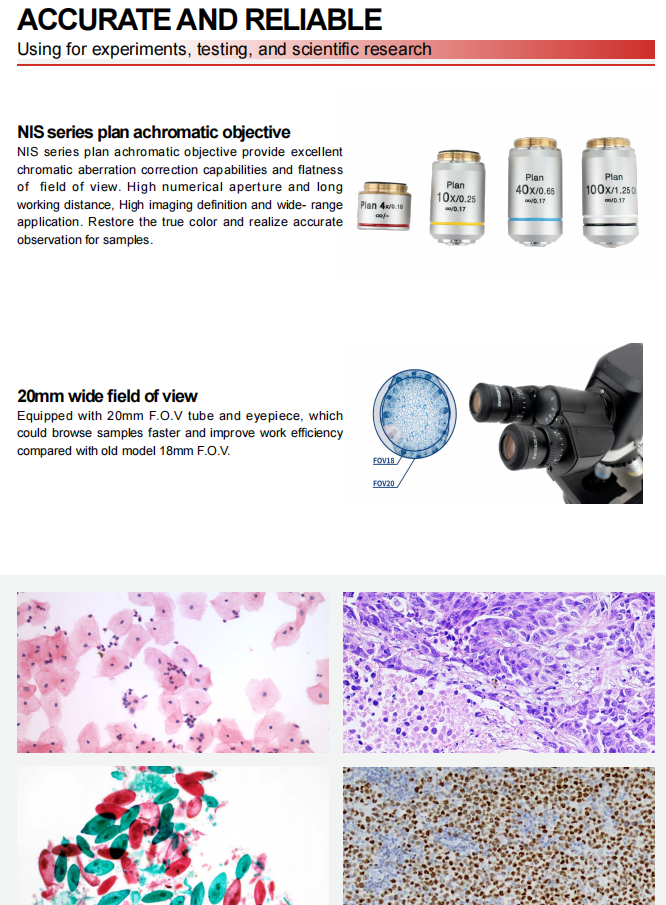

| Objectives | Plan Achromat 4X Plan Achromat 10X Plan Achromat 40X Plan Achromat 100X |
Plan Achromat 4X Plan Achromat 10X Plan Achromat 40X Plan Achromat 100X |
Plan Achromat 4X Plan Achromat 10X Plan Achromat 40X Plan Achromat 100X |
| Condenser | Inserted condenser NA1.25 | Inserted condenser NA1.25 | Inserted condenser NA1.25 |
| Observation | Brightfield | Brightfield | Brightfield |
