Medical Laboratory Customizable OEM Pilot Scale Digital Control Rotary Evaporator
Features：
💎 LCD digital display with intuitive interface for operation and control.
💎 PID controller, precise control, fast setting.
💎 Stepless automatic motor lifting of the heat bath, smooth and silent.
💎 The reciprocation rotation function is the most useful for concentration of sample with power or solid particles.
💎 Double-layer high-efficiency condenser with anti-backflow design, large condensation surface area, strong evaporation capacity is a guarantee of high efficient sample recovery.
💎 Professional air tightness system design with PTFE sealing ring, featured with heat/corrosion resistance, and high durability.

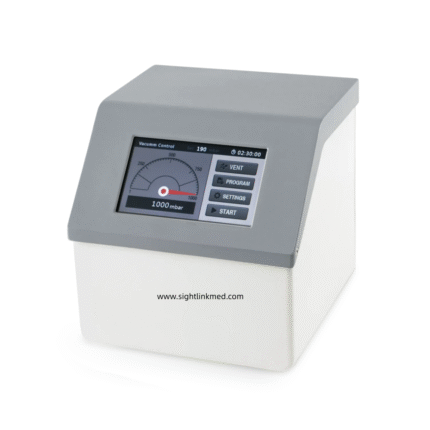

💎 Optional vacuum controller to control the vacuum degree freely.
💎 Keep the outer surface of the heat bath at mild temperature with proprietary heat insulation design to avoid accidental personnel burn injury.
💎 Equipped with automatic switching valve, continuous collection can be carried out without affecting the negative pressure index of the system and solvent distillation.
💎 Optional water bath/oil bath heating mode (standard water bath).
💎 Solution can be continuously fed into evaporating flask.
💎 Digital display steam temperature sensing device can feed back the solvent steam temperature in real time
Technical Parameter:

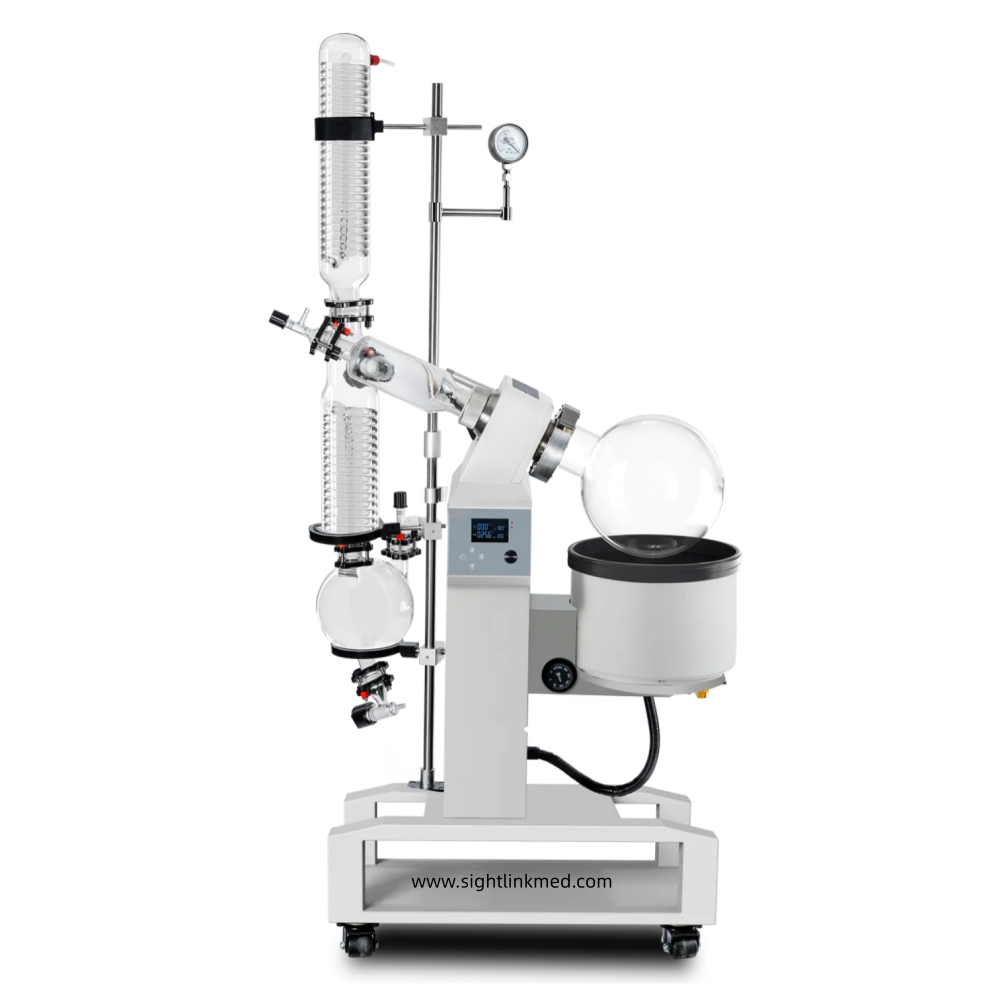

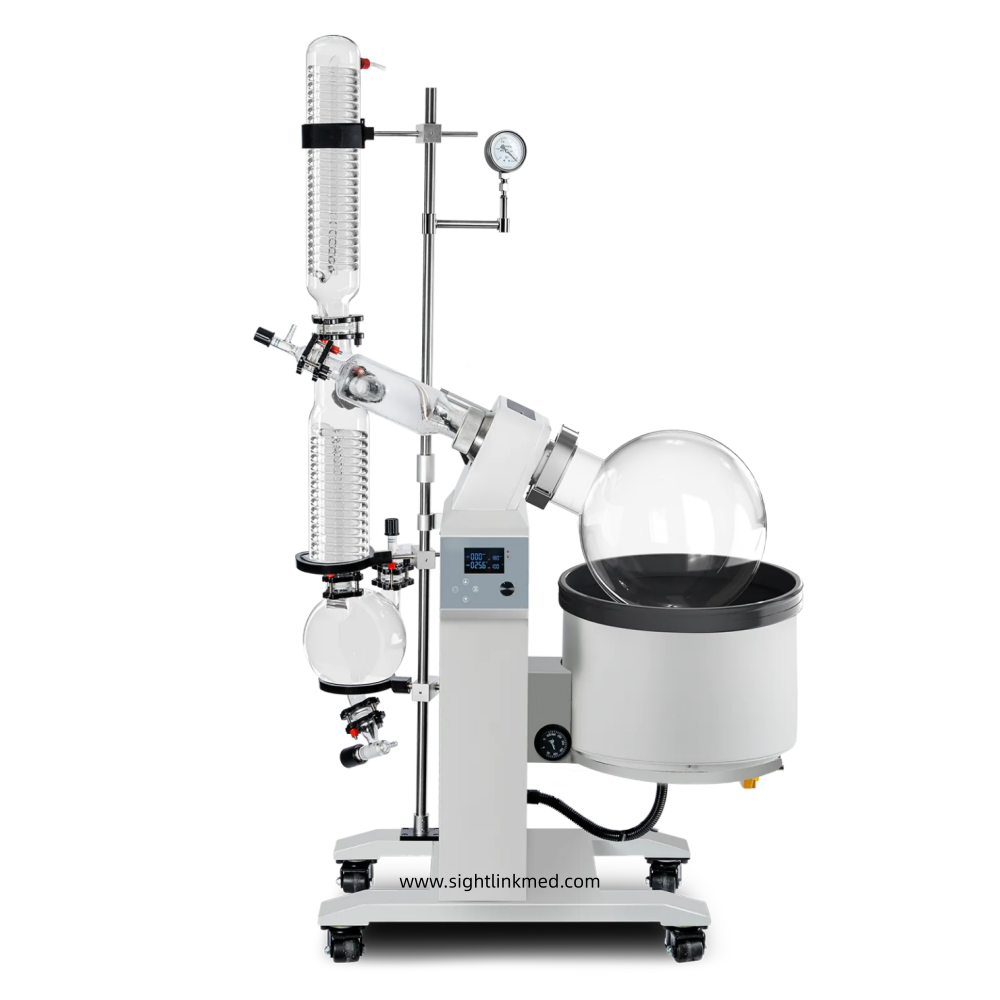

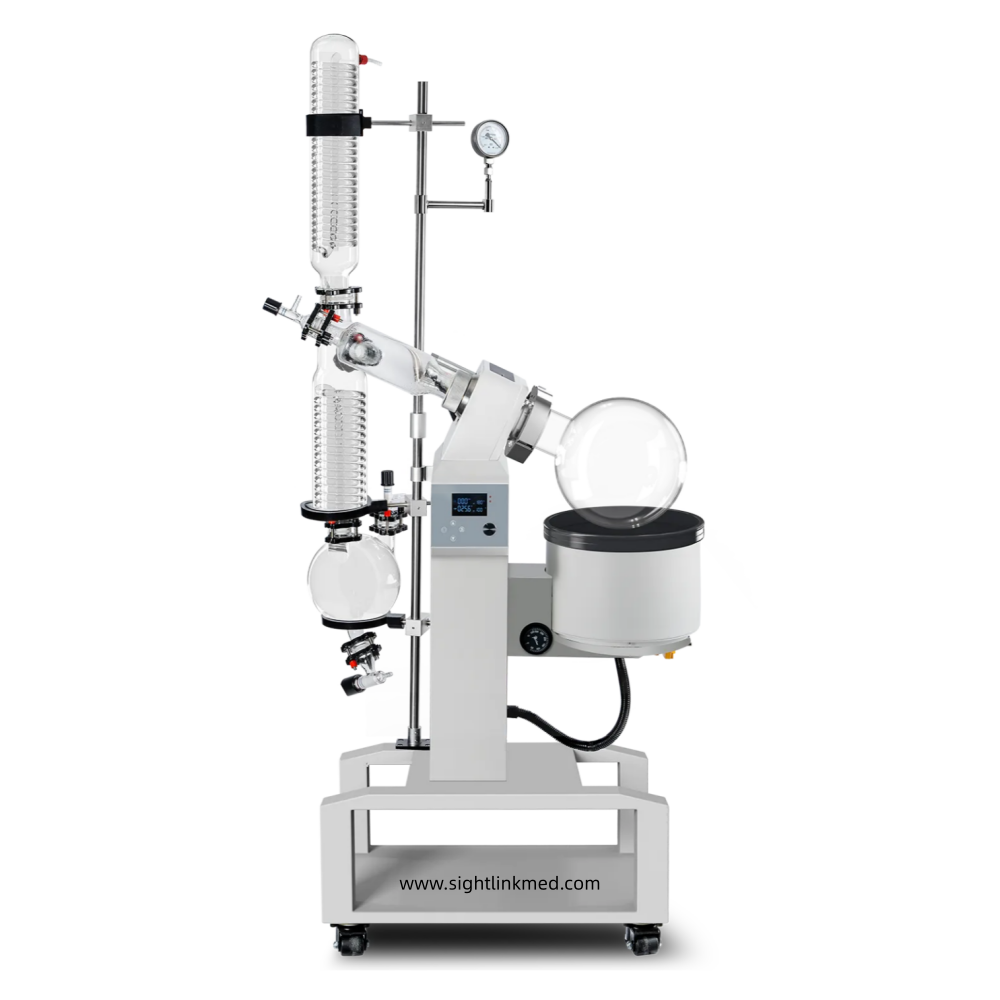

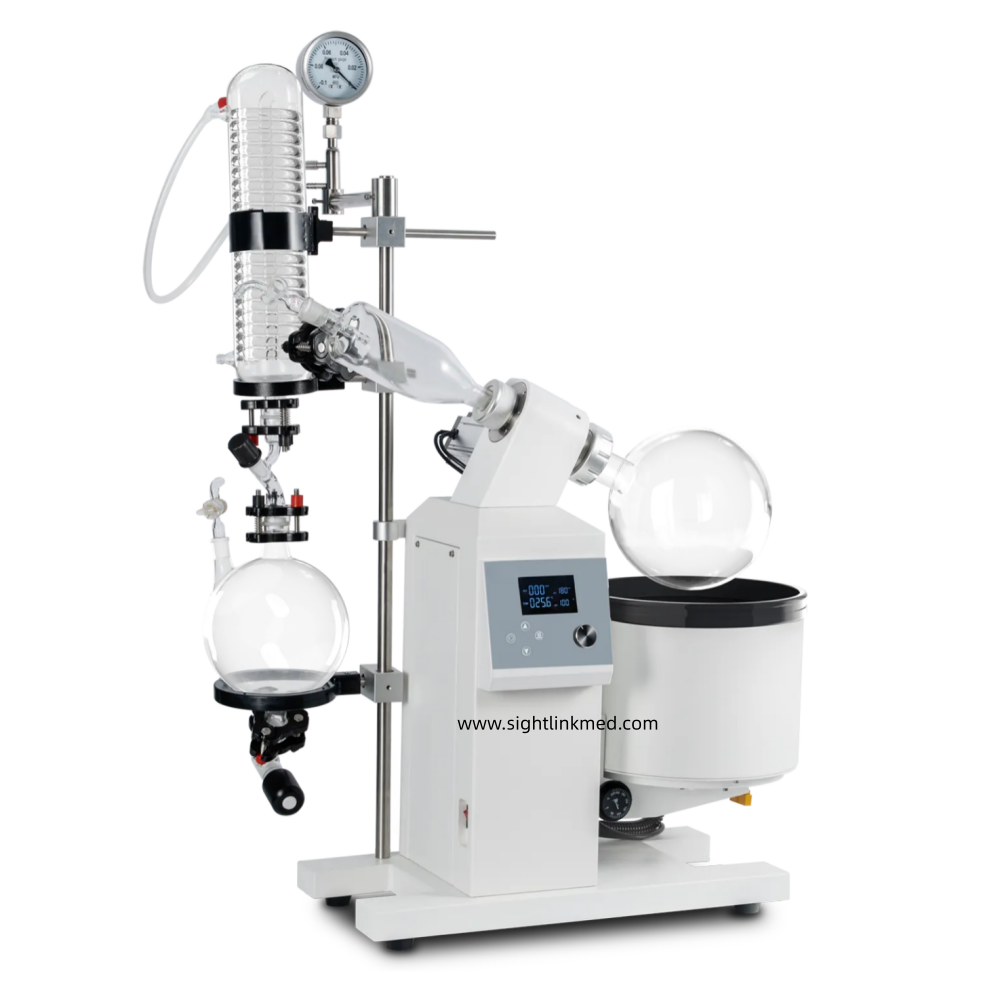

| Model | RE500-E | RE1000-E | RE2000-E | RE5000-E |
| Evaporating flask volume | 5L | 10L | 20L | 50L |
| Speed range (rpm) | 20-180 | 20-130 | 20-130 | 20-130 |
| Display | LCD | LCD | LCD | LCD |
| Evaporation Capacity (Max.L/h) For 75% Alcohol |
2 | 3.8 | 5 | 11 |
| Ultimate vacuum | 9 mbar | 9 mbar | 9 mbar | 9 mbar |
| Timer | Yes | Yes | Yes | Yes |
| Temperature range | Water Bath: 20-100°C Oil Bath: 20-180°C (Optional) |
Water Bath: 20-100°C Oil Bath: 20-180°C (Optional) |
Water Bath: 20-100°C Oil Bath: 20-180°C (Optional) |
Water Bath: 20-100°C Oil Bath: 20-180°C (Optional) |
| Temperature control accuracy (°C) | ±1 | ±1 | ±1 | ±1 |
| Heating Power (W) | 2000 | 3000 | 4000 | 5000 |
| Temperature Display | LCD | LCD | LCD | LCD |
| Lifting mode | Motorized | Motorized | Motorized | Motorized |
| Lifting Stroke (mm) | 130 | 200 | 180 | 253 |
| Time Setting Range | 0-999min | 0-999min | 0-999min | 0-999min |
| Voltage | 220V | 220V | 220V | 220V |
| Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
| Motor | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DC motor |
| Heat Bath | Teflon coating | Teflon coating | Teflon coating | Teflon coating |
| Protection Class | IP20 | IP20 | IP20 | IP20 |
| Dimension (D*W*H, mm) | 600*290*720 | 790*480*1130 | 900*490*1320 | 1030*510*1370 |
| Permissible ambient temperature (°C) | 5-40 | 5-40 | 5-40 | 5-40 |
| Permissible ambient humidity | ≤80% | ≤80% | ≤80% | ≤80% |
| Safety features | Motor over current protection, earth leakage protection, dry heating protection, overheat protection function | Motor over current protection, earth leakage protection, dry heating protection, overheat protection function | Motor over current protection, earth leakage protection, dry heating protection, overheat protection function | Motor over current protection, earth leakage protection, dry heating protection, overheat protection function |
