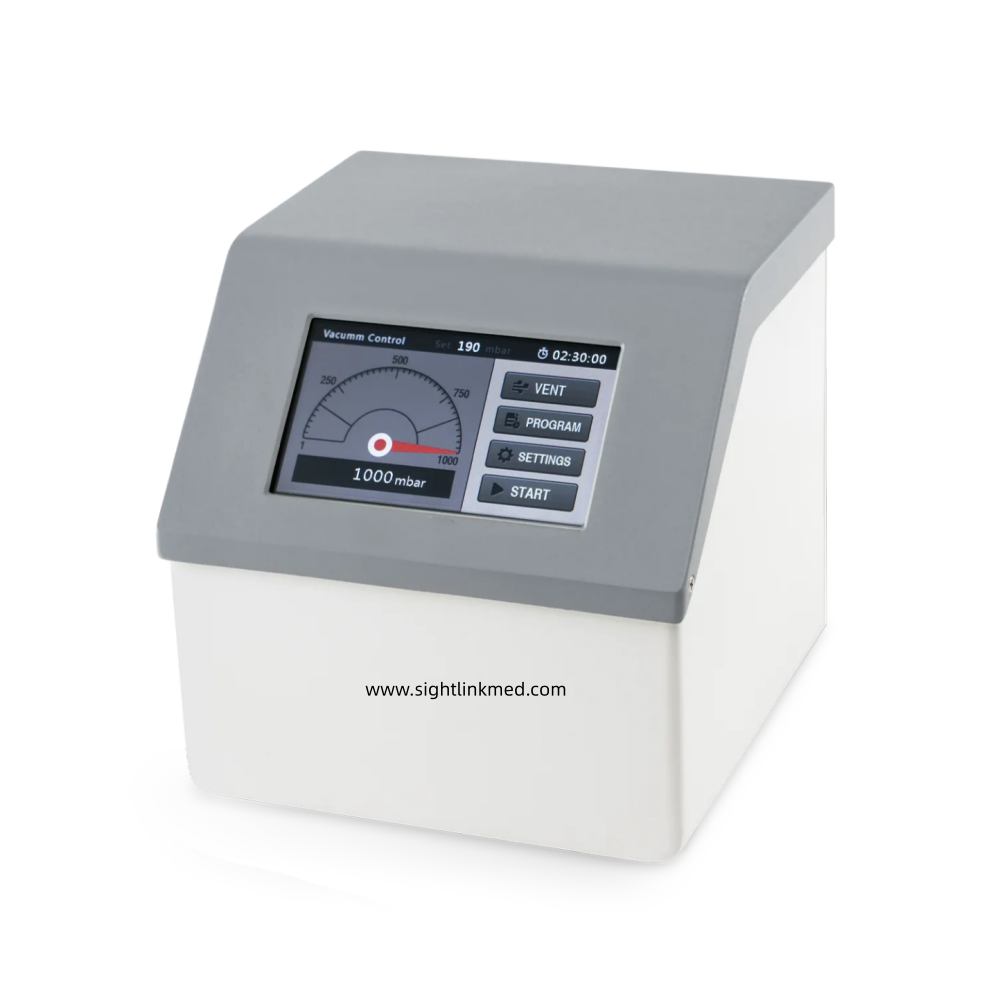

VC100 Factory Made Robust Digital Touch Screen Vacuum Controller 1500mbar Overload Protection for Scientific Research Lab
The vacuum controller serves as a device for labs to display, adjust and control the degree of vacuum in vacuum systems. It generally constitutes the vacuum control system of rotary evaporator along with vacuum pump, which enables repeatable distillation experiment and recovery of many kinds of solvents in an efficient and automatic manner.
Features：
💎 Wide range of measurement and control,1-1,000mbar
💎 Two control modes available Single-point control and programmed control
💎 Stores up to 5 programs, each containing up to 5 steps of programming control
💎 Large TFT touch screen display control provides easy operation
💎 All parts in contact with vapor or liquid are made of PTFE, ceramics or other high-performance materials which effectively resists corrosion caused by organic solvents, water, acid and alkali
💎 Built-in vent valve can feed inert gas into system equipment
💎 One-click decompression allows easy installation and dismantling of vacuum system
💎 Can be connected with pump power control for temporary shutdown of pump power supply after reaching stable degree of vacuum for energy conservation and environmental protection.
💎 Can also be operated in the normally open status of pump
💎 Reliable and functional design to fulfill essential needs of precise vacuum regulation
Technical Parameter:
| Specifications | VC100 |
| Vacuum setting range | 1-1000mbar |
| Vacuum measurement range | 1-1000mbar |
| Control mode | Single-point control mode, Programmed control mode |
| Control program | Can store up to 5 programs, each containing 5-step control (capable to set the degree of vacuum and time) |
| Setting method | Touch screen setting |
| Display | 5″ TFT |
| Sensor overload pressure | 1,500mbar |
| Connector diameter | 8mm |
| Materials in contact with vapor | PTFE, PP, silicone and ceramics |
| Power | 600W |
| Compatible conditions with vacuum pump |
Power of 50Hz vacuum pump ≤400W Power of 60Hz vacuum pump ≤500W |
| Overall dimensions(W×D×H) | 189×207×193mm |
| Weight | 4.0kg |
| Voltage, Frequency | 110-240V, 50Hz/60Hz |
| Operating environment | 10°C ~40°C ≤80%RH |
