LED Digital Hotplate Magnetic Stirrer
HS-Max Heating Magnetic Stirrer features anti-corrosion glass working surface, digital display with button & knob operation and one-click lock.
Speed range: 50–1500 rpm, timer: 1 min–12 h, program memory P1-9. Max working plate temperature up to 310°C, fitted with PT1000 sensor for accurate temperature control.
Four models optional for mixing volume from 2L to 10L. Widely used for lab heating and stirring experiments.

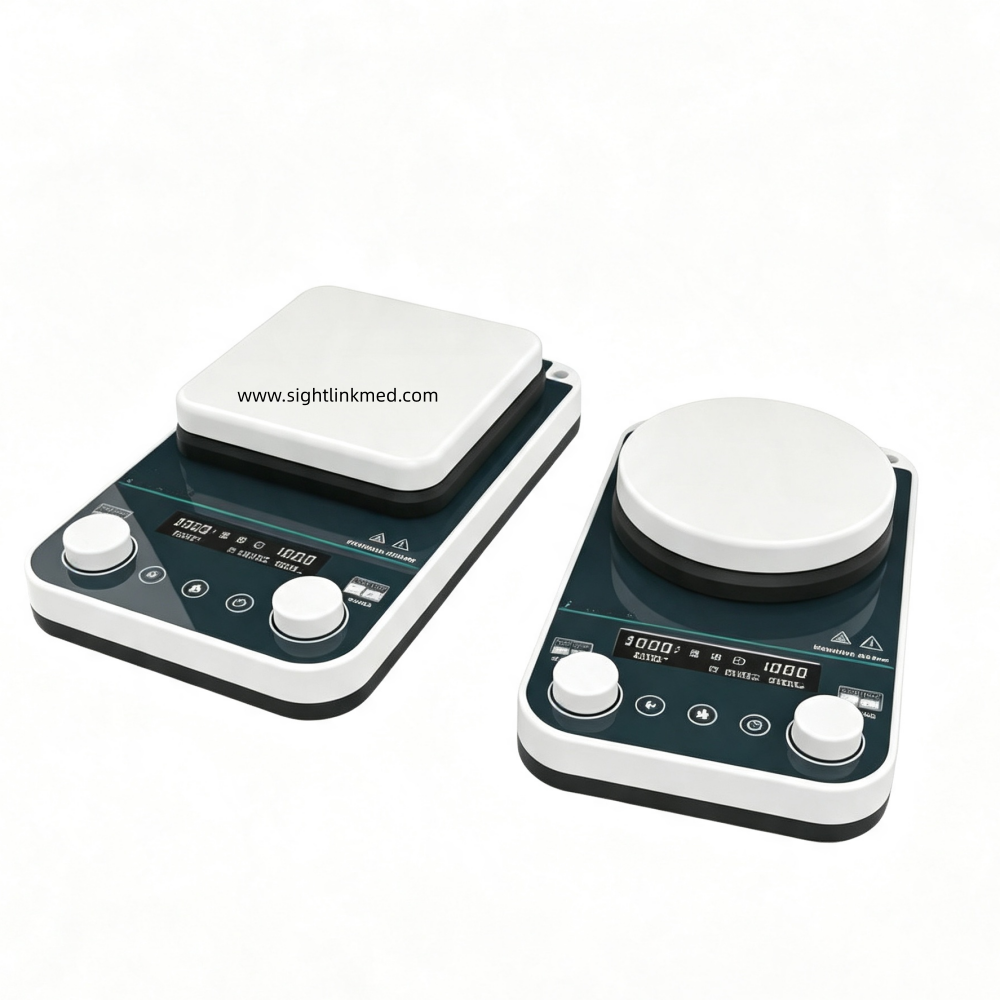

The HS-Max series heating magnetic stirrer includes HS-5Max, HS-6Max, HS-8Max and HS-10Max models, equipped with corrosion-resistant glass working plate.
It supports stirring speed from 50 to 1500 rpm with timing function ranging from 1 minute to 12 hours. Built-in program memory (P1–9) enables automatic multi-step experiment runs. The working plate temperature can reach up to 310°C (RT~310°C). With PT1000 temperature probe, it achieves precise temperature control (accuracy: ±1°C for liquid / ±3°C for plate).
Designed with digital display, physical buttons and adjustment knobs, as well as one-click lock function to avoid accidental parameter changes. Available in multiple plate sizes to match maximum mixing volume from 2L up to 10L. Wide voltage AC110/220V, ideal for constant-temperature stirring reactions in chemistry, biology and pharmaceutical laboratories.
Technical Parameter:
| Model | HS-5Max | HS-6Max | HS-8Max | HS-10Max |
| Speed range | 50-1500rpm | 50-1500rpm | 50-1500rpm | 50-1500rpm |
| Timing range | 1min-12h | 1min-12h | 1min-12h | 1min-12h |
| Maximum mixing volume | 2L | 2L | 5L | 10L |
| Program memory | P1-9 | P1-9 | P1-9 | P1-9 |
| Temperature of working disc | RT – 310°C | RT – 310°C | RT – 310°C | RT – 310°C |
| Working disc size | φ135mm | 135*135mm | 160*160mm | 200*200mm |
| Liquid/disc temp control accuracy | ±1°C/±3°C | ±1°C/±3°C | ±1°C/±3°C | ±1°C/±3°C |
| Temperature probe | PT1000 | PT1000 | PT1000 | PT1000 |
| Power | 300W | 300W | 500W | 800W |
| Voltage | AC110/220V | AC110/220V | AC110/220V | AC110/220V |
| Dimension | 270*160*80mm | 270*160*80mm | 310*190*80mm | 380*240*90mm |
