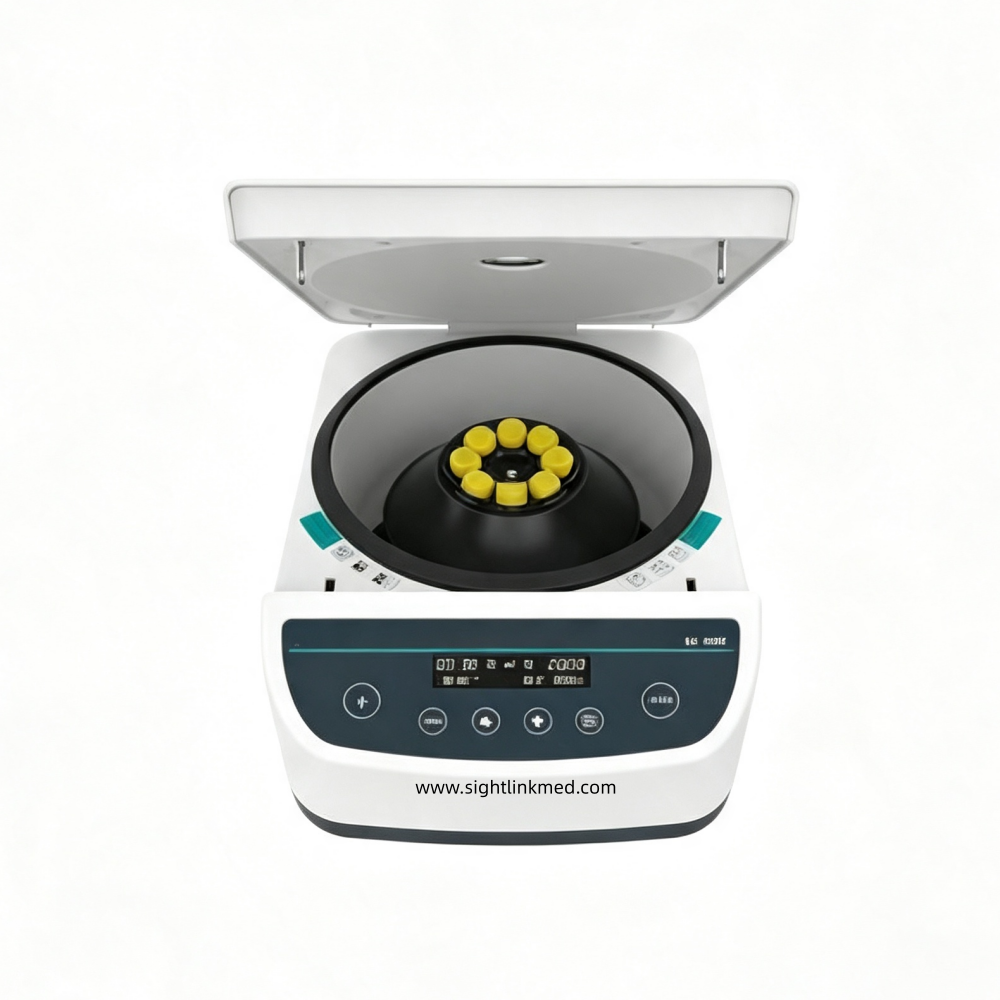

High Quality Blood Bank Equipment Laboratory Low Speed Centrifuge

The LC500 series consists of five low-speed centrifuge models: LC500-8, LC500-12, LC500-6, LC500-18 and LC500-24. Designed for routine mild separation in clinical labs, biochemistry and general scientific research, this digital low-speed centrifuge supports adjustable speed and precise timing. It is equipped with multiple interchangeable rotors and comprehensive safety protection systems. With universal wide voltage and unified compact size, the whole series adapts to global laboratory environments and diverse sample loading requirements.

Advantages：

1. Unified adjustable speed & differentiated centrifugal force

All five models share the identical speed regulation range of 500 rpm to 4000 rpm, suitable for gentle sedimentation of blood samples, urine, cell suspensions and macromolecular biomaterials sensitive to high speed.

Maximum RCF varies with rotor radius to match different loading capacities:

2. Precise programmable timing

The consistent timing window covers 30 seconds to 59 minutes and 50 seconds. Operators can customize runtime strictly according to standard operating procedures, ensuring stable experimental repeatability and eliminating human timing errors.

3. Complete multi-layer safety protection

Three major safety mechanisms are integrated for reliable daily operation:

1. Open lid protection: The rotor stops running automatically once the lid is opened to prevent accidental injury.
2. Over-temperature protection: It cuts off power if internal overheating occurs to safeguard samples and the motor.
3. Vibration protection: The unit alarms and halts operation when abnormal vibration appears, caused by unbalanced sample placement.

Paired with double electronic lid lock, the machine avoids unintended opening during operation.

4. Multiple rotor options for flexible throughput

Different rotor configurations accommodate different tube quantities and batch sizes: 6-tube, 8-tube, 12-tube, 18-tube and 24-tube rotors are optional. Laboratories can select matching rotors based on daily sample volume to improve processing efficiency. Power rating is differentiated: LC500-8/12 run on 60W; LC500-6/18/24 adopt 80W to support larger loading weights.

5. Universal power supply and uniform compact footprint

• Input voltage: AC 100–240V wide-range voltage, compatible with power supplies worldwide for export and global lab usage.
• Uniform overall dimension: 400 mm × 300 mm × 200 mm. All models occupy the same bench space, convenient for cabinet placement and laboratory layout planning.

Application：

Clinical serum separation, routine blood testing, urine centrifugation, cell culture precipitation, pharmaceutical inspection, university teaching experiments, environmental water sample testing and general low-speed biochemical separation.

Technical Parameter:
