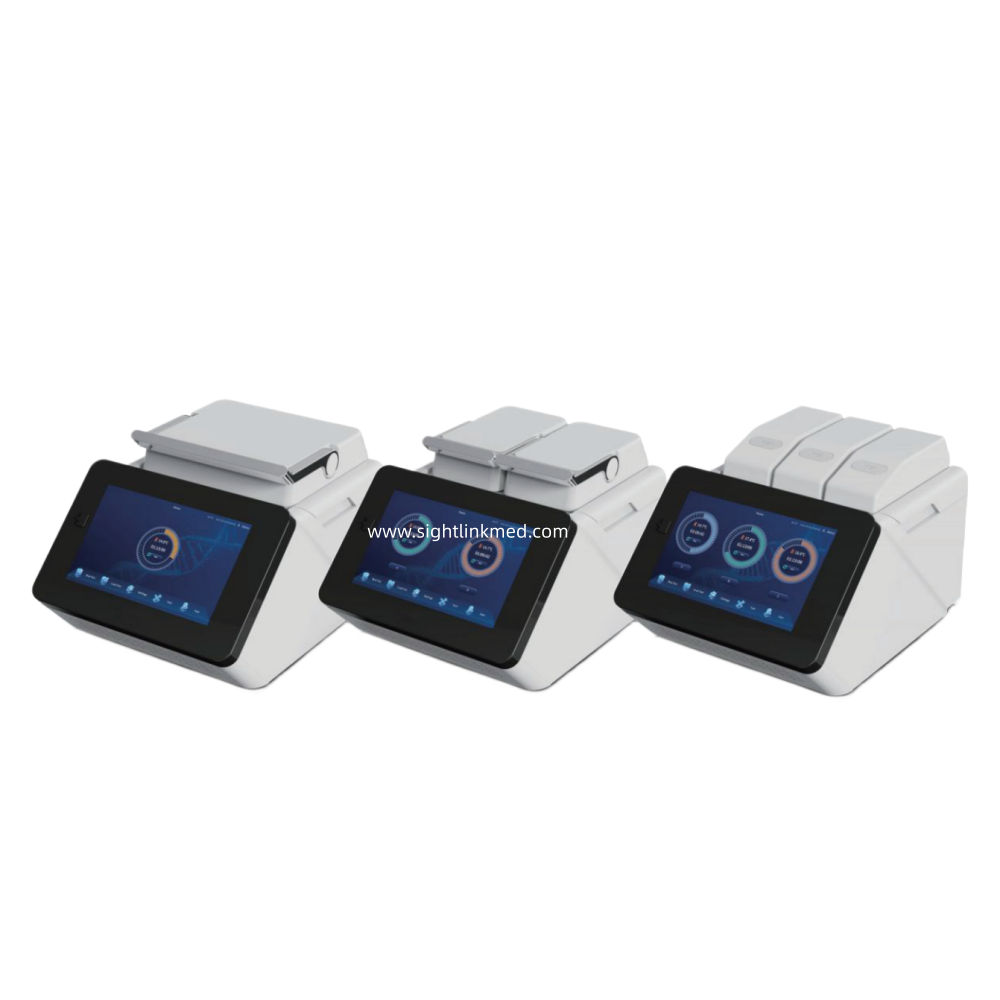

Laboratory PCR Thermal Cycler Gradient PCR Machine Three Channel
Features：
*10-inch large screen new Ul interface, divided into single-channel/ dual-channel /three-channel,to meet different experimental requirements
*With advanced gradient temperature control technology,high-performance and long-lasting Peltier refrigeration and heating, which can achieve precise temperature control in zones.
*Multi-channel module design, can run several different PCR gradient programs at the same time,to achieve multi-purpose machine
*Self-adaptive pressureleverhot cap,closeand tighten thecapinonestep,canbeadapted to different heights of test tubes
*Supports up to 199 cycles to perform the next operation, and runs a countdown disc to visually display the remaining time
*Edge temperature compensation technology for good temperature uniformity and gradient settings for easy optimisationof experimental conditions
*Real-time display of the running status of the programme, you can set the security account and password according to customer demand
*Automatic power failure protection, automatically execute unfinished cycles after power restoration to ensure the safe operation of thewhole amplificationprocess.
*Hot lid temperature and hot lid operating mode can be set to meet different experimental application requirements
*USB interface, support for U-disk storage/reading PCR data, support for U-disk software update, can be customised to meet the function of multiple file storage, support for Touch down PCR and Long PCR experiments
*Compatible with common 0.2mL PCR tubes, PCR-8Strips and 96-well PCR plates (no skirt, full skirt, half skirt)
| Specifications | TC2000-G1 | TC2000-G2 | TC2000-G3 |
| Sample Capacity | 96×0.2mL PCR tube 12×PCR-8strips 1×0.2mL 96-well PCR plate |
96×0.2mL PCR tube 12×PCR-8strips |
96×0.2mL PCR tube 12×PCR-8strips |
| Module | 1×96 | 2×48 | 3×32 |
| Sample module temperature control range [℃] | 0-105 | 0-105 | 0-105 |
| Hot lid temperature control range [℃] | 30-115 | 30-115 | 30-115 |
| Temperature display accuracy [℃] | 0.1 | 0.1 | 0.1 |
| Temperature control accuracy [℃] | ±0.1 | ±0.1 | ±0.1 |
| Temperature uniformity (at 55 ℃) [℃] | ±0.2 | ±0.2 | ±0.2 |
| Maximum rate of temperature change | 5℃/Sec | 5℃/Sec | 5℃/Sec |
| Gradient Temp Setting Range [℃] | 30-105 | 30-105 | 30-105 |
| Gradient span [℃] | 1-42℃, enter 0 to turn off the gradient | 1-25℃, enter 0 to turn off the gradient | 1-25℃, enter 0 to turn off the gradient |
| Temperature Control Method | Block/Tube | Block/Tube | Block/Tube |
| Material of the carrier module | Aluminum | Aluminum | Aluminum |
| Display | 10.1inches LCD 1280×800 | 10.1inches LCD 1280×800 | 10.1inches LCD 1280×800 |
| Input method | Touch panel | Touch panel | Touch panel |
| Power off protect | Yes | Yes | Yes |
| Skip to the next step | Yes | Yes | Yes |
| Communication Interface | USB, WIFI | USB, WIFI | USB, WIFI |
| Number of program storage | 20000+ (USB FLASH) | 20000+ (USB FLASH) | 20000+ (USB FLASH) |
| User Defined File System | Up to 30 steps and 199 cycles in a single program | Up to 30 steps and 199 cycles in a single program | Up to 30 steps and 199 cycles in a single program |
| Power Supply | 100-240V,50/60HZ,600W | 100-240V,50/60HZ,1000W | 100-240V,50/60HZ,1500W |
| Dimensions [WxDxH] | 310×422×264mm | 310×422×264mm | 310×422×264mm |
| Weight | 11Kg | 11Kg | 11Kg |
| Permissible Ambient Temperature and Humidity | 5-40℃, 80%RH | 5-40℃, 80%RH | 5-40℃, 80%RH |
