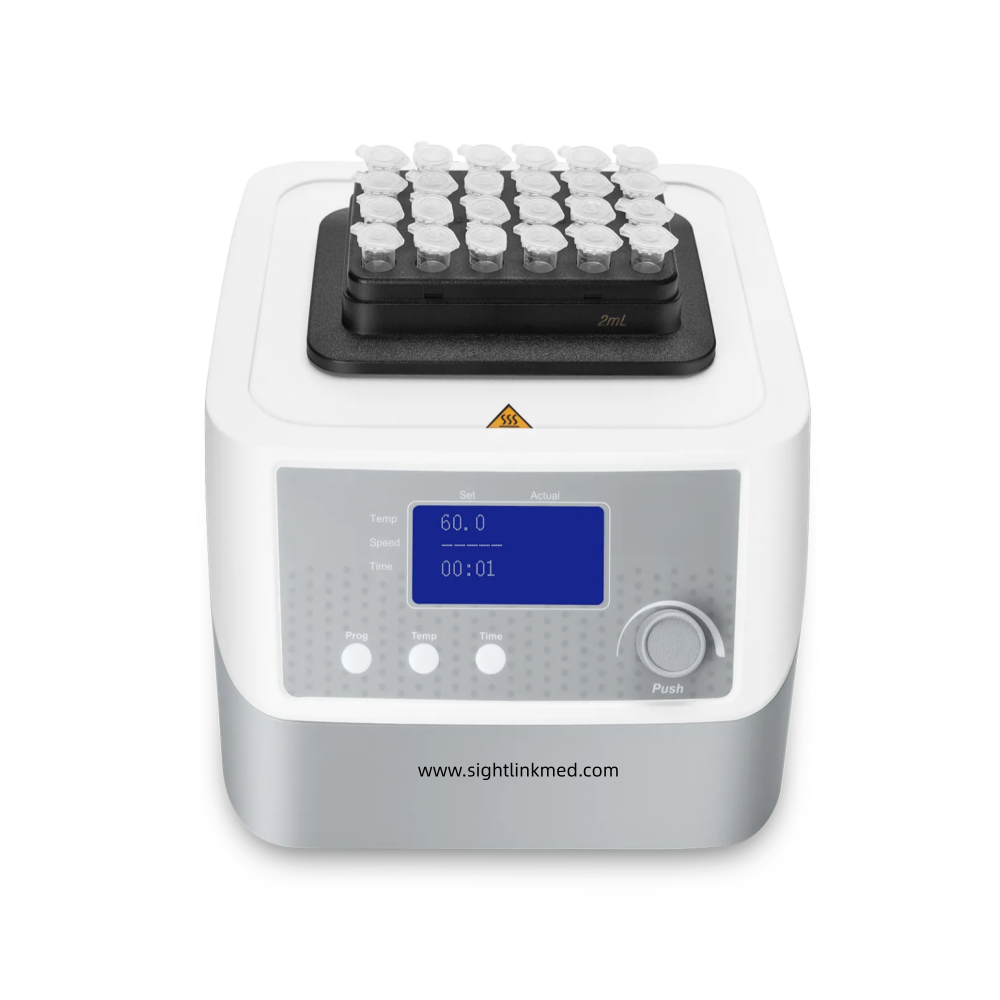

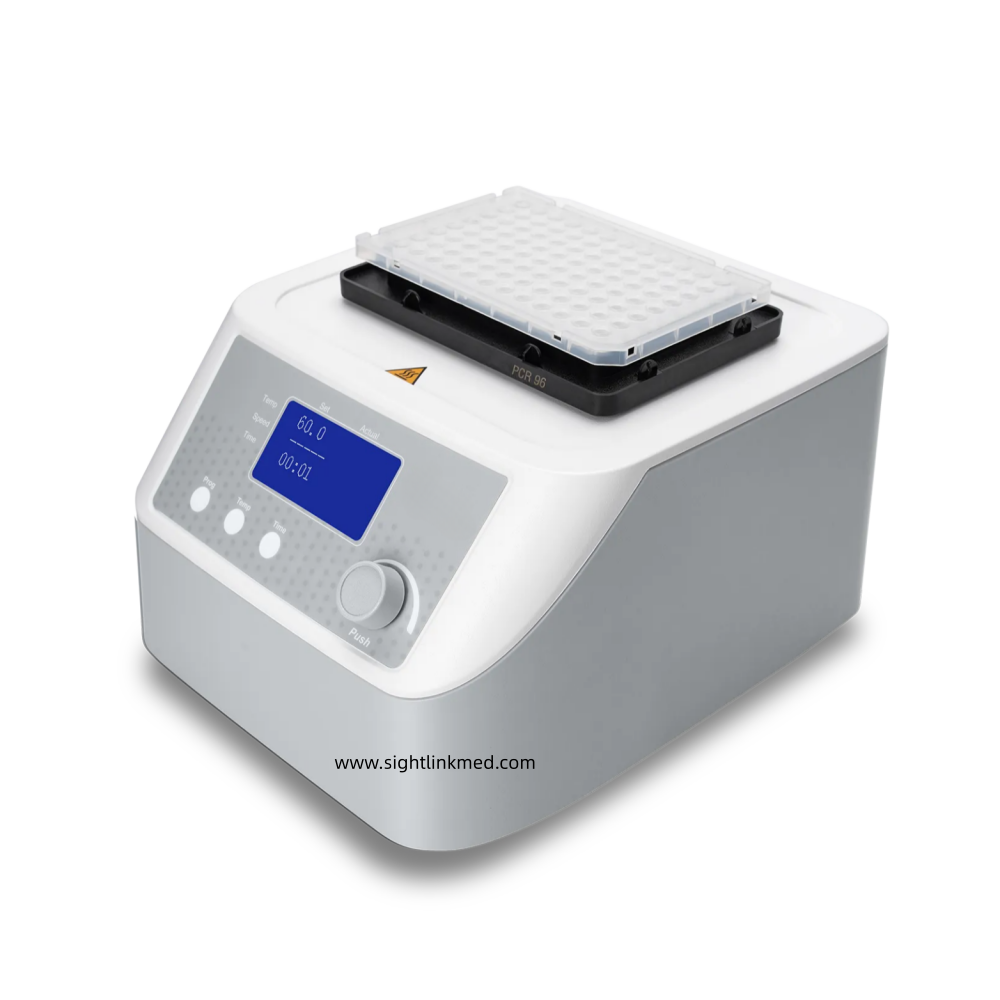

HC110-Pro LCD Digital Thermo Mix with Heating and Cooling Mixer
This compact programmable thermo mixer features precise heating & cooling control from -5℃ to 110℃ with built-in overheating protection to guarantee safe sample processing. Equipped with interchangeable sample blocks, it perfectly meets diverse experimental demands for various laboratory applications.
Features：
💎Compact, programmable and overheating protection for safe sample handling
💎Precise temperature control for heating and cooling -5 to 110or all major lab applications
💎Interchangeable sample blocks available
💎Most common application includes reagent warming/cooling, DNA extractions, enzymatic reactions and reactions that need to processed at or near room temperature.
Technical Parameter:
| Specifications | HCM100-Pro | HM100-Pro | HC110-Pro |
| Functions | Heating,cooling&mixing | Heating&mixing | Heating&cooling |
| Temperature range [℃] | Below room temp 15- 100 | Room temp-100 | Below room temp 25- 110 |
| Temperature Setting range [℃] | 0-100 | 0-100 | -5-110 |
| Temperature control accuracy@20-45 [℃] | ±0.5 | ±0.5 | ±0.5 |
| Temperature uniformity@20-45 [℃] | ±0.5 | ±0.5 | ±0.5 |
| Power [W] | 200 | 200 | 200 |
| Time setting range | 0min~99h30min | 0min~99h30min | 0min~99h30min |
| Max Heating speed | 5.5℃/min | 5.5℃/min | 5.5℃/min |
| Max Cooling speed | 5℃/min（100℃-room temp） 0.5℃/min（below room temp） |
– | 2.5℃/min（100℃-room temp） 0.5℃/min（below room temp） |
| Mixing speed [rpm] | 200-1500 | 200-1500 | – |
| Mixing orbit [mm] | 3 | 3 | – |
| Display | TFT | TFT | TFT |
| Program | 9 | 9 | 9 |
| Overheating protection [℃] | 150 | 150 | 150 |
| Voltage,Frequency | 110/220V，50/60HZ | 110/220V，50/60HZ | 110/220V，50/60HZ |
| Dimension [mm] | 200x235X120 | 200x235X120 | 200x235X120 |
| Weight [kg] | 7.3 | 7.3 | 7.3 |
| Operating temperature [℃] | 10-40 | 10-40 | 10-40 |
| Operating humidity [% RH] | <80 | <80 | <80 |
