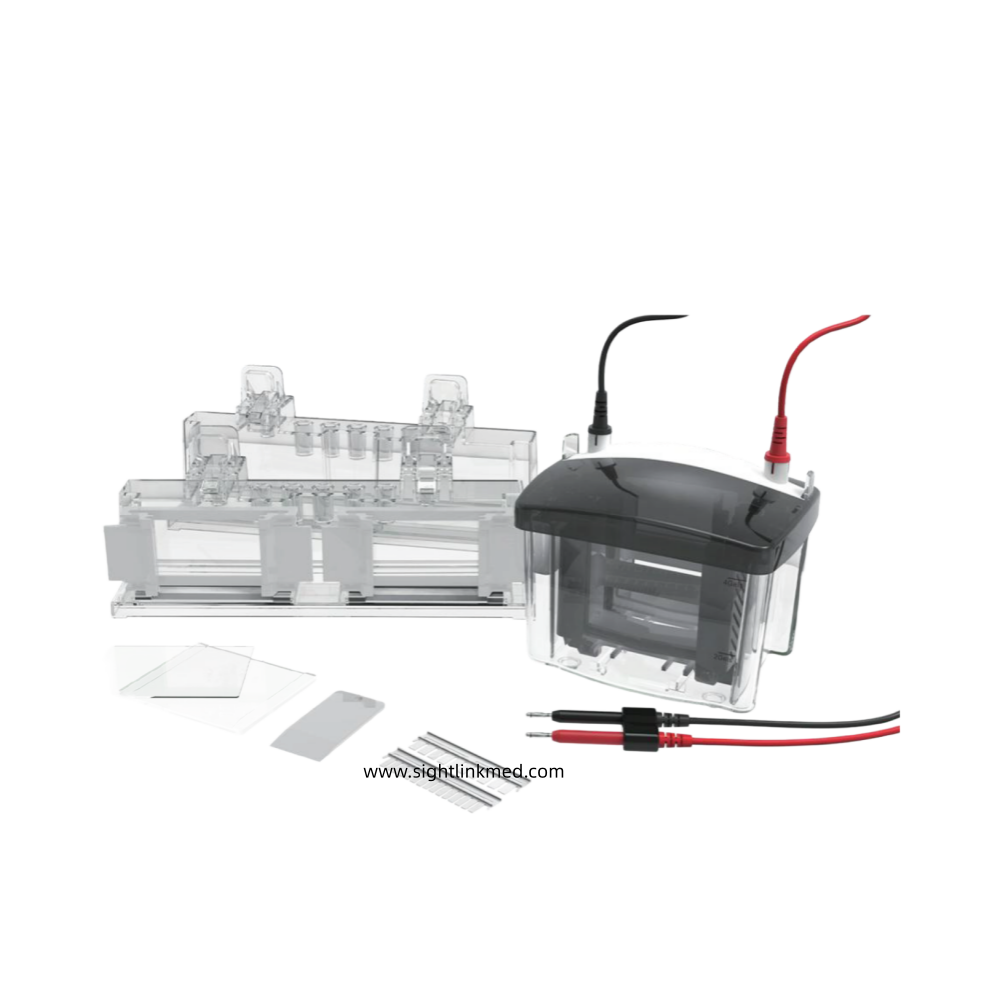

Vertical Electrophoresis tank (Four Plates) Vertical Electrophoresis Laboratory Equipment Vertical Electrophoresis Tank
This compact vertical electrophoresis tank is designed for efficient protein and nucleic acid separation. It includes complete accessories such as thick/thin glass plates, combs, gel casting stands, frames, baffles, and a gel releaser, supporting consistent, reproducible results for routine SDS-PAGE and related experiments.
Features：
💎The edge gasket is permanently fixed on the long glass plate to ensure the precise alignment of the glass plate and prevent glue leakage;
💎The cam-lock gel frame is easy to operate and can precisely align the glass plate on any plane;
💎Special plastic electrophoresis combs do not inhibit gel polymerization Built-in ridges avoid air contact;
💎Ensure uniform gel polymerization;
💎The long glass plate with edge gasket is thickened so that the glass plate is not easy to break;
💎The one-piece gel filling rack is arranged in parallel, and two gels can be observed at the same time;
💎SDS-PAGE electrophoresis time: 45 minutes (200V constant voltage);
💎High-purity platinum electrode wire to achieve the best electrical conductivity;
💎The parameters and accessories of this product are fully compatible with imported similar products;
💎This product is compatible with DL-ZY03 for blot transfer;
Technical Parameter:
💎Number of gels:1-4 pieces
💎Gel thickness: 0.75,1,1.5mm
💎Option tooth number of sample comb: 10, 15 teeth
💎Glass size: short glass plate (10.1×7.3cm); long glass plate (10.1×8.2cm)
💎Gel size: hand-cast gel (8.3 ×7.3cm); precast gel (8.6 x6.8cm)
Standard Configuration:
| Name | Unit | Quantity |
| Lid with cables | Set | 1 |
| Bottom tank | pc | 1 |
| Electrode main core | Set | 1 |
| Electrode sub-core | Set | 1 |
| Gel glass thick plate | pc | 5 |
| Gel Glass thin plate | pc | 5 |
| 10-well comb | pc | 5 |
| Gel casing stand | pc | 2 |
| Casing frame | pc | 4 |
| Single Gel Baffle | pc | 1 |
| Gel Releaser | pc | 1 |
