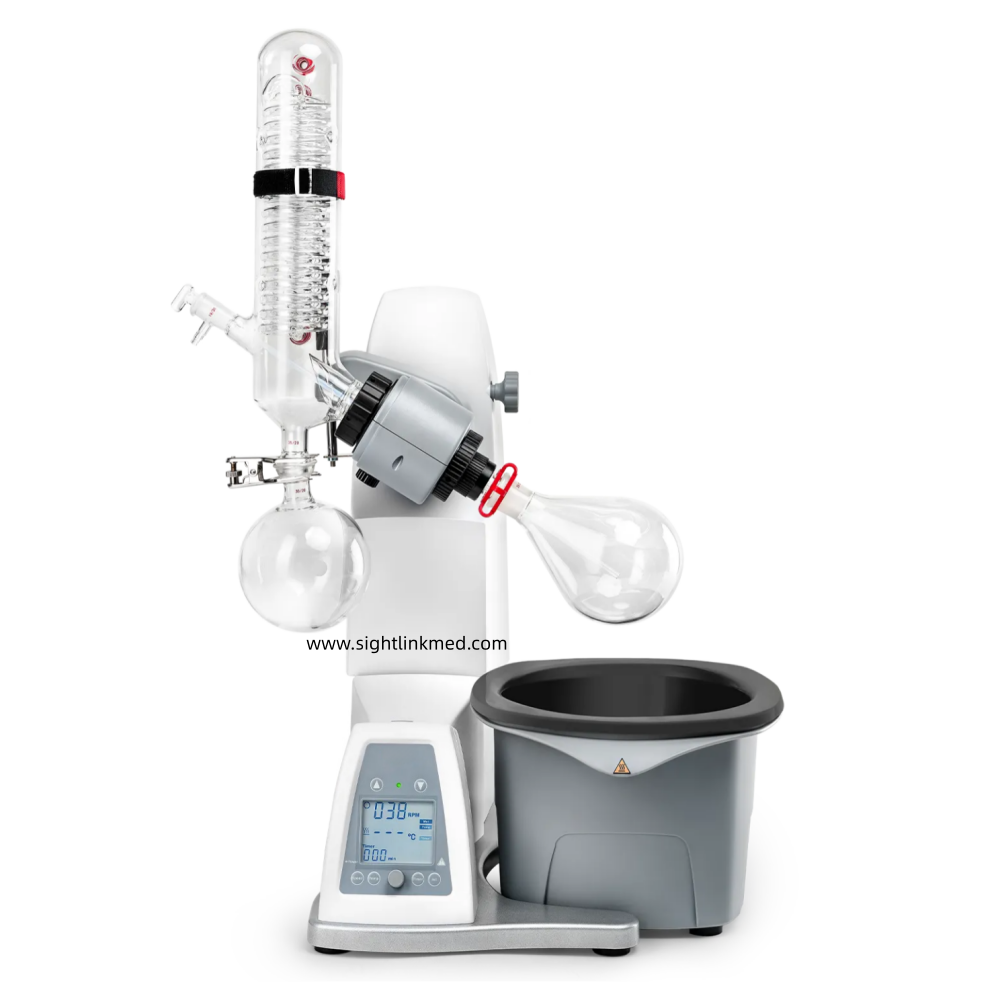

Hot Sale RE100-Pro Digital Rotary Evaporator 220v Premium Testing Equipment for Laboratories and Research
This digital rotary evaporator features an LCD screen to precisely monitor rotation speed and heating temperature for accurate distillation control. Equipped with an automatic motor lift, it safely retracts the evaporation flask during power outages. Its 5L heating bath supports both water and oil heating from ambient temperature up to 180°C, with built-in overheating and boil-dry protection to safeguard equipment. With an adjustable rotating speed of 20–280rpm and reversible rotation, it adapts to diverse drying applications. Fitted with a high-efficiency condenser, PTFE double-spring sealing ring and quick flask ejection design, this unit delivers reliable sealing, convenient operation and high safety. Explosion-proof coated glassware is also available as an optional accessory.
Features：
💎 Digital LCD display of both rotation speed and heating temperature allows for optimal control of all distillation processes
💎 Automatic motor lift releases the evaporating flask to a safe position in case of power failure
💎 5L heating bath with wide temperature range from room temperature to 180°C Water/oil heating mode can be changed only through a switch
💎 Overheating protection temperature at 220 °C
💎 Boil-dry protection, automatically power off if heating without water/oil in the heating bath
💎 Speed range from 20 to 280rpm, and interval operation in clockwise and anticlockwise directions for drying process
💎 Condenser (cooling surface 1700cm²) with excellent cooling effect
💎 Ejection mechanism ensures easy removal of evaporating flask
💎 Patented double spring sealing ring made of PTFE provides an excellent sealing performance
💎 Optional glassware with explosion proof film available
Technical Parameter:
| Specifications | RE100-Pro |
| Evaporating Flask Volume | 50-3000mL(Optional Thickened glass axis compatible with 3L evaporating flask) |
| Motor Type | Brushless DC motor |
| Speed Range | 20-280rpm |
| Display | LCD(speed, temperature, time) |
| Direction of Rotation | Clockwise and counterclockwise |
| Heating Temperature Range | Room temp. to 180°C |
| Control Accuracy | water: ±1°C oil: ±3°C |
| Evaporation capacity | Max.1.56L/h(H₂O) |
| Heating Power | 1300W |
| Lift stroke | Motorized 150mm |
| Timer | Yes |
| Time Setting Range | 1-999min |
| Dimension[D×W×H] | 465×457×583mm |
| Weight | 15kg |
| Permissible Ambient Temperature | 5-40°C |
| Permissible Relative Humidity | 80%RH |
| Protection Class | IP20 |
| USB Interface | Yes |
| Voltage/Frequency | 100-120/200-240V, 50/60Hz |
| Power | 1400W |
