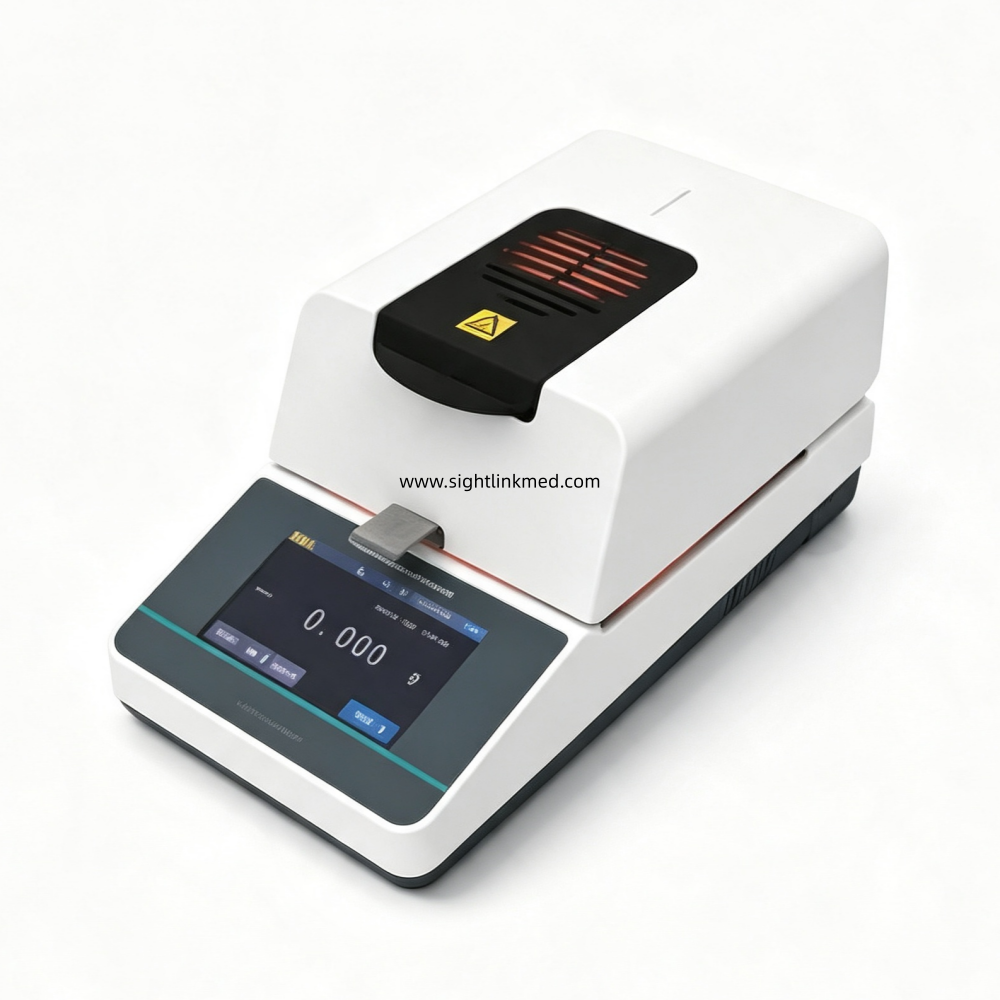

Portable Digital LAB Halogen Moisture Analyzer Moisture Meter Balance

The MBA series moisture analyzer integrates high-precision weighing and halogen heating drying technology to realize fast, direct moisture measurement. With multiple sensor and precision options, flexible temperature settings and global voltage adaptability, it is a reliable bench-top testing instrument to help enterprises efficiently control product moisture and guarantee consistent quality.

    SKU: MBA1102+MBA1102a+MBA1103+MBA1103(HBM) Category: Tag:

    Features

    💎High Precision Weighing System Equipped with strain gauge load cell (standard models) or premium HBM sensor (MBA1103(HBM)). The weighing resolution covers 0.01g, 0.005g and 0.001g options, supporting accurate sample mass measurement up to 110g maximum load.

    💎Precise Moisture Detection Delivers moisture readability of 0.1%, 0.05% or 0.01% depending on model. It supports moisture testing range from 0.00% up to 100.00%, capable of measuring both low-moisture and high-moisture samples.

    💎Reliable Temperature Control Adopts PT-100-2 temperature sensor, with adjustable heating temperature ranging from 40°C to 160°C, enabling stable and uniform thermal drying for consistent test results.

    💎Practical Functional Design Supports both Chinese and English operation interface. Built with two calibration modes and multi-protection mechanism to avoid equipment damage and ensure measurement stability.

    💎Standardized Hardware Configuration 400W heating power; dual voltage compatibility: 220V 50Hz / 110V 60Hz, suitable for global usage. Standard φ96mm weighing pan accommodates various sample forms.

    💎Compact Structure Overall dimension 336185165mm, space-saving bench-top layout, easy to install, operate and maintain in laboratories and production workshops.

    Applications

    This moisture analyzer is widely applied for rapid moisture content determination across diverse industries. It can test raw materials, semi-finished and finished products in food & beverage, pharmaceuticals, plastics, chemicals, minerals, agriculture, feed, textiles and paper manufacturing. It serves quality control, incoming material inspection, research and development, and production online monitoring, offering fast alternative to traditional oven drying method.

    Technical Parameter:

    Model MBA1102 MBA1102a MBA1103 MBA1103(HBM)
    Range 110g 110g 110g 110g
    Weighing accuracy 0.01g 0.005g 0.001g 0.001g
    Sensor Load cell Load cell Load cell HBM
    Dimension of weighing pan φ96mm φ96mm φ96mm φ96mm
    Temperature sensor PT-100-2 PT-100-2 PT-100-2 PT-100-2
    Temperature range 40℃-160℃ 40℃-160℃ 40℃-160℃ 40℃-160℃
    Moisture/test range 90.00-10.00% 95.00-5.00% 100.00-0.00% 100.00-0.00%
    Moisture/dryness readability 0.10% 0.05% 0.01% 0.01%
    Language CN/EN CN/EN CN/EN CN/EN
    Power 400W 400W 400W 400W
    Voltage 220V 50Hz / 110V 60Hz 220V 50Hz / 110V 60Hz 220V 50Hz / 110V 60Hz 220V 50Hz / 110V 60Hz
    Dimension 336*185*165mm 336*185*165mm 336*185*165mm 336*185*165mm
