Lab Digital Ultrasonic Cleaning Bath Ultrasonic Cleaning Machine Laboratory Cleaner Ultrasonic Cleaner

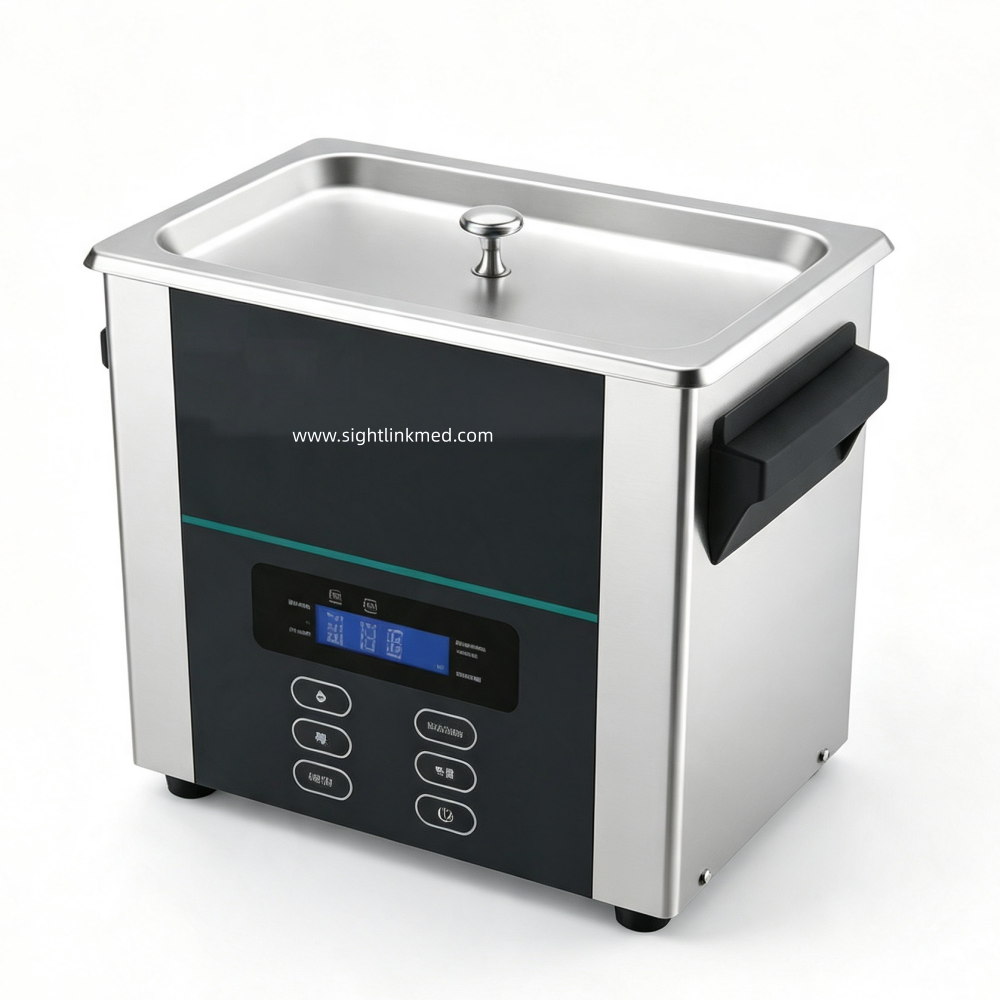

The UCD series ultrasonic cleaner utilizes high-frequency ultrasonic cavitation technology to achieve thorough, contact-free precision cleaning. With optional tank capacities, adjustable time and temperature, heating and degassing functions, it serves as a versatile and reliable bench-top cleaning equipment for laboratories and industrial small-part cleaning.
Features:
💎Multiple Capacity Options Available in 2L, 3L and 6L tank sizes to accommodate different cleaning volumes. Equipped with 1, 2 or 3 vibration heads correspondingly, matched with 60W, 120W and 180W ultrasonic power to meet diversified cleaning demands.
💎Stable Ultrasonic Operation Standard operating frequency of 40KHz, generating uniform cavitation effect to deliver strengthening oscillation and 360° all-around cleaning, removing dirt from tiny crevices that manual wiping cannot reach.
💎Precise Adjustable Control Supports adjustable timing from 0 to 60 minutes. Built-in heating system allows temperature setting ranging from room temperature up to 80°C, optimizing cleaning efficiency for different contaminants.
💎Built-in Degassing Function Degas mode effectively eliminates air bubbles inside the cleaning solvent, improving ultrasonic transmission and boosting cleaning consistency.
💎Humanized Structural Design 3L and 6L models are fitted with portable side handles for convenient movement. The stainless steel inner tank is corrosion-resistant, durable and easy to clean. Compact overall footprint saves bench space in laboratories and workshops.
Applications:
This ultrasonic cleaner is widely used for precision cleaning across multiple sectors. It can clean hardware parts, electronic components, circuit boards, optical lenses, jewelry, watches, laboratory glassware, dental tools and small automotive accessories. It suits laboratory testing, electronics manufacturing, jewelry processing, medical institutions, watch repair shops and daily precision item maintenance for efficient removal of oil, dust, flux and residual contaminants.
Technical Parameter:
| Model | UCD20D | UCD30D | UCD60D |
| Tank capacity | 2L | 3L | 6L |
| Operating frequency | 40KHZ | 40KHZ | 40KHZ |
| Number of vibration heads | 1 | 2 | 3 |
| Timing range | 0~60min | 0~60min | 0~60min |
| Settable temperature | RT-80℃ | RT-80℃ | RT-80℃ |
| Ultrasonic power | 60W | 120W | 180W |
| Heating | YES | YES | YES |
| Degassing function | YES | YES | YES |
| Handles | NO | YES | YES |
| Inner Tank size(mm) | 150*138*100 | 238*138*100 | 302*152*150 |
| Overall dimensions(mm) | 161*149*217 | 251*149*217 | 311*161*272 |
