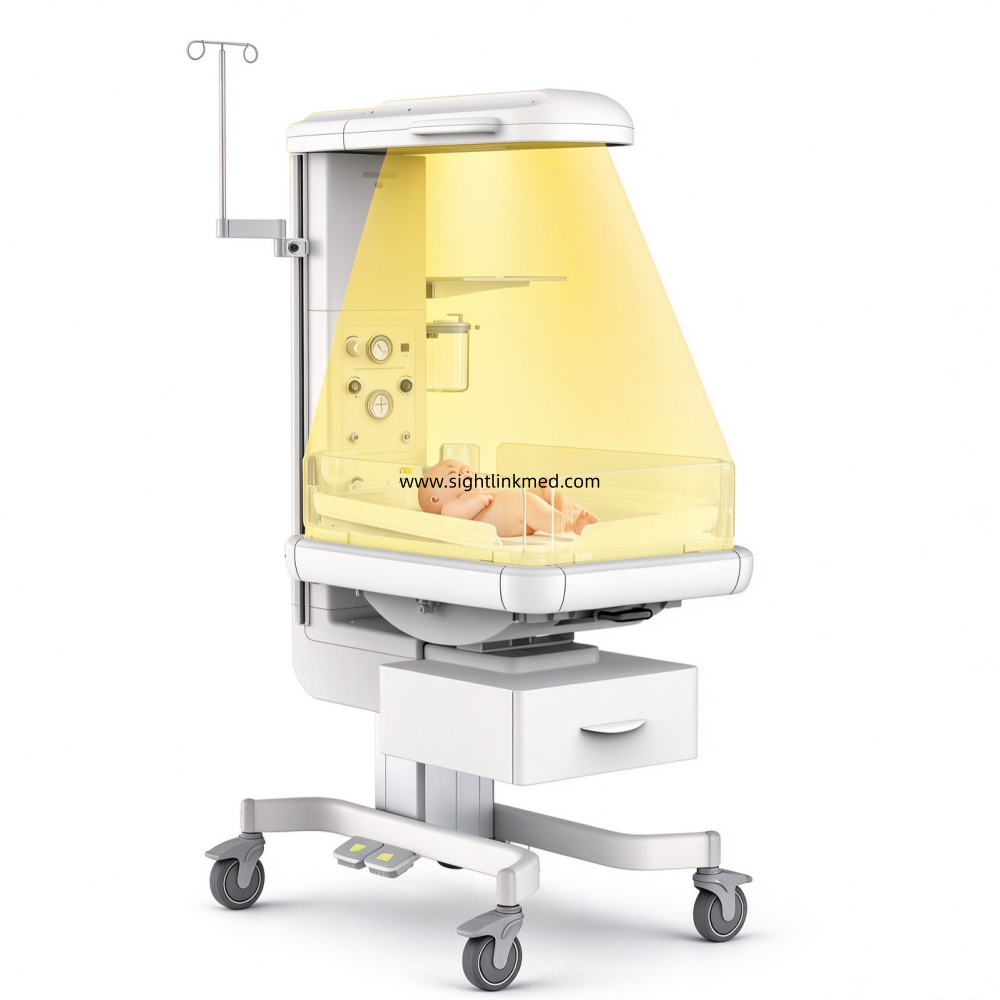

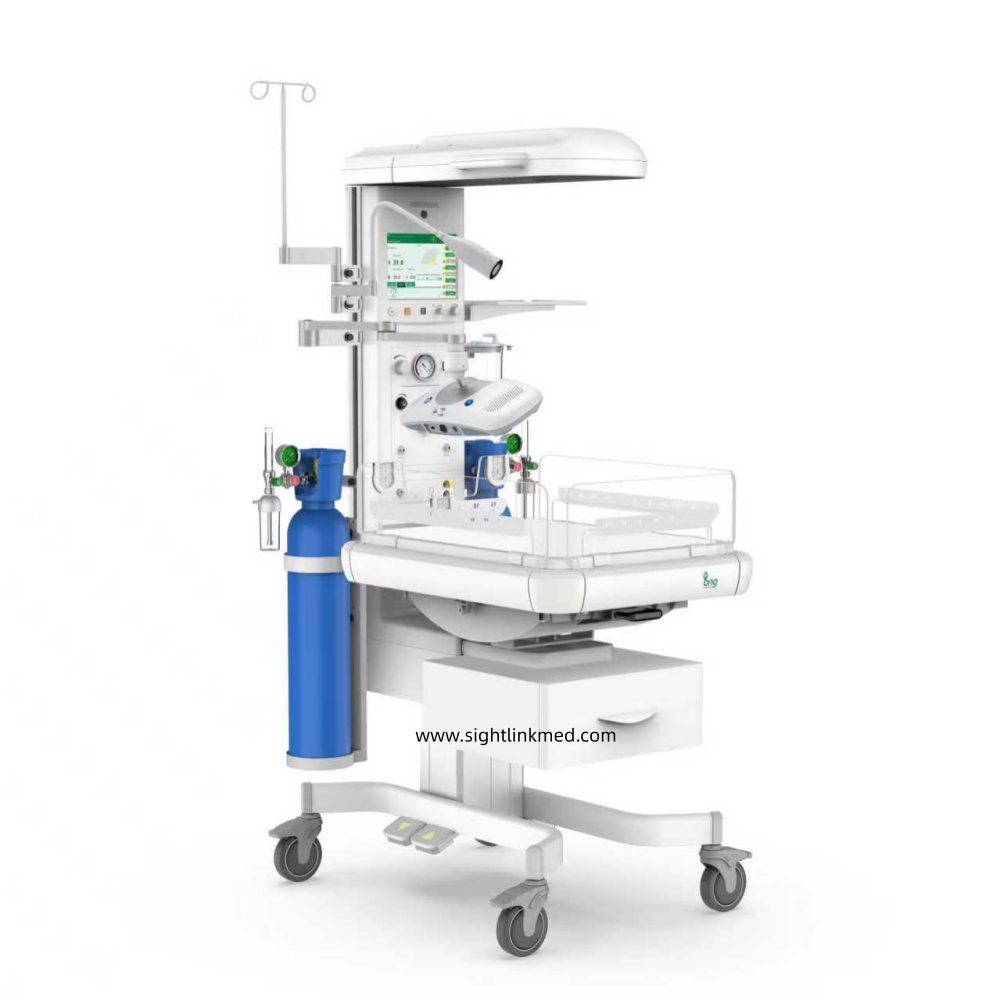

New Design High-Quality Baby Incubator with Precise Temperature and Humidity Regulation
This infant radiant warmer is equipped with high-quality transparent guard doors featuring three-sided rotating dampers to build a quieter and more efficient rescue platform. It adopts a 10.4-inch LCD touch screen for easy operation and clear long-distance information viewing, together with diverse user-friendly operation interfaces. Its ergonomic heating head module supports ±120° horizontal rotation and ±30° vertical rotation, delivering stable and uniform temperature control via high-efficiency far infrared heating tubes. Optional configurations are available, including a height-adjustable lifting stand, integrated SpO₂ monitoring module, hands-free alarm silence sensor, dual oxygen cylinder holder, built-in weight scale, multi-level adjustable observation lamp (0-1500 lux brightness), integrated LED phototherapy light for jaundice treatment, low-pressure suction module, T-piece resuscitation module and two-position pull-out X-Ray cassette that eliminates the need to reposition newborns during radiography. A large damped storage drawer provides quiet and ample space for accessories, making this device a comprehensive, human-centered solution for neonatal care and emergency rescue.
Features:
- High-quality transparent guard doors With a three-sided rotating damper, creating a quieter and faster rescue platform.
- 10.4 inch LCD touch screen Easily for operating and visible the information from long distance.
- Lifting stand (Optional) Adjust the height of the infant radiant warmer based on operator’s height.
- Hands-free alarm silence sensor Simply wave a hand in front of the sensor to disable the alarms.
- Various humanized operating interfaces
- Integrated Spo2 module (Optional) Monitoring blood oxygen levels enables early detection and prevention of hypoxemia, supports timely intervention, helps reduce the risk of respiratory-related complications, and ensures the newborn’s respiratory function remains in optimal condition.
- Cylinder holder (Optional) Supports up to two oxygen cylinders at most.
- Heating head module Ergonomically designed head heating module with handles on both sides for easy angle adjustment. Adjustable angles: ±120° horizontal rotation, ±30° vertical rotation, ensuring stable temperature control and excellent uniformity.
- Weight scale (Optional) Integrated weight scale module, measure the newborns’ weight without moving the baby.
- Observation lamp (Optional) The lamp head can be securely fixed at various heights and angles, with the intensity adjustable in 3 levels.
- Far infrared heating tube High thermal efficient, high penetration and low energy consumption.
- Integrated LED phototherapy light (Optional) Effective treatment of jaundice with 16 super LED lights. Adjustable irradiance in 3 levels to meet various clinical needs.
- Big storage drawer Spacious storage drawer equipped with damping technology for silent operation, ideal for organizing accessories, tools, and spare parts.
- Integrated observation lamp Brightness adjust from 0-1500 lux.
- Low pressure suction module (Optional) Clearing secretions from the airway to prevent blockage, ensuring smooth breathing for newborns; promoting gas exchange to enhance oxygen absorption, ensuring an adequate supply of oxygen for newborns.
- T-piece resuscitation module (Optional) In the event of sudden complications in newborns, healthcare providers can promptly initiate resuscitation measures, including chest compressions and artificial ventilation, to maintain the newborn’s cardiac and respiratory functions.
- X-Ray cassette (Optional) The two-position pull-out X-ray cassette under the baby tray, avoid moving the newborns when taking the X-Ray examination.
Specification:
| Power requirements | Customer specified |
| Heater capacity | 500W |
| Canopy mobility range | Horizontal rotation 240°(120°both clockwise and counterclockwise) Vertical rotation ±30° |
| Temperature control | Servo (Baby) Mode/ Manual/ Preheating mode |
| Skin temperature Setting range | 34.0～38.0°C |
| Skin temperature Accuracy | ±0.3°C |
| Skin temperature Display range | 20.0～42.0°C |
| Heater output Setting range | 0～100% (in 5% increments) |
| Heater output Indication range | 0～100% (in 1% increments) |
| Timer | APGAR mode /CPR mode switchable APGAR Beep: 1, 5, 10 min |
| Examination lighting | Power: 6W LED (2W * 3) LED lamp Adjustable illumination intensity: 0～1500lux |
| LCD display | 10.4″LCD touch screen Pixel: 800 * 600 |
| Bed tray Inclination angle (back and forth) | ±13° |
| Bed tray Mattress surface |
500 * 700 * 25mm |
| Bed tray Mattress surface to ground height (standard) | 90cm |
| Bed tray Guard door | damping system |
| Bed tray Cable access hole | 3 |
| Dimensions | 84(W) * 110(D) * 186(H) cm (standard) |
| Net Weight | 90kg |
| Alarms silence | Hands free |
| Height adjustment | Up to 30 cm |
| Weight Scale | |
| Weight range | 300g to 8000g |
| Weight display resolution | 1g |
| Weight accuracy | ±10g |
| X-ray Cassette | |
| Dimension | 53 * 35cm |
| Drawer | |
| Weight limit | 5kg |
| Pulse Oximeter Unit | |
| Display range | 1～100% SpO2 |
| Display accuracy | ±2% (70～99%) |
| Pulse rate display range | 30～240bpm |
| Pulse rate display accuracy | 1% +1bpm |
| Resuscitation | |
| Manometer | Pressure indication: -2～10 KPa (-20～100cm H₂O) |
| Resusci-flow unit | PMAX setting range: ≤6KPa (60cm H₂O) |
| Suction Unit | |
| Negative pressure range | Suction pressure control range : -24～0 KPa (-180～0mm Hg) |
| Air pumping efficiency | 0～15L/min |
| Storage/Shipping Information | |
| Temperature | -25°C～60°C |
| Humidity | 0～95% RH |
