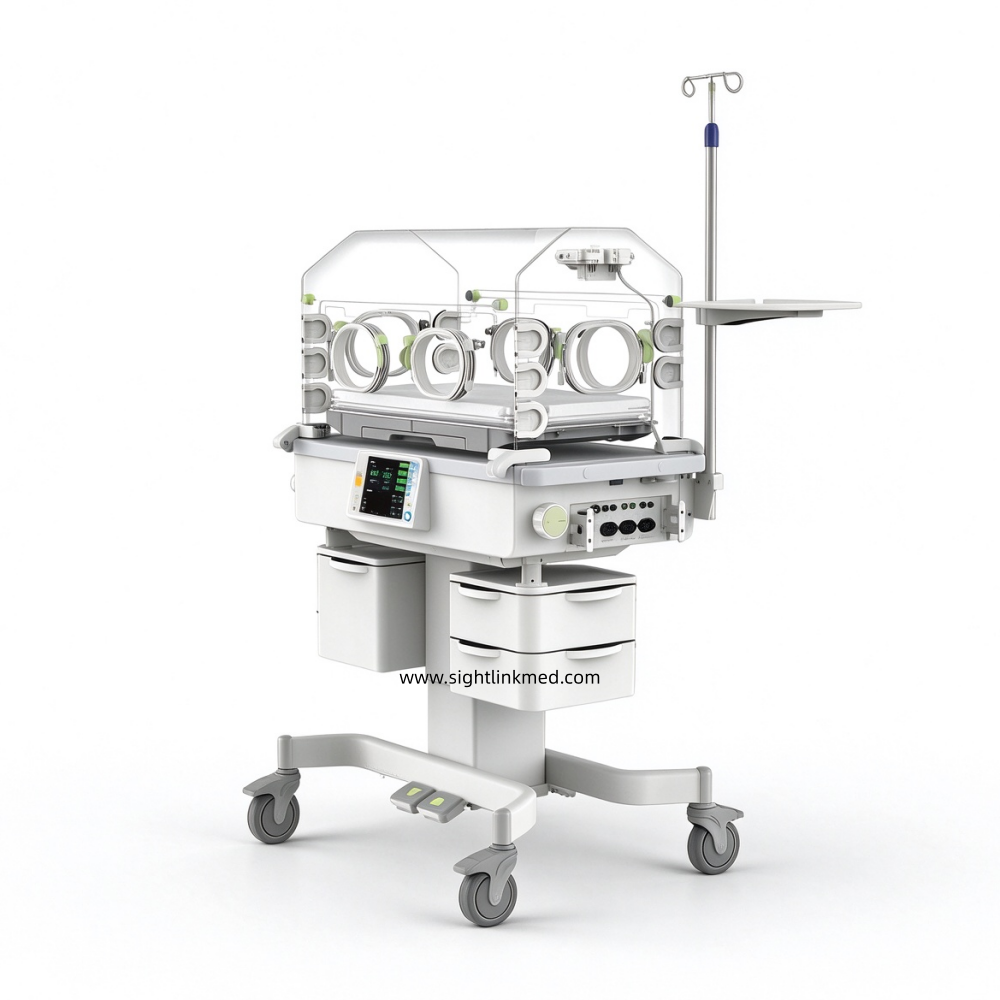

Baby Care Products Baby Infant Incubator Newborn Incubator

This infant incubator features dual protection for the heating source via thermocouple and mechanical temperature switch. Equipped with reliable Honeywell UK sensors and a 2-channel temperature probe, it monitors hood temperature, humidity as well as newborn’s core and peripheral body temperature in real time. Adopting advanced air circuit design, it achieves temperature uniformity within 0.5°C; the double-wall structure with air curtain reduces heat loss while opening the access panel. It applies PID fuzzy algorithm for precise temperature control. Optional configurations include lifting stand, X-ray cassette (avoids moving baby during X-ray), 7-day data-storable weight scale, height & angle adjustable observation lamp with 3 brightness levels, LED phototherapy light, integrated SpO2 and pulse monitoring, 8-inch LCD touch screen, and O2 servo control system built with key European components from Norgren, Camozzi and City to ensure stable, accurate and safe oxygen supply.

Description

Features:

Heating Source Dual Protection

With the incorporation of a thermocouple and mechanical temperature switch, the heating system’s heating source is safeguarded simultaneously.

Reliable Sensor Module

Real-time monitoring of hood temperature and humidity is achieved through sensors from Honeywell UK. Additionally, a 2-channel temperature probe is utilized to simultaneously monitor the newborn’s core temperature and peripheral temperature.

Lifting stand (Optional)

Adjust the infant incubator’s height based on the operator’s convenience.

Advance air circuit design

Minimize the temperature uniformity less than 0.5°C.

Double wall with air curtain

Reduce the heating loss when open the access panel.

X-Ray cassette (Optional)

X-ray cassette is positioned under the baby tray, eliminating the need to move the baby during X-ray examinations.

Weight scale (Optional)

Integrated weight scale module, measures the newborns’ weight, and the data can be recorded for 7 days.

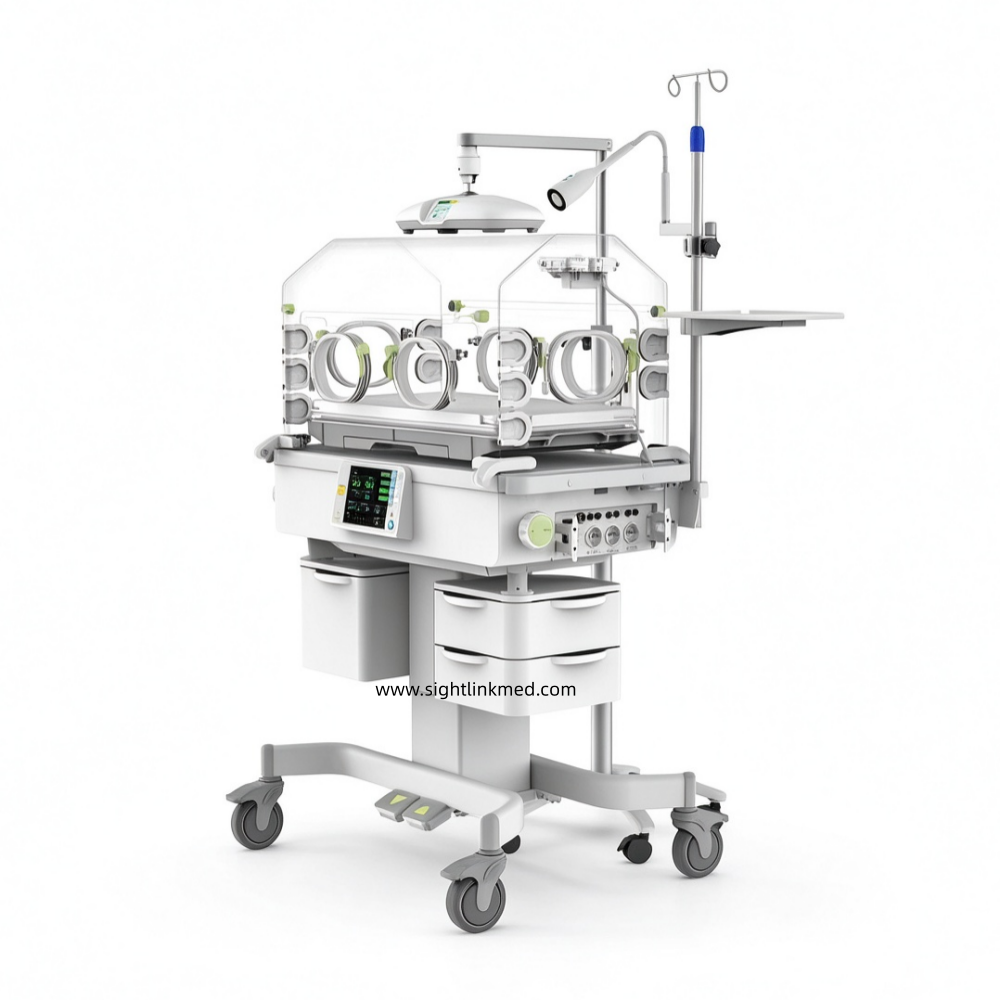

Observation lamp (Optional)

The lamp head is adjustable in height and angle, with three intensity levels for convenient examination of newborns within the infant incubator in low-light conditions.

LED phototherapy light (Optional)

(No description text in picture)

PID Fuzzy Algorithm

PID algorithm continuously calculates an error value as the difference between setting temperature and real time temperature and applies a correction based on proportion, integral and derivative terms.

Integrated Spo2 monitoring (Optional)

Real time monitoring the Spo2 and pulse rate of newborns.

Touch screen (Optional)

8 inch LCD touch screen, enhancing convenience for operation and improving visibility of information from a distance.

O2 servo control and monitoring (Optional)

Critical components from Europe, such as Norgren, Camozzi, and City, enable us to build a more stable, accurate, and safe O2 cycle system.

Specification:

Temperature Control Modes
Temperature control modes	Skin and Air temperature control
Air mode control temperature range	20°C-37°C
Air mode control override temperature range	37°C-39°C
Skin mode control temperature range	34°C-37°C
Skin mode control override temperature range	37°C-38°C
Performance
Air flow velocity across mattress	< 10 cm/sec
Temperature rise time at 22 °C (72 °F) ambient	<35min (From 22°C, 50% RH, to 33°C)
Temperature variability	< 0.3°C
Operating noise level in hood	≤45dBa
Servo Humidity Control
Humidity control range	30%-95% RH
Humidity control reservoir capacity	1500ml
Humidity display and control accuracy	±3%RH
Servo Oxygen Control Option
Oxygen control range	21% to 65%
Oxygen display accuracy of full scale	±2%
Oxygen display resolution	1%
Weight Scale Option
Weight range	300g to 8kg
Weight display resolution	1g
Weight accuracy	±5g
Storage/Shipping Information
Temperature	-25°C to 60°C
Humidity	0 to 95% RH
Notice	Specifications subject to changes without prior notice. All rights reserved by BNG Medical.
