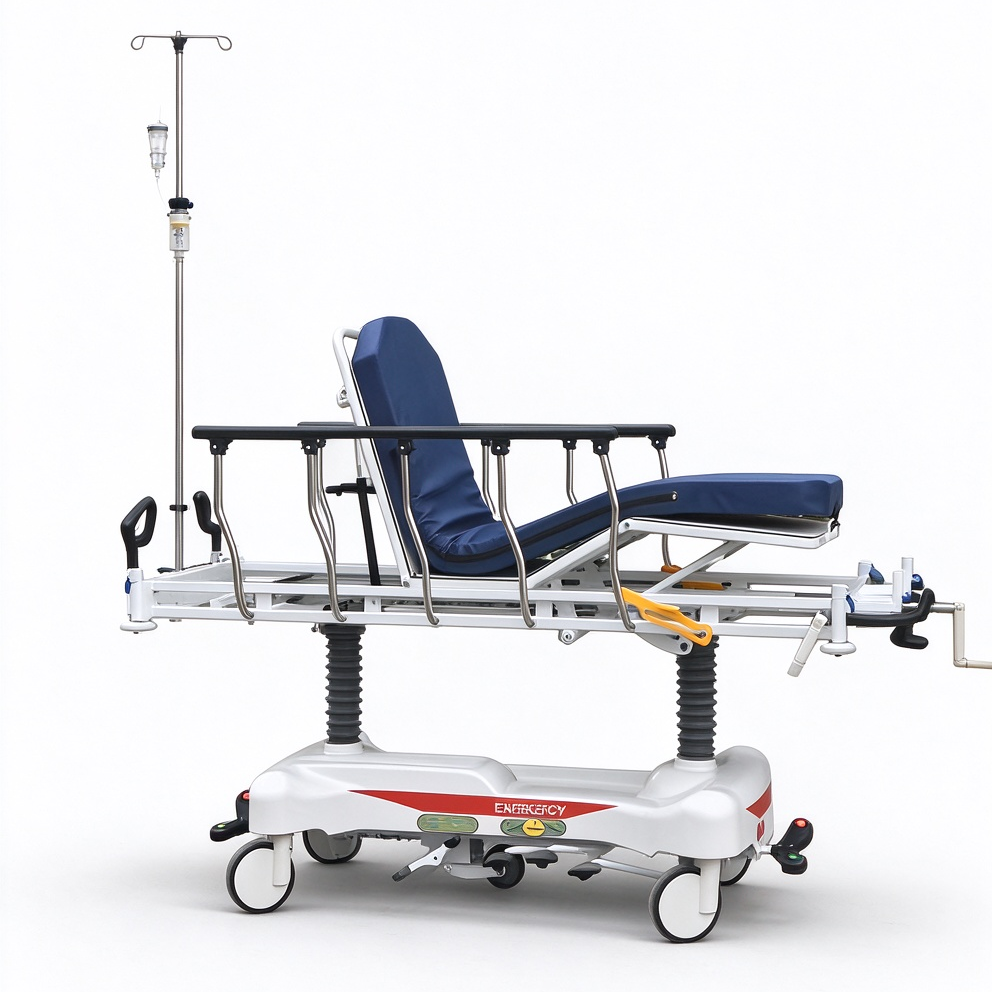

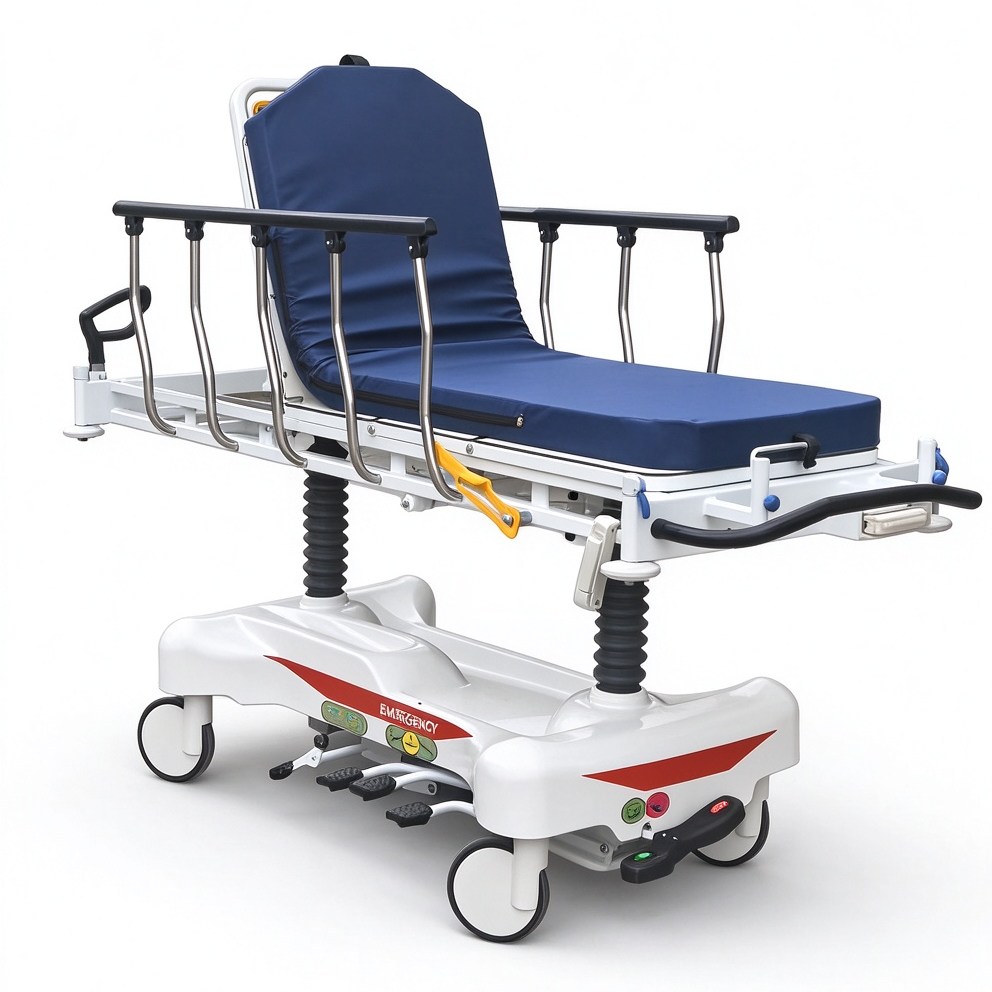

Emergency Patient Transfer Trolley Patient Transportation Cart Hydraulic Patient Transportation Stretcher
Bill of Components:
Main stretcher body: 1 unit
Stainless steel foldable side rail: 2 pcs
Central-locking caster: 4 pcs
Central locking pedal assembly: 4 sets
Central 5th wheel assembly: 1 set
Full-height hydraulic lifting cylinder: 2 pcs
Gas spring for backrest lifting: 2 pcs
Knee crank handle: 1 pc
Integrated bottom tray: 1 pc
IV pole: 1 pc
Standard IV pole sockets: 4 pcs
Waterproof mattress: 1 pc
Chart holder (optional): 1 p
1. Dimensions: 2120*870*620~930mm. Bed deck length: 1930mm, bed deck width: 620mm, height adjustment range: 620 ~ 930mm, backrest tilt: 0 ~ 85°, Knee section tilt: 0 ~ 40°, Trendelenburg tilt: 0°~ 18°.
Safe working load: 320KG.
2. Backrest lifting system: Controlled by silent gas springs.
3. Height lifting system: Controlled by hydraulic cylinders for enhanced stability.
4. Bed deck: Made of compact laminate (HPL), featuring high strength, anti-deformation property and full body X-ray penetrability.
5. Frame: Constructed of high-quality steel.
6. Foldable side rails: Premium stainless steel foldable side rails. Zinc die-cast components are used at switch points for higher strength and safer locking. Rail length: 1240mm, rail width: 835mm; the rail rises 440mm above the bed surface when raised.
7. Casters: Four 200mm-diameter central-locking casters. Each corner of the stretcher is fitted with a 70*80mm anti-collision caster control system. One-step braking locks all four wheels simultaneously.
8. The connecting rod for central brake linkage is integrally formed from round tubing to ensure superior strength.
9. Independent central 5th wheel system: Control pedals are installed on both sides of the stretcher. When the central 5th wheel is retracted, the stretcher moves freely. When deployed, it enters straight-line travel mode (pedal ground clearance: 105mm for better passability). It counteracts inertial force during transport, effectively controls travelling direction and improves transportation safety.
10. An integrated tray is fitted underneath the bed for oxygen cylinder storage, convenient for operation. Tray load capacity:20Kg.
11. IV pole storage bracket is equipped to secure and store the IV pole.
12. Mattress: The fabric surface is waterproof treated and easy to clean. It is fitted with a zipper, so the outer cover can be washed.
13. Wooden crate packing dimension: 2310*990*860mm, Wooden crate weight: 55KG, Hydraulic stretcher weight: 132KG，Gross weight: 187KG.
