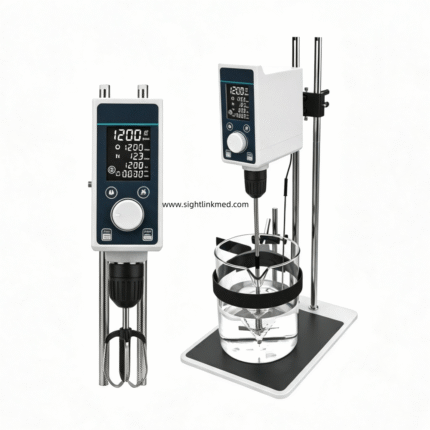

Laboratory Electric Stirrer Digital Display Constant Speed Industrial Mechanical Dispersion Mixer Overhead Stirrer
Adopts efficient brushless motor for stable and low-noise mixing. Available in knob control and digital display & button control versions. Compact structure with H-shaped base ensures stable operation. Suitable for mixing low & medium viscosity liquids in laboratories, cosmetics, pharmacy and chemical industries. Multiple models optional with max mixing volume up to 5L.
Features：
- Equipped with brushless motor, powerful, stable and low noise.
- Two control modes optional: knob control / digital display & button control.
- Digital version supports 0–24 h timing and 10 rpm speed stepping adjustment.
- H-type base provides reliable stability during stirring.
- Drill chuck accepts stirring shafts with diameter 1–10 mm.
- Multiple models with different rated torque to adapt various viscosity samples.
- Wide input voltage AC100–240V for global use.
- Compact structure, easy installation and operation.
Applications：
- Laboratory chemical mixing, dissolution and homogenization.
- Pharmaceutical preparation and reagent blending.
- Cosmetic raw material stirring and formulation development.
- Biological experiment sample preparation.
- Food laboratory liquid mixing and emulsification.
- Light industry and environmental testing liquid blending.
Technical Parameter:

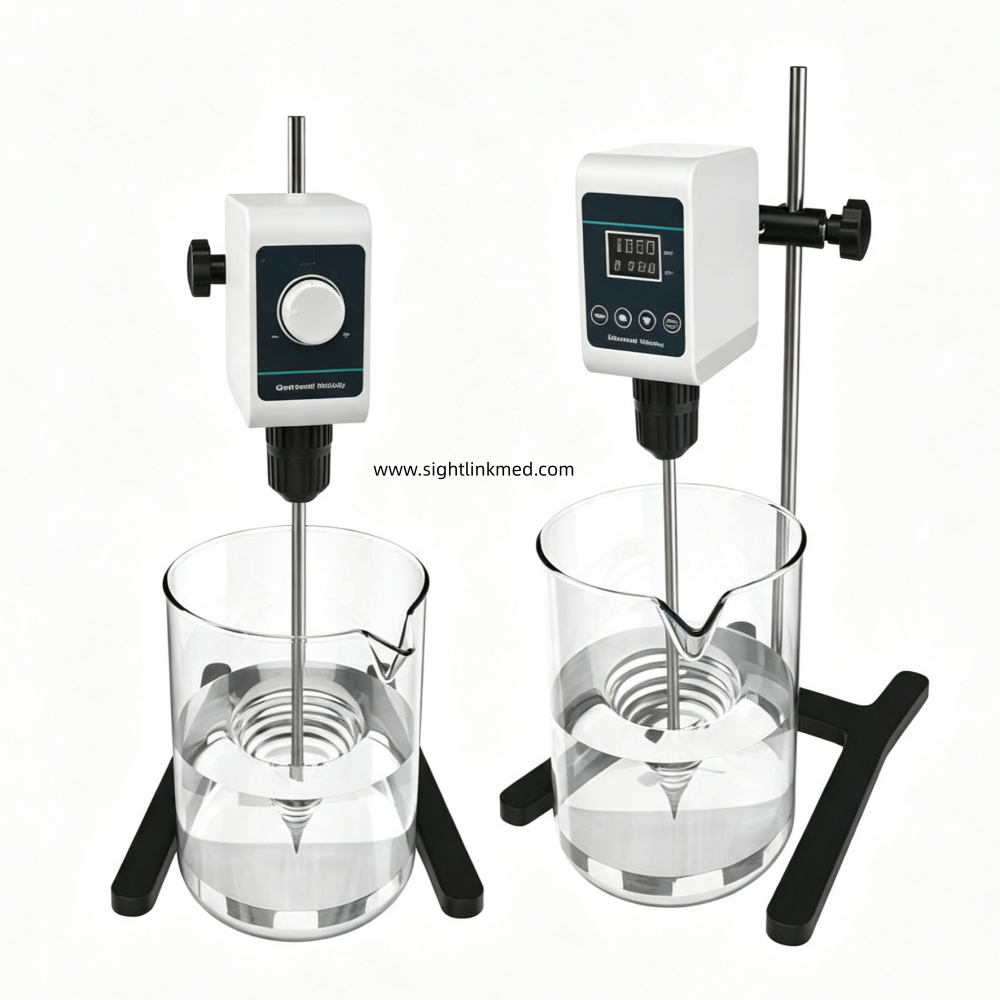

| Model | OS-5E | OS-5S | OS-10S |
| Motor type | Brushless motor | Brushless motor | Brushless motor |
| Control mode | Knob | Digital Display & Button | Digital Display & Button |
| Speed range | 200-1200rpm | 100-1200rpm | 100-1200rpm |
| Stepping | / | 10rpm | 10rpm |
| Timing range | / | 0-24h | 0-24h |
| Maximum mixing volume | 5L | 5L | 5L |
| Maximum viscosity | 5000mPas | 5000mPas | 8000mPas |
| Rated torque | 10N.cm | 10N.cm | 15N.cm |
| Drill chuck diameter | 1-10mm | 1-10mm | 1-10mm |
| Fixed frame circumference | 660mm | 660mm | 660mm |
| Rotation Direction | Counterclockwise | Counterclockwise | Counterclockwise |
| Power | 24W | 36W | 50W |
| Voltage | AC100-240V | AC100-240V | AC100-240V |
| Power adapter | DC24V1A | DC24V1.5A | DC24V2.5A |
| Dimension | 145*70*173mm | 134*70*173mm | 134*70*173mm |
