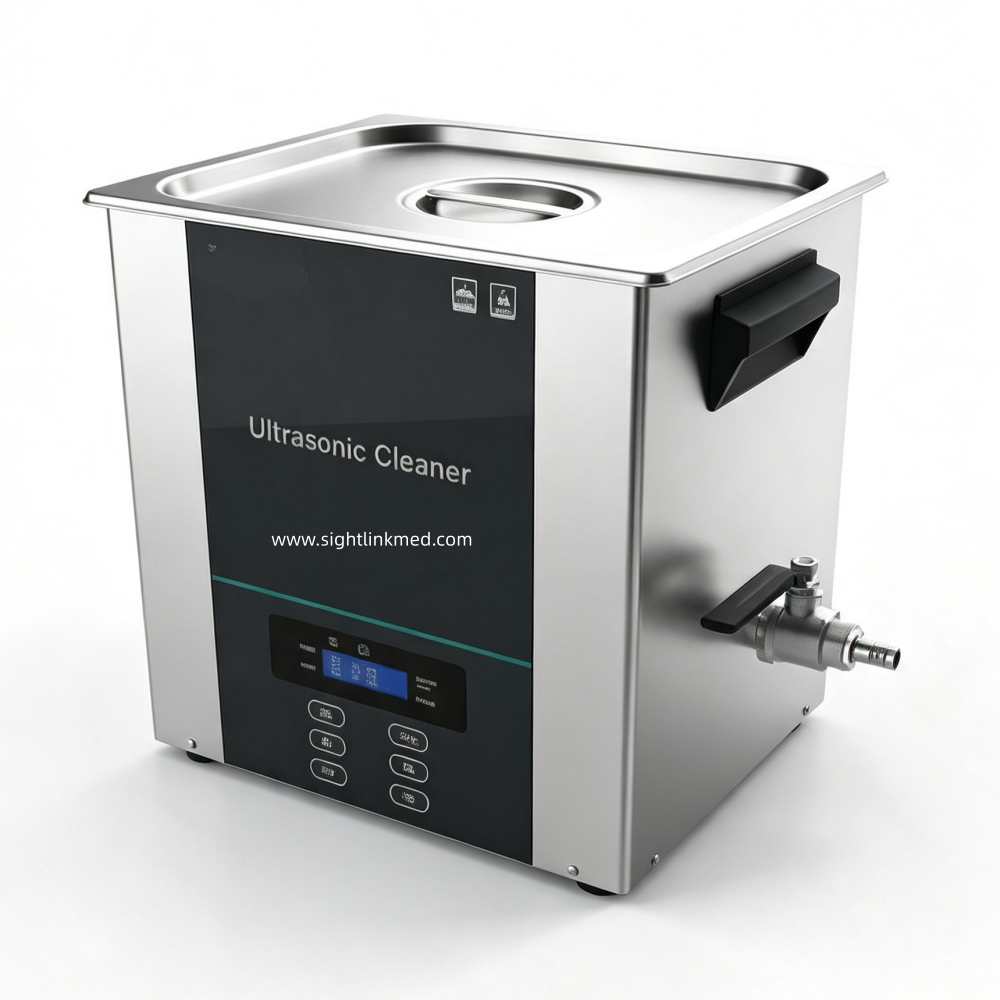

Ultrasound Cleaning Machine Digital Degas Commercial Ultrasonic Cleaner Machine for Jewelry Lab
The UCD large series ultrasonic cleaner relies on high-frequency ultrasonic cavitation technology to provide efficient batch cleaning. Featuring multiple tank capacities, adjustable time and temperature, degassing system and convenient drain valve, it is a sturdy, user-friendly industrial bench-top cleaning equipment ideal for medium and large component cleaning requirements.
Features:
💎Multiple Large Capacity Models Available in 10L, 15L, 20L and 28L tank specifications to handle large-volume batch cleaning tasks. Equipped with 4–6 vibration heads and matched ultrasonic power ranging from 240W up to 480W, delivering powerful cavitation and strengthening oscillation for reliable 360° all-around cleaning.
💎Consistent Working Frequency Adopts standard 40KHz operating frequency. High-frequency ultrasonic cavitation penetrates complex gaps and blind holes to remove stubborn contaminants that manual cleaning cannot reach, achieving uniform cleaning effect.
💎Precise Digital Control System Adjustable timer from 0 to 60 minutes. Built-in heating function supports temperature setting from room temperature to 80°C. Optimizes cleaning efficiency for different types of oil, dirt and residues.
💎Practical Integrated Functions Comes with degassing function to eliminate air bubbles in cleaning liquid, improving ultrasonic transmission efficiency and stable cleaning results. Equipped with a drain valve for convenient liquid discharge and daily maintenance. Side handles are fitted on all models for easy transportation and relocation.
💎Durable Stainless Steel Structure Stainless steel inner tank and outer casing feature excellent corrosion resistance and long service life. Robust industrial-grade design fits continuous daily operation in workshops and laboratories.
Applications:
This large-volume ultrasonic cleaner is widely used for batch precision cleaning in industrial and laboratory scenarios. It is suitable for cleaning hardware accessories, mechanical parts, automotive components, electronic circuit boards, electroplating workpieces, laboratory utensils, printing heads, mould parts and medical instruments. It effectively removes grease, cutting fluid, flux, carbon deposits and polishing residues, serving metal processing, electronics manufacturing, auto repair, laboratories, electroplating factories and medical facilities.
Technical Parameter:
| Model | UCD100D | UCD150D | UCD200D | UCD300D |
| Tank capacity | 10L | 15L | 20L | 28L |
| Operating frequency | 40KHZ | 40KHZ | 40KHZ | 40KHZ |
| Number of vibration heads | 4 | 6 | 6 | 6 |
| Timing range | 0~60min | 0~60min | 0~60min | 0~60min |
| Settable temperature | RT-80℃ | RT-80℃ | RT-80℃ | RT-80℃ |
| Ultrasonic power | 240W | 360W | 360W | 480W |
| Heating | YES | YES | YES | YES |
| Degassing function | YES | YES | YES | YES |
| Drain valve | YES | YES | YES | YES |
| Handles | YES | YES | YES | YES |
| Inner Tank size(mm) | 302*239*150 | 325*295*150 | 498*296*150 | 502*298*200 |
| Overall dimensions(mm) | 308*248*315 | 251*149*217 | 510*308*343 | 510*308*343 |
