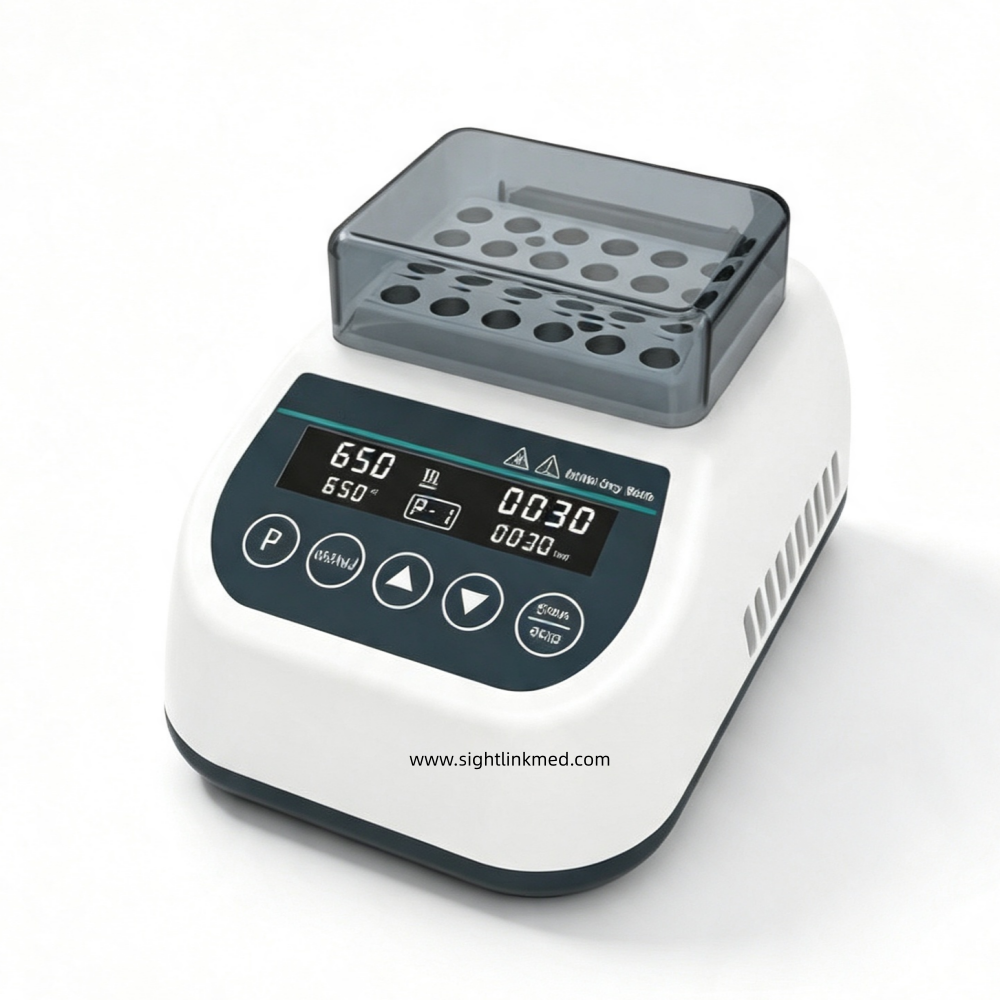

High-throughput Thermostatic Metal Bath for Laboratory Multi-sample Incubation
This compact mini dry bath includes two models: MDB-100 (heating only) and MDB-100C with heating & cooling and gradient function. It delivers accurate temperature control (±0.5°C), programmable operation and fast temperature ramping. Equipped with overtemperature protection and compatible with various sample blocks, it is widely used for constant-temperature incubation in molecular biology, clinical testing, biochemistry and pharmaceutical laboratories.
Features：
- Compact benchtop design with small footprint, saving valuable laboratory workspace.
- Two model options: MDB-100 (heating-only) and MDB-100C (heating & cooling capable).
- MDB-100: Operating temperature range RT to 100°C, settable temperature 0–100°C.
- MDB-100C: Operating temperature range RT-15°C to 100°C, settable temperature -5–100°C, supporting gradient temperature operation.
- Precise temperature control: temperature stability and homogeneity reach ±0.5°C, display resolution up to 0.1°C, ensuring consistent incubation conditions for samples.
- Fast temperature ramping: maximum heating rate up to 5.5°C/min; MDB-100C delivers 5°C/min cooling from 100°C down to ambient temperature and 1°C/min for cooling below ambient temperature.
- Flexible programmable functions: supports timing from 5 seconds to 23 hours 59 minutes, built-in memory to store up to 9 independent programs (P1–P9), suitable for multi-step temperature workflows.
- Wide universal voltage input AC100–240V, equipped with DC24V/2.5A power adapter for global lab use.
- Support for interchangeable modular blocks to fit various tubes, vials and microplates.
- Built-in overtemperature protection mechanism to prevent sample damage and guarantee operational safety.
- Intuitive digital display and simple control buttons for easy parameter setup and real-time status monitoring.
- Low power consumption at 60W, lightweight portable structure ideal for routine and mobile lab applications.
Applications：
- Molecular biology: nucleic acid denaturation, enzyme incubation, PCR pre-reaction incubation, protein thermal denaturation.
- Clinical diagnostics: immunoassay incubation, blood sample pretreatment, biochemical reaction incubation.
- Biochemical research: enzyme activity testing, substrate-reagent constant temperature reaction.
- Pharmaceutical analysis: drug stability testing, sample constant-temperature pretreatment.
- Microbiological experiments: short-term bacterial strain incubation, culture condition simulation.
- Forensic testing: biological sample preservation and constant-temperature processing.
- Environmental & food testing: extraction and incubation of food and environmental monitoring samples.
- General laboratory routine heating and cooling incubation for micro-volume samples.
Technical Parameter:
| Model | MDB-100 | MDB-100C |
| Actual temp range | RT-100°C | RT-15-100°C |
| Settable temp | 0-100°C | -5-100°C |
| Temp stability/homogeneity | ±0.5°C | ±0.5°C |
| Display accuracy | 0.1°C | 0.1°C |
| Timing range | 5s-23h59min | 5s-23h59min |
| Program memory | P1-9 | P1-9 |
| Gradient operation | No | Yes |
| Max heating rate | 5.5°C/min | 5.5°C/min |
| Max cooling rate | / | 5°C/min (100°C – RT) 1°C/min (below RT) |
| Power | 60W | 60W |
| Voltage | AC100-240V (Wide voltage) | AC100-240V (Wide voltage) |
| Power adapter | DC24V/2.5A | DC24V/2.5A |
| Dimension | 160*115*96mm | 160*115*96mm |
