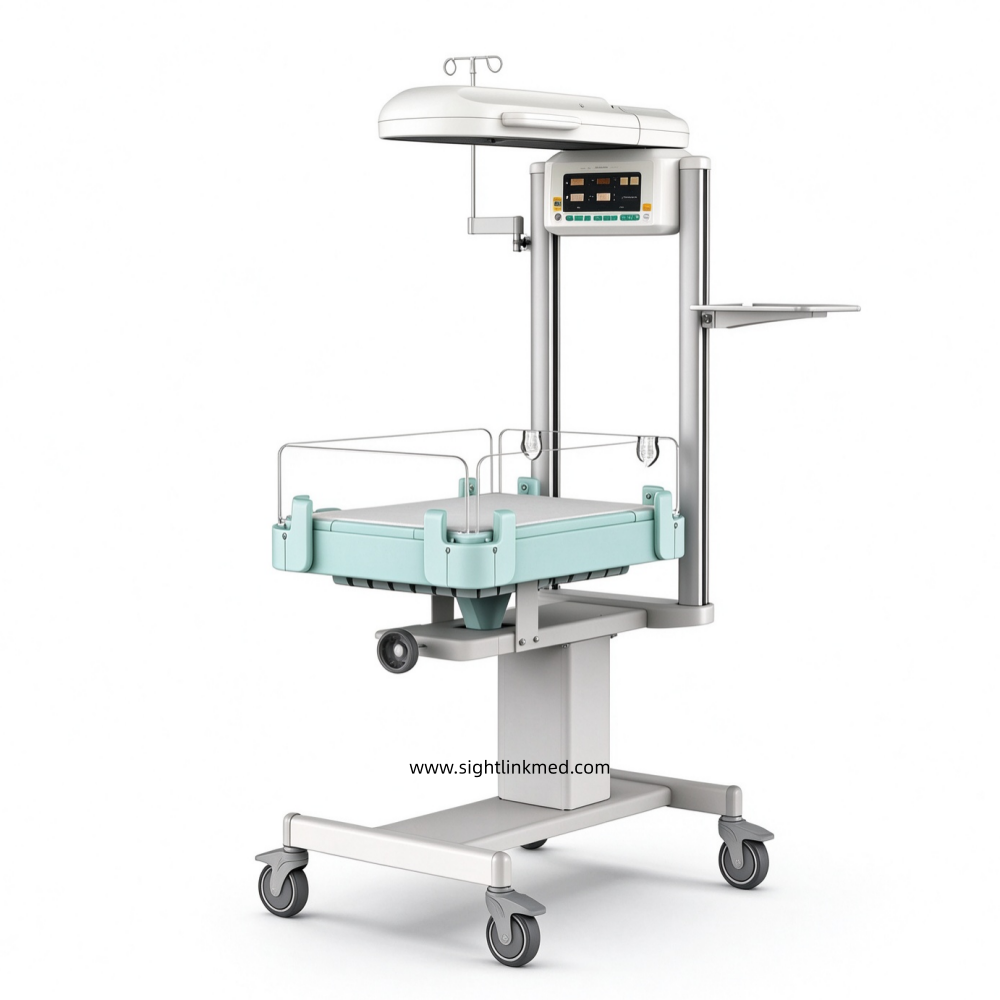

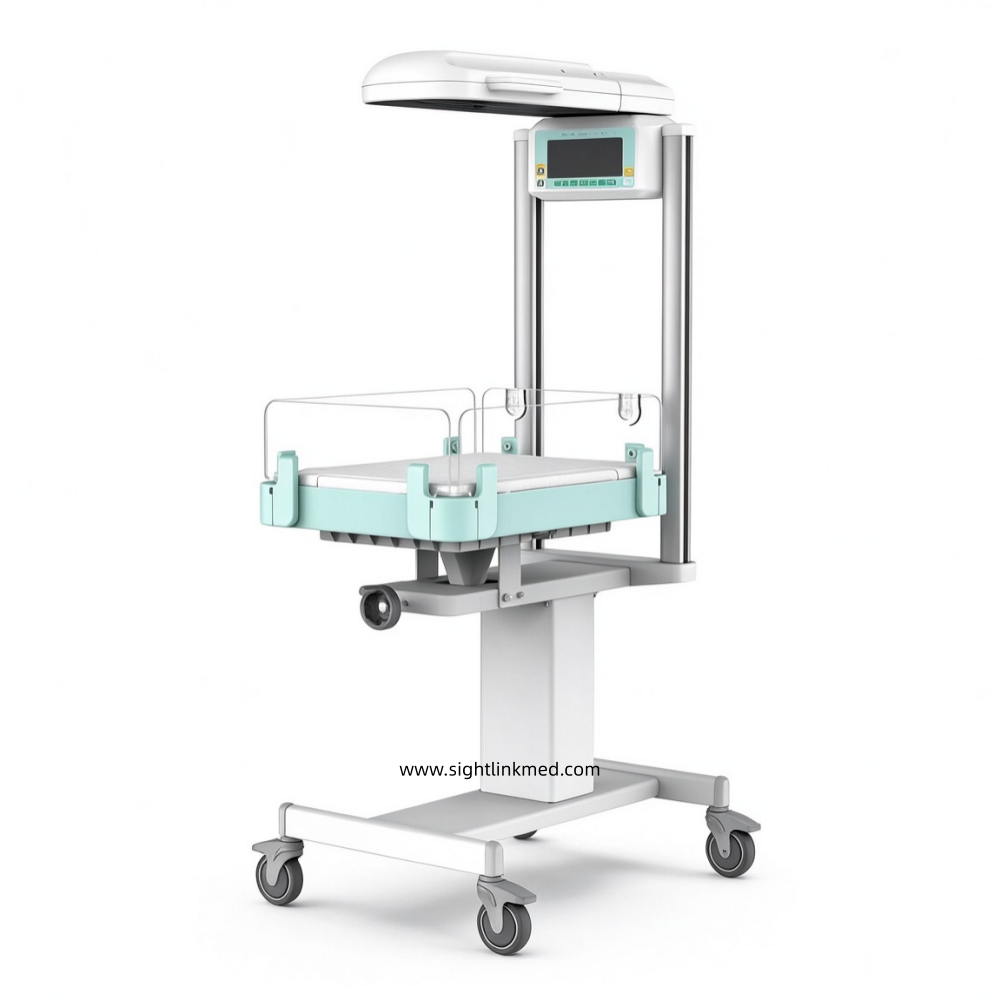

Hospital Infant Warmer Baby Infant Incubator Infant Radiant Warmer
This infant radiant warmer is equipped with far infrared quartz heating tube, multiple working modes, APGAR & CPR timer, four-sided transparent guard doors and an adjustable heating head, featuring an LED display for easy operation. Optional accessories include X-Ray cassette, damping storage drawer, lifting stand and multi-functional side rail support for mounting various auxiliary medical devices.
Features:
Basic configurations
- Far infrared quartz heating tube
- Baby, manual and pre-heating modes
- APGAR and CPR timer
- Transparent guard door on four sides
- Baby bed tilting angle from 0~13°
- Heating head module
- Heating head adjustable angles:±120° horizontal rotation.
- LED display
- Easily to operate the device and check information.
Optional configurations
- X-Ray cassette (Optional)
- The two-position pull-out X-ray cassette under the baby tray, avoid moving the newborns when taking the X-Ray examination.
- Storage drawer (Optional)
- Storage drawer equipped with damping technology for silent operation and can be operated on both left and right sides which is ideal for storage.
- Lifting stand (Optional)
- Adjust the height of the infant radiant warmer based on operator’s height. The foot pedal can be operated from both left and right sides.
- Multi-functional Side Rail Support
- Design for the external Observation Lamp, LED Phototherapy Unit, Resuscitator Unit, Suction Unit, O2 and Air blender etc.
| Heater capacity | 500W |
| Temperature control | Servo(Baby) Mode/Manual/Preheating mode |
| Skin temperature | Setting range:34.0~38.0°C Display range:20.0~42.0°C |
| Heater output | Setting range:0~100%(in 5% increments) Indication range:0~100%(in 1% increments) |
| Timer | APGAR mode/CPR mode switchable APGAR Beep:1,5,10 min |
| Display | LED digital display |
| Bed tray | Inclination angle(back and forth):±13° Mattress surface:500x700x25mm |
| Dimension | 840(L)*1100(W)*1790(H)mm |
| Optional Functions | |
| X-ray cassette | 53x35cm |
| Height adjustment | Up to 20cm |
| Temperature | -25~55°C |
| Humidity | 0~93% RH |
