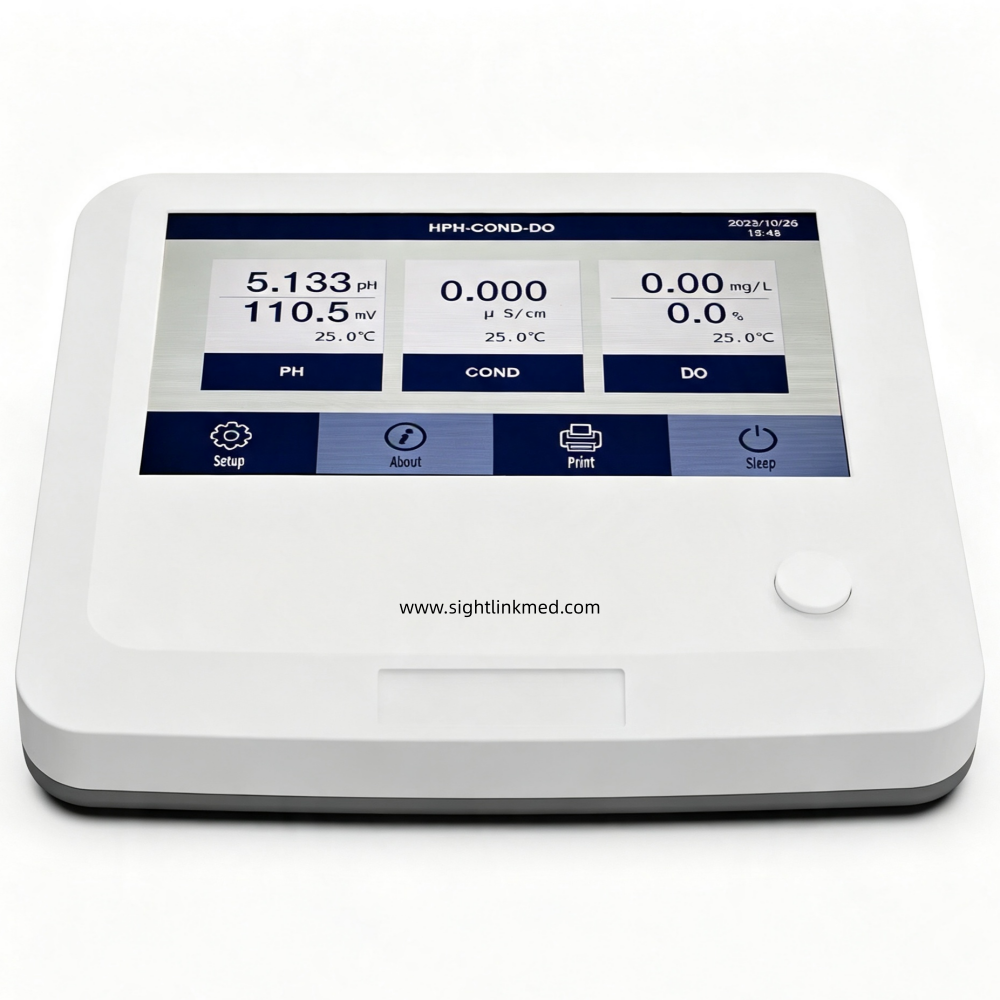

Benchtop Touch Screen Single Parameter Water Quality Analyzer Dissolved Oxygen DO/conductivity COND/pH ORP Water Quality Tester
This series includes single-parameter benchtop meters (PH100T/EC100T/DO100T) and multi-parameter DPCD100T. The 7-inch touchscreen model can display pH, conductivity and DO simultaneously. All units support auto-calibration, ATC automatic temperature compensation and multiple-point pH calibration. Each parameter stores up to 500 readings; data can be exported via flash drive, PC or optional wireless printer. Rated IP54, the kit comes with probes, calibration solutions, flexible probe holder and magnetic stirrer, delivering precise lab water testing for pH, ORP, conductivity and dissolved oxygen.
Features：
💎Display pH/Cond/DO simultaneously (DPCD100T)
💎High-res 7″ touch screen, easy for operation
💎User-friendly operating navigation by graphics and texts
💎Intelligent functions such as automatic calibration, automatic temperature compensation, timing data logger, parameter setup, etc.
💎1 to 5-point calibration for pH mode
💎Data storage: 500 readings/parameter
💎Data export: Flash disk/PC/Wireless printer (the printer is optional)

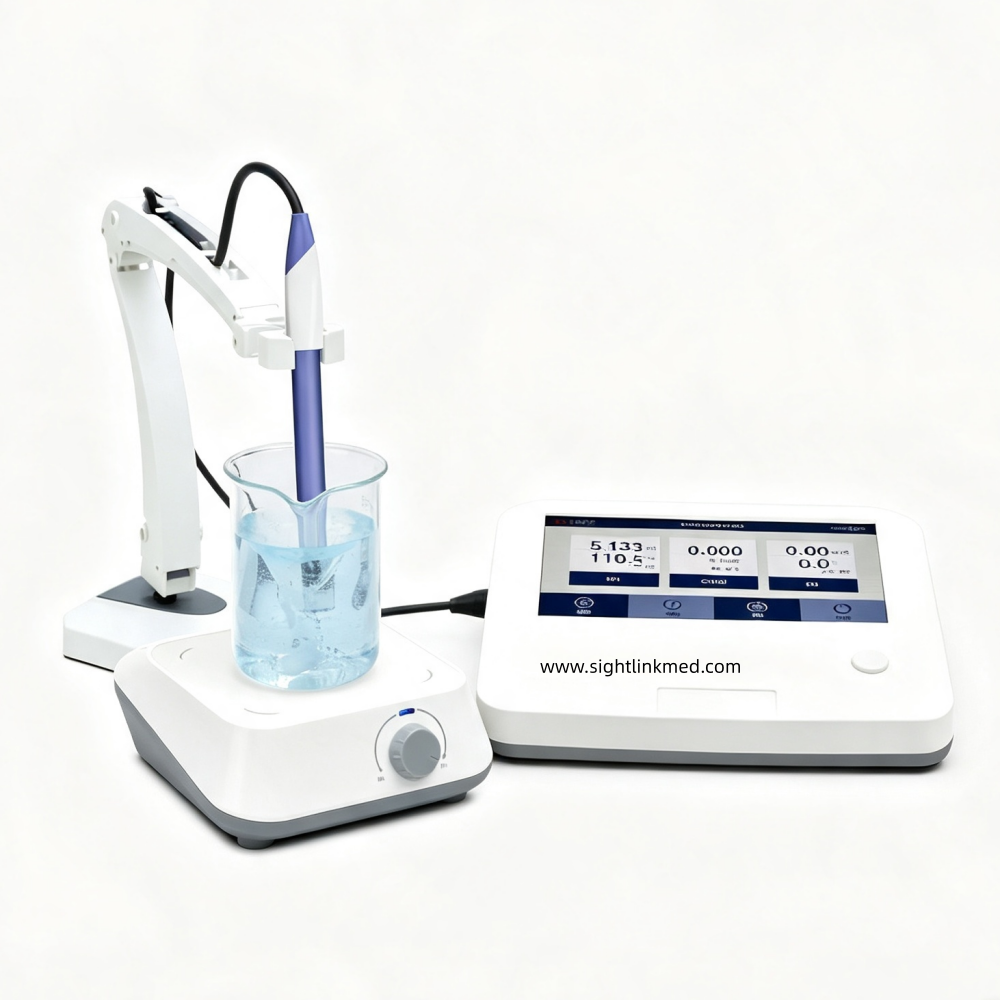

💎Equipped with a flexible probe holder, magnetic stirrer and standard calibration solution
💎Protection class: IP54
Technical Parameter:
| Model | PH100T | EC100T | DO100T | ||
| Parameter | pH/mV.°C | ✓ | – | – | |
| mV(ORP).°C | ✓ | – | – | ||
| Cond/TDS/Sal./Res.°C | – | ✓ | – | ||
| DO.°C | – | – | ✓ | ||
| pH | Measurement range | (-2.000–20.000)pH | ✓ | – | – |
| Resolution | 0.01/0.001 | ✓ | – | – | |
| Accuracy | ±0.002pH ±one digit | ✓ | – | – | |
| Calibration points | 1, 2, -5 pts automatic | ✓ | – | – | |
| ATC range | (-10.0–135.0)°C/(14.0–275.0)°F | ✓ | – | – | |
| ORP | Measurement range | (-1999.9–+1999.9)mV | ✓ | – | – |
| Resolution | 0.1 | ✓ | – | – | |
| Accuracy | ±0.03%F.S ±one digit | ✓ | – | – | |
| Conductivity | Measurement range | 0–2000.0mS/cm, Auto-ranging:0–19.999μS/cm;20.0–199.9μS/cm;200–1999μS/cm;2.00–19.99mS/cm;20.00–199.9mS/cm;200.0–2000mS/cm(K=10)Match test range: 0–200mS/cmTDS:0–1000.0g/L(TDS factor adjustable)Resistivity:5.000Ω·cm–100.0MΩ·cmSalinity: 0–100ppt | – | ✓ | – |
| Calibration points | one point | – | ✓ | – | |
| Resolution | 0.001 | – | ✓ | – | |
| ATC range | (-10.0–135.0)°C/(14.0–275.0)°F | – | ✓ | – | |
| Accuracy | ±0.5% F.S ±one digit | – | ✓ | – | |
| DO | Measurement range | (0.00–20.00)mg/L | – | – | ✓ |
| Accuracy | ±0.30 mg/L | – | – | ✓ | |
| DO saturation | (0.0–200.0)% | – | – | ✓ | |
| Automatic barometric pressure compensation | (0–200.0)kPa | – | – | ✓ | |
| Automatic temperature compensation | (0.0–50.0)°C/(32.0–122.0)°F | – | – | ✓ | |
| Manual salinity compensation | 0–45ppt | – | – | ✓ | |
| Temperature | Measurement range | (-10.0–135.0)°C/(14.0–275.0)°F | ✓ | ✓ | ✓ |
| Accuracy | ±0.2°C | ✓ | ✓ | ✓ | |
| Others | Data export | Flash disk/PC/Printer | ✓ | ✓ | ✓ |
| Power supply | DC12V | ✓ | ✓ | ✓ | |
| Test kit | Host meter | Meter | ✓ | ✓ | ✓ |
| pH electrode | Glass refillable combination pH probe 201G | ✓ | – | – | |
| Temperature probe | Stainless-steel temperature probe TEMP-01 | ✓ | – | – | |
| Conductivity electrode | Glass ATC conductivity probe CON201TG,K=1.0 | – | ✓ | – | |
| DO electrode | Polarographic DO probe DO01-2M | – | – | ✓ | |
| pH calibration liquid | pH buffer solution:pH4.00/7.00/10.01,50mL,one for each | ✓ | – | – | |
| Conductivity calibration liquid | Standard Cond solution:84μS/1413μS/12.88mS/cm,50mL,one for each | – | ✓ | – | |
| DO filling solution | Membrane refill solution:DOS-01,30mL,1btl | – | – | ✓ | |
| DO membrane caps | Membrane sensor caps DOSC:3pcs/group,1pkg | – | – | ✓ | |
| Data cable | PC cable:1pc | ✓ | ✓ | ✓ | |
| Probe bracket | Flexible probe holder F01:1pc | ✓ | ✓ | ✓ | |
| Magnetic stirrer | Magnetic stirrer:1pc | ✓ | ✓ | ✓ | |
| Power accessory | Power adaptor | ✓ | ✓ | ✓ | |
