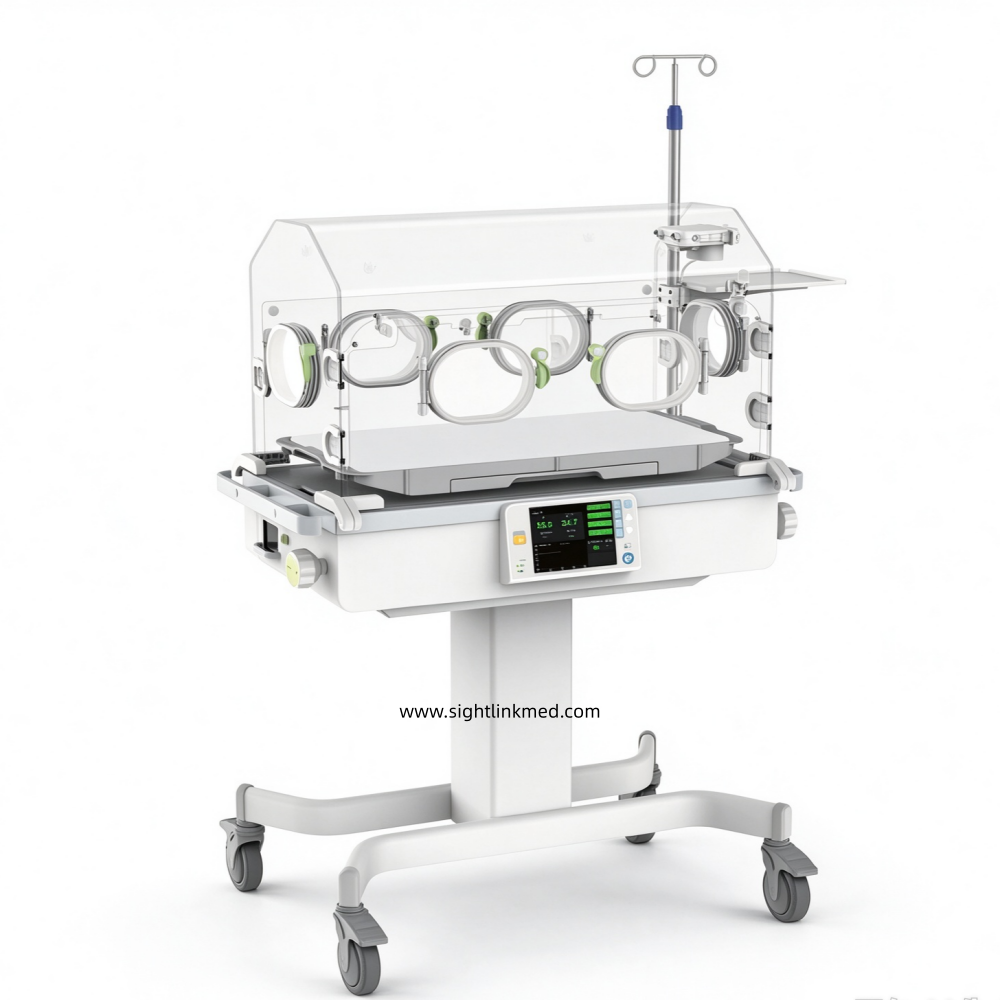

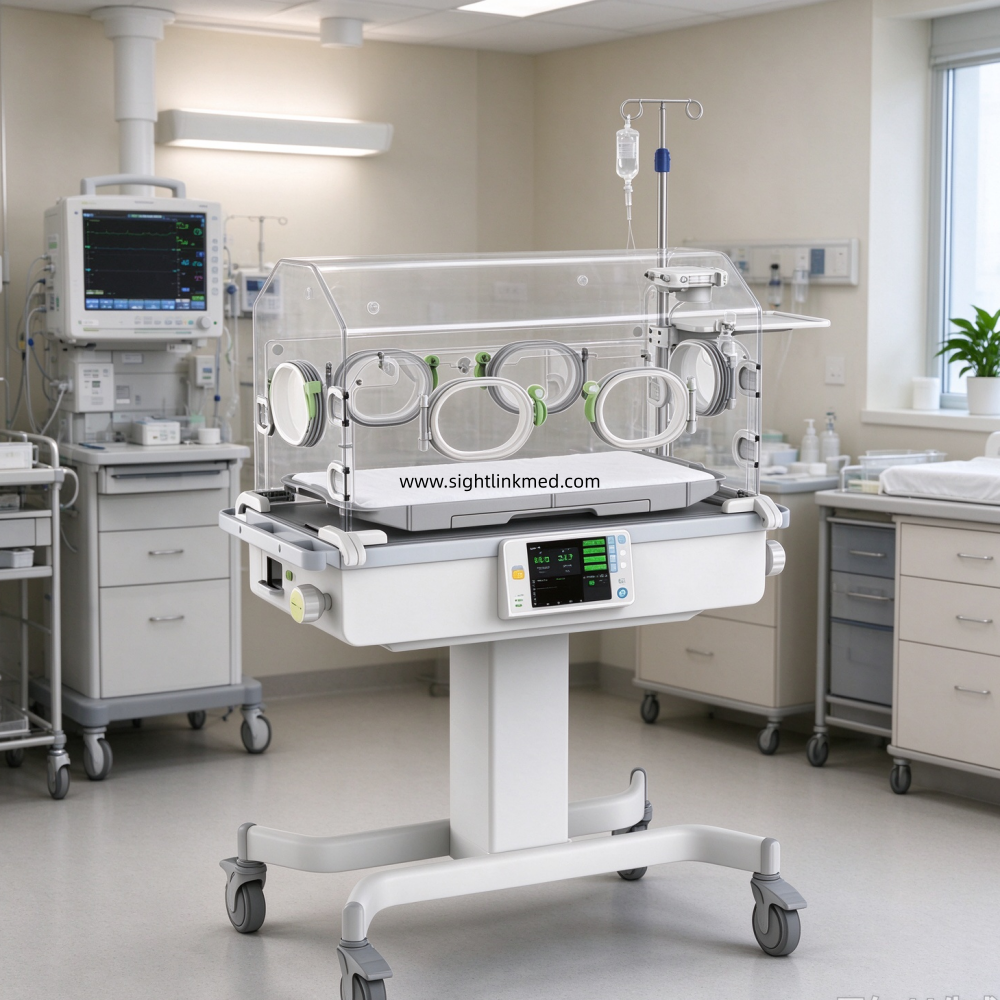

Newborn Baby Incubator Precise Temperature and Humidity Regulation Infant Radiant Warmer
This infant care equipment is equipped with an 8-inch LCD screen, adopts double-wall and air curtain structure, supports servo control and real-time monitoring of air and skin temperature as well as humidity, allows the baby bed to tilt within 0-12°, and can display 2/4/8/12/24-hour data trends; it comes standard with an IV pole and shelf, while optional accessories include storage drawers, X-ray cassette, integrated weight scale, O2 input port and O2 cylinder holder, with reliable sensors to continuously track temperature and humidity inside the hood, reducing heat loss when opening the access panel and facilitating operation and infant examinations.
Features:
Basic configurations
- 8 inch LCD screen
- Air and skin temperature servo control & monitoring
- Humidity servo control and monitoring
- Baby bed tilting angle from 0-12°
- Double wall with air curtain
- Trend for 2, 4, 8, 12, 24 hours
- IV-Pole and shelf
Optional configurations
- Storage drawers
- storage drawer (Optional): Providing convenient access to storage space from any directions.
- X-ray cassette
- X-Ray cassette (Optional): X-ray cassette is positioned under the baby tray, eliminating the need to move the baby during X-ray examinations.
- Weight scale
- Weight scale (Optional): Integrated weight scale, measures the newborns’ weight.
- O2 input port
- O2 cylinder holder
Independent feature descriptions
- 8 inch LCD screen
- 8 inch LCD enhancing convenience for operation and improving visibility of information from a distance.
- Double wall and air curtain design
- Reduce the heating loss when open the access panel.
- Reliable sensor module
- Monitoring the real time humidity and temperature in the hood.
| Physical Attributes | |
| Height | 143cm |
| Width | 100cm |
| Depth | 58cm |
| Net Weight | Around 100kg |
| Hood Specifications | |
| Tubing access points | 10 |
| Access door | 6 |
| Mattress to hood height | 40cm |
| Baby bed mattress size | 73.6cm x 36cm x 2cm |
| Temperature Control | |
| Temperature control modes | Skin and air temperature servo control mode |
| Air mode control temperature range | 20°C–37°C |
| Air mode control overrange temperature | 37°C–38°C |
| Skin mode control temperature range | 34°C–37°C |
| Skin mode control overrange temperature | 37°C–38°C |
| Performance | |
| Air flow velocity maximum | < 10 cm/sec |
| Temperature rise time at 22°C ambient | < 10 min |
| Temperature variability | ≤ 0.3°C |
| Operating noise level in hood | ≤ 45 dB(A) |
| Humidity Servo Control | |
| Humidity control range | 30%–95% RH |
| Humidity control reservoir capacity | 1500ml |
| Humidity display and control accuracy | ±3% RH |
| Weight Scale Option | |
| Weight range | 300g to 8kg |
| Weight accuracy | ±5g |
| Storage/Shipping Information | |
| Temperature | -25°C to 60°C |
| Humidity | 0–95% RH |
