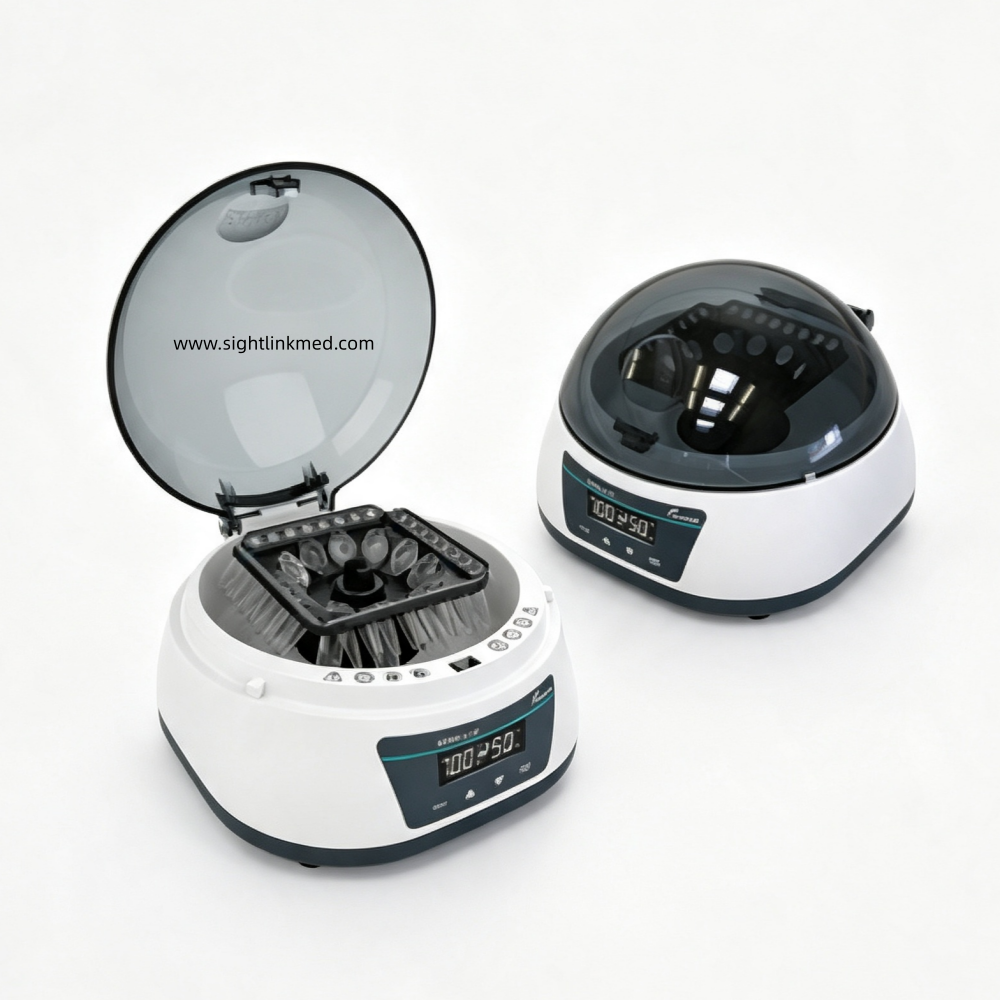

Portable Mini Centrifuge MC-5Pro MC-7Pro with High Efficiency

MC-5Pro and MC-7Pro are programmable digital mini centrifuges with adjustable speed and timing functions. They adopt button digital control, universal multi-spec rotor and safe low-voltage power supply. Two speed tiers are available to meet flexible separation needs of clinical blood testing, molecular experiments, PCR and routine micro sample pretreatment. The wide-voltage design supports global laboratory deployment.

Advantages：

1. Stepless adjustable speed with two versions

Both models support speed adjustment with 500 rpm increment, allowing precise customization of centrifugal intensity.

• MC-5Pro: Speed range 1000–5000 rpm, maximum RCF 1677 xg. Suitable for mild centrifugation, liquid collection, quick spin-down of tube-wall liquid and gentle precipitation of fragile biological samples.
• MC-7Pro: Speed range 1000–7000 rpm, maximum RCF 3286 xg. Provides stronger centrifugal force for fast sedimentation of nucleic acid, cell debris and trace precipitates.

2. Flexible digital timing function

Timing covers 10 seconds to 99 minutes. Users can set accurate running duration according to experimental protocols. The machine automatically stops once time expires, reducing manual supervision errors and standardizing experiment repeatability. Rotation direction keeps counterclockwise for stable and balanced operation.

3. High-compatibility multifunctional rotor

The universal rotor fits multiple lab consumables for versatile use:

1. Regular centrifuge tubes: 0.2 mL, 0.5 mL, 1.5 mL, 2.0 mL ×12; plus 4 pieces of 8-well 0.2 mL PCR strip adapters
2. Micro blood collection tubes: 0.5 mL / 1.0 mL ×12

It covers PCR testing, biochemistry reagents and capillary blood testing scenarios.

4. Safe external DC power system

• Wide input voltage: AC 100–240V, compatible with power grids worldwide
• Equipped with DC 24V 1.5A external adapter. Isolated low-voltage power improves safety in humid clinical and biochemical labs
• Rated power fixed at 25W, low power consumption for frequent daily use

5. Compact layout for limited workspace

Overall dimension: 185×180×135 mm. It occupies little bench space and can be placed inside biosafety cabinets, PCR hoods and portable experiment stations conveniently.

Application：

Capillary blood separation, PCR sample spin down, nucleic acid extraction, protein centrifugation, micro reagent concentration, medical clinical testing, university biological teaching, molecular diagnosis and routine micro-volume sample preparation.

Technical Parameter:
