Multi-functional ABS Horizontal Electrophoresis Tank for DNA Separation Identification Preparation

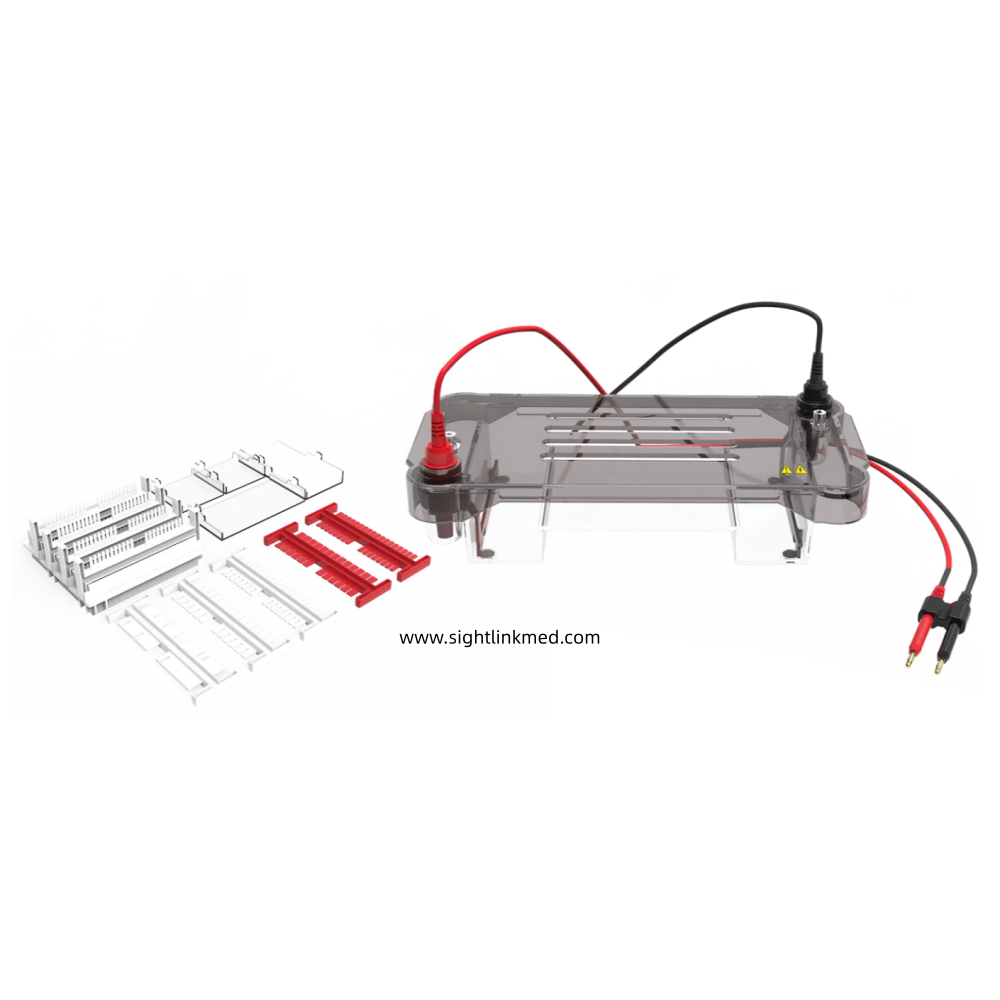

This is a multi-purpose horizontal electrophoresis tank, designed for versatile nucleic acid electrophoresis applications. It includes the main tank with electrodes, lid with cables, multiple gel trays of different sizes, and various sample combs for different loading configurations.
Features：
💎Suitable for rapid separation, identification, preparation of DNA, and determination of its molecular weight.
💎Polycarbonate injection molding, ensuring no leakage.
💎Four different sizes of gels can be made, and two types of gel makers are optional.
💎Limit function to prevent reverse installation of positive and negative electrodes.
💎Detachable electrodes for easy replacement and maintenance.
💎99.99% high-purity platinum electrodes offer the best conductivity, anti-aging, and resistance to corrosion.
💎The large glue and small glue boxes are designed as one front and back; the large glue can hold up to four rows of combs at a time.
💎 Fluorescent ruler on the bottom of the tray.
Technical Parameter:
💎 Gel area:
- Large gel: 120 × 120 mm
- Wide gel: 120 × 60 mm
- Long gel: 60 × 120 mm
- Small gel: 60 × 60 mm
💎 Number of sample combs: 2, 3, 6, 8, 11, 13, 18, 25
💎 Buffer volume: 700 mL
Standard Configuration:
| Name | Unit | Quantity |
| Lid with cables | set | 1 |
| Body tank with electrodes | set | 1 |
| Gel box | piece | 1 |
| Large gel tray（120 X 120） | piece | 1 |
| Wide gel tray（120 X 60） | piece | 1 |
| Long gel tray（60 X 120） | piece | 1 |
| Small gel tray（60 X 60） | piece | 2 |
| Sample comb: 2+3 well | piece | 1 |
| Sample comb: 6+13 well | piece | 1 |
| Sample comb: 8+18 well | piece | 1 |
| Sample comb: 15+25 well | piece | 4 |
