Jewellery Class Ultrasonic Cleaning Machine for Hardware Jewellery High Power Cleaner

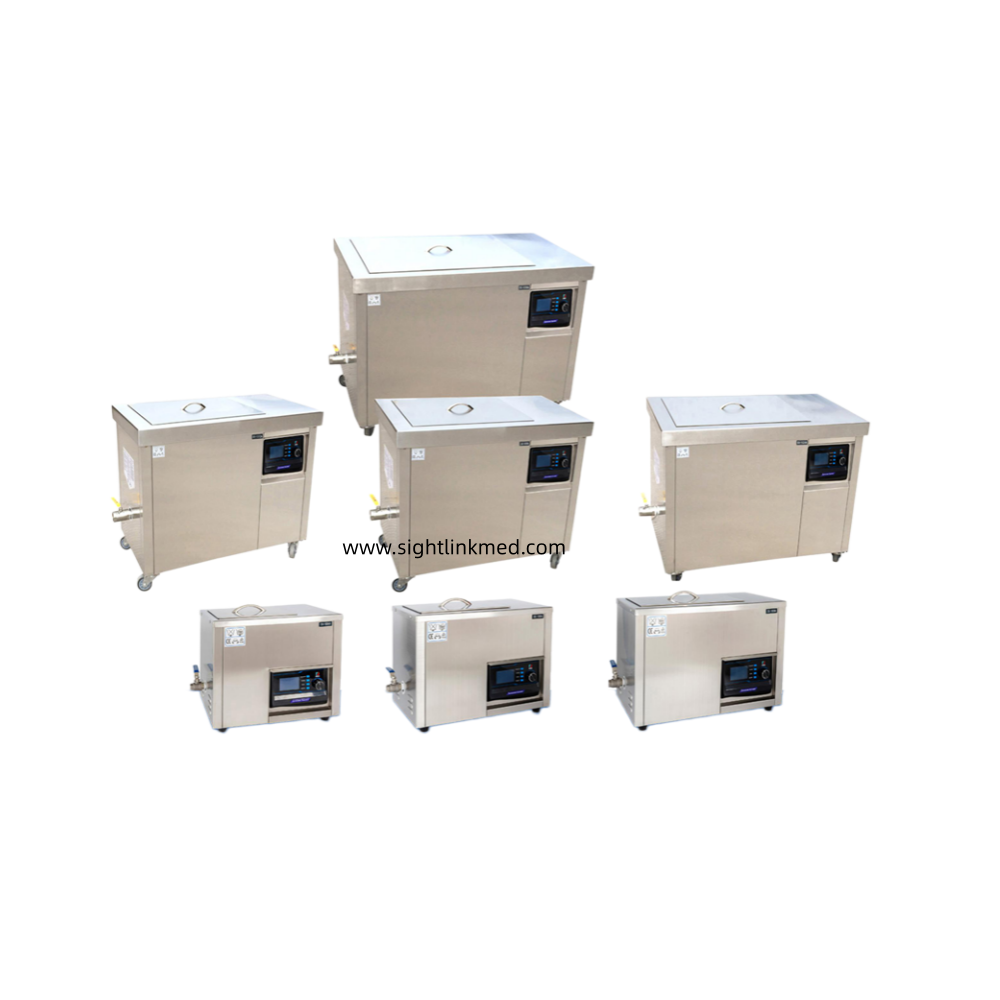

The DS-A type industrial efficient cleaner adopts more thickness high quality stainless steel splice welding.
Description
The DS-A type industrial efficient cleaner adopts more thickness high quality stainless steel splice welding. lt use high power transducer and high efficiency circuit, it adopts LCD show and mechanical high quality control mode, more intelligent operation. lt’s applied to industry manufacture; auto parts and auto maintenance equipment maintenance, etc.
| Model | Outer Dimension (mm) | Tank Dimension (mm) | Volume | Ultrasonic Power (W) | Heating Power (KHz) | Frequency (Khz) | Timer Range Min | Heating Range (℃/F) | Power Range (100%) |
| DS-1004A | 430x320x370 | 220x200x230 | 10 | 400 | 600 | 28 | 0~99 | 0~100 | 10%~100% |
| DS-1006A | 500x320x370 | 290x200x230 | 14 | 600 | 600 | 28 | 0~99 | 0~100 | 10%~100% |
| DS-1008A | 560x340x340 | 350x220x230 | 18 | 800 | 600 | 28 | 0~99 | 0~100 | 10%~100% |
| DS-1012A | 780x420x590 | 420x300x310 | 40 | 1200 | 2000 | 28 | 0~99 | 0~100 | 10%~100% |
| DS-1018A | 840x480x640 | 480x360x360 | 60 | 1800 | 2000 | 28 | 0~99 | 0~100 | 10%~100% |
| DS-1024A | 920x540x680 | 560x420x400 | 90 | 2400 | 3000 | 28 | 0~99 | 0~100 | 10%~100% |
| DS-1030A | 1020x570x680 | 660x450x400 | 120 | 3000 | 3000 | 28 | 0~99 | 0~100 | 10%~100% |
| DS-1042A | 1350x650x700 | 900x500x400 | 180 | 4200 | 6000 | 28 | 0~99 | 0~100 | 10%~100% |
| DS-1060A | 1450x750x700 | 1000x600x400 | 240 | 6000 | 6000 | 28 | 0~99 | 0~100 | 10%~100% |
