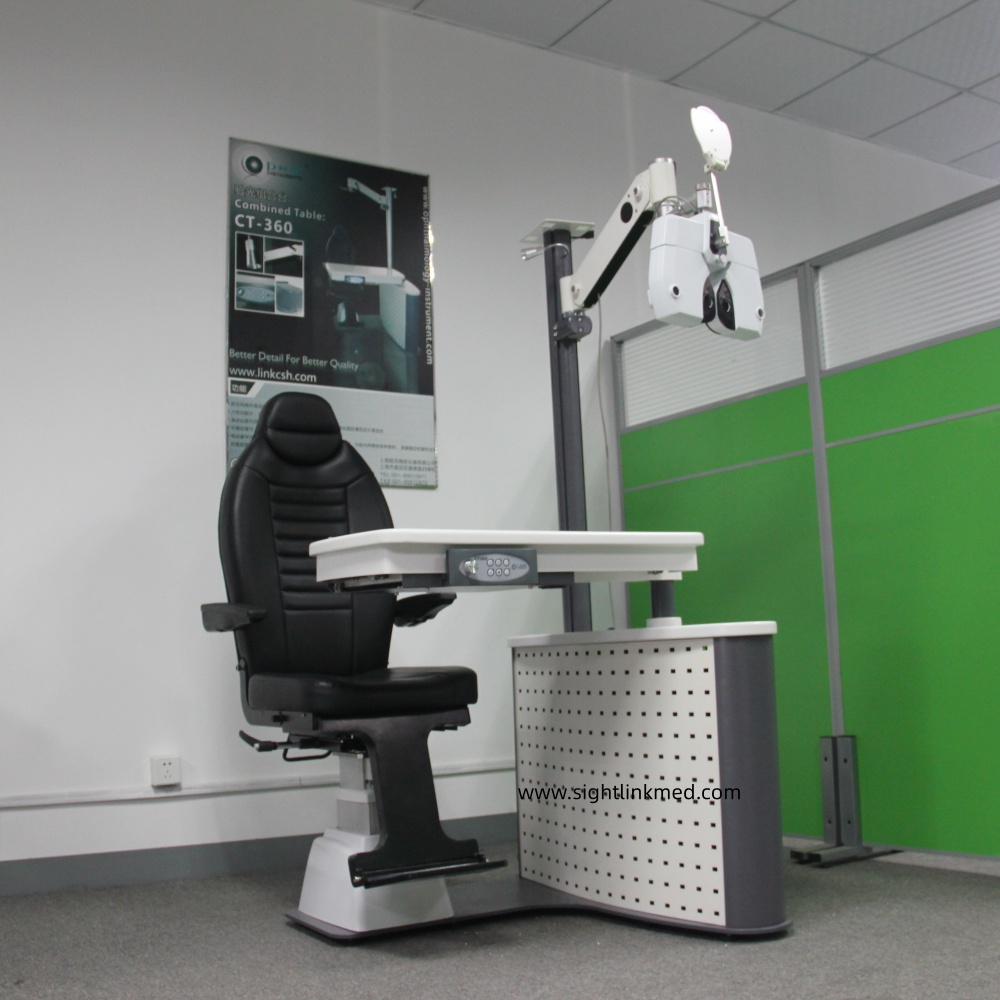

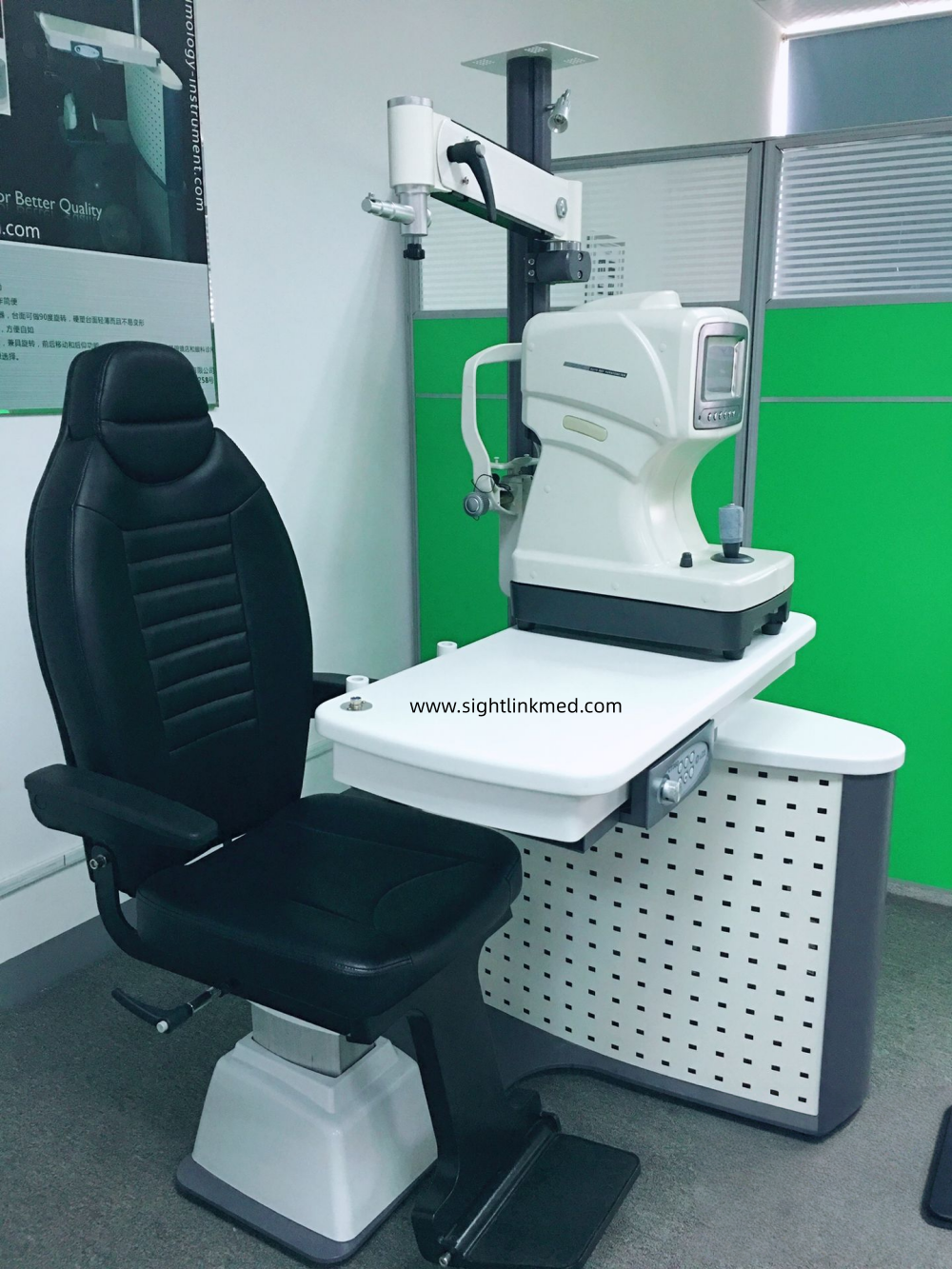

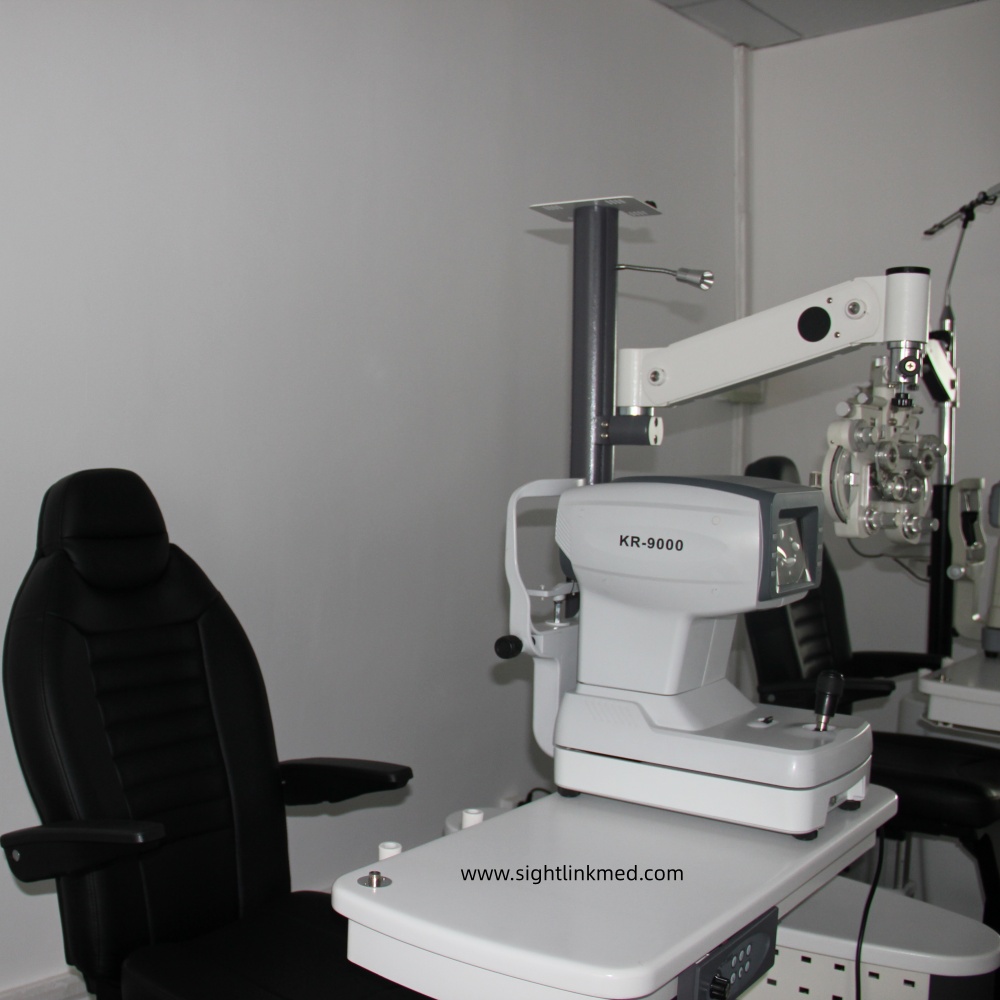

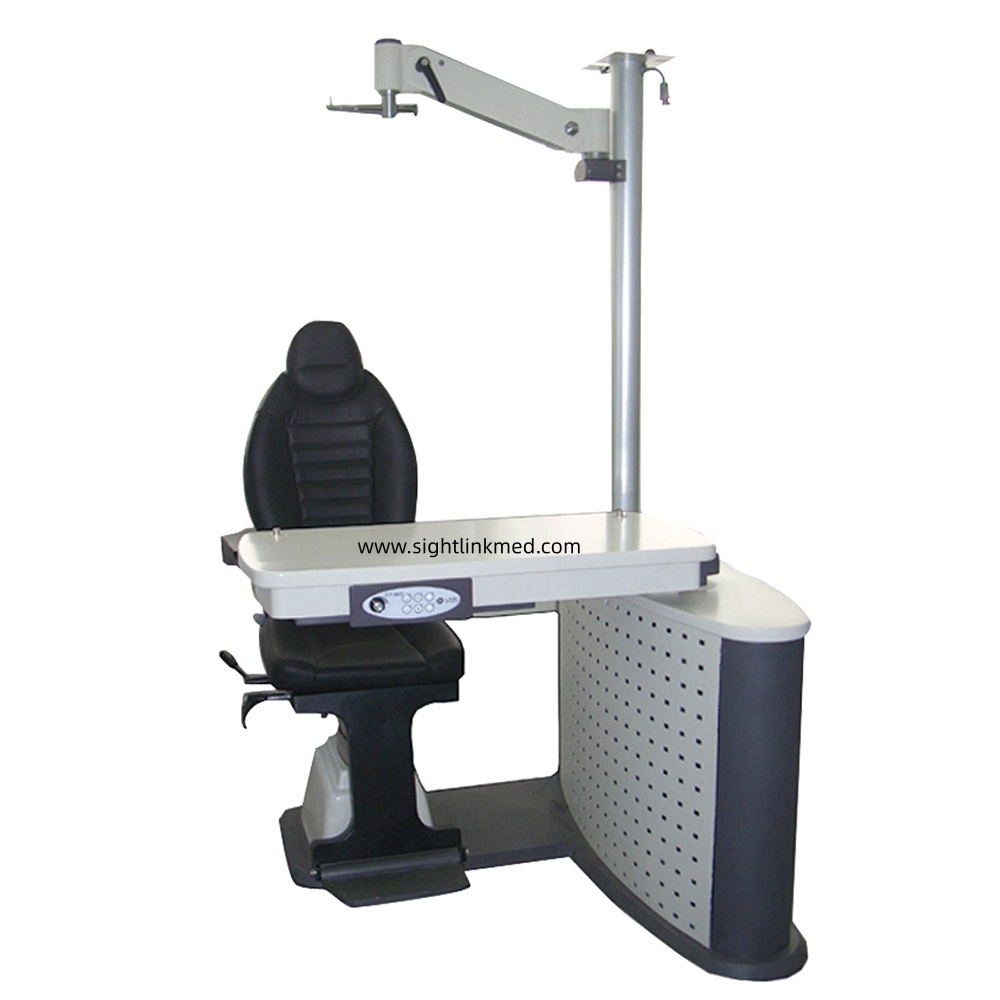

High Quality Medical Equipment and Ophthalmic Instruments Ophthalmic Table and Chair Unit
CT-360 0phthalmic Unit table can hold twoinstruments at the same time, such asautorerfractor 、slit lamp and lensometer.
Description
Features
1.Table material ABs hard plastic, can slide left and rightrotate 90 degrees outwards;
2. Place two instruments;
3. The seat has functions of rotation, aerodynamic recliningmovement, and electric lifting
4.Mechanical swing arm feels good and accurate positioning,
5.The appearance of the cabinet is atmospheric and stable,6.Rechargeable ophthalmoscope ophthalmoscope socket;
7.lt can increase the matching use of the slit lamp, andcharge according to the actual situation;
8.Seat color can be customized and charge according toactual situation;
|
Maximum size
|
1190×1055×1850mm
|
|
Table size
|
890×405mm
|
|
Table rotation angle
|
90°
|
|
Table moving distance
|
335mm
|
|
Swing arm angle
|
+35°
|
|
Seat rotation angle
|
60°
|
|
Chair up and down range
|
540-690mm
|
|
Seat load
|
200-250kg
|
|
Seat moving distance
|
150mm
|
| Brand | Sightlink Medical |
|
Chair backrest obliquity
|
160°
|
|
Spotlight light source
|
LED (24V 3W )
|
|
Voltage
|
AC220V / 110V 50 / 60HZ
|
|
Gross weight
|
200kg
|
|
Packing size
|
1200×1100×1050mm
|
|
Packing volume
|
1.38 cubic
|
