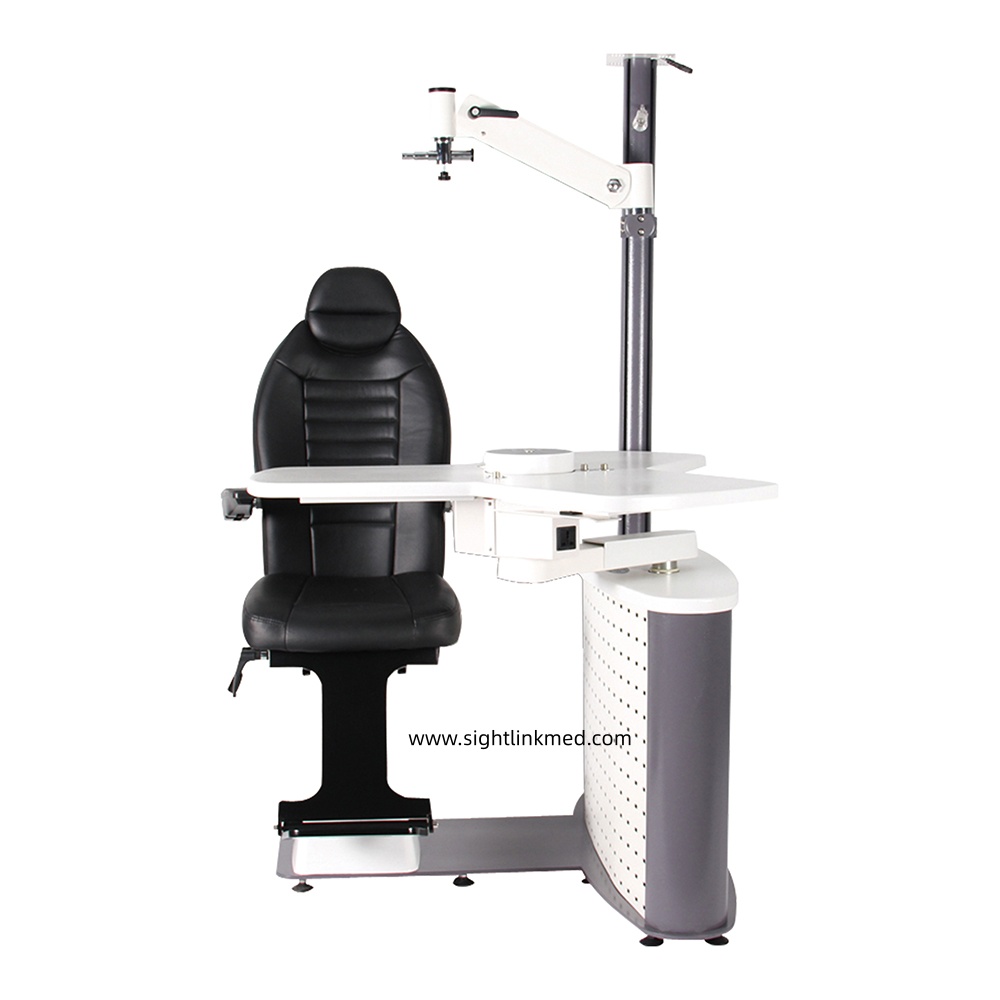

CT-450S China Automatic Refractor Chair Unit Optometry Combined Table and Chair Ophthalmic Unit
Adopt European style in appearance design, simple and fashionable,ergonomic design.Universal function and good performance and easy operation.Sliding table accommodates two instruments and provides with 90 degrees’ rotation.Handoperated phoropter arm can swing up and down, left and right.Reclining Chair can smoothly lift up and down, forward and backward with low noise. It can be used with kinds of ophthalmic instruments, and it’s the ideal choice for hospitals, clinics and optical shops.
Description
1. Table material ABS hard plastic, can slide left and right, rotate 90 degrees outwards;
2. The table is a wireless switch, which can rotate freely and steplessly;
3. Put three instruments;
4. The seat has functions of rotation, aerodynamic reclining, movement, and electric lifting;
5. Mechanical swing arm feels good and accurate positioning;
6. The appearance of the cabinet is atmospheric and stable;
7. Rechargeable ophthalmoscope ophthalmoscope socket;
8. Seat color can be customized and charge according to actual situation;
Luxurious design and graceful structure

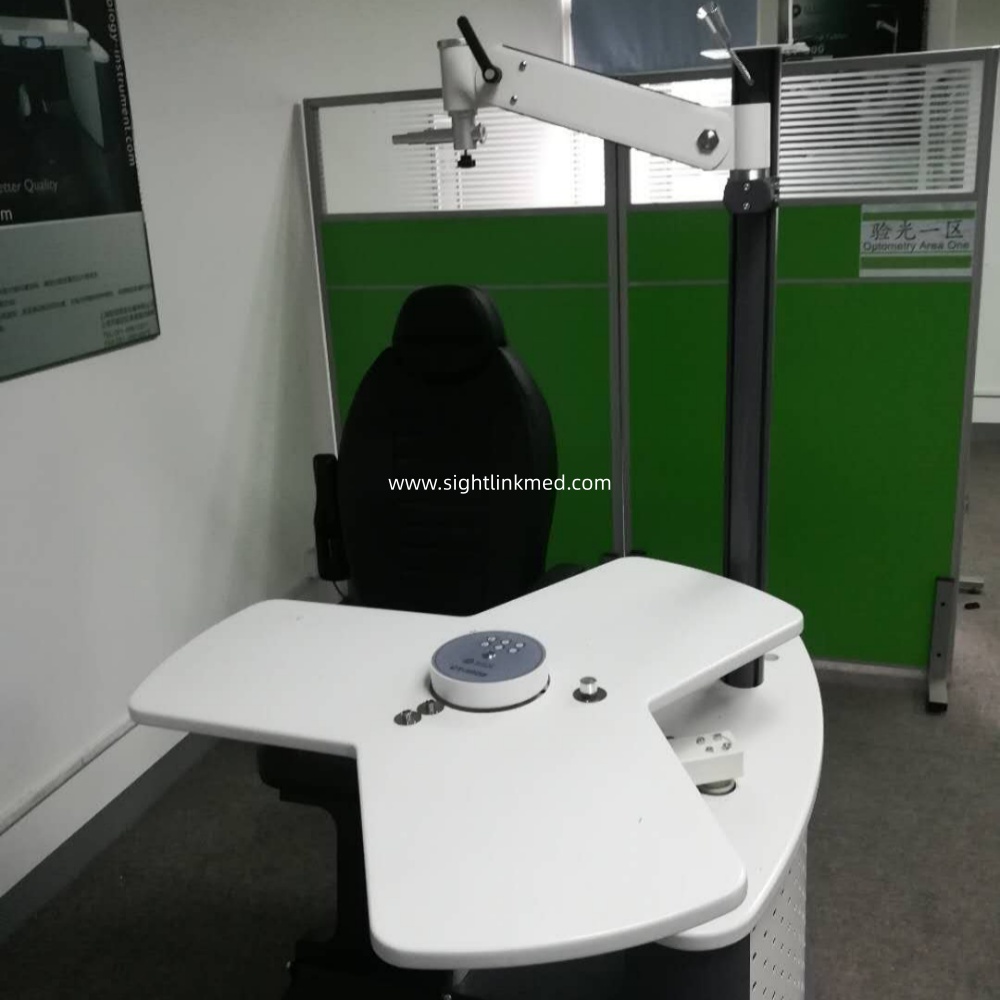

•The Y shape table is designed for saving space, it can hold three instruments
• Hand-operated phoropter arm can swing up and down, left and right
•Reclining chair can smoothly lift up and down, forward and backward with low noise
|
Unit size
|
1100×800×2100mm
|
|
Table size
|

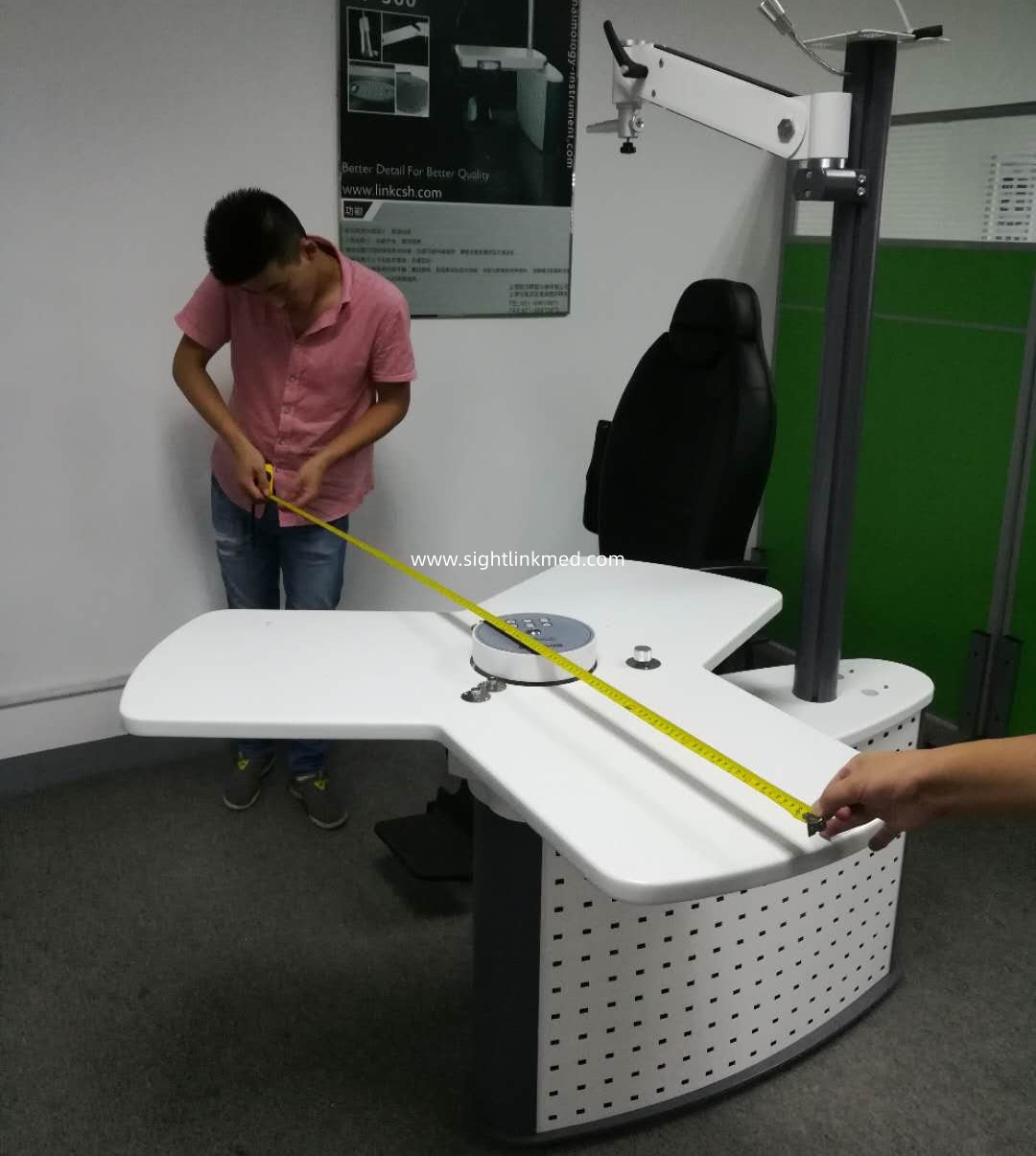

890×405mm
|
|
Table rotation range
|
90°
|
|
Swing arm angle
|
+35°
|
|
Swing arm rotation range
|
60°
|
|
Seat rotation angle
|
45°
|
|
Chair up and down rang
|
510-600mm
|
|
Chair loading ability
|
200-250kg
|
| Chair backrest obliquity | 160° |
| Lamp | Halogen (24V, 3W) |
| Brand | Sightlink Medical |
| Material | ABS hard plastic |
|
Voltage
|
AC220V / 110V 50 / 60HZ
|
|
Gross weight
|
200kg
|
|
Packing size
|
1200*1100*1050mm
|
|
Packing volume
|
1.38 cubic
|
