Economic Microplate Shaker/Oscillator for Lab
VM-600/VM-600D are brushless microplate shakers with digital & knob operation. They feature 3-mm shaking orbit, 500–1200 rpm speed, 1 min–8 h timing and AC 100-240V input. Four plates can be loaded at once. VM-600 suits regular cell/ELISA plates; VM-600D supports deep well plates as well.
The VM-600 and VM-600D are laboratory horizontal orbital microplate mixers controlled by knobs with digital readouts. Both models adopt brushless motors to ensure stable, quiet and durable running.
Common Specifications
- Motion parameter: Horizontal shaking stroke of 3 mm; adjustable rotating speed ranges from 500 rpm to 1200 rpm with a 10 rpm adjustment step.
- Timing function: Timer covers 1 minute to 8 hours to meet varied experimental mixing needs.
- Electrical condition: Rated power 20W; universal AC 100-240V wide voltage input, fit for worldwide labs.
- Loading capacity: Supports simultaneous mixing of four plates.

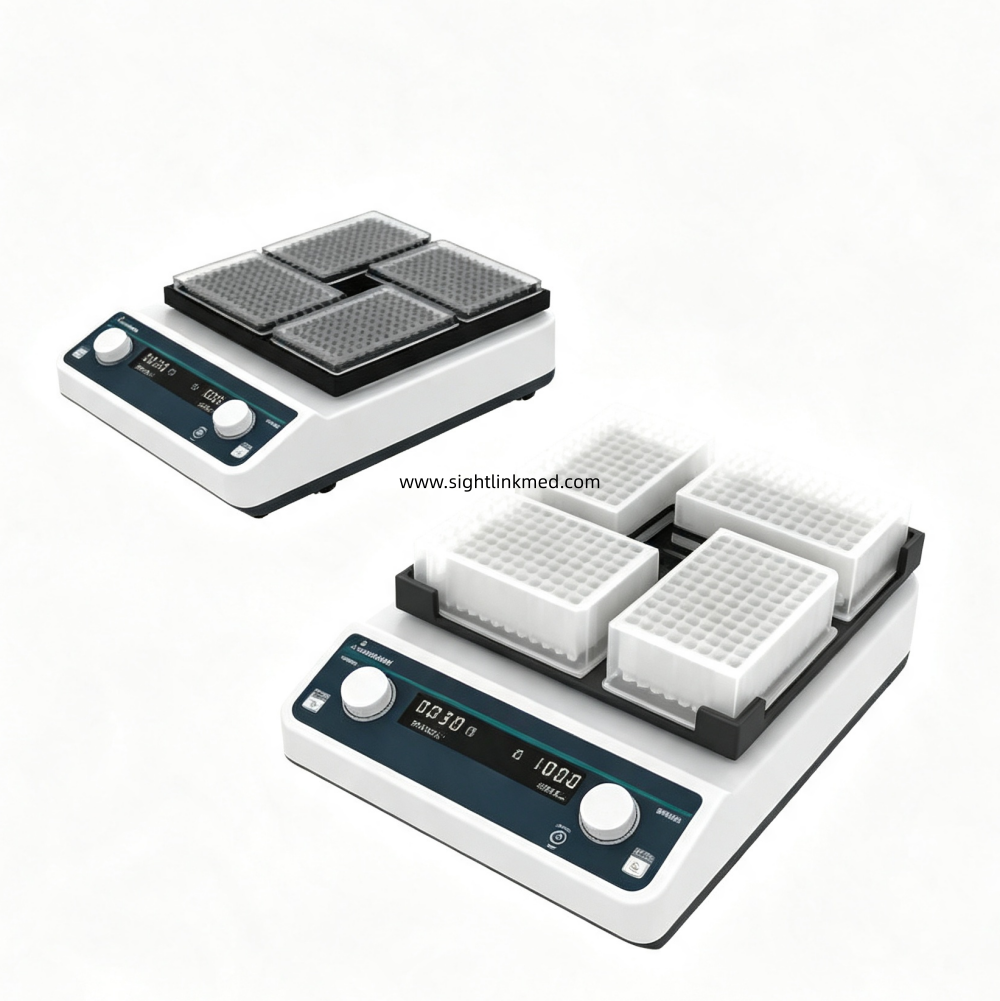

Model Difference
- VM-600: Compatible with ELISA plates and cell culture plates. Dimension: 355×260×95 mm.
- VM-600D: Works with ELISA plates, cell culture plates and deep well plates for wider applicability. Dimension: 355×260×105 mm.
This equipment is widely applied in immunoassay, cell culture, biochemistry and molecular experiments to achieve even mixing of liquid samples in multi-well plates.
Technical Parameter:
| Model | VM-600 | VM-600D |
| Control mode | Knob & Digital display | Knob & Digital display |
| Motor type | Brushless motor | Brushless motor |
| Horizontal swing range | 3mm | 3mm |
| Speed range | 500-1200rpm | 500-1200rpm |
| Speed Increment | 10rpm | 10rpm |
| Timing range | 1min-8h | 1min-8h |
| Sample Capacity | ELISA Plate / Tissue culture plate * 4 | ELISA Plate / Deep well plate * 4 |
| Voltage | AC100-240V | AC100-240V |
| Power | 20W | 20W |
| Dimension | 355*260*95mm | 355*260*105mm |
