Dental Xray Sensor Image System Intraoral Digital X-Ray Sensor

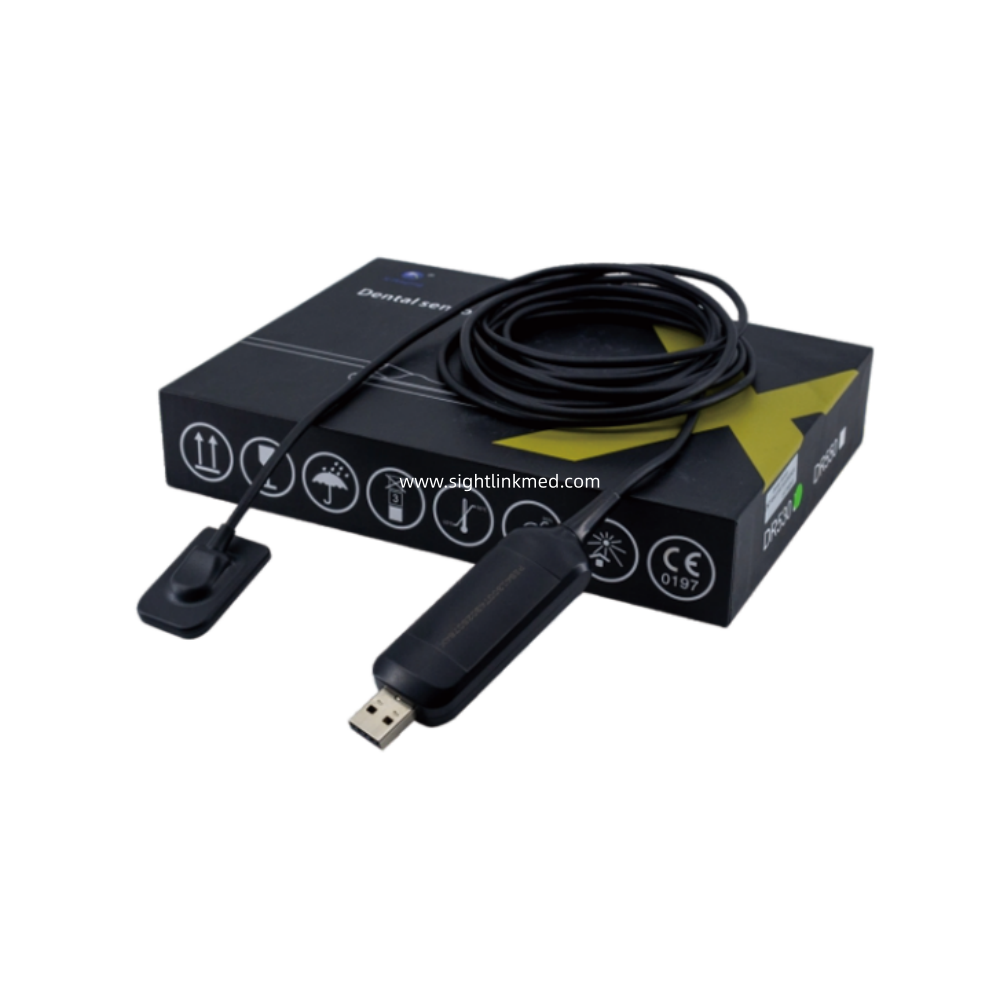

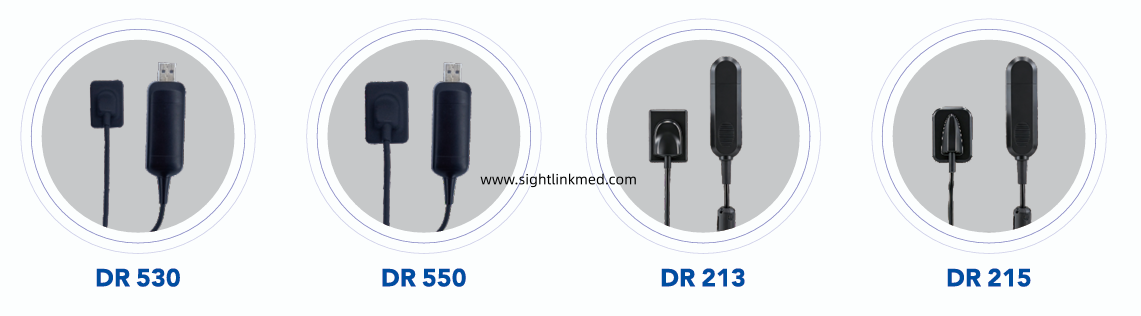

Veterinary Dental X-Ray Digital CMOS Sensor for Dogs, Cats & Small Pets, 4 Sizes DR530/DR550/DR213/DR215, Low Radiation Intraoral Imaging Sensor for Animal Clinics
🔹 This professional digital veterinary dental sensor adopts high-sensitivity APS CMOS chip, built specifically for pet oral radiography of dogs, cats, rabbits and other small animals.
🔹 Four size options cover tiny kitten mouths to large dog dentition, delivering ultra-sharp pet dental images with remarkably low X-ray radiation dose to protect your furry patients.
🔹 No film development required—real-time image transfer to clinic computers streamlines your animal diagnostic workflow perfectly.
Features:
Compatibility
Compatible with the systems that usethe TWAIN protocol.
Images Formats
Export images as DCM, RAW, BMPJPG, Or PNG
Reliable Quality
Withstands over 70,000 bend tests(+90°) for proven durability; lP68-rated,brilliant waterproof performance.Improved contrast, less noise for sharpimages and sharper diagnostics.
Multiple Languages
Different languages for Option
Technical Parameter:
| Item | DR 530 | DR 550 | DR 213 | DR 215 |
| Sensor Type | APS CMOS | APS CMOS | APS CMOS | APS CMOS |
| Pixel Size | 20 μm | 20 μm | 18.5 μm | 18.5 μm |
| Dimension (mm) | 25*38.5*4.5 | 31.0*45.0*4.5 | 39*28.5*6 | 41*29.6*6 |
| Effective Area (mm²) | 20*30 | 26*36 | 22.2*29.6 | 24*32.8 |
| Pixel Matrix | 1000*1500 | 1300*1800 | 1200*1600 | 1296*1780 |
| Length of Cable | 2.8 m | 2.8 m | 2 m | 2 m |
