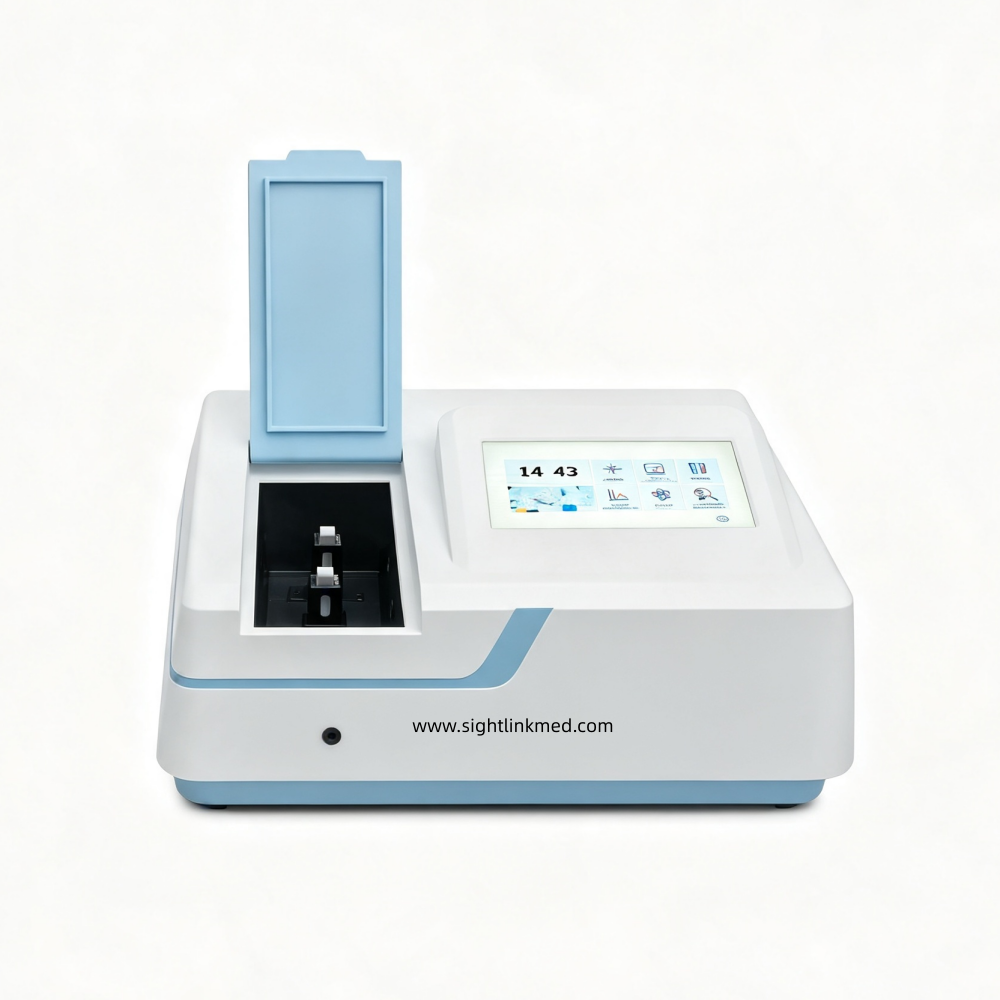

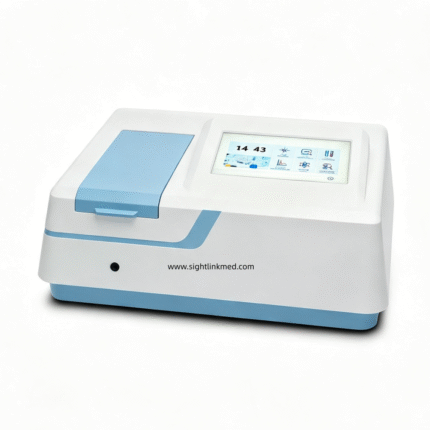

190-1100nm 1.0nm Bandwidth 10.1-Inch Color LCD Touch screen xenon lamp double beam UV Vis spectrophotometer
SP-XUV5102 is a double-beam UV-Vis spectrophotometer with a 190–1100 nm detection range and 1 nm spectral bandwidth. It adopts a long-service-life Japanese Hamamatsu xenon lamp, optimized wavelength drive system and silicon photodiode detector, delivering low stray light, low noise, high precision and stable measurement.
Equipped with a 10.1-inch touchscreen, it completes spectrum scanning, nucleic acid quantification, kinetics and other tests standalone. GLP/GMP-compliant PC software enables traceable data management. It supports USB data export with power-off memory, and offers abundant optional accessories to meet diverse testing needs.
Features：
💎10.1 inches high resolution TFT colored capacitive touch screen（1024*600） and windows graphic interface.
💎 Powerful functions like Photometric measurement, Quantitative measurement, Kinetics, Spectrum scan, DNA\Protein test, multi-wavelength test,etc.
💎 In-house massive memory is capable of saving up to 1024M for test data & working curves.
💎 Various optional accessories, like automatic cell holder, thermostatic automatic sampler, adjustable micro cell holder, reflection accessory and integrating sphere, etc. which extend the application range of device and combine the requirements of common samples and special ones.
💎 Supports USB storage. The USB port can be used for data transfer, which is easily exported to Excel for further processing, analysis and storage.
💎 Socket type deuterium and tungsten lamp can make lamps switching without optics debugging and easy to be replaced.
💎 Xenon lamp light source with extra-long serve life saves you the trouble of changing lamps;
💎 Follow GLP/GMP standards, user management, logging, data tracking and exporting, etc. are all available.
Applications：
It supports a wide range of optional accessories, including a wireless Bluetooth printer, automatic cell holder, film sample holder, tube cell holder, thermostatic bath holder, optical integrating sphere, reflectance attachment, variable path length sample holder, and variable angle solid sample holder, among other specialized accessories.
Featuring a long-life Hamamatsu Xenon Lamp (Japan), eliminating the hassle of frequent lamp replacement.
Technical Parameter:
| Specifications | SP-XUV5102 |
| Optical System | Double Beam, Grating 1200 lines/mm |
| Wavelength Range | 190-1100 nm |
| Spectral Bandwidth | 2nm |
| Wavelength Accuracy | ±0.1nm@656.1nm, ±0.3nm@all |
| Wavelength Repeatability | <=0.1nm |
| Photometric Accuracy | 0.2%T(0~100%T), ±0.002A(0-0.5A), ±0.004A(0.5-1A) |
| Photometric Repeatability | ≤0.15%T (0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A) |
| Photometric Range | 0-200%T, -0.3~3A, 0-9999C (0-9999F) |
| Stray Light | <=0.03%T@220nm, 360nm |
| Stability | ±0.0003A/h @500 nm |
| Baseline Flatness | ±0.001A |
| Noise | 0.0005A@500nm |
| Work Mode | T, A, C, E |
| Scanning Speed | Hi, Med, Low (Max. 3000nm/min) |
| Wavelength Setting | Auto |
| Display | 10.1″ TFT Colored Capacitive Touch Screen |
| Light Source | Xenon lamp light |
| Detector | Imported Silicon Photodiode |
| Cuvette Holder | 10mm manual 4-cell holder |
| Output | USB drive, USB host, RS232 |
| Power | AC 220V/50Hz or AC 110V/60Hz |
| Shipping Size | 810660390mm |
| Gross Weight | 27kg |
| Standard Accessories | 10mm glass cuvette x 4, 10mm quartz cuvette x 2, Power cord, User’s Manual, PC software |
