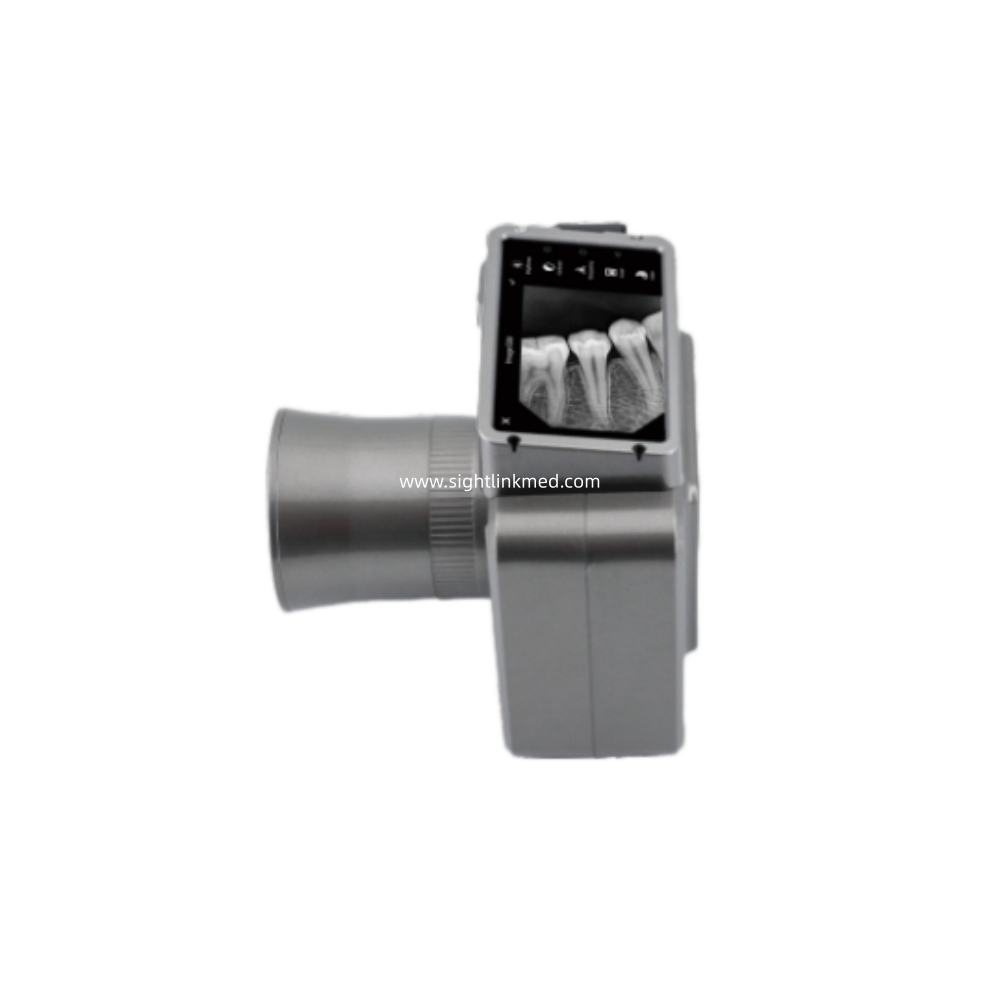

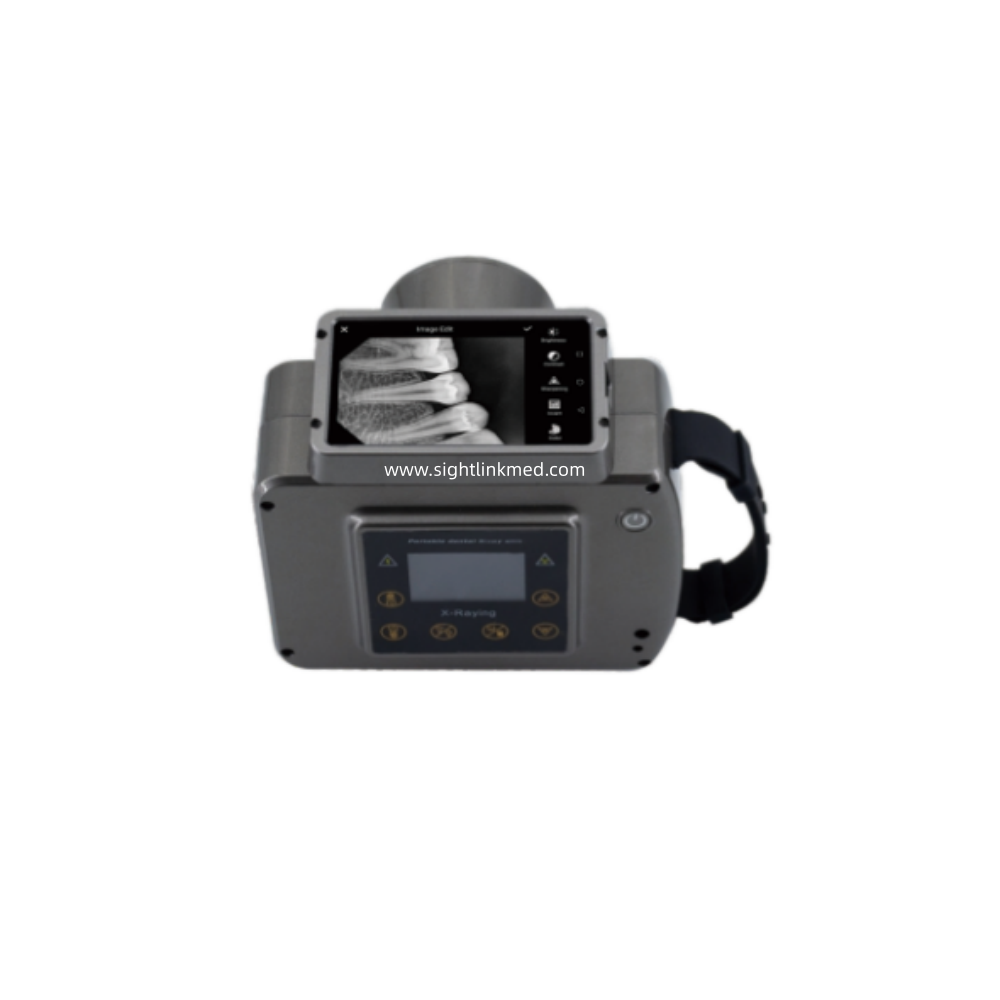

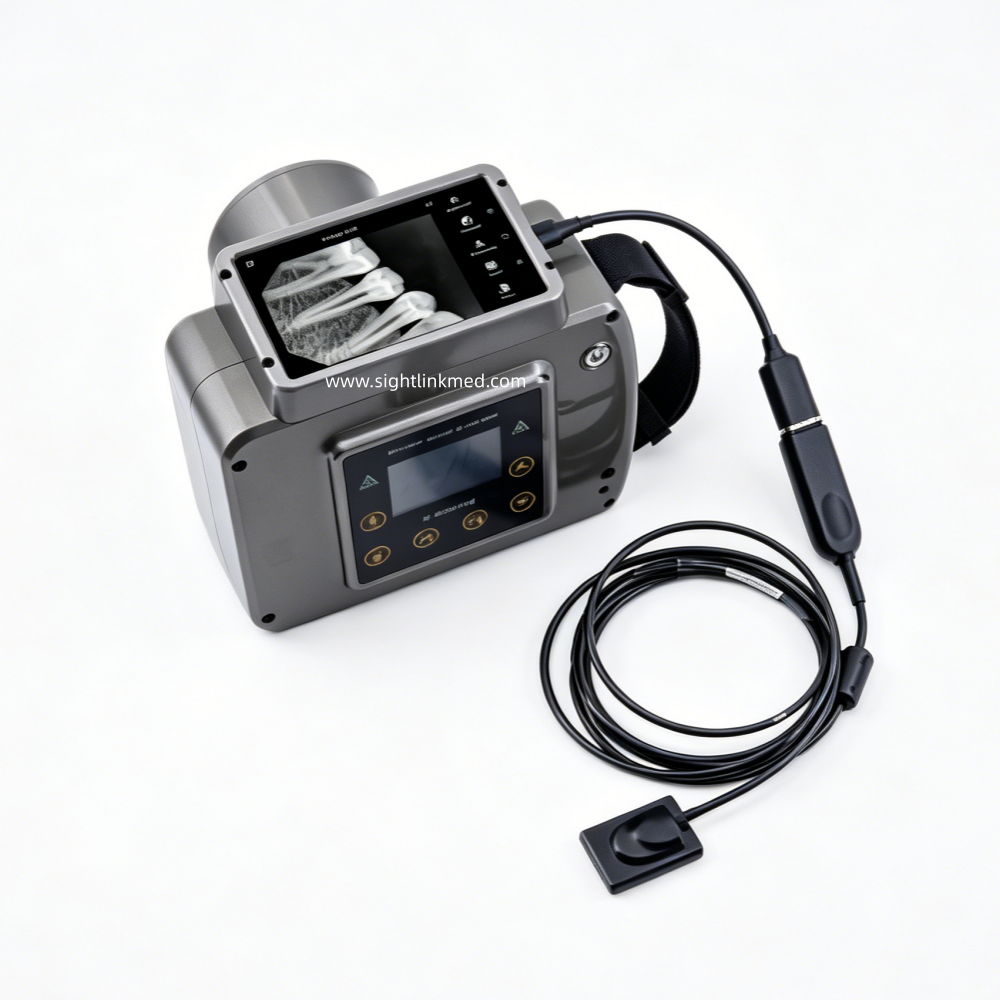

Portable Veterinary Dental X-Ray Machine Digital Sensor Imaging System for Pet Clinic for Pets and Sensor

The body is small, light in weight. It has excellent image quality, portable storage, save more space.

    ✅Unmatched Portability Incredibly lightweight and compact, this unit is perfect for mobile vets and busy clinics. Its ergonomic design allows effortless positioning around pets of all sizes, ensuring a stress-free experience for both animals and staff.
    ✅High-Definition Imaging Delivers crystal-clear, high-resolution images to reveal intricate details of tooth roots and bone density. Detect hidden pathologies like fractures and abscesses easily, enabling confident diagnoses and effective treatment plans.
    ✅Enhanced Safety Utilizes advanced technology to produce high-quality images with a minimal radiation dose.
    ✅Excellent operator shielding ensures the safety of both your patients and your team, fully complying with international safety standards.
    ✅Intuitive Operation Features a simple control panel that requires minimal training. Quick startup and rapid image processing significantly reduce anesthesia time for pets, boosting your overall workflow efficiency.
    ✅Robust Durability Built with high-quality materials to withstand daily clinical use. The long-lasting battery supports multiple procedures on a single charge, providing reliable performance with low maintenance requirements.
    Features:
    🔹 Instant imaging,3 seconds only, NO Waiting
    🔹 Comfortable for patients,4.4mm thick, round comer, easy to place
    🔹 Safe operation and treatment,10uSv low-dose X-ray, safe filming
    🔹 Root tip clearly visible,25lp/mm high-quality images for accurate diagnosis
    🔹 0.4mm focusing technology provides clear andhigh-quality images to meet various diagnosticn eeds
    🔹 The entire machine adopts advanced technology of imported high-frequency tubes to ensure the stability and safety of ray output
    🔹 High magnification power battery, constant charge resistance,fully charged, sustainable for 200 shots
    🔹 Pet specific dental profession, making you more relaxed and professional
    Technical Parameter:

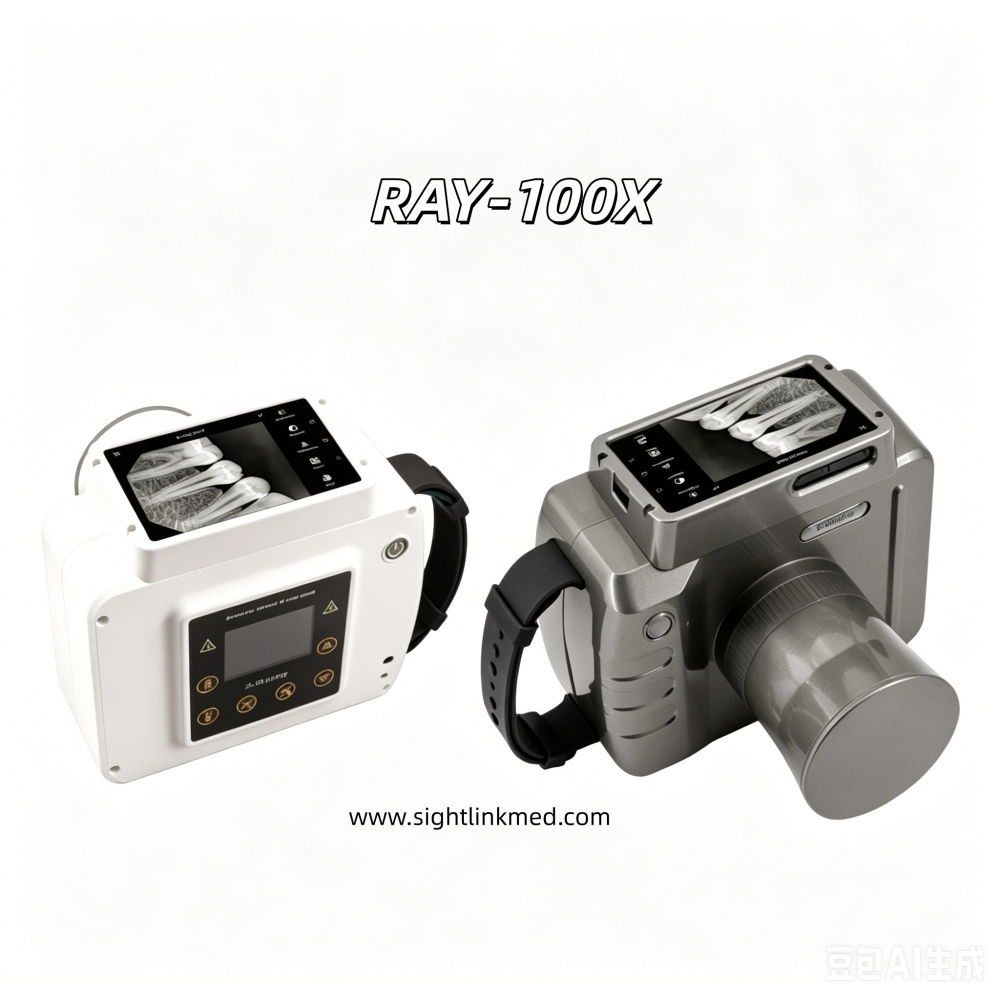

    Parameters RAY-100X
    Tube Voltage 60 KV
    Tube Current 2 mA
    Exposure Time 0.1–2 S
    Frequency 30 Khz
    Rate Power 120 VA
    Distance From Skin To Cone 118 mm
    Focal Spot 0.8 mm
    Battery 2200 mAh
    Charger Input Voltage AC110V–240V
    Output Voltage DC14.8V–16.8V
    Ambient Temperature 5℃–40℃
    Relative Temperature <75% RH
    Net Weight 2 KG
    Gross Weight 3.1 KG
    Size (mm) 168*158*130
    Package Size(mm) 270*250*260
