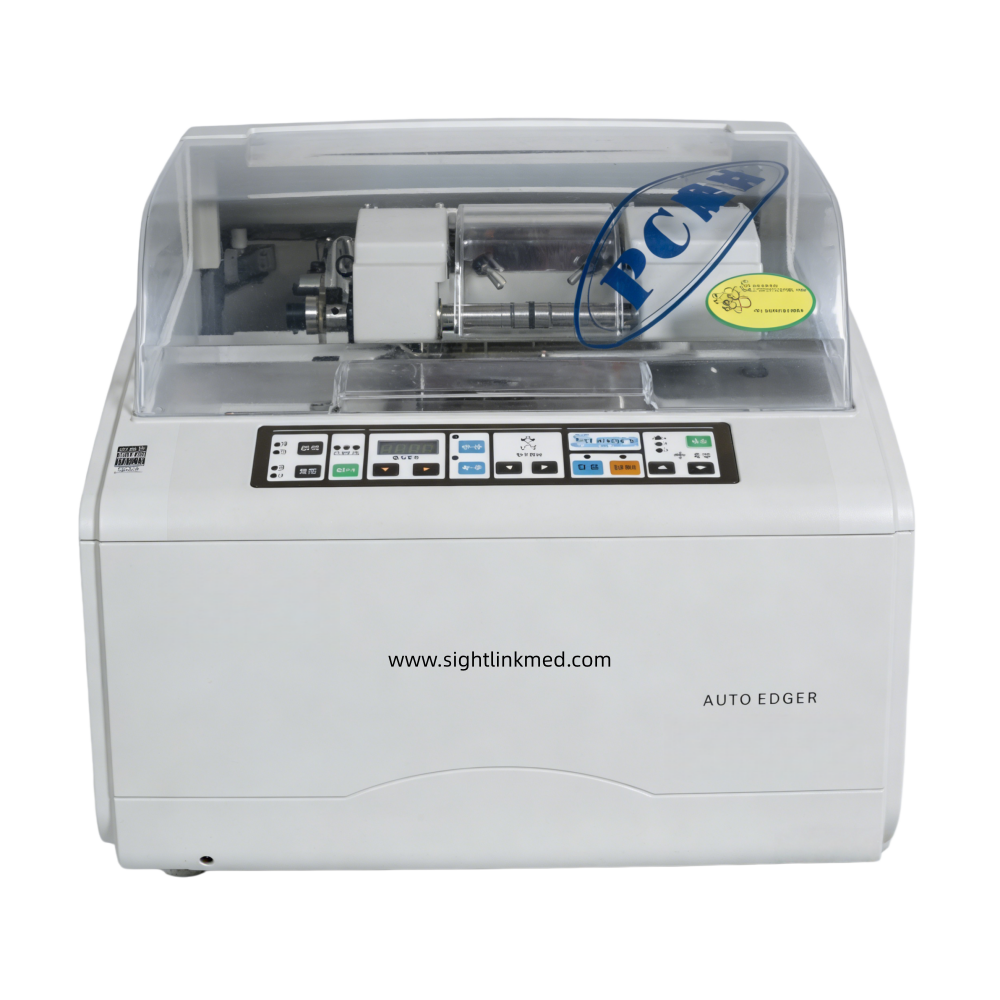

Optical Grinder Equipment Hot Selling Auto Lens Edger with Factory Price
Added the automatic emendation system in this new model.It can do automatic emendation when the machine start up,assure the size of lens(left and right) is uniform and improve the precision.
Description
1. Auto-Clip System
Use of third gear pressure on the lens without damage
2. Automatic emendation procedure
Automatic emendation of the lens size, initial zero Proofreading during the start of grinding, obvious improvement of precision.
3. Wheel Configuration
Standard configuration of four wheels（Resin coarse grinding wheel/ Glass coarse grinding wheel, V-flat edge / sharp edges fine grinding wheel, flat resin edge / sharp edges polished wheels.
4. Follow-up pressure
It can increase the pressure automatically through the control of procedure during the start of the grinding which can ensure that no harm to the lens.
Additional information
| Size of Diamond wheel |
PC Wheel: 100*15.6 Glass Wheel:100*16 |
|---|---|
| Available lens range |
22mm-100mm |
| Processing type |
pointy edges, platband, bevel polishing |
| Lens material |
CR, Glass, PC |
| Size |
530L*500W*400H |
| Weight |
49KG |
| Voltage |
Voltage: 220v ±10% frequently：50 HZ |
| Power |
500W |
