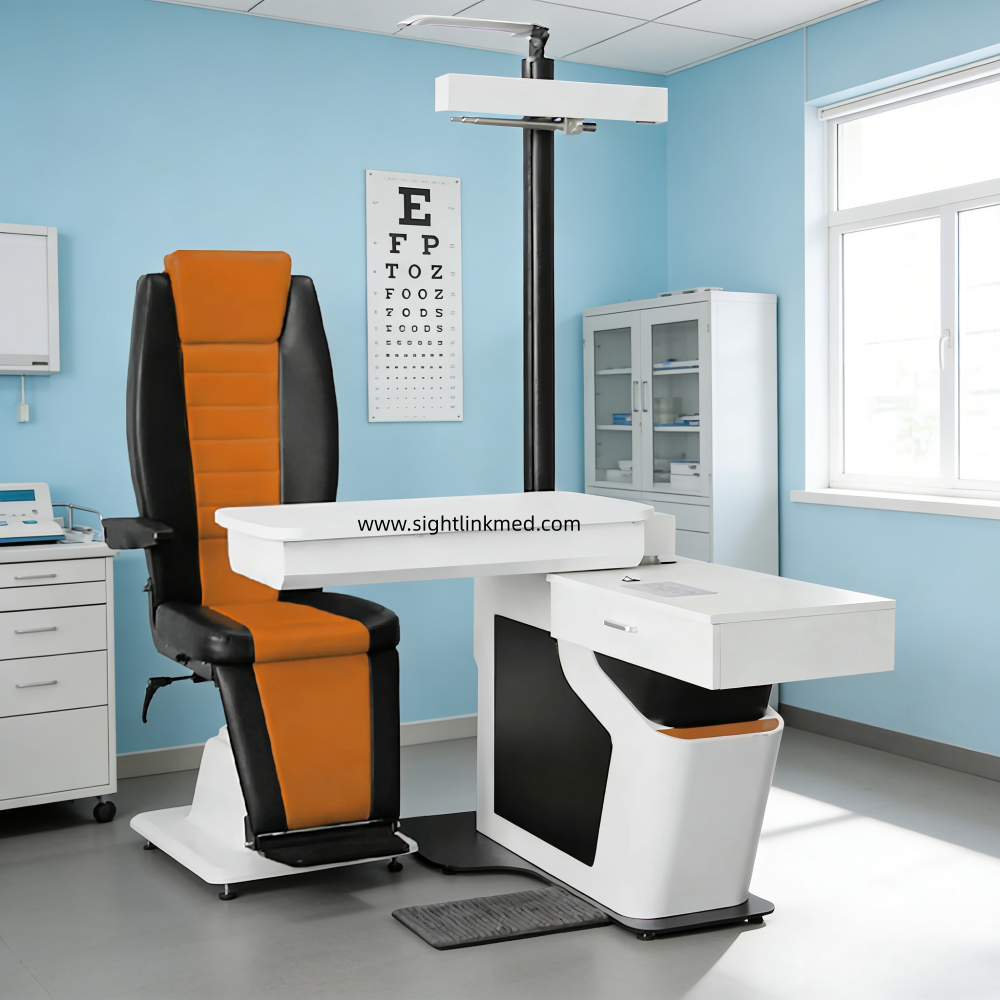

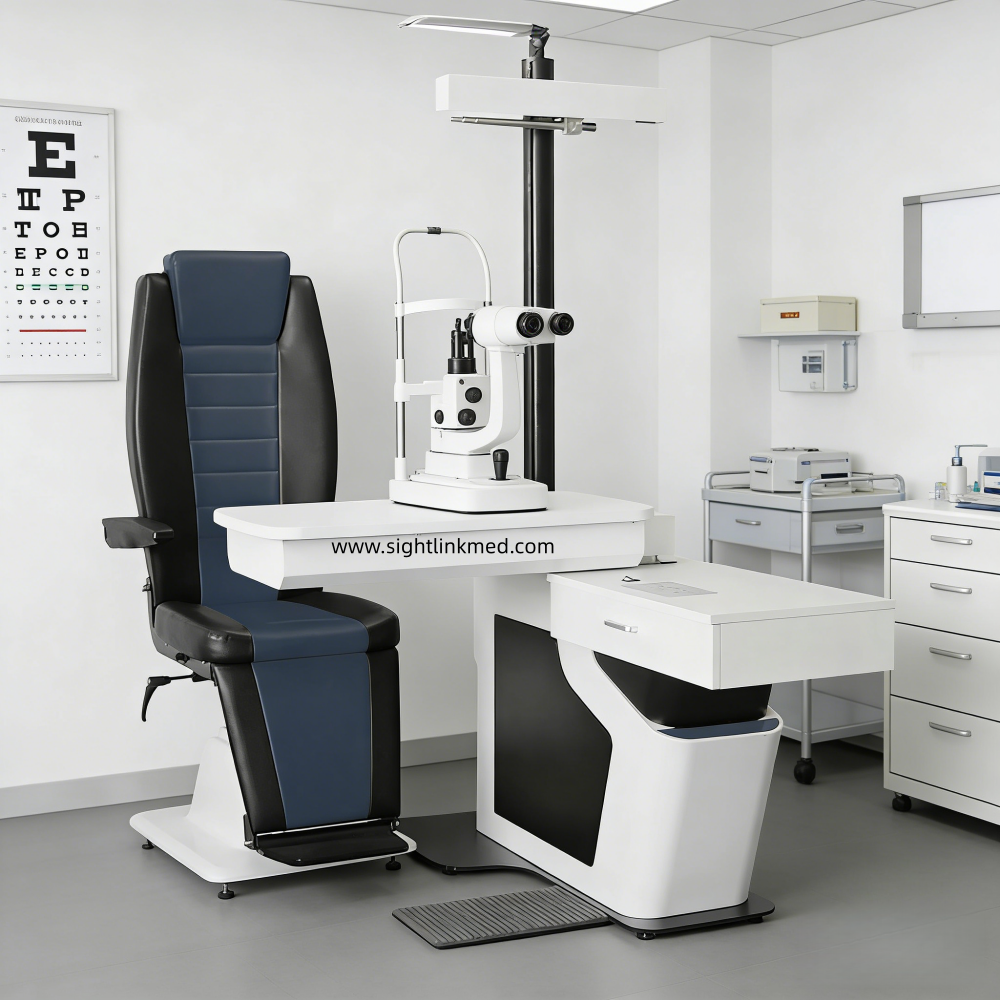

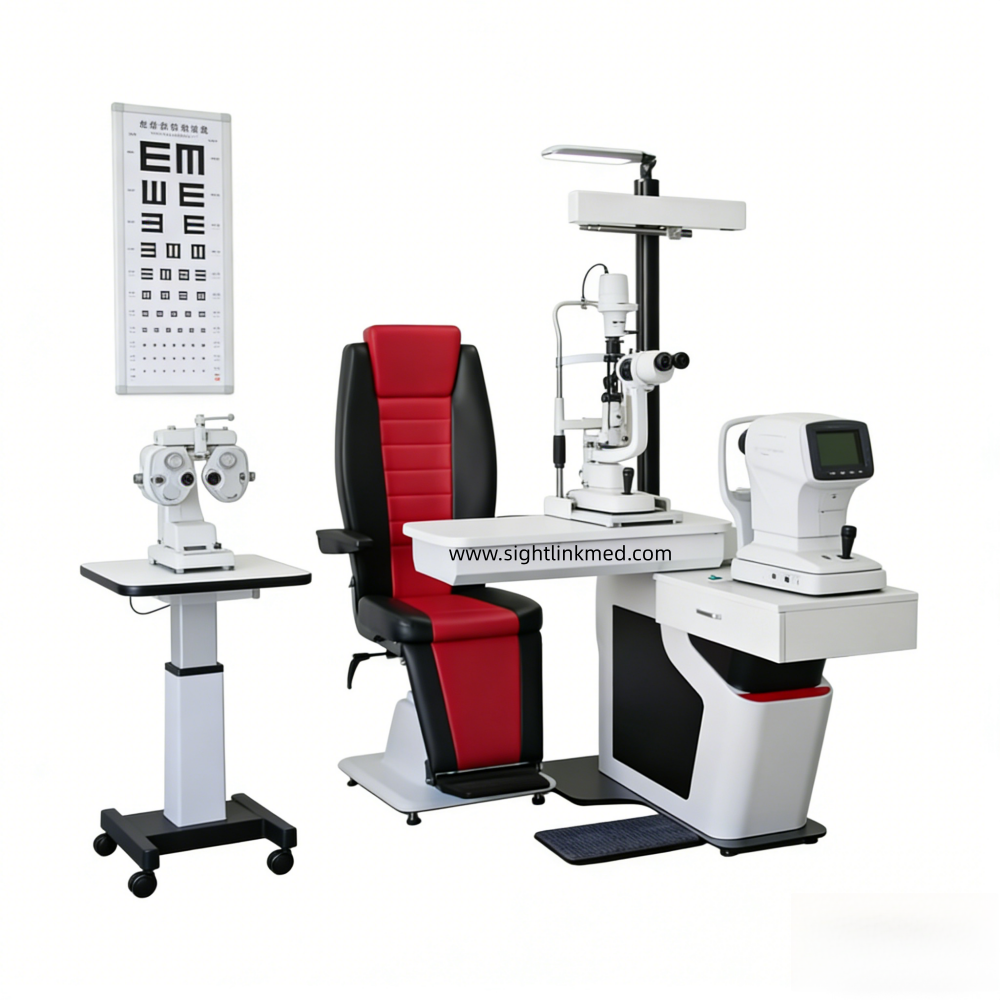

Professional Eye Examination Workstation Automatic Moving Phoropter Arm Ophthalmic Chair Stand Unit
The table can be moved left and right by electricand up and down by electric, and the operation isstable.
Description
1. The table material is made of high-densityfilm-coated board,which can be rotated by 90degrees, which can place two instruments
2. The table can be moved left and right by electricand up and down by electric, and the operation isstable;
3. The column swing arm can move left and rightelectrically and up and down electrically, and runssmoothly;
4. Seat can be moved forward and backward, andelectric reclining and electric lifting;
5. According to different customer groups, threedifferent reset modes can be set;
6. Equipment color can be customized and chargeaccording to actual situation.
|
Maximum size
|
1200×1300×1800mm
|
|
Table size
|
950×450mm
|
|
Small table size
|
620×400mm
|
|
Drawer size
|
520×350mm
|
|
Control mode
|
film button / phone remote control /flat panel remote control
|
|
Configuration equipment
|

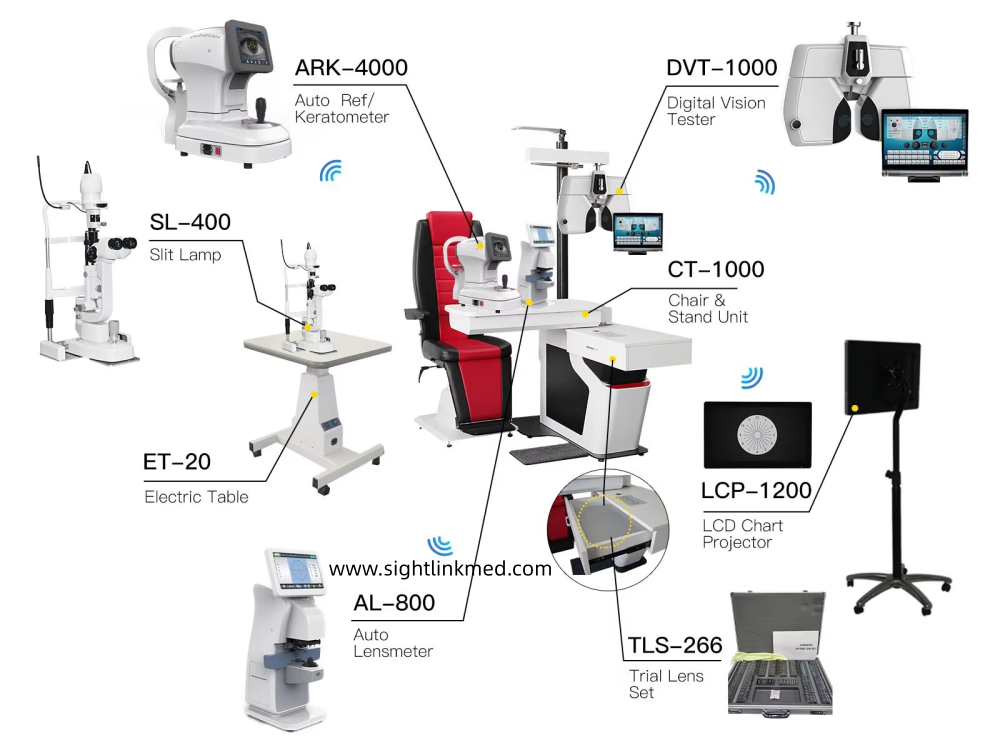

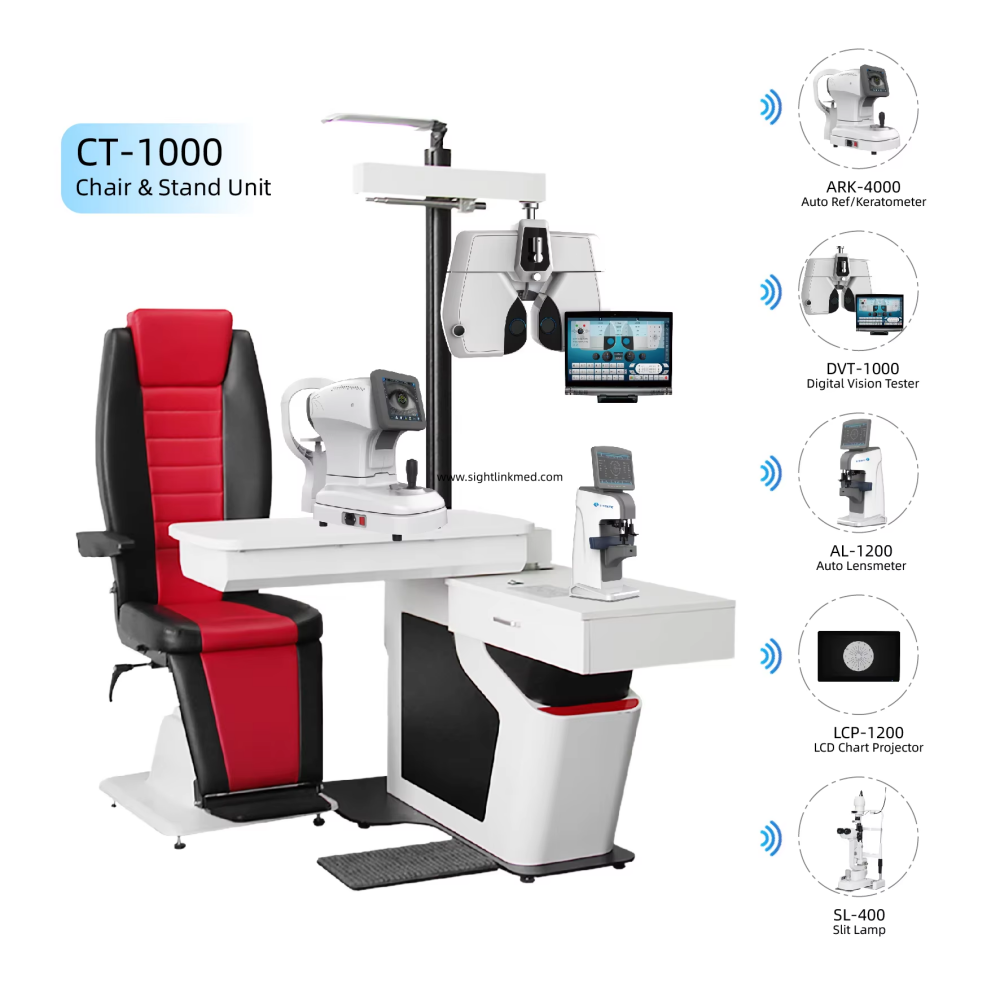

computer refractometer / electric cattle eye / slit lamp / focus meter
|
|
Table rotation angle
|
90°
|
|
Countertop left and right movement distance
|
400mm
|
|
Countertop up and down distance
|
120mm
|
|
Column (cattle eye arm) left and right moving distance
|
150mm
|
|
Chair up and down distance
|
150mm
|
|
Chair back angle
|
120-140 °
|
|
Chair armrest load
|
100kg
|
|
Chair loading ability
|
300kg
|
|
Chair height
|
1400mm
|
|
Lamp
|
LED (220 / 110V 9W)
|
|
Voltage
|
AC220V / 110V 50 / 60HZ
|
|
Gross weight
|
220kg
|
|
Packing size
|
1600×1050×1020mm
|
|
Packing volume
|
1.7 cubic
|
