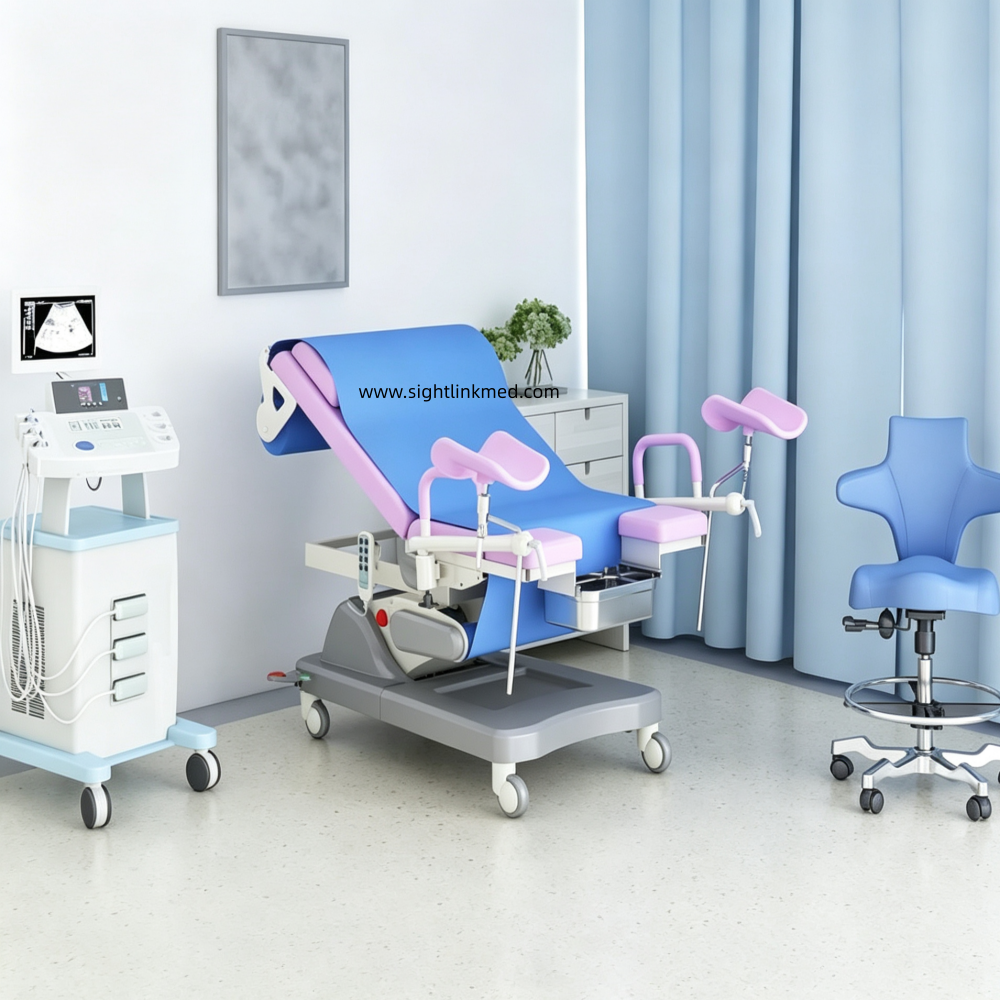

Multifunctional Electric Ultrasound Examination Hospital Obstetric Table with Stainless Steel Construction 250kg Capacity for Medical Use
This ergonomic exam table serves as auxiliary clinical equipment. It delivers comfortable positioning for mobility-impaired patients and multi-angle inspection convenience for doctors, equipped with a handheld controller, anti-rust steel frame, premium leather mattress and plastic-steel central-lock silent casters. With automatic disposable sheet replacement system for better hygiene, its motor comes with built-in backup battery that auto-starts during power outages for safe continuous use.
SKU:
CD02A
Categories: Examination Table, Hospital Furniture
Tags: delivery beds obstetric delivery table, Obstetric Delivery Table, obstetric table
Features:
- This table is ergonomically designed as auxiliary equipment for physical examinations and clinical diagnosis.
- Its humanized structural design offers comfortable positioning for patients with limited mobility, allowing physicians to conduct examinations from all angles with great convenience.
- It features an automatic disposable sheet changing system to greatly boost hygiene and safety for patients.
- A handheld controller is provided for effortless operation by medical staff.
- Fitted with central-locking casters made of plastic-steel alloy, delivering high load-bearing capacity, wear resistance, silent rolling and reliable safety performance.
- The bed frame and base are constructed from premium steel with electrostatic spray coating, featuring attractive appearance, strong coating adhesion, excellent rust and corrosion resistance. The mattress is upholstered with high-grade leather that boasts bright luster and soft smooth texture.
- Compatible with disposable medical roll sheets for simple and quick sheet replacement.
- The motor system integrates a built-in emergency backup battery, which automatically activates to sustain normal operation in case of mains power failure.
Standard Configuration
- Quick Paper Replacement Mechanism
- Multi-function Hand Controller
- Locking Device
- Adjustable Anti-tilt Extendable Storage Tray
- Adjustable Leg Supports
- Emergency Stop Switch
- Central Control Brake System
Technical Parameter:
| Item | Parameter |

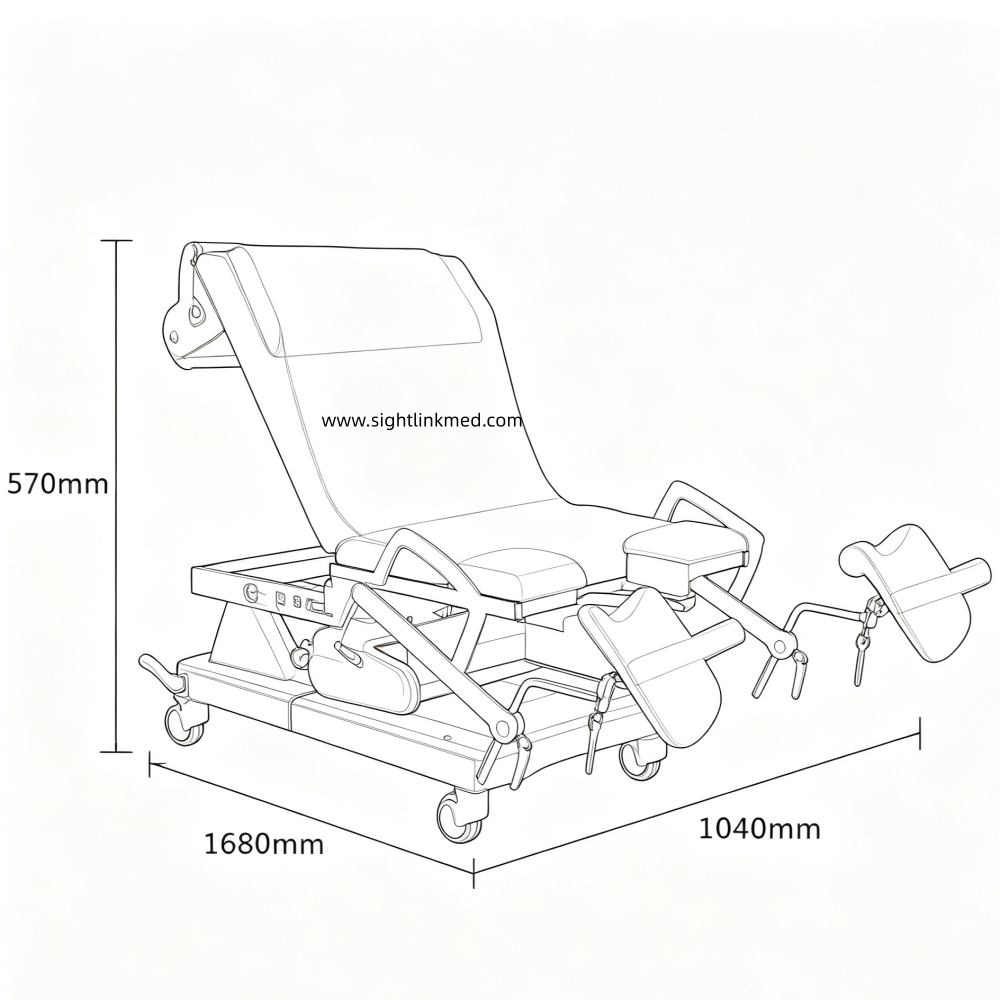

| Product Size | 1680mm (L) × 1040mm (W) × 570–850mm (H) |

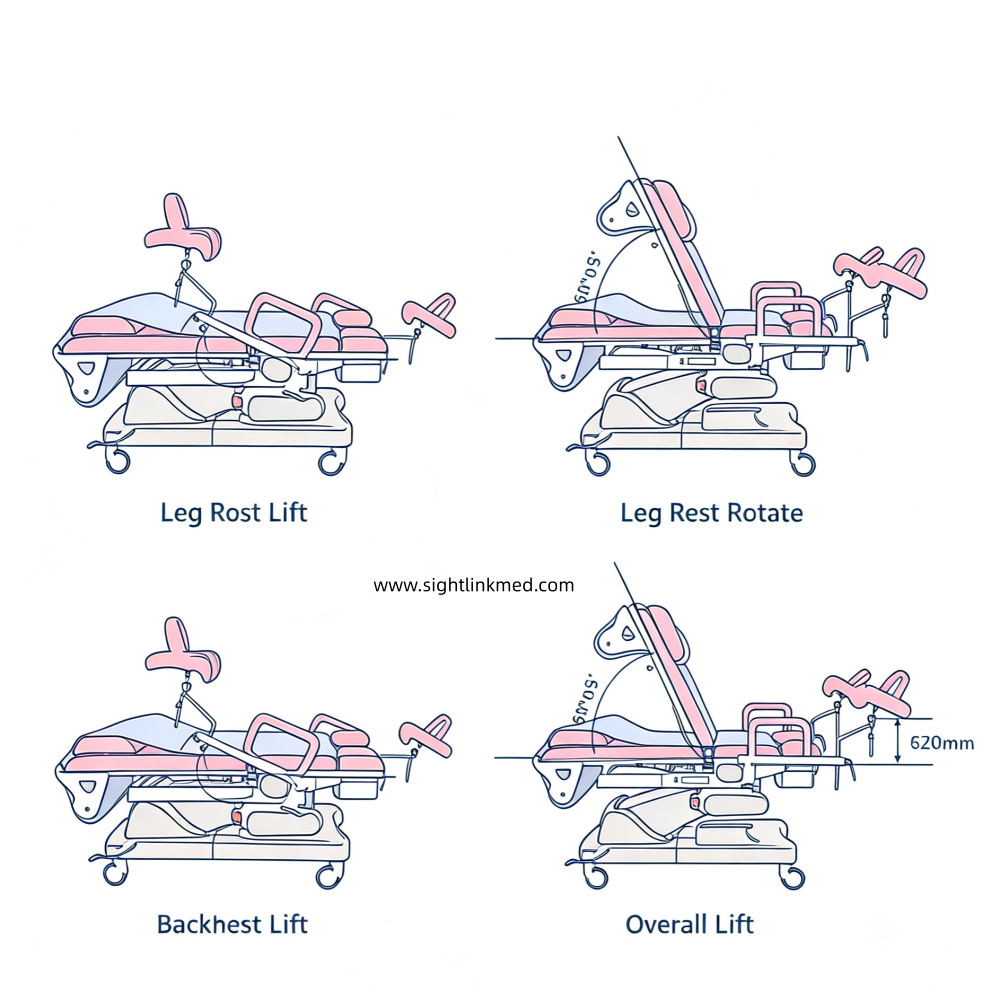

| Backrest lifting angle | 65°±5° |
| Footrest lifting angle | -20°~20°±5° |
| Rotate angle of footrest | 0°–180° |
| Whole bed highest limit position | 850±50mm |
| Whole bed lowest limit position | 570±50mm |
| Dynamic load capacity | 170KG |
| Static load capacity | 250KG |
| N.W. | 102KG |
| G.W. | 127KG |
