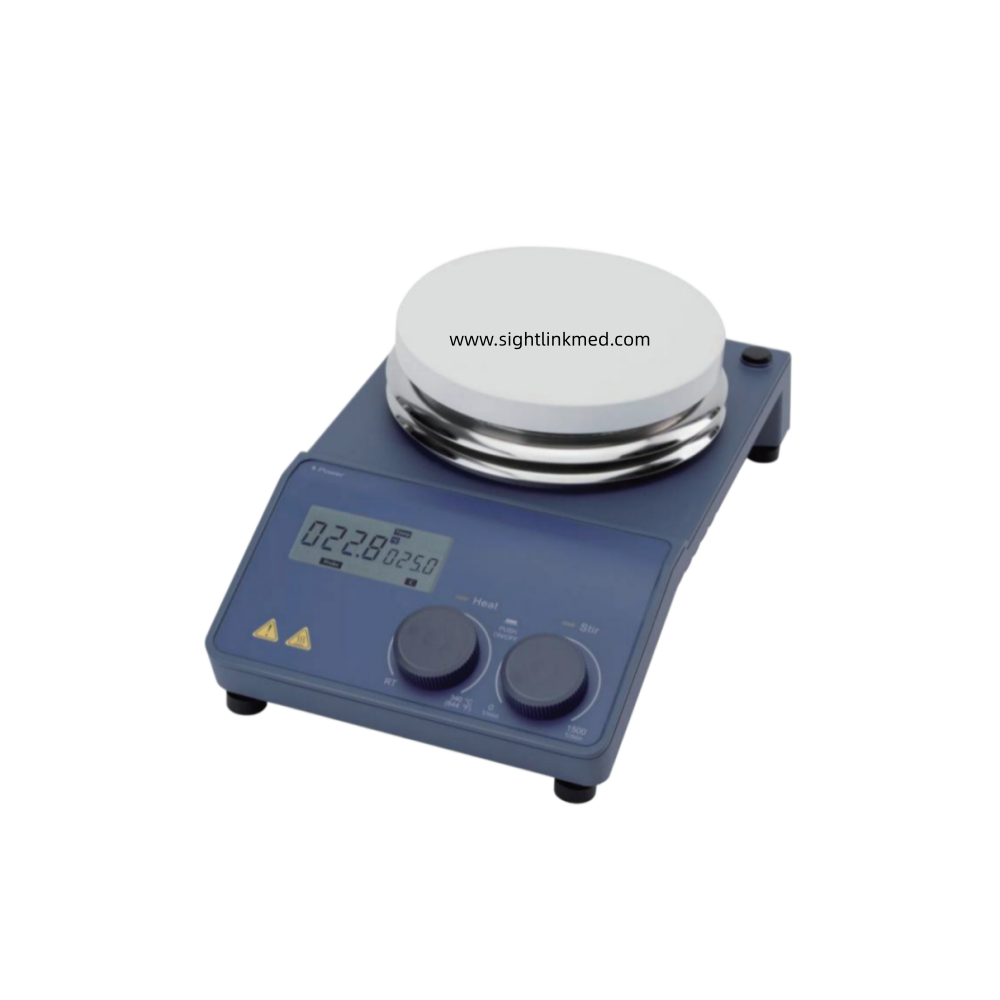

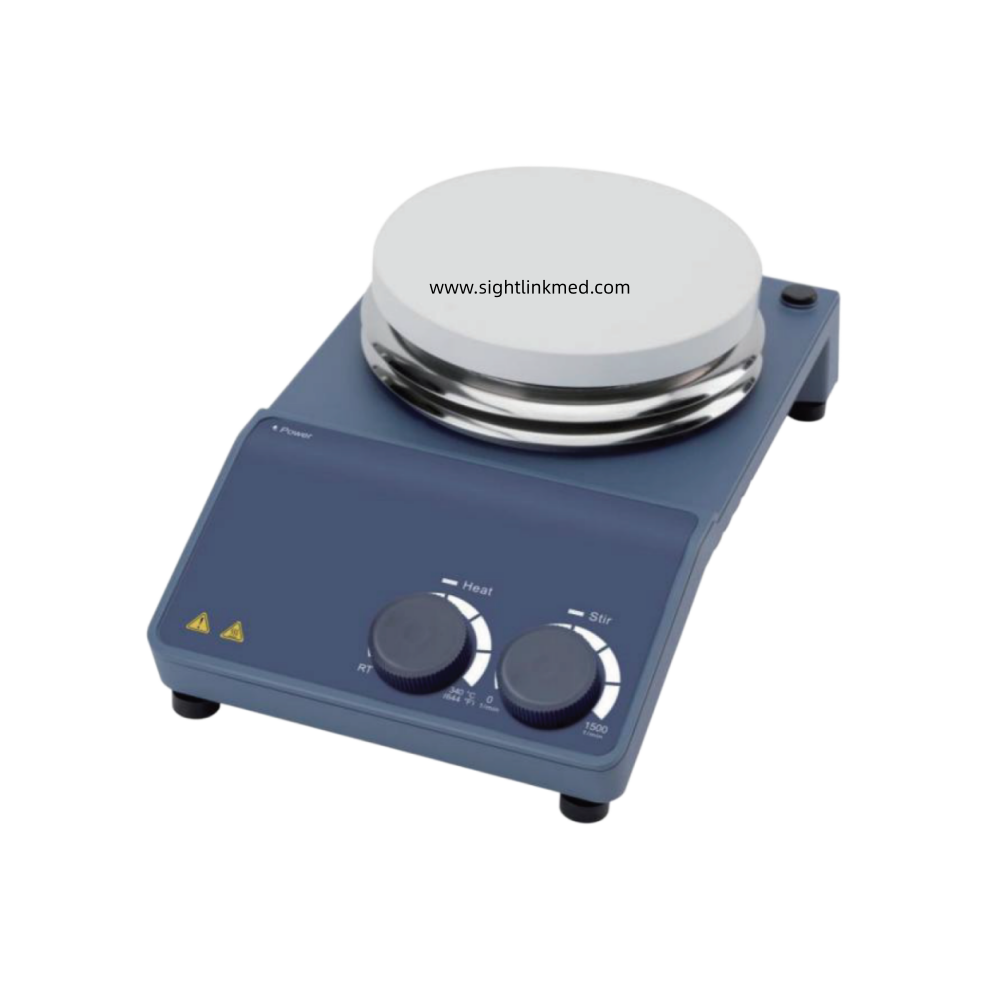

MS-H-PRO+ LCD Digital Magnetic Hotplate Stirrer
Our laboratory digital heating magnetic stirrer is fitted with an explosion-proof brushless DC motor for long-term maintenance-free operation. It offers 20L large-volume stirring, precise speed and temperature regulation up to 1500rpm and 340°C respectively. Designed with multiple safety protections including overheat prevention and high-temperature alert, this stirrer supports external PT1000 temperature detection and PC remote data control via RS232 port. The anti-corrosion ceramic working plate and abundant matching accessories make it an ideal heating stirring device for chemical, biological and pharmaceutical labs.
Features：
💎Brushless DC motor is maintenance free and explosion-proof
💎Digital temperature control up to 340°C
💎Digital speed control up to 1500rpm
💎Maximum stirring quantity of H2O is 20L
💎Safety circuits provide overheating protection
💎”HOT” warning flashes if plate temperature is above 50°C even when hotplate is turned off
💎Wide range timer function from 1 min to 999h 559min (MS-H-ProT only)
💎High-resolution LCD display shows actual temperatures and speed
(MS-H-ProT displays the time)
💎External temperature control is possible by connecting the temperature sensor(PT 1000)with accuracy at ±0.2°C
💎Work plate with ceramic coating provides good chemical-resistant performance
💎Remote function provides PC control and data transmission

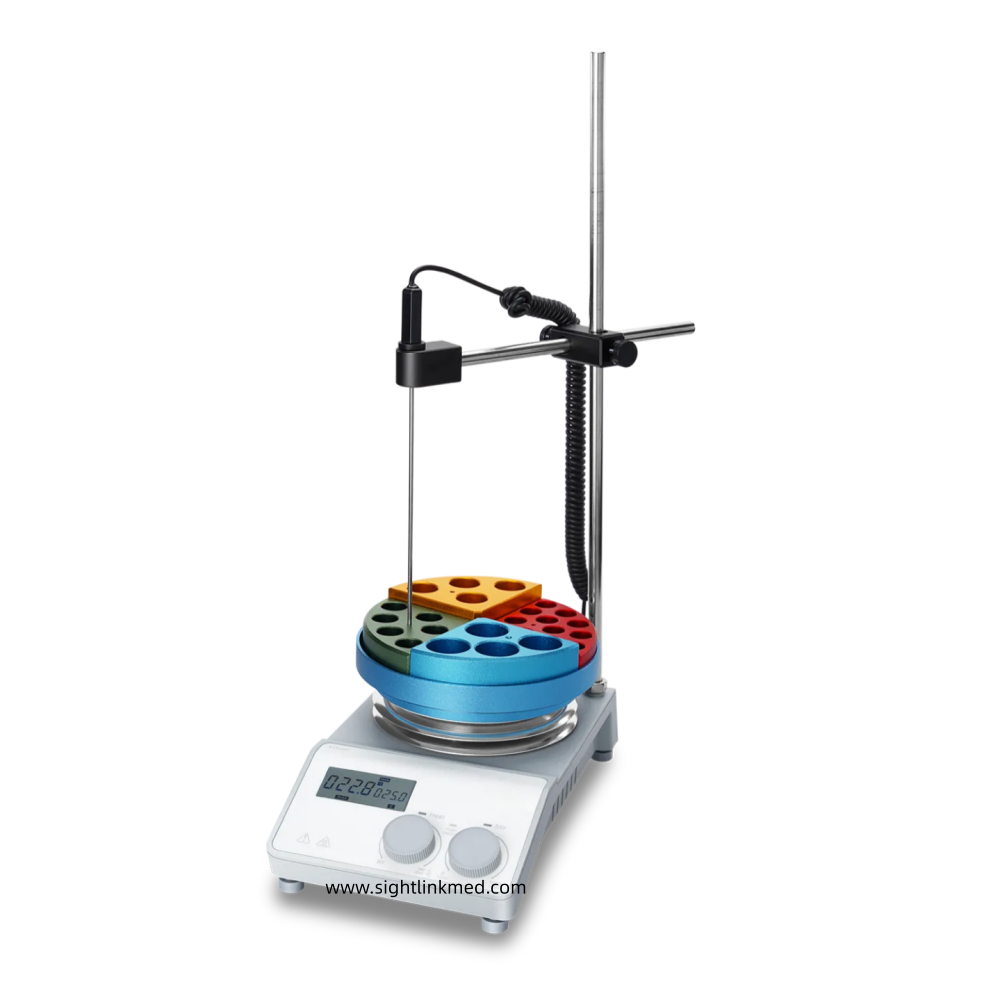

💎Wide variety of accessories available to choose
Security：
💎International safety certification: CE, CTÜVuS, FCC and other product safety cert, certifications issued by TUV Rheinland
💎Safety circuits provide overheating protection
💎 “HOT” warning flashes if the work plate temperature is above 50°C
💎DC brushless motor free of maintenance and spark, and with long service life
💎Fully enclosed aluminum alloy housing with good heat dissipation performance and reliable protection capability
Technical Parameter:
| Specifications | MS-H-PRO+ |
| Work plate Dimension [W x D] | Ø135mm (5 inch) |
| Work plate material | stainless steel cover with ceramic coating |
| Motor type | Brushless DC motor |
| Stirring positions | 1 |
| Max. stirring quantity, [H₂O] | 20L |
| Max. magnetic bar [length] | 80mm |
| Speed range | 100-1500rpm resolution ±1rpm |
| Speed display | LCD |
| Temperature display | LCD |
| Heating temperature range | Room Temp.-340℃, increment 1℃ |
| Heating liquid temperature control accuracy | ±1℃(<100℃) ±1%(>100℃) |
| Overheating temperature protection | 420℃ |
| Temperature display accuracy | ±0.1℃ |
| External temperature sensor | PT1000 (accuracy±0.2℃) |
| “Hot” warning | 50℃ |
| Data connector | RS232 |
| Protection class | IP21 |
| Timer function | – |
| Motor rating output | 10W |
| Power | 550W |
| Heating output | 500W |
| Voltage,Frequency | 100-120/200-240V, 50/60Hz |
| Dimension [WxDxH] | 160x280x100mm |
| Weight | 2.8kg |
| Permissible ambient temperature and humidity | 5-40℃,80%RH |
