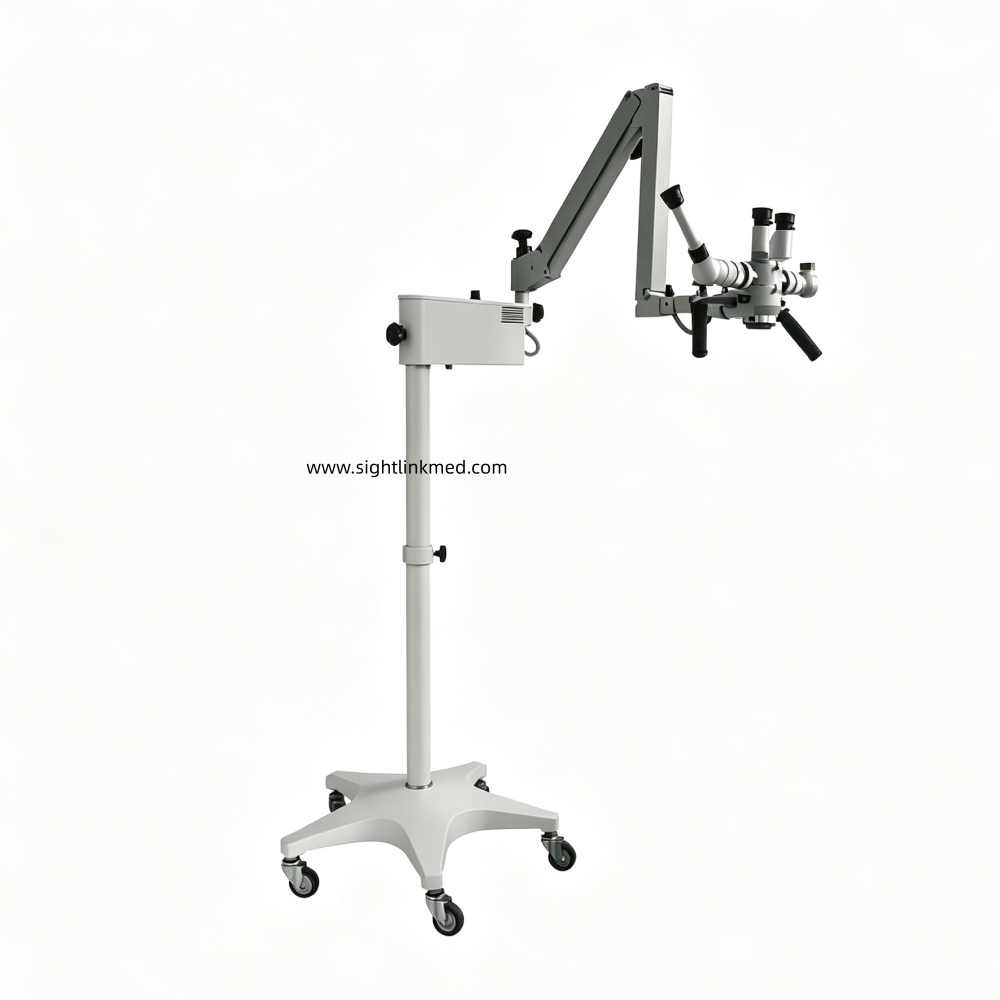

MIC120 is a professional ENT surgical microscope with 3-step adjustable magnification and built-in 10W LED light. It supports both floor-standing and ENT unit mounting. Fitted with a C-mount adapter, it connects to endoscopy cameras to display surgical images on medical LCD monitors, equipped with dual objective lenses and built-in optical filters for precise otolaryngology examination and surgery.
MIC120 is an ENT surgical microscope featuring 3-step adjustable magnification and built-in LED light source. It supports two installation methods: mounting on ENT treatment units or independent floor-standing use.
Equipped with a C-mount interface, the MIC120 can be connected to an endoscopic camera to output real-time surgical images to a medical LCD monitor for observation.
| Item | Specification |
| Observation angle | 90° |
| Magnification of observation | 6x |
| Interpapillary distance | 50mm-80mm |
| Diopter adjustment | ±5D |
| Two Objectives | F=200mm, 300mm, Two Objectives |
| Magnification changer | 3-step: 0.6x, 1.0x, 1.6x |
| Total Magnification | 2.4X-12X |
| Linear field | 81-15.8mm |
| Fine focusing distance | 10mm |
| Light source | 10W LED light |
| Filter | Build-in green and yellow filter |
| Other accessory | Beam splitter, CCD adapter |
| Optional accessories | Demonstrator, 45° observation |
