Lab Medical Rolling and Swing Adjustable Speed DC Motor Blood Sample Standard Swing Standard tube roller

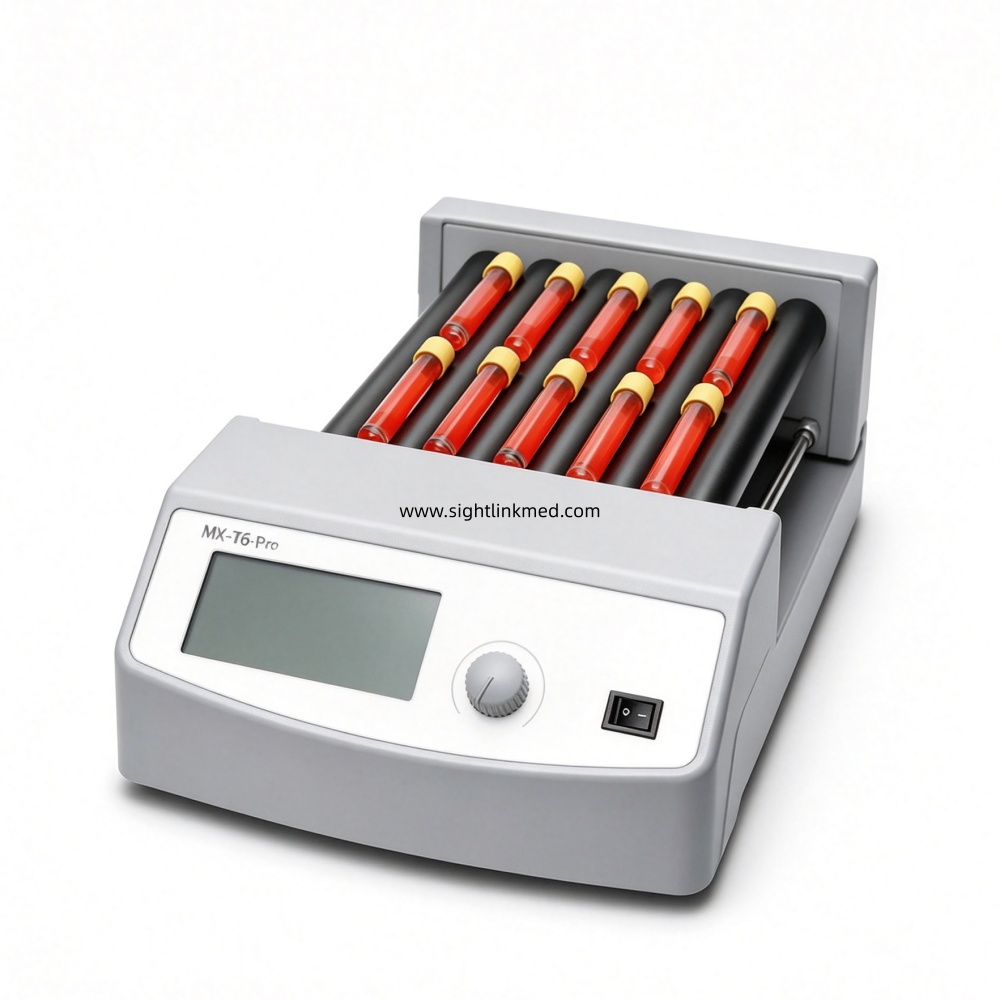

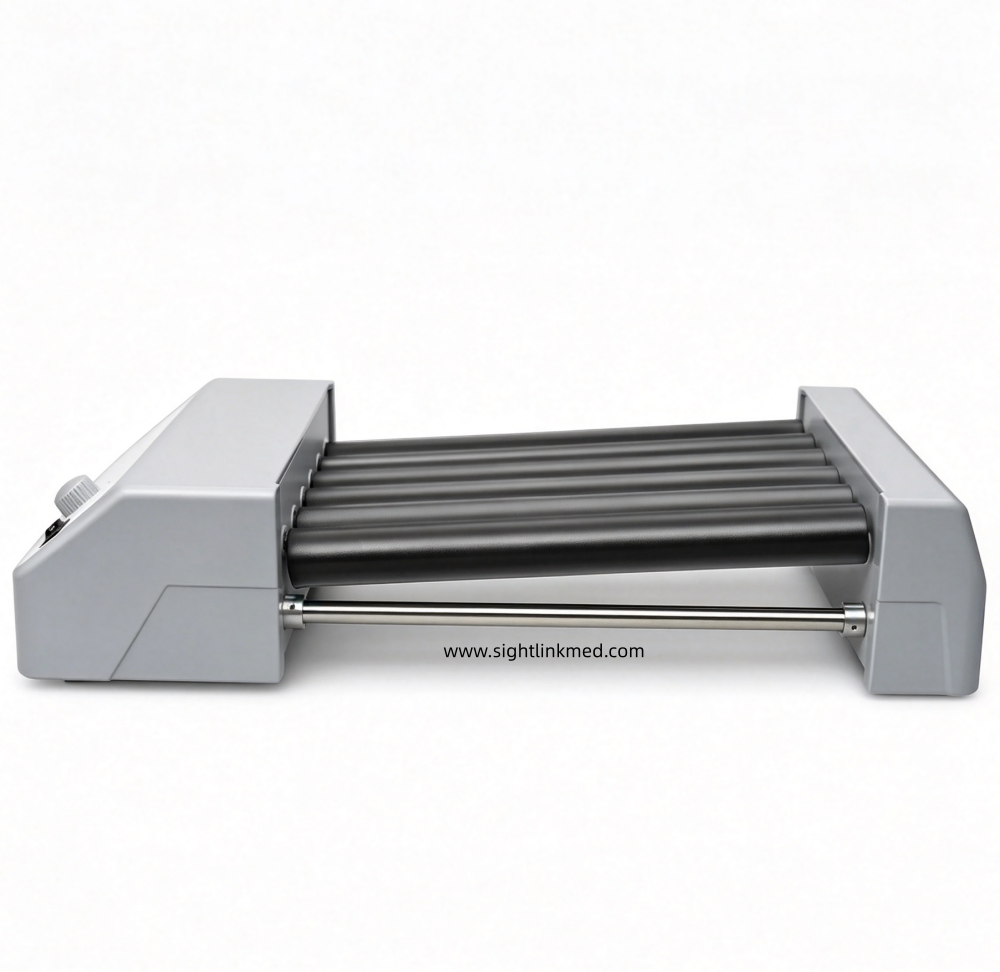

MX-T6-S and MX-T6-S+ are cost-effective tube roller mixers with gentle rocking-and-rolling motion for blood sample blending. Both equipped with 6 rollers, 24mm amplitude and a maximum 4kg load capacity, supporting continuous mixing at adjustable speeds from 0–70rpm via a mechanical scale knob. The MX-T6-S adopts a brush DC motor, while the upgraded MX-T6-S+ features a low-noise brushless DC motor. Compact, easy to operate, they are ideal for routine clinical laboratory use.
Features：
💎 Adjustable speed range from 0 to 70 rpm
💎 Six roller design for gentle and efficient rolling, and is easy to clean
Applications：
Laboratory tube rollers provide a gentle and highly efficient rolling motions, deal for mixing blood samples, viscous substances and liquid-solid suspensions. Used in a variety of applications, such as the prevention of blood coagulation, immune precipitation, etc.
Technical Parameter:
| Specifications | MX-T6-S | MX-T6-S+ |
| Amplitude | 24mm | 24mm |
| Motor type | Brush DC motor | Brushless DC motor |
| Rocking motion | Rocking and rolling | Rocking and rolling |
| Max. load capacity | 4kg | 4kg |
| Number of rollers | 6 | 6 |
| Roller size[length] | 280mm | 280mm |
| Speed range | 0-70rpm | 0-70rpm |
| Speed display | Scale | Scale |
| Timer | – | – |
| Timer display | – | – |
| Time setting range | – | – |
| Operation mode | Continuous | Continuous |
| Voltage,Frequency | 100-240V,50/60Hz | 100-240V,50/60Hz |
| Power | 25W | 25W |
| Dimension [D×W×H] | 485×250×100mm | 485×250×100mm |
| Weight | 4.5kg | 4.5kg |
| Permissible ambient temperature and humidity | 5-40°C,80%RH | 5-40°C,80%RH |
| Protection class | IP21 | IP21 |
