Hospital Mountain Medical Emergency Multifunctional Soft Roll Rescue Stretcher With Safety Belt

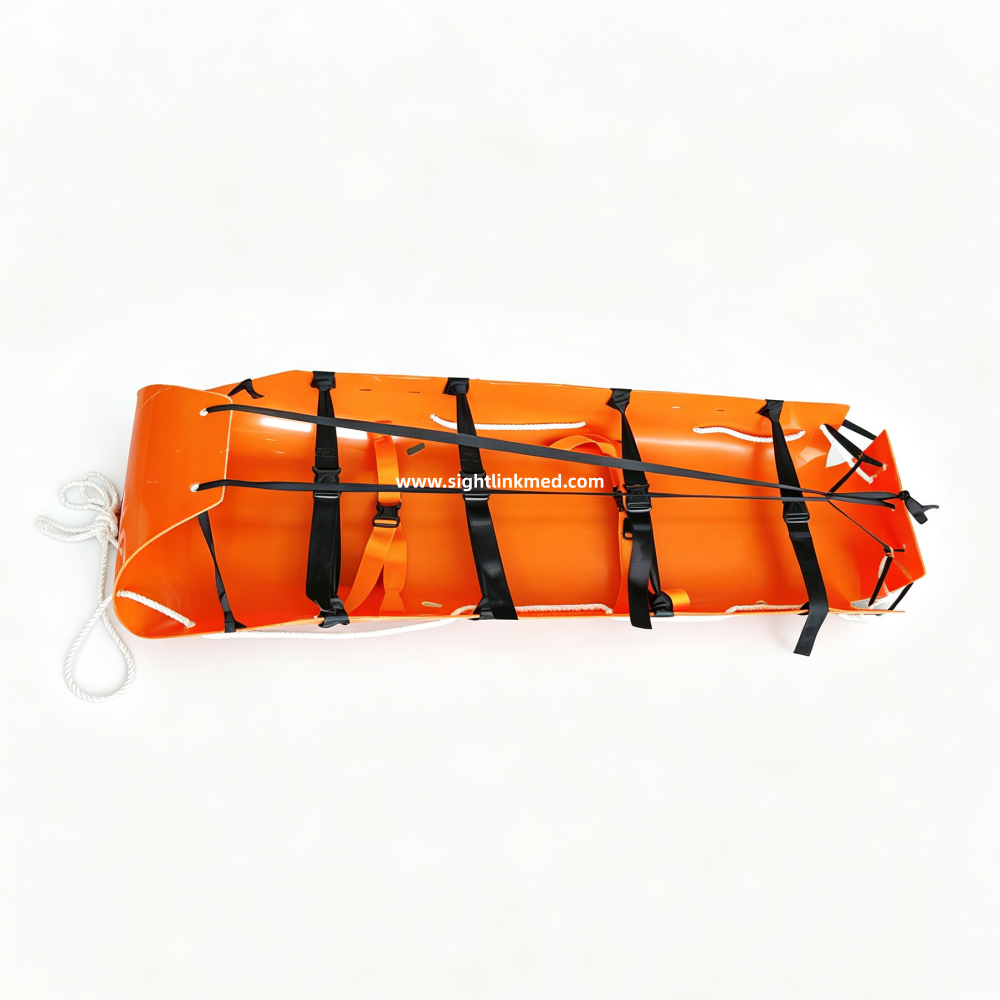

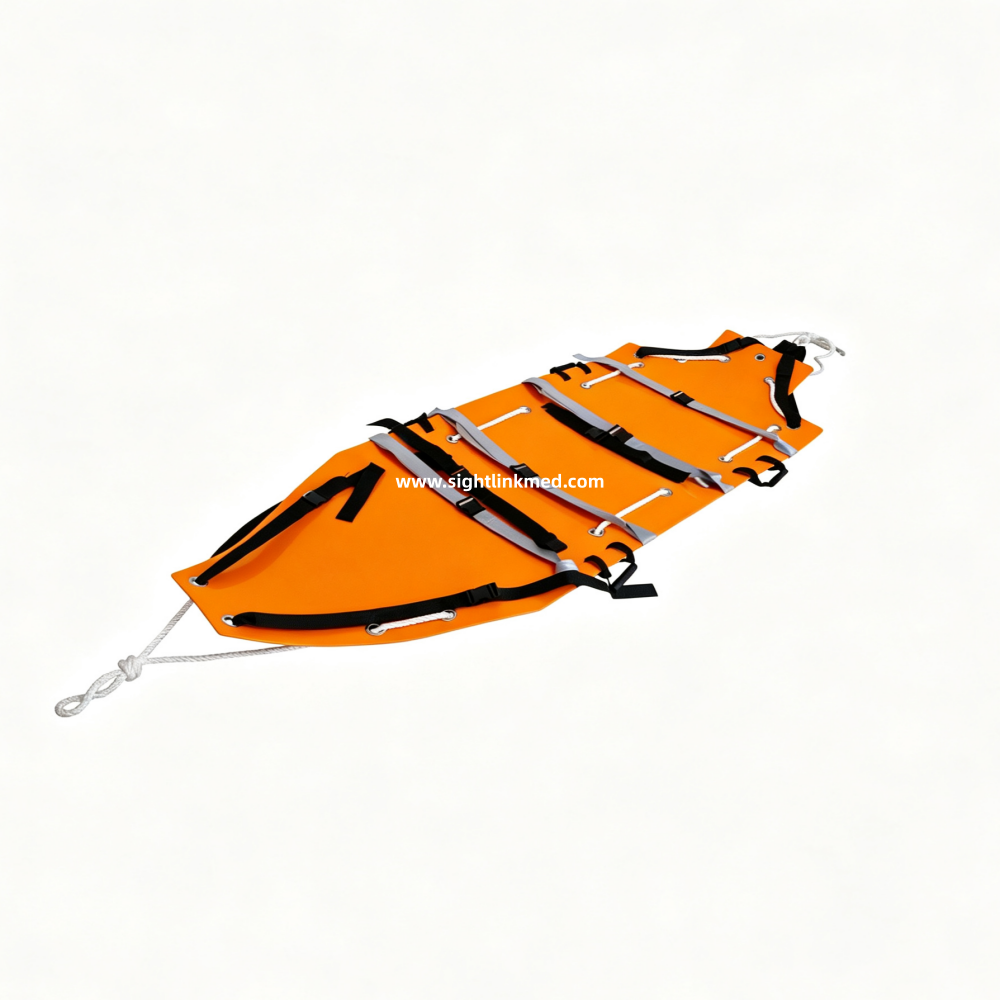

This versatile flexible rescue stretcher is constructed from special composite plastic, allowing bending and deformation for practical use. Compact and lightweight, it is easy to transport and suitable for diverse rescue scenarios.

Fitted with side lifting ropes for aerial rescue operations, it features heavy‑duty adjustable‑buckle nylon straps to securely restrain casualties. Its nylon‑strap handles come with plastic rubber sleeves to prevent hand constriction. The unit works reliably across temperatures from ‑20℃ to 45℃.

    Usage features:

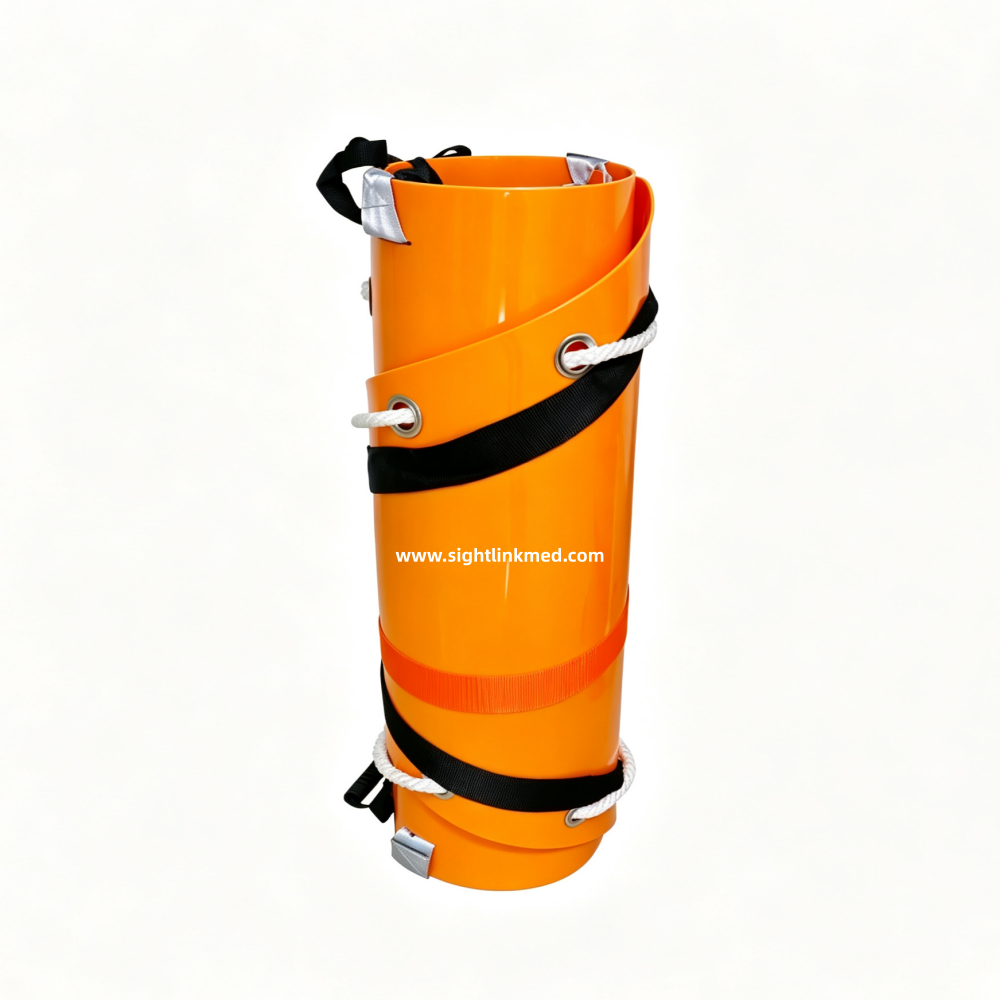

    1. Made of special composite plastic, can be bent and deformed to use, small size and light weight, easy to carry, wide range of applications.

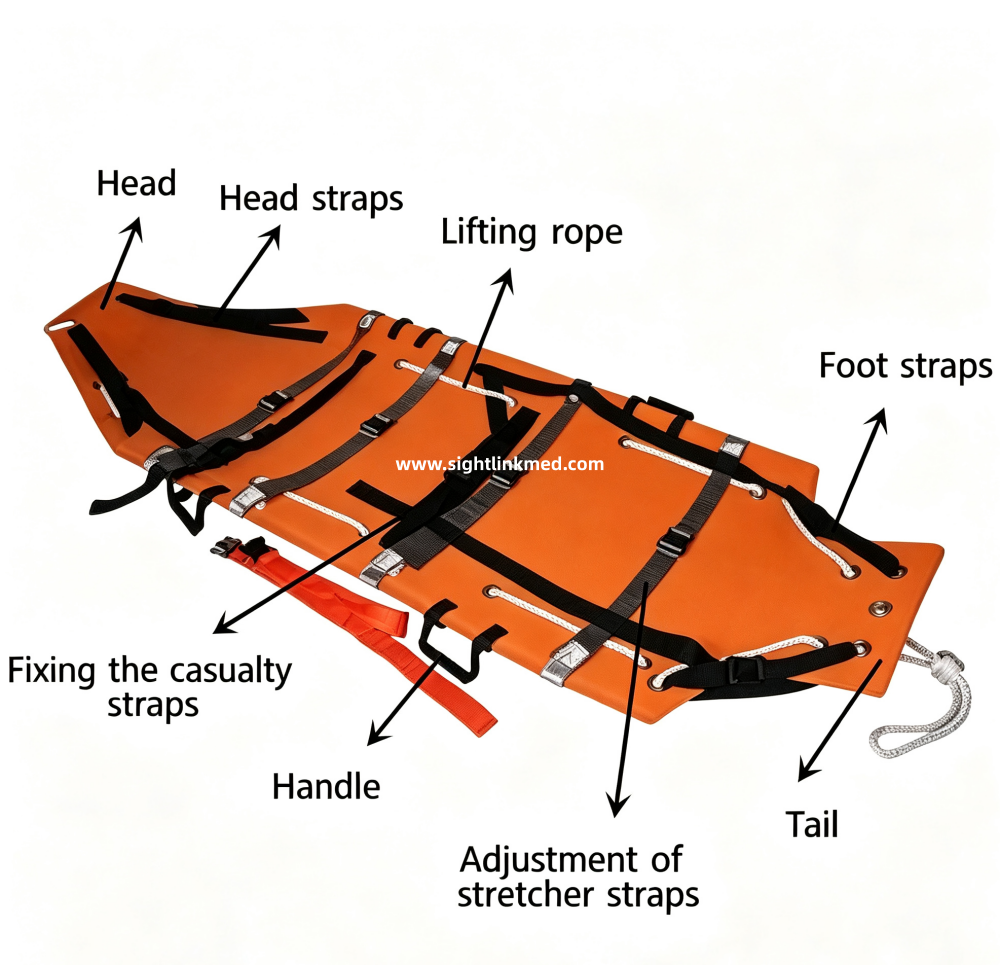

    2. The stretcher is equipped with extra rope straps on the side to facilitate the implementation of air rescue. Strong nylon straps, effective fixed casualty, buckle with adjustable size. Nylon strap handle with a plastic rubber band, not strangulation.
    3. Temperature resistance: low temperature -20, high temperature 45.

    How to use:

    1. When carrying the patient, unfold the stretcher first.
    2. After the stretcher is loaded with the patient, please put on the fixed casualty straps and adjust the head straps and foot straps in time.

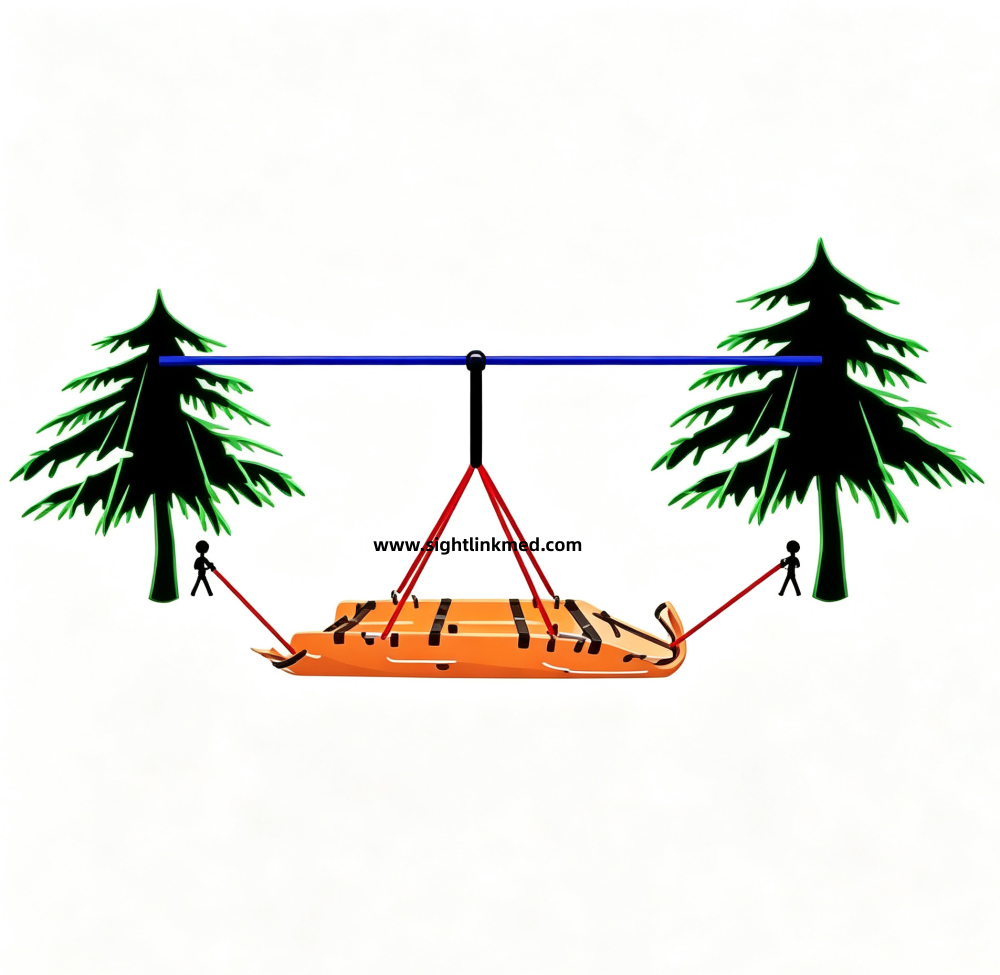

    3. Lift the handrails on both sides at the same time to transfer the patient. The patient can be lifted horizontally using the lifting rope
    • Scope of application:

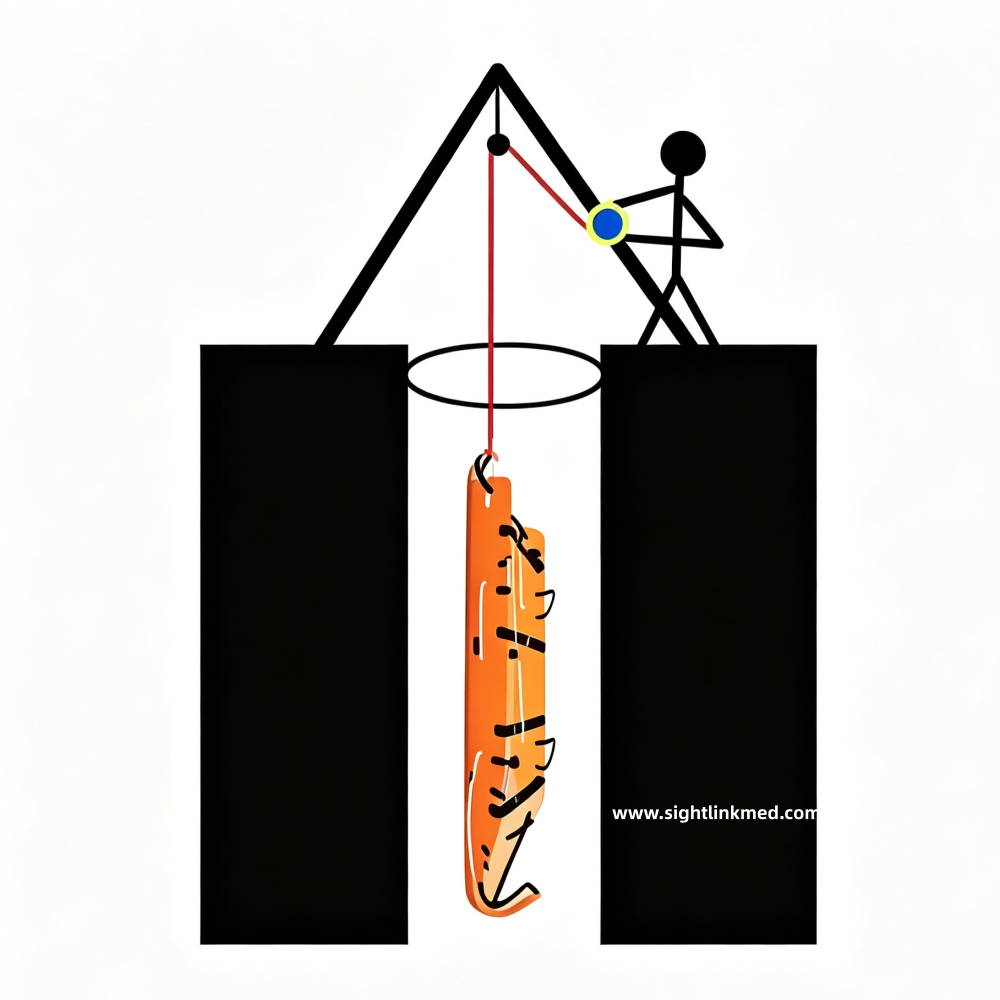

    Can be used for fire emergency rescue, deep well and narrow space rescue, ground general rescue, high-altitude rescue, chemical accident scene rescue, etc.

    • Cautions:
    1. when transporting patients, the safety belt is buckled to ensure safety.
    2. If the stretcher surface is damaged, please replace it in time
    • Maintenance:
    1. Always keep it neat and clean (including disinfection).
    2. frequently check the plastic buckles on the straps for fractures and breaks.
    3. Check frequently for loose parts and broken stretcher surfaces.
    • Storage and transportation requirements:
    1. This stretcher should be stored in a moisture-proof and non-corrosive environment.
    2. It can be transported by normal means of transportation.
    • Box Accessories:
    1. This stretcher is packed in carton whole machine.
    2. Accessories: certificate of conformity, manual.



    Model Open Size Fold Size Packing  Size Loading N.W. G.W.
    YJK-F5 252*87*0.5CM / 91.5*36*36.5CM ≤159KG 10.4KG 12.3KG
