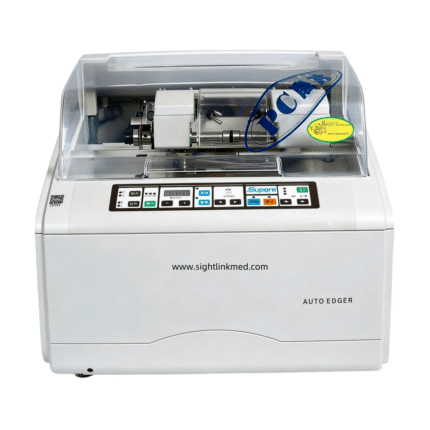

High Speed Auto Lens Edger Cutting Machine for PC CR Glass Lenses Auto Lens Edger Wholesale
Added the automatic emendation system in this new model.It can do automatic emendation when the machine start up,assure the size of lens(left and right) is uniform and improve the precision.
Description
1. Operation panel
Using push-button control panel, you can click icon selection process lens, simple and convenient.
2. Wheel Configuration
Standard configuration of four wheels（Resin coarse grinding wheel/ Glass coarse grinding wheel, V-flat edge / sharp edges fine grinding wheel, flat resin edge / sharp edges polished wheels.
3. Follow-up pressure
It can increase the pressure automatically through the control of procedure during the start of the grinding which can ensure that no harm to the lens.
4. Sharp edge polishing
Sharp edges polished to increase functionality, more refined lens grinding sharp edges.
Additional information
| Size of Diamond wheel |
PC Wheel: 100*17 Glass Wheel:155*14 |
|---|---|
| Available lens range |
22mm-75mm |
| Processing type |
pointy edges, platband, bevel polishing |
| Lens material |
CR, Glass, PC |
| Size |
530L*500W*400H |
| Weight |
50KG |
| Voltage |
Voltage: 220v ±10% frequently：50 HZ |
| Power |
500W |
