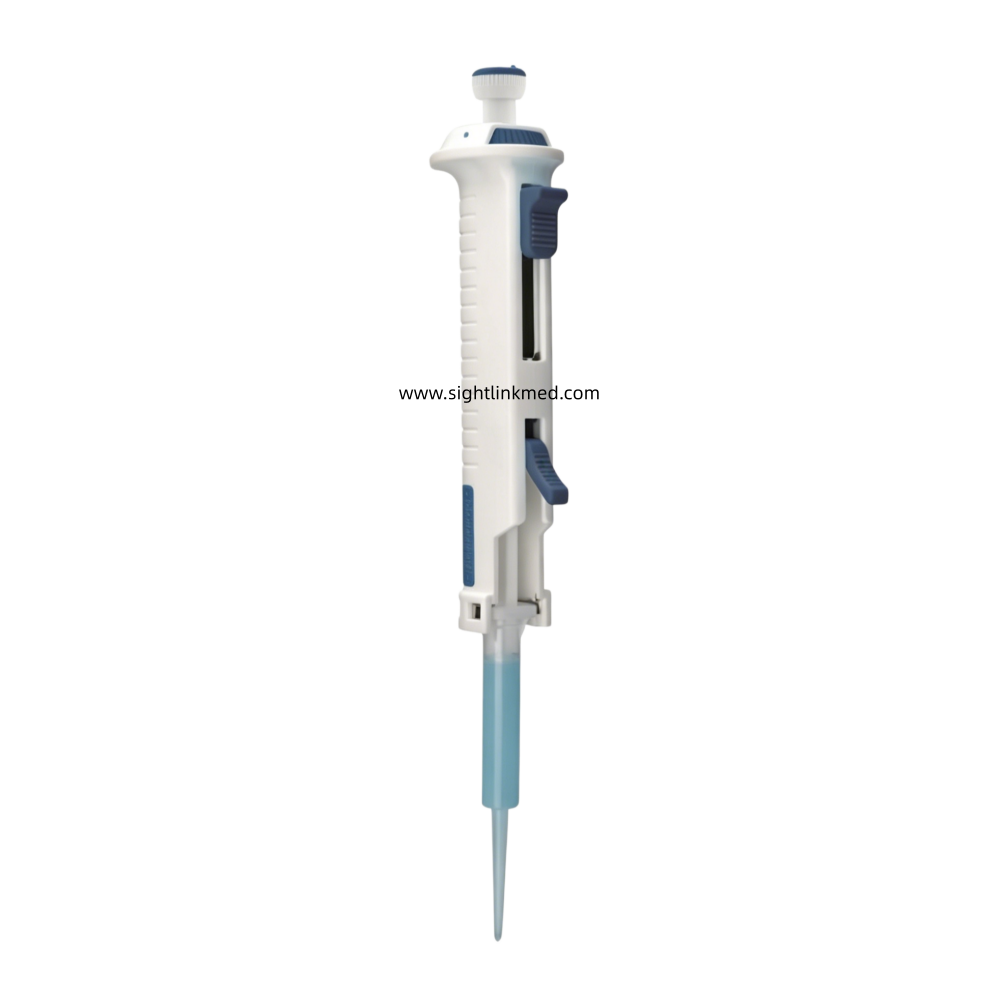

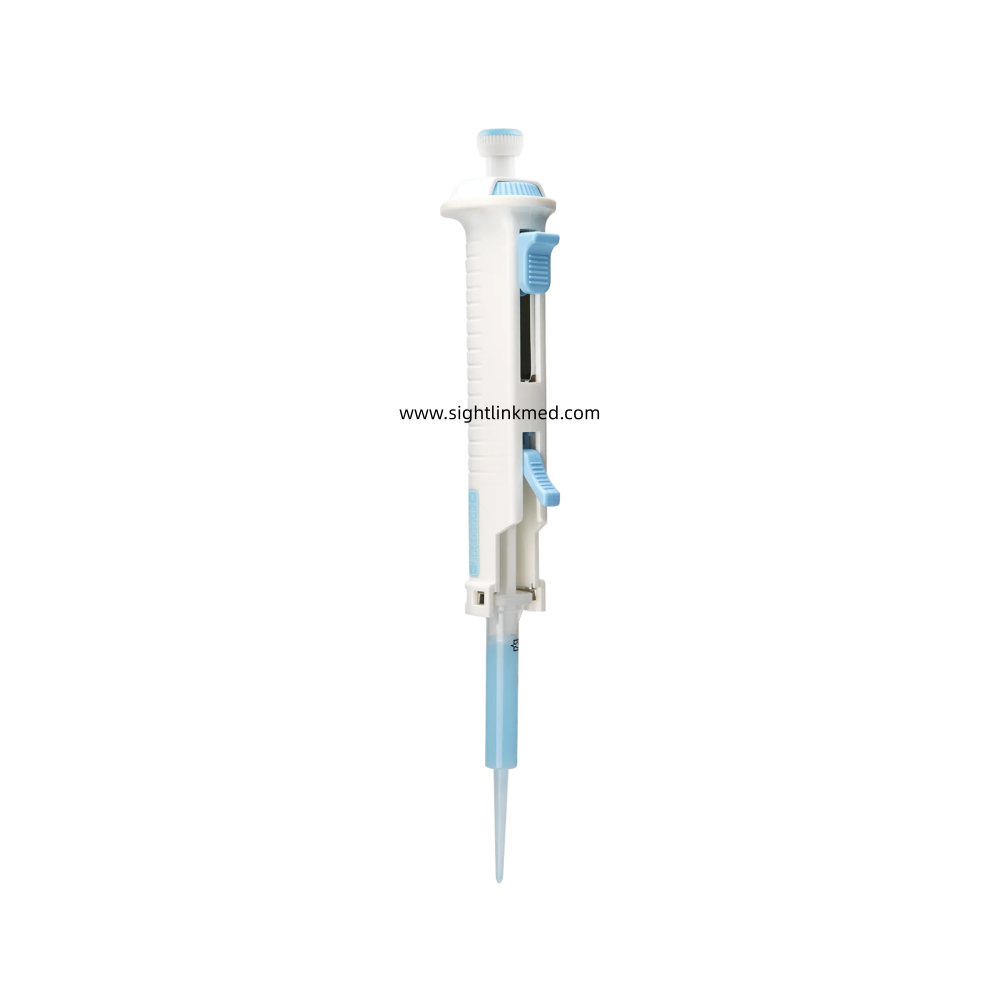

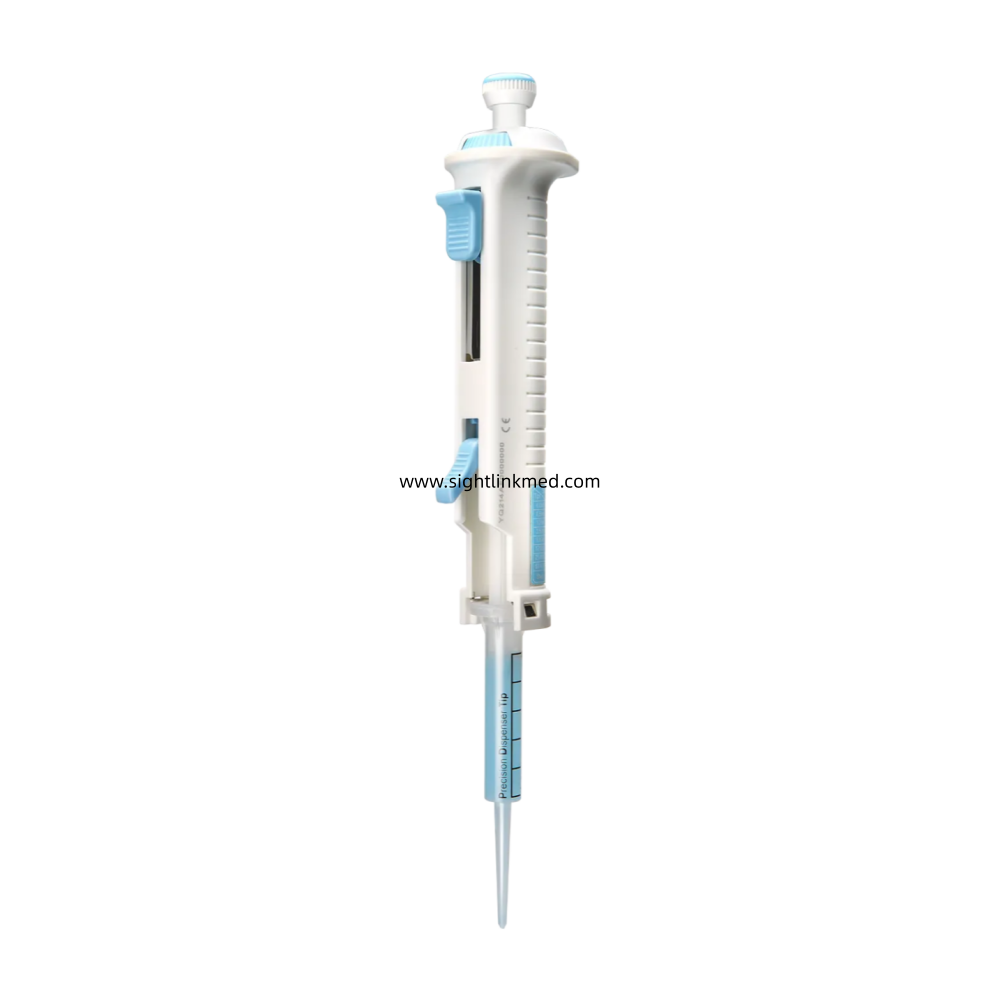

High Quality Continuous Liquid Dispensing Lab Pipettes with Stepper Plastic Design Efficient for Laboratory Use
Positive-displacement, continuously adjustable, repetitive dispenser. Ideal for any application requiring repetitive dispensing in the clinical, biological, chemical, food and beverage, pharmaceutical industry.
Features:
💎Slim, light and robust
💎Wide dispensing volume from 10μL to 5mL
💎Up to 48 dispensing steps in succession
💎Equipped with durable dispenser tip stop lever
💎Fits different sizes of disposable polypropylene dispenser tips from 0.5mL to 50Ml
Precision Dispenser Tip
💎Dispenser tips are convenient for viscous or foaming solutions, volatile liquids and applications where repetitive dispensing of volumes in long series is required.
💎The dispenser tips are made from high quality materials without soft lubricants or other additives.
How to select dispensing volume
💎Find the required dispensing volume in the table.
💎Use the volume selection dial to set the required volume.
💎Select and insert a suitable dispenser tip.
💎Follow the maximum dispensing steps as stated.
| Dial setting | 1 | 2 | 3 | 4 | 5 | ||||
| Number of steps | 48 | 23 | 15 | 11 | 8 | ||||
| Cat. No. | dispenser tip volume | Dispensing volume per step | Systematic Error | Random Error | Description | ||||
| mL | μL | μL | μL | μL | μL | % | % | ||
| 17900032 | 0.50 | 10 | 20 | 30 | 40 | 50 | ± 0.8 | ≤ 0.7 | 0.5mL, piston PE-HD, cylinder PP, 1 packing, 5 pcs/packing |
| 17900033 | 1.25 | 25 | 50 | 75 | 100 | 125 | ± 0.8 | ≤ 0.5 | 1.25mL, piston PE-HD, cylinder PP, 1 packing, 5 pcs/packing |
| 17900034 | 2.50 | 50 | 100 | 150 | 200 | 250 | ± 0.8 | ≤ 0.4 | 2.5mL, piston PE-HD, cylinder PP, 1 packing, 5 pcs/packing |
| 17900035 | 5.00 | 100 | 200 | 300 | 400 | 500 | ± 0.4 | ≤ 0.3 | 5mL, piston PE-HD, cylinder PP, 1 packing, 5 pcs/packing |
| 17900036 | 12.50 | 250 | 500 | 750 | 1000 | 1250 | ± 0.3 | ≤ 0.3 | 12.5mL, piston PE-HD, cylinder PP, 1 packing, 5 pcs/packing |
| 17900037 | 25.00 | 500 | 1000 | 1500 | 2000 | 2500 | ± 0.2 | ≤ 0.3 | 25mL, piston PE-HD, cylinder PP, 1 packing, 2pcs/packing with 1 pc adapter |
| 17900038 | 50.00 | 1000 | 2000 | 3000 | 4000 | 5000 | ± 0.2 | ≤ 0.2 | 50mL, piston PE-HD, cylinder PP, 1 packing, 2pcs/packing with 1 pc adapter |
