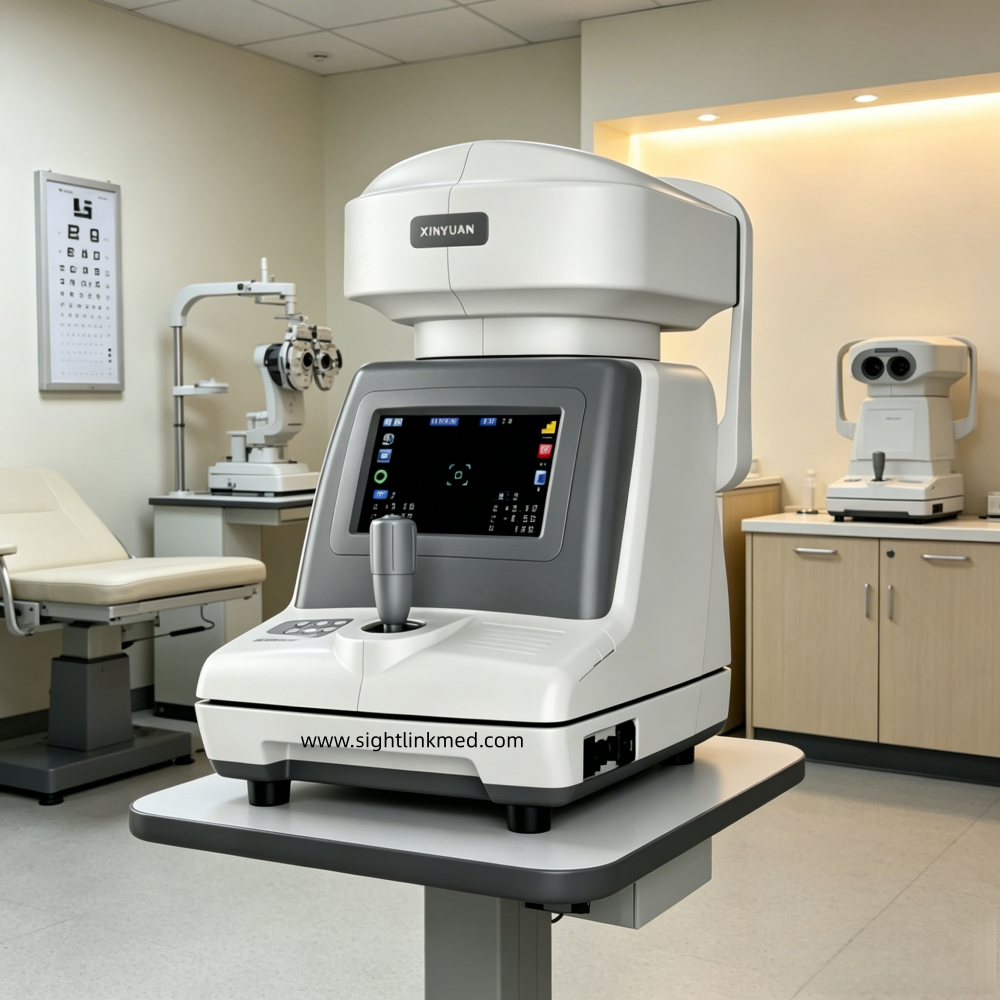

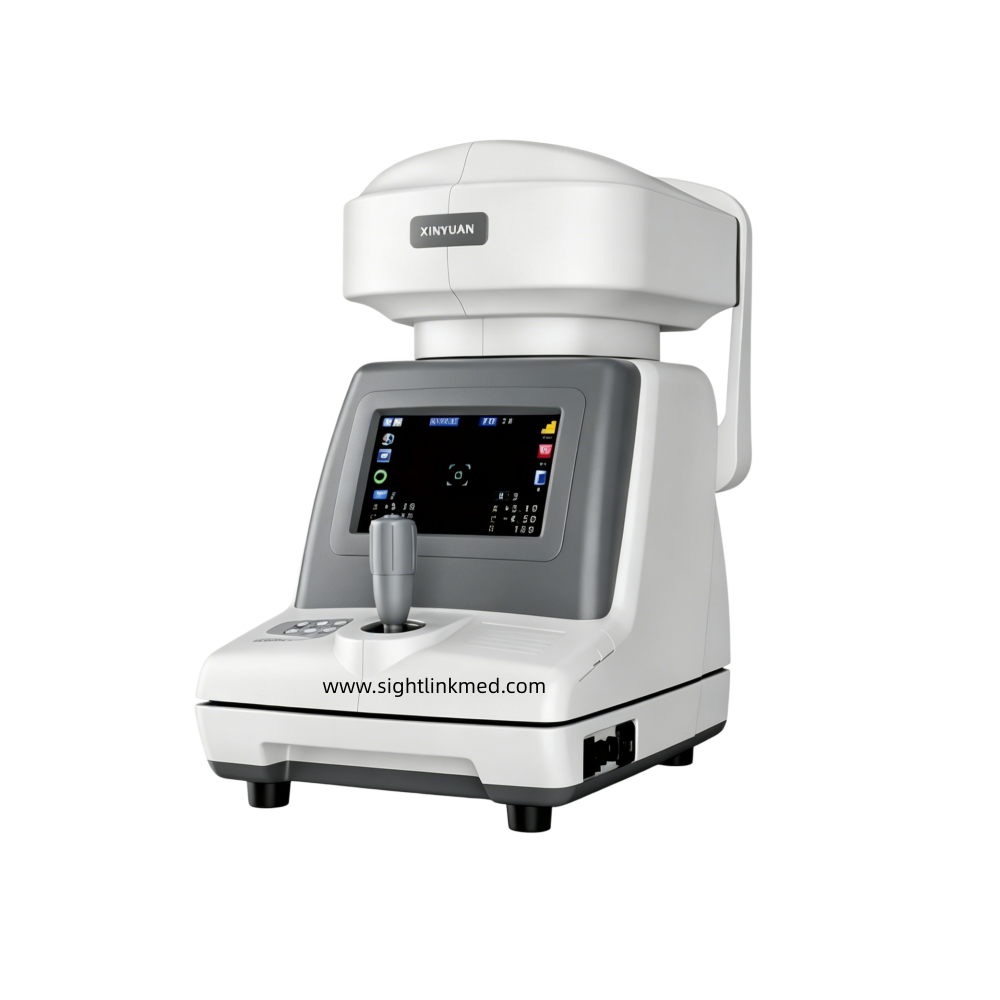

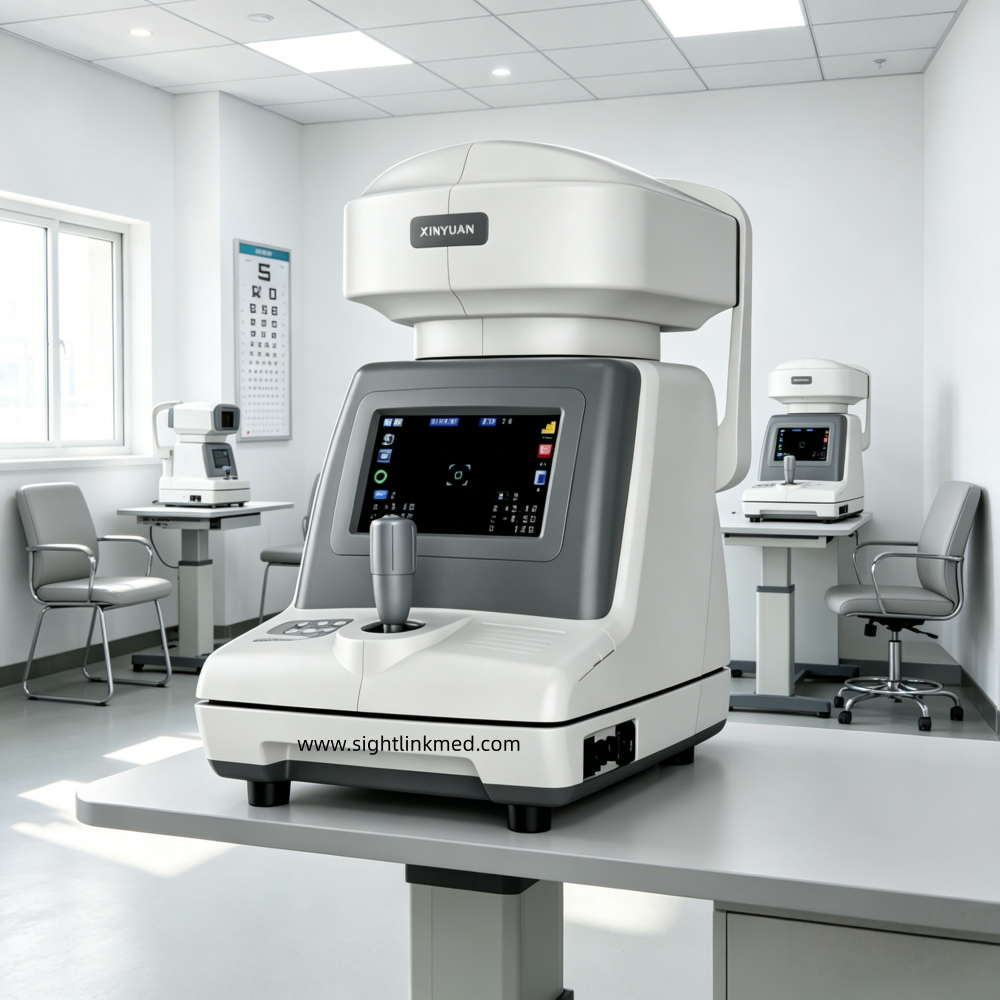

High Performance Automatic Refractometer Ophthalmic Optometry Machine Auto Refractometer
This Auto Ref-Keratometer represents the latest technology for auto refractometer with keratometer.The function of quick measurement down to a pupil size of 2.0mm enhances the accuracy and testing precision.
Description
Features:
New design of colorful screen (7″ TFT LCD)
Accurate, reliable measurements
More faster and stable
Refractive and keratometric measurements through pupils as small as 2mm
Easy operation, one-hand control, convenient user menu setting
Auto alignment
Auto measurement
Build-in micro process and quick guaphic process.
|
Refractometer
|
||||
|
Vertex distance
|
0mm,12mm,13.75mm
|
|||
|
Spherical
|
-20~+20m ‘(vD=12) 0.12/0.25m ‘ Step
|
|||
|
Cylinder
|
-8~+8m’ 0.12/0.25m ‘ Step
|
|||
|
Axis
|
0~180° 1° Step
|
|||
|
Cylinder form
|
-,+,±
|
|||
|
Pupil distance
|
45~88mm, 1mm Step
|
|||
|
Min.pupil size
|
2.0mm
|
|||
|
Keratometry
|
||||
|
Radius of curvature
|
5.0~10mm(increment
|
|||
|
Corneal power
|
33.75~67.50m ‘(when corner equivalent refractive index is 1.337) (increment selectable from 0.12,0.25m)
|
|||
|
Corneal astigmatism
|
0.0~8.00m’ (increment selectable from 0.12,0.25m’)
|
|||
|
Axis
|
1~180° (increment:1°)
|
|||
|
Corneal diameter
|
2.0~14.0mm(increment:0.1mm)
|
|||
|
Others
|
||||
|
Chart
|
Auto Fog
|
|||
|
Memory of data
|
10 measure value for each right and left eye
|
|||
|
Display
|
7″LCD/T
|
|||
|
Print
|
Thermal printer
|
|||
|
Power supply
|
220V±10% 50Hz 60VA
|
|||
|
Dimension
|
540(L) X280 (w) X509 (H) mm | |||
|
Weight
|
Approx 22kg (48 lb)
|
|||
