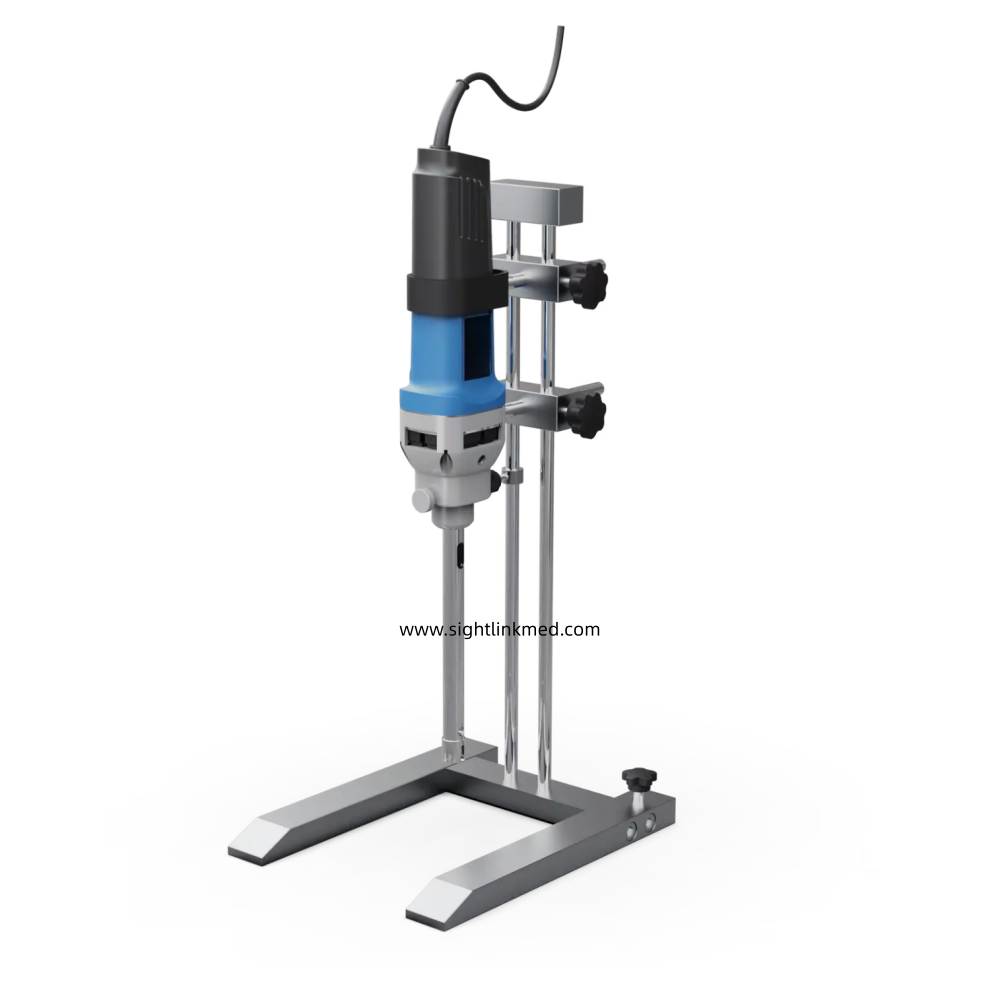

D-500 High Speed Dispersing Homogenizer Laboratory 10000~30000rpm Mixer Homogenizer

Widely applied for histocyte lysis, cell homogenization, emulsion, nanometer scale dispersion process in biology, pharmaceutical, genetic and pathology study, diary product or fruit  homogenization, polymerization reaction, production of fragrance, cosmetics, textile auxiliary, food, ink, paints, asphalt, fine chemicals, agricultural chemicals, and analysis in mineral exploration, environmental protection and energy resource exploration.

    Features

    💎High quality 316L stainless steel with corrosion and autoclave resistance

    💎Rotor with simple design can be dismounted, cleaned, and sterilized conveniently

    💎6 speed levels

    💎Applicable for sample with viscosity up to 10000mPa·s

    💎Replaceable rotors and stators sharing the same shaft, cost-effective

    💎Automatic overload protection mechanism maximizes the working life of motor.

    💎Smooth motor start, stable acceleration without spillage risk

    💎Routine homogenization, emulsion, depolymerization, dispersion application

    💎Disperse substance to form suspension and emulsion

    💎Disperse pigment and resin

    💎Disperse animal or human tissue into various solution

    💎Facilitate the dissolve of solid substances

    💎Sample preparation for quality control test

    💎Animal or plant cell lysis

    💎Emulsion, cream cosmetics, and food formulation study

    💎Extraction of active pharmaceutical ingredient from pills and tablets

    Applications

    Widely applied for histocyte lysis, cell homogenization, emulsion, nanometer scale dispersion process in biology, pharmaceutical, genetic and pathology study, diary product or fruit  homogenization, polymerization reaction, production of fragrance, cosmetics, textile auxiliary, food, ink, paints, asphalt, fine chemicals, agricultural chemicals, and analysis in mineral exploration, environmental protection and energy resource exploration.

    Technical Parameter:

    Specifications D-500
    Speed range 10000-30000rpm
    Max linear velocity 22.7-36m/sec
    Speed Level 6 stage
    Working volume 10-40000mL
    Max. viscosity 10000mPa·s
    Material of dispersing shaft SS 316L stainless steel, PTFE
    Noise Level 79dB(A)
    Protection class IP20
    Voltage, frequency 110-120V/60Hz, 220-240V/50-60Hz
    Power 500W
    Motor type AC carbon brush motor
    Dimension [WxDxH] 75x75x280mm
    Weight 1.7kg
    Permissible ambient temperature and humidity 0-40°C, 85%RH
