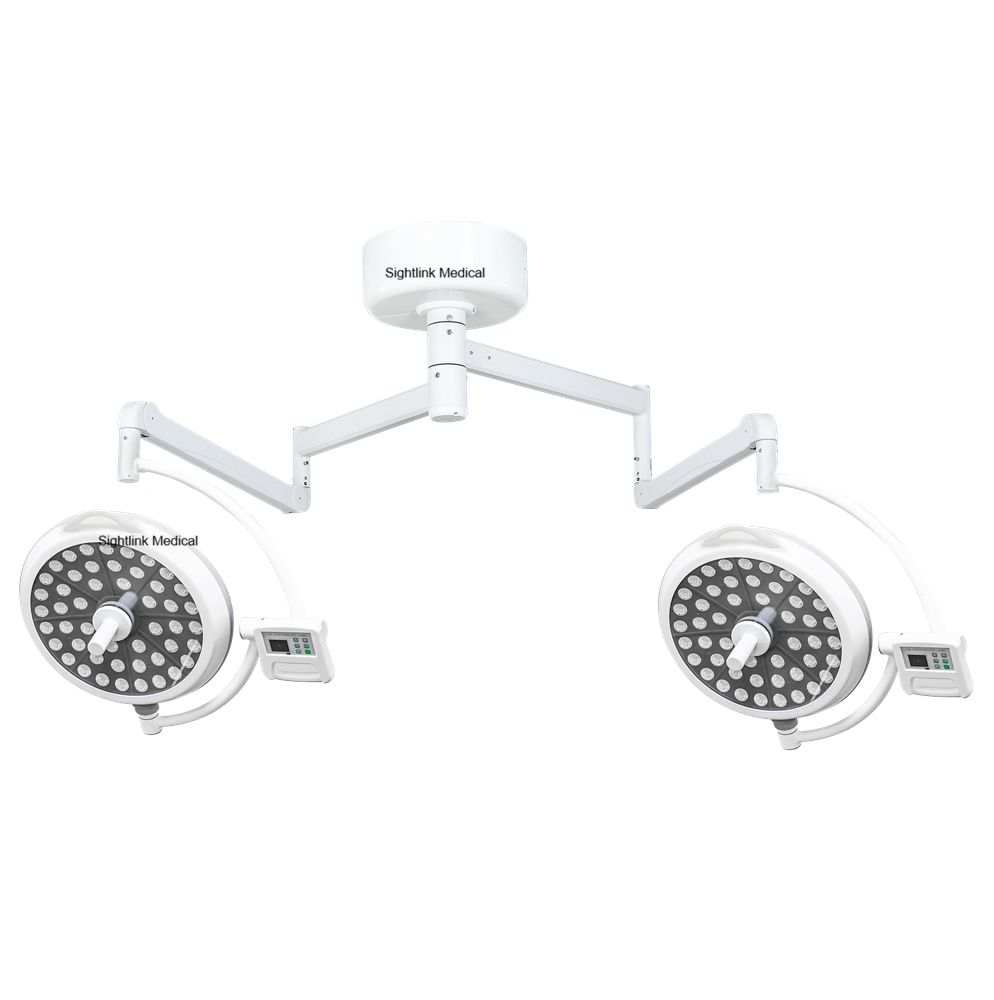

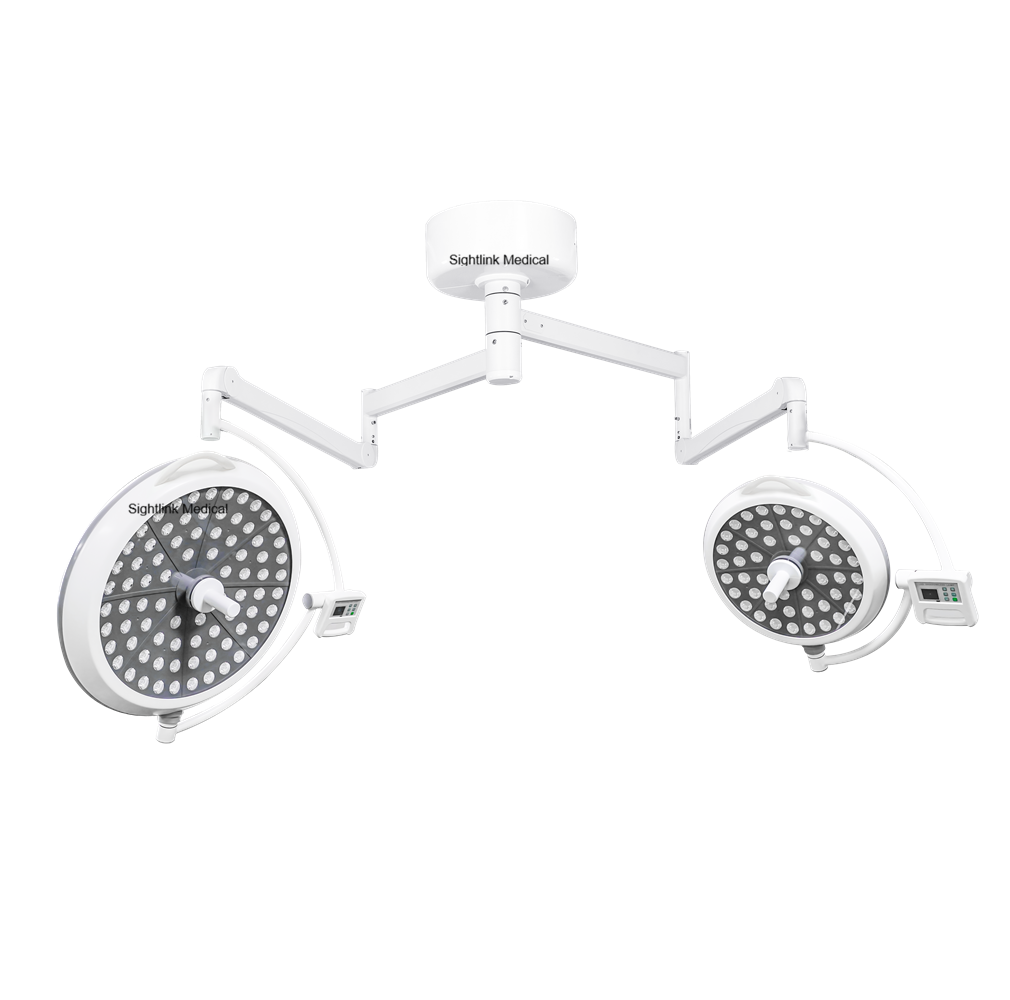

Ceiling Mount 700/500LED Operation Light Medical LED Surgical Shadowless Surgical Lamp for Hospital Lighting

Ceiling Mount LED Surgical Shadowless Surgical Lamp: Using a new type of LED cold light source, the service life can reach more than 80,000 hours, no need to replace the bulb. There is no ultraviolet and infrared rays in the spectrum, no heating up, and the circular lamp head design follows the principle of shadowless light. The light is irradiated evenly at 360°, and the beam is more concentrated.

    Real cold light source
    Using a new type of LED cold light source, the service life can reach more than 80,000 hours, no need to replace the bulb. There is no ultraviolet and infrared rays in the spectrum, no heating up, and the circular lamp head design follows the principle of shadowless light. The light is irradiated evenly at 360°, and the beam is more concentrated.

    Universal suspension system
    The balance arm adopts imported spring components, which is light in structure, easy to control, precise in positioning, and can provide the largest adjustment range in space.

    Detachable handle
    Imported high-end medical-grade PPSU material is used for push-and-pull operation, which is convenient and convenient, and can be sterilized at high temperature (up to 160°C) to meet the aseptic requirements of the operating room.

    Humanized interface design
    The brightness of the lighting can be changed according to the needs of the hospital for different surgical lighting. A new type of LED touch LCD control panel can be selected to realize the switch of lighting and the adjustment of contrast, color temperature and brightness mode.

    Product advantages:

    (1) Excellent cold light effect:

    A new type of LED cold light source is used as the surgical lighting, which is a real cold light
    source, and there is almost no temperature rise in the doctor’s head and wound area.

    (2) Good light quality:

    White LEDs have chromaticity characteristics that are different from shadowless light sources used in ordinary operations. They can increase the color difference between blood and other tissues and organs of the human body, making the doctor’s vision clearer during the operation. It is easier to distinguish the various tissues and organs of the human body in the human body, which is not available in the shadowless lamp for general surgery.

    (3) Stepless adjustment of brightness: The brightness of the LED is adjusted
    steplessly by digital means, and the operator can adjust the brightness at will according to his own adaptability to the
    brightness, so as to achieve the ideal comfort level, so that the eyes are not easy to feel tired after working for a long time.

    (4) No flicker:

    Because the LED shadowless lamp is powered by pure DC, there is no flicker, it is not easy to cause eye fatigue and will not cause harmonic interference to other equipment in the working area.

    (5) Uniform illuminance:

    Using a special optical system, 360°uniform illumination on the observed object, no ghost image, high definition.

    (6) Long lifespan:

    LED shadowless lamps have a long average lifespan (80 000 h), much longer than ring-shaped energy-saving lamps (1 500-2500 h), and their lifespan is more than ten times that of energy-saving lamps.

    (7) Energy saving and environmental protection:

    LED has high luminous efficiency, impact resistance, not easy to break, no mercury pollution, and the light it emits does not contain radiation pollution of infrared and ultraviolet components.

    Product Description
    * The lampshade shell is made of high-quality aluminum alloy. The surface adopts the high-voltage electrostatic spraying process, and the imported environmentally friendly antibacterial plastic powder that used to ensures that the product meets the requirements of surgical hygiene.
    * Using the original imported LED lamp beads from Osram, Germany, the average service life is as high as 80,000 hours, which is 40 times longer life than halogen lamps.
    * Using a new type of LED cold light source, the illuminance can reach 180,000 Lux, which can realize stepless dimming and non-multi-speed adjustment; the color temperature is in the range of 3700K-5000K, and the stepless dimming is non-multi-step adjustment. While meeting the high illuminance, adjust the lighting parameters according to the needs of different surgeons, so that the surgeon’s perception of light is soft and no glint.
    * Temperature rise (surgical field):≤1℃, this can avoid tissue drying due to high temperature and rapid blood clots at the wound.
    Specification:
    Parameter
    Category
    Diameter of lighthead(mm)
    700/500
    Illumination at 1m(Lux)
    180000/160000
    Brightness control range
    0-100% stepless adjustment
    Color Temperature(Kelvin)
    3700-5000
    Color Rendering Index(CRI)
    ≥95
    Total Irradiance Ee(W/m2)
    ≤600+500
    Bulb Type
    LED
    Average Bulb Life(hours)
    ≥80000
