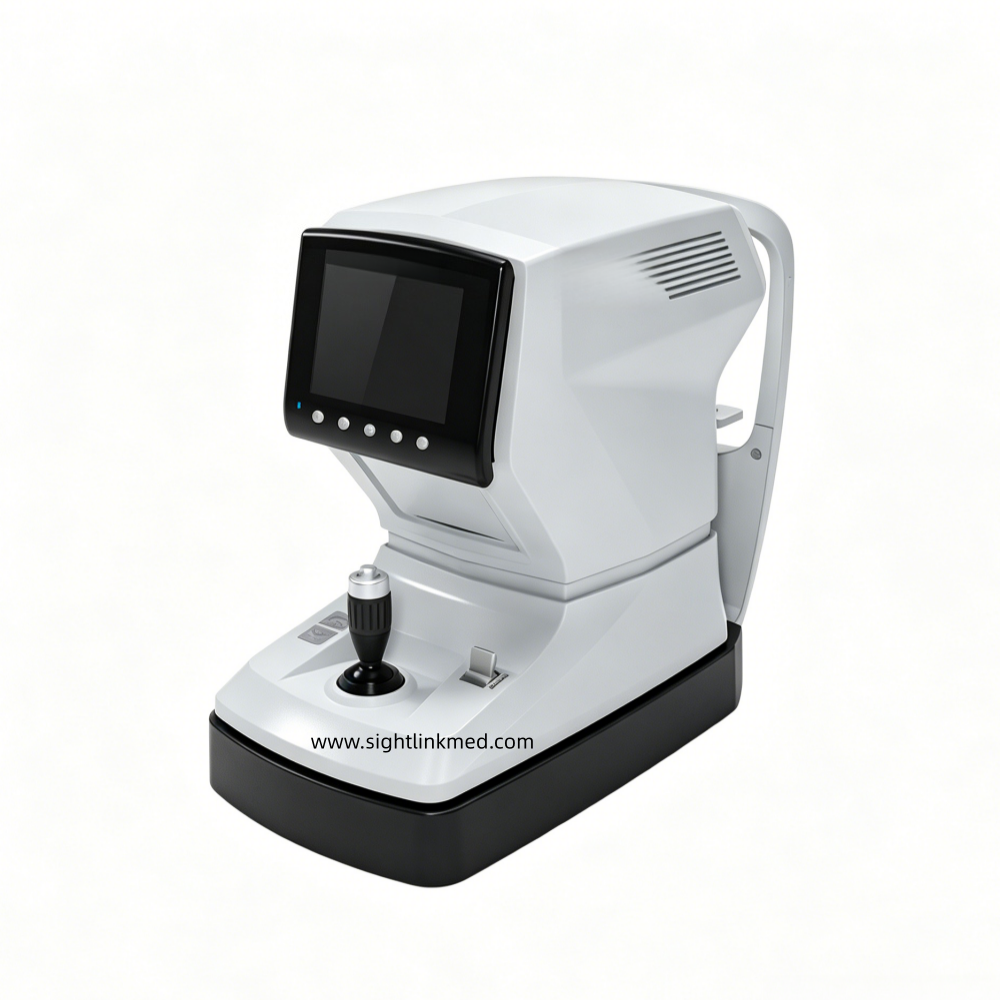

Autorefractor Optical Instrument Optical and Ophthalmic Instrument Auto Refractometer
This Auto Ref-Keratometer represents the latest technology for auto refractometer with keratometer.The function of quick measurement down to a pupil size of 2.0mm enhances the accuracy and testing precision.
Description
Features:
New design of colorful screen (5.6″ TFT LCD)
Accurate, reliable measurements
Refractive and keratometric measurements through pupils as small as 2mm
Easy operation, one-hand control, convenient user menu setting
Auto alignment, Auto measurement
Build-in micro process and quick guaphic process
| Refractometry | Vertex Distance(vd) | 0mm ,10mm,12mm,13.5mm,15mm |
| Spherical Power (SPH) | -25~+22D (VD=12mm) 0.12/ 0.25D Step | |
| Cylinder Power (CYL) | -10D~+10D 0.12/ 0.25D Step | |
| Axial (AX) | 1~180 ° 1° step | |
| Cylinder Form | -, +, +/- | |
| Pupil distance (PD) | 10~85mm | |
| Minimum pupil diameter | Φ2.0mm | |
| Keratometry | Radius of curvature | 5.0 ~10.2 mm (increment: 0.01mm) |
| Corneal Power | 33 ~ 67.50D (increments selectable between 0.12D and 0.25D) | |
| (increment selectable from 0.12, 0.25D) | ||
| Corneal astigmatism | 0.00 ~ -15.00D | |
| Axis | 1~180 ° (increment: 1°) | |
| Corneal diameter | 2.0 ~ 14.0 mm (increment: 0.1mm) | |
| Other | Printer | Thermal printer |
| Saving Settings | 3, 5, 10 Minutes | |
| Display | 5.6-inch color TFT LCD monitor | |
| Power Supply | AC100~240V, 50/60Hz/90W | |
| Dimensions | 248(W) X476 (D) X475 (H) mm·mm·mm | |
| Weight | Approximately 21kg |
