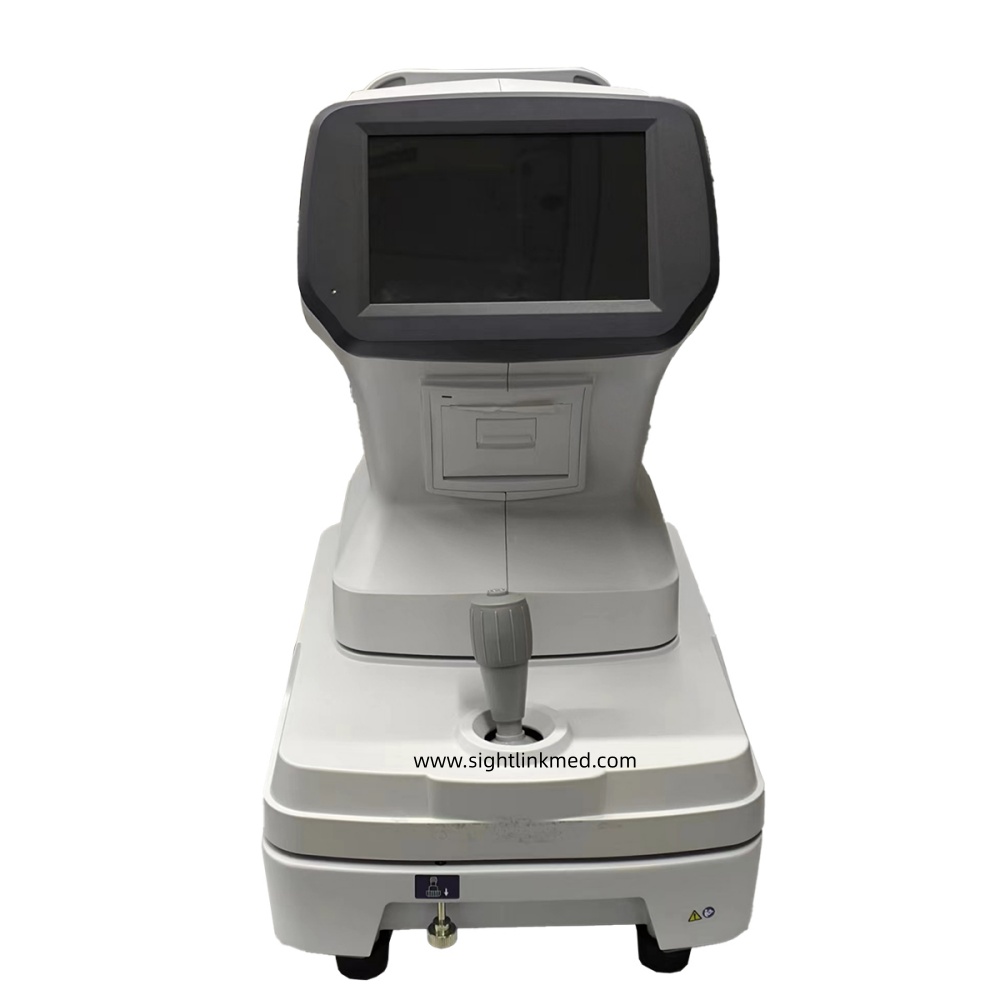

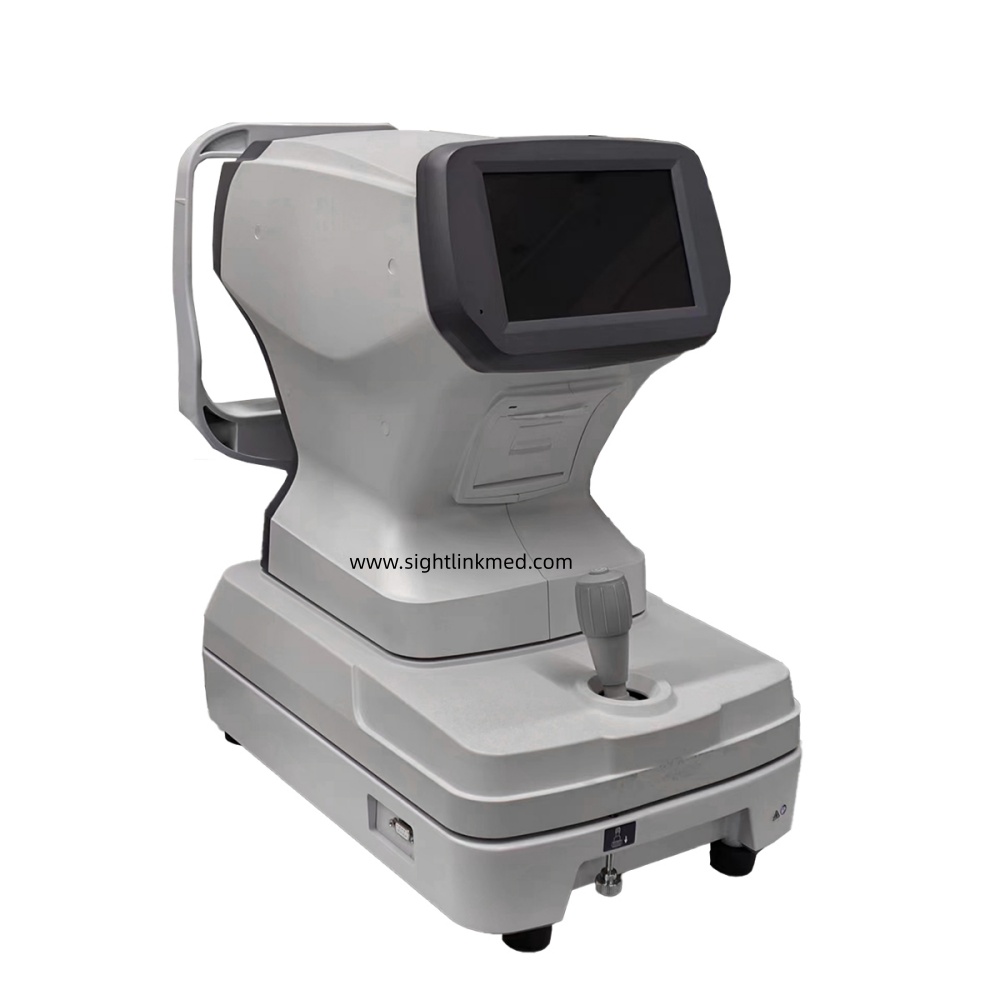

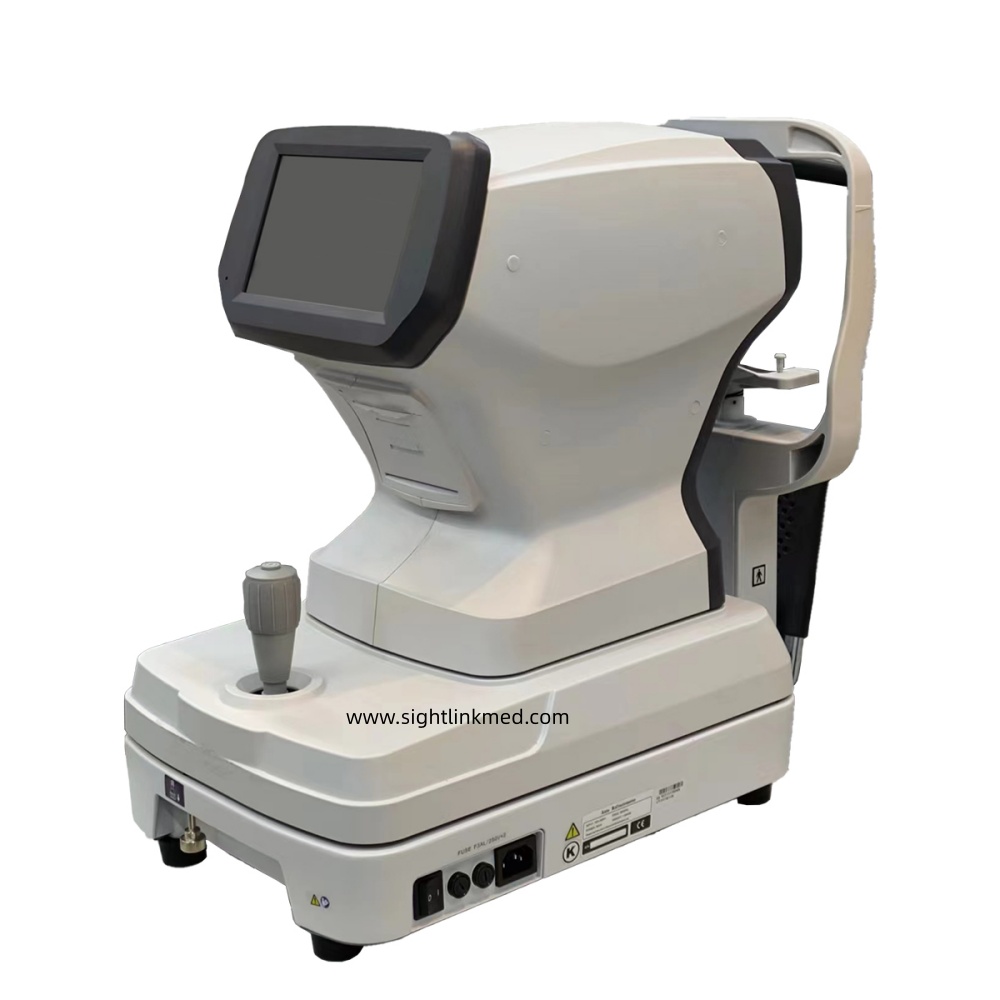

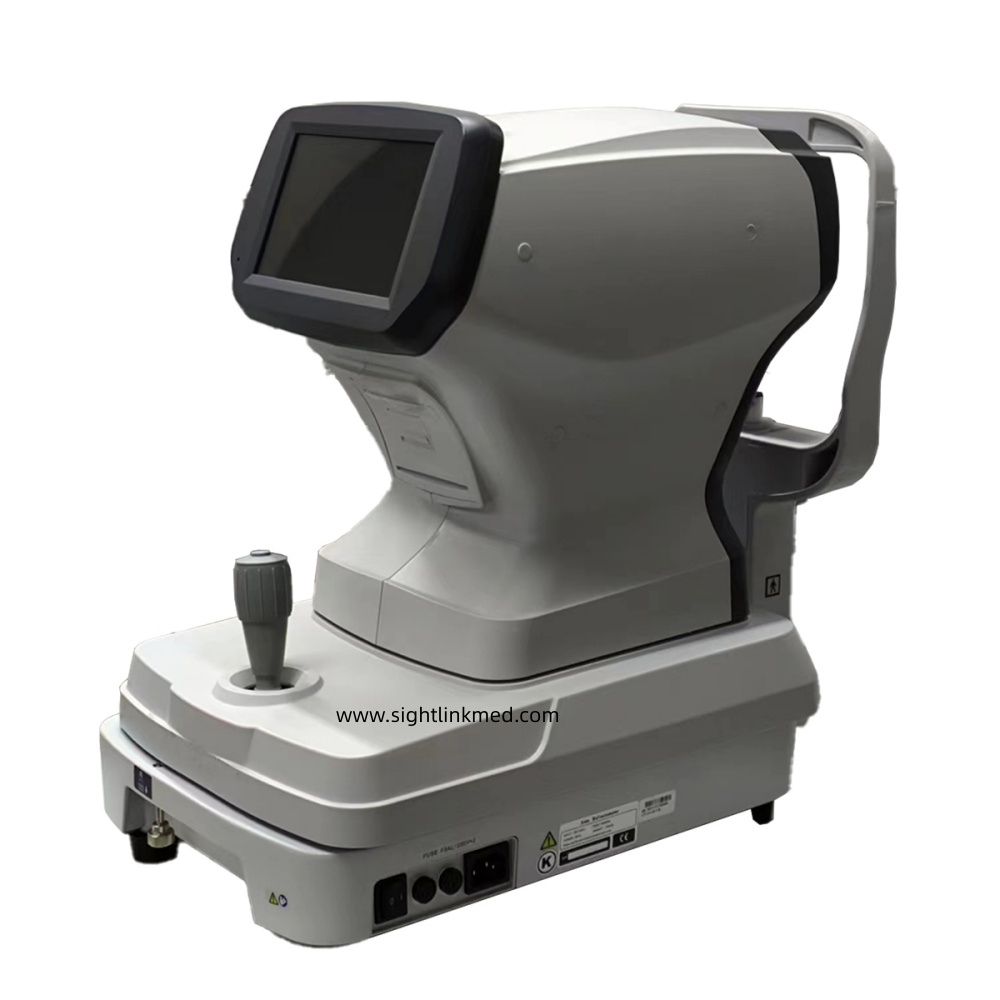

Digital Ophthalmic Equipment Auto Refractometer Optometry Autorefractometer With Keratometer
The Auto Refractometer/Kerato-refractometer is a precisionophthalmic instrument. lt can be used to measure the parameters offarsightedness, nearsightedness, astigmatism, axis, pupil-distanceand cornea curvity for prescription of vision correction.
Description

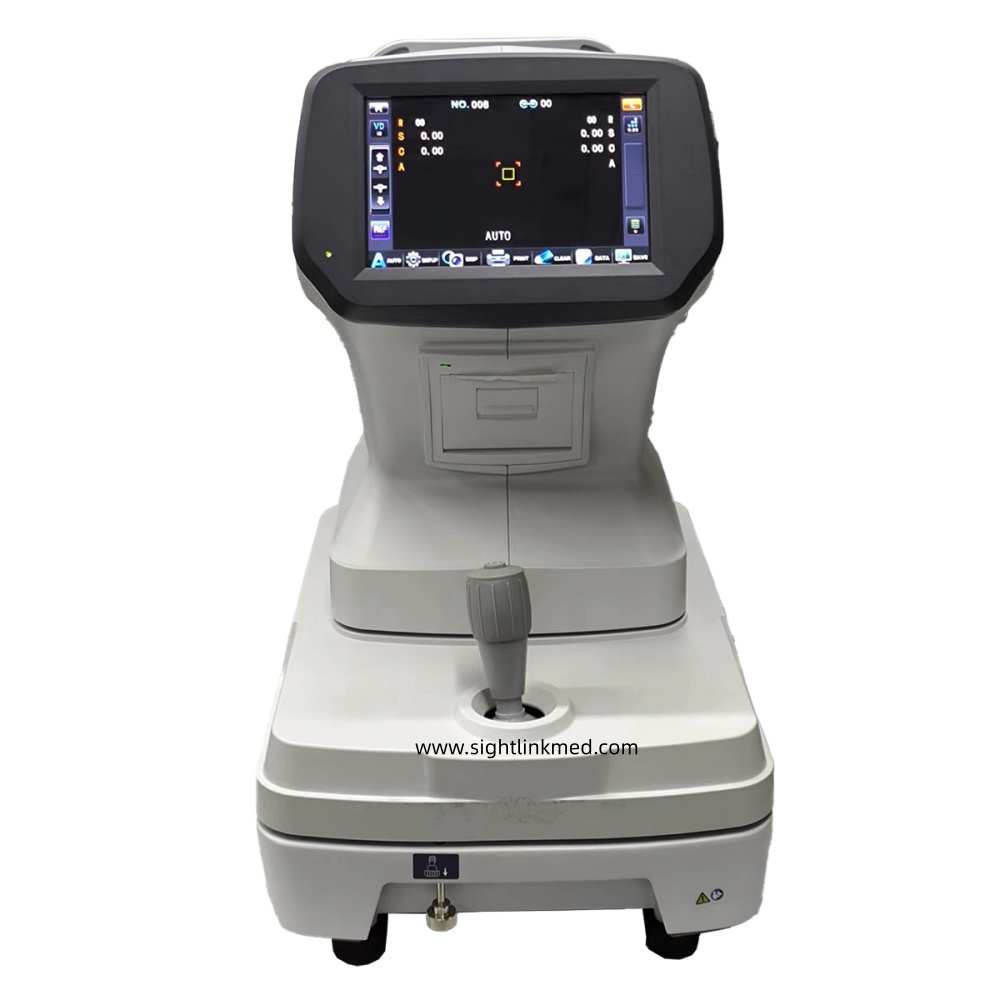

7”TFT LCD monitor
Bigger, better monitor and icon-display menu for easieroperation and setting.
Refractive measurement with Hexagonprism
With high quality of hexagon prism and higly senstiveCCD, it provides unmatched accuracy and reliability.
Auto focus function
Just move, it will automatically focus the eye and get the value.

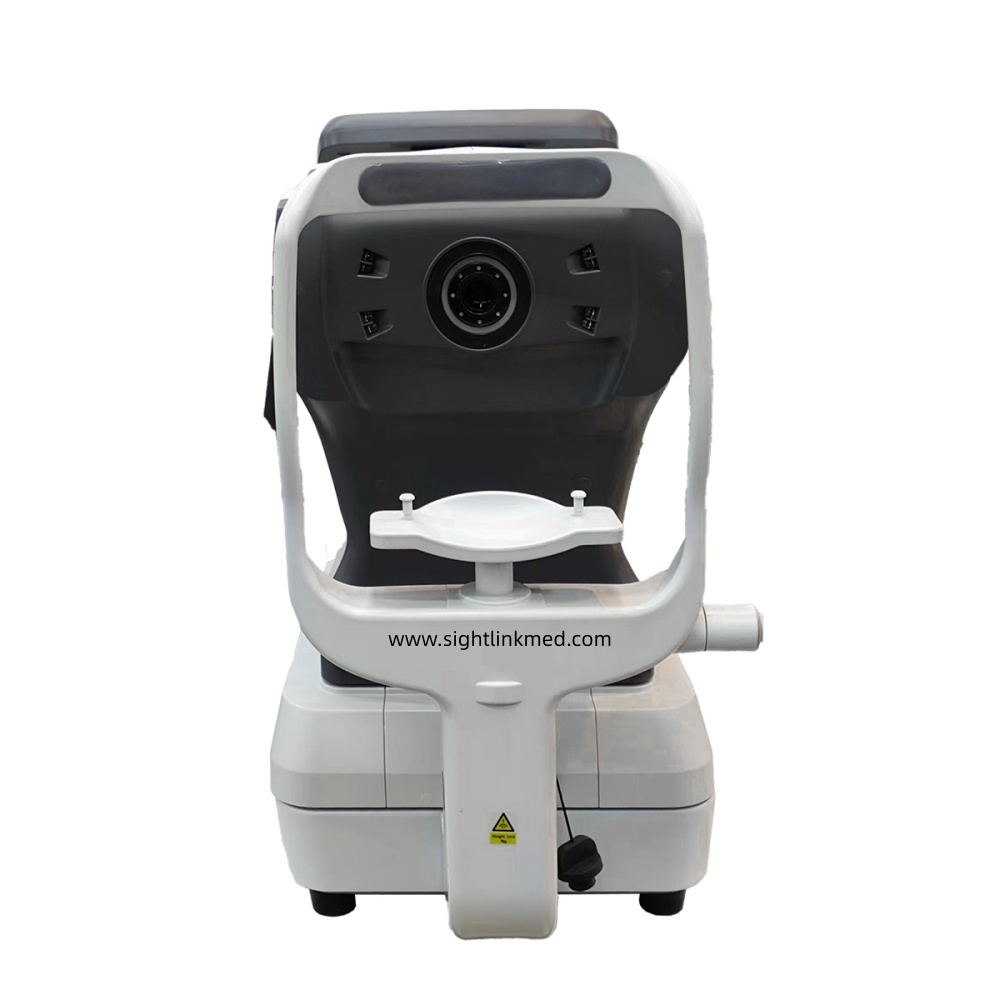

Motorized chinrest
Operator can easily adjust the chinrest with switch located on the operator side and enables speedy reading.
Tilting Screen
Tilting Screen function that allows wide variance of access whether the operator is sitting or standing.
|
Vertex distance
|
0mm,12mm,13.75mm
|
|
Spherical
|
-20~+20m¹(VD=12)0.12/0.25m¹Step
|
|
Cylinder
|
-8~+8m 0.12/0.25m¹ Step
|
|
Axis
|
O~180°10 Step
|
|
Cylinder form
|
-,+,±
|
|
Pupil distance
|
45~88mm,1mm Step
|
|
Min.pupilsize
|
2.0mm
|
|
Keratometry
|
|
|
Radius of curvature
|
5.0-10mm(increment:1mm)
|
|
Corneal power
|
33.75~67.50m¹(when corner equivalent refractive index is 1.337)(increment selectable from 0.12,0.25m¹)
|
|
Corneal astigmatism
|
0.0~8.00m¹(increment selectable from 0.12,0.25m¹)
|
|
Axis
|
1~180°(increment:1°)
|
|
Corneal diameter
|
2.0~14.0mm(increment:0.1mm)
|
|
Others
|
|
|
Chart
|
Follow-up colorful fogging chart system
|
|
Memory of data
|
10 measure value for each right and left eye
|
|
Display
|
7’LCD/TFT
|
|
Print
|
Thermal printer
|
|
Power supply
|
100~240V 50Hz 60VA
|
|
Dimension (W×D×H)
|
514×284×465mm
|
|
Weight
|
~16kg
|
|
Pachage dimension (W×D×H)
|
66×52×66cm
|
|
Pachage weight
|
~21kg
|
|
*Specifications are tentative and subject to change.
|
|
