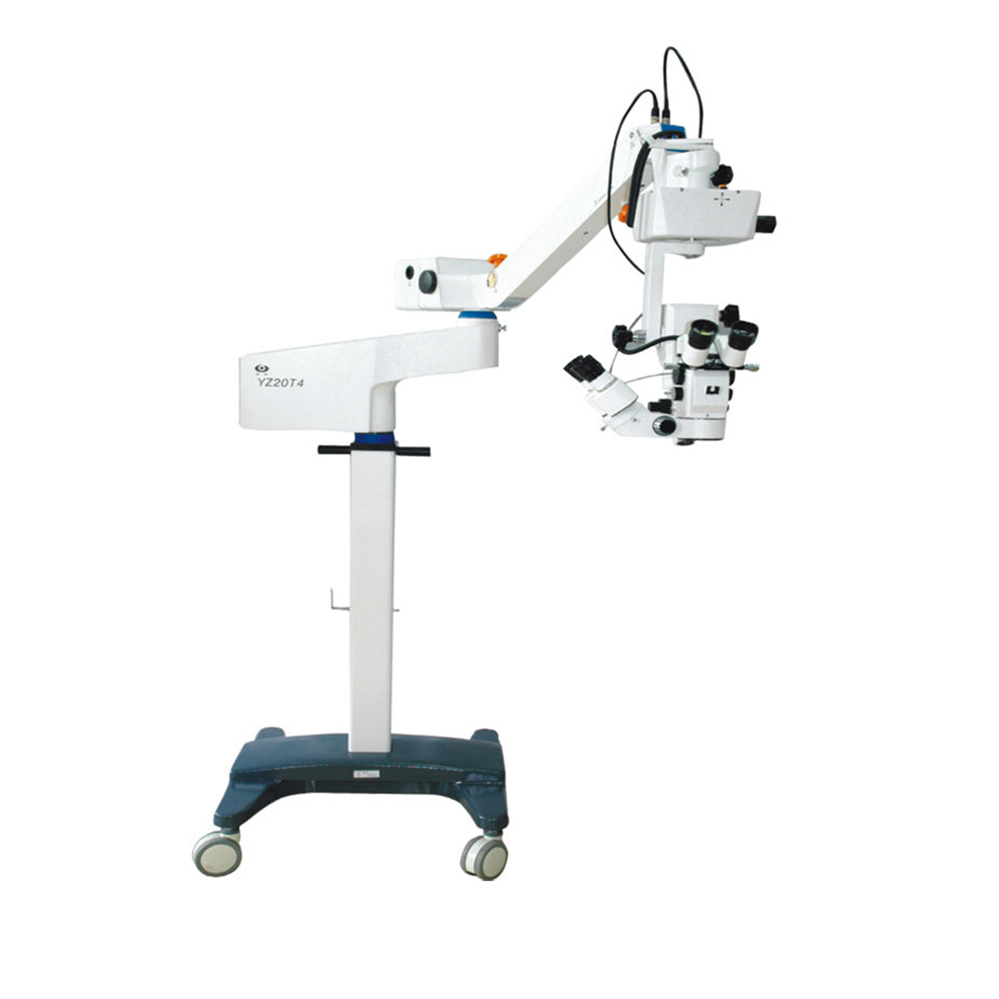

YZ20T4 Professional Ophthalmic Equipment Ophtalmology Eye Medical Instrument Eye Operating Microscope
Model: YZ20T4 FDA and CE marked
This Ophthalmic Surgical Microscope is available for digital by introducing HD Video recording system
The product is a double binocular operation microscope designed for two men. Assistant binocular can also be switched as opponent binocular. It is applicable in ophthalmic surgery and hand surgery.
Description
Operating Microscope for Ophthalmology
| Eyepiece Magnifications | 12.5×/18B |
| Diopter Adjustment | ±7D |
| Pupil Distance | 50mm～75mm |
| Magnifications for Main Microscope | f200: 4X 6X 10X 16X 25X |
| f250: 3.2X 5X 8X 12.8X 20X | |
| f300:2.7X 4.2X 6.7X 11X 17X | |
| Magnifications for Assitant Microscope | f200: 6X 10X 16X |
| f250: 5X 8X 12.8X | |
| f300: 4.2X 6.7X 11X | |
| Maximal Resolution | 112 LP/mm |
| Illumination Source | 12V/100W， Cold Reflection Halogen Bulb for Medical Use |
| Illumination Type | 6°+0°coaxial illumination of cold light source and 25°Oblique Illumination (It can be used as slit illumination) Slit Width is adjustable,and its angle is 360°rotation. |
| Coaxial Illumination | ≥50000lx |
| Oblique Illumination | ≥45000lx |
| Reaching Radius of Arm | 1040mm |
| Adjustable Vertical Range | 850mm～1350mm |
| Fine Focusing Speed and Range | ≤2mm/s，≥50mm |
| Speed for X/Y and Range | ≤2mm/s，50mm×50mm |
| Input Voltage | AC220V±22V/50Hz±1Hz、 AC110V±11V/60Hz±1Hz |
| Power | 330VA |
| Fuse | AC250V T4.0A、AC125V T8.0A |
| Electrical Safety Standard | Executive Standard: GB9706.1-2007、type I |
| Packing Volume | 0.727m3，5cartons |
| Total Weight | 210kg |
